Metal Roofing - Fabrication and installation

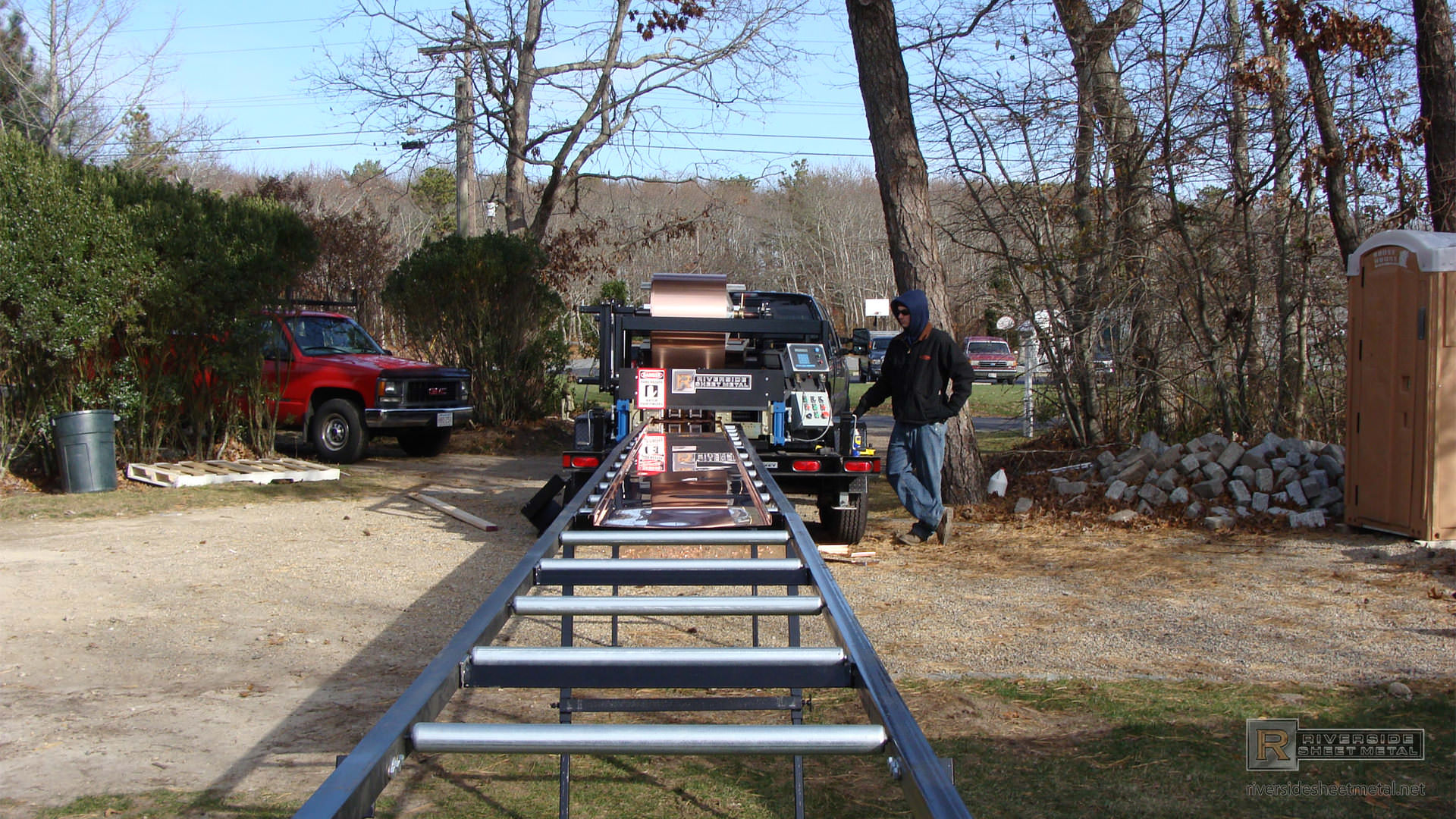

Seamless and custom made panels. Pick up or on site fabrication. Copper, Zinc, Aluminum, Galvalume (steel) and Roofinox.
Metal roofing systems are solar reflective and
recyclable, therefore "Green friendly".
Durability, sustainability and beauty are just a few of the reasons you might choose to build with a metal roofing system. Riverside
Sheet Metal's metal roofing systems offer the best possible protection for your home or commercial building. As a homeowner, you always
look for the best value. With a metal roof from Riverside Sheet Metal, you can always be confident that in addition to increased value of your property,
your metal roofing system will look good for many years.
What we manufacture and install:
Riverside Sheet Metal can manufacture several types of panels to match existing ones, but for seamless lengths, we offer
1", 1.5" and 2" mechanically

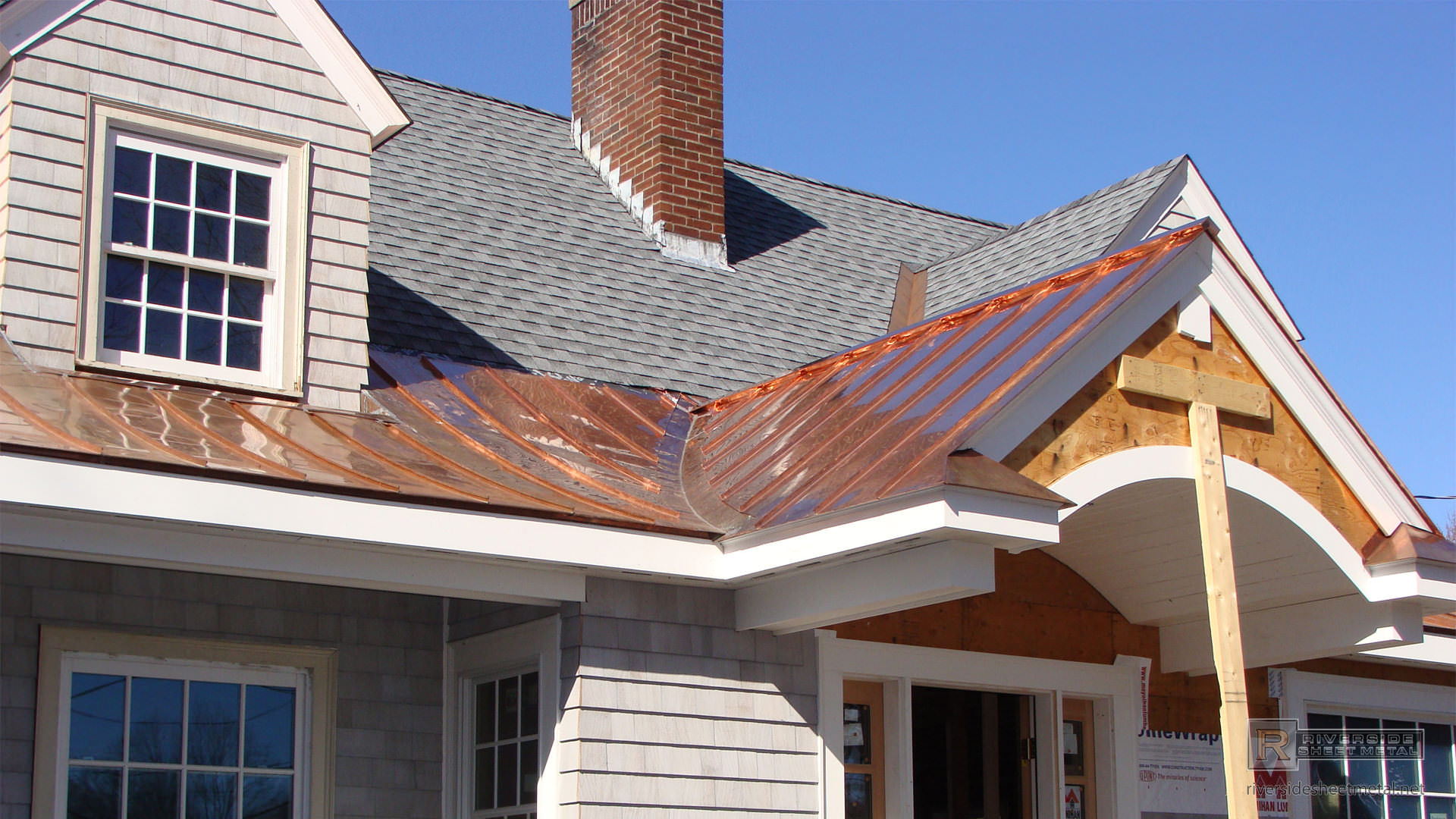

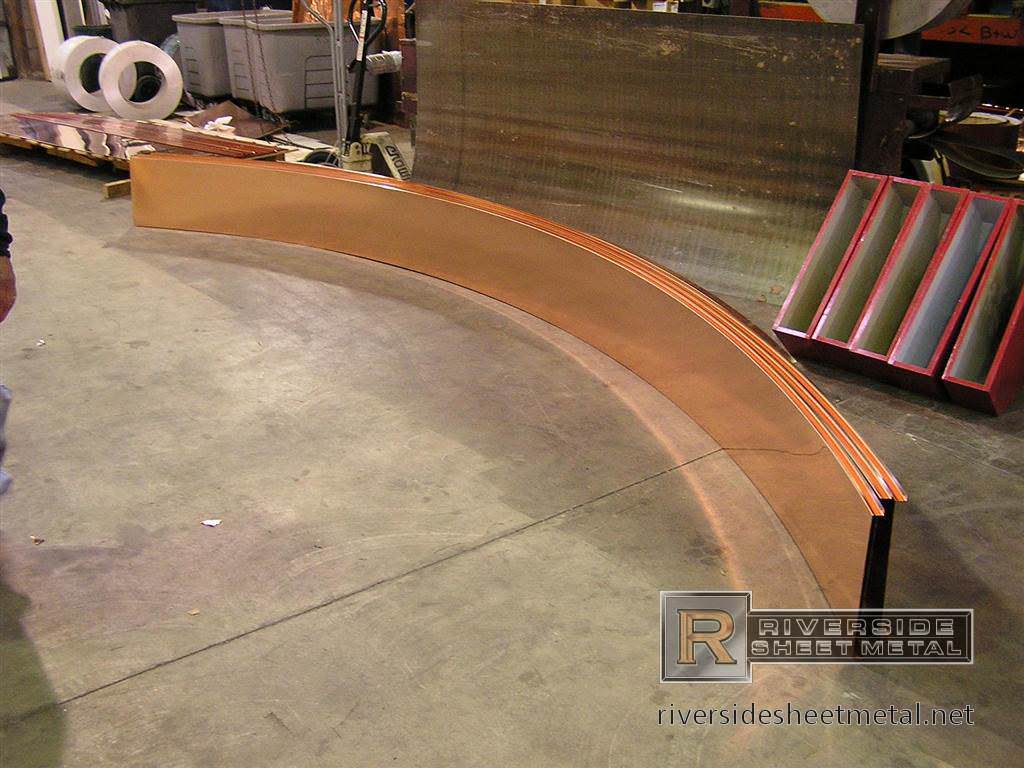

Seamed panels straight or curved. We also offer a
1.75" integral snap lock panel and

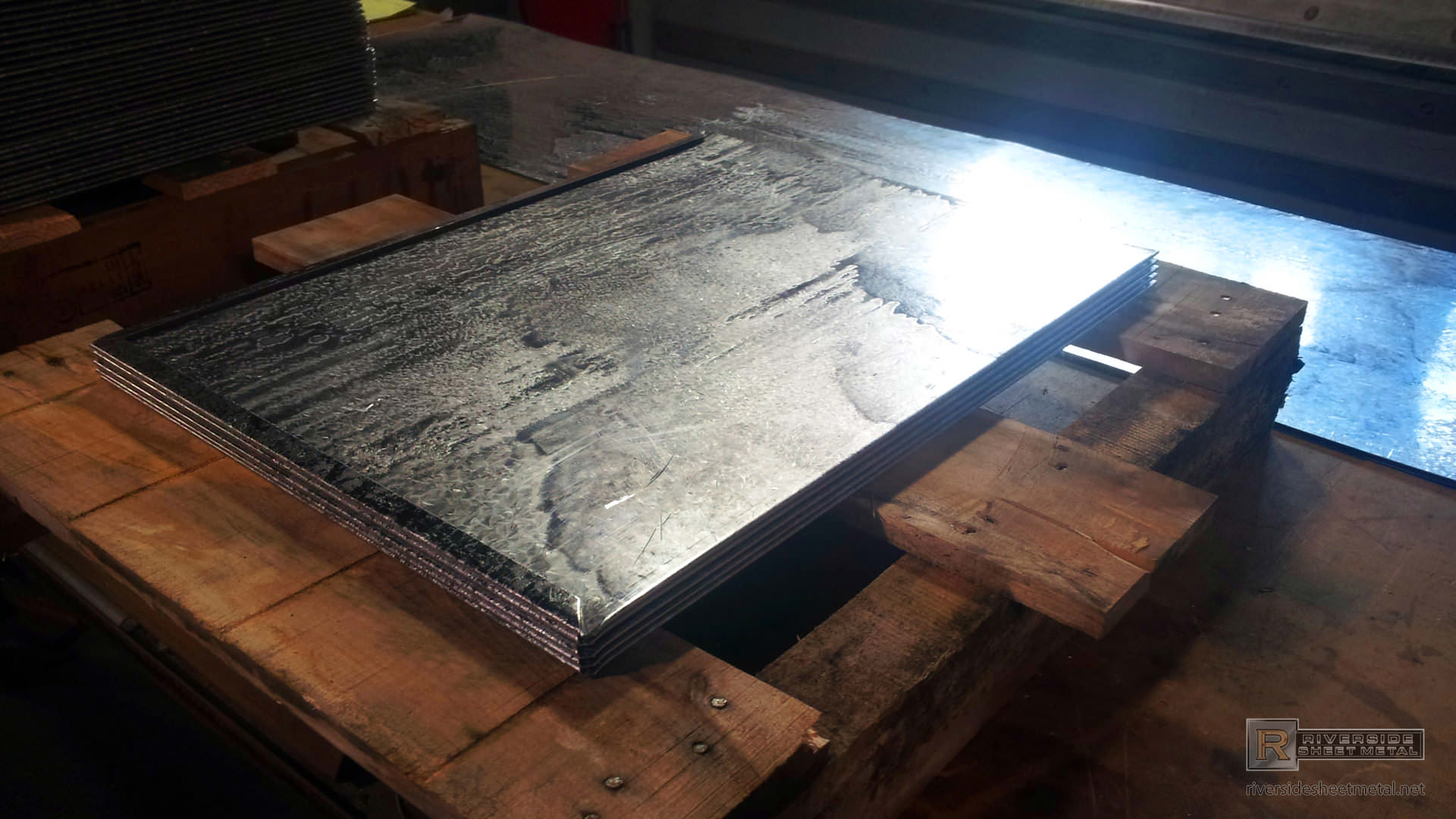

flat locked panels.

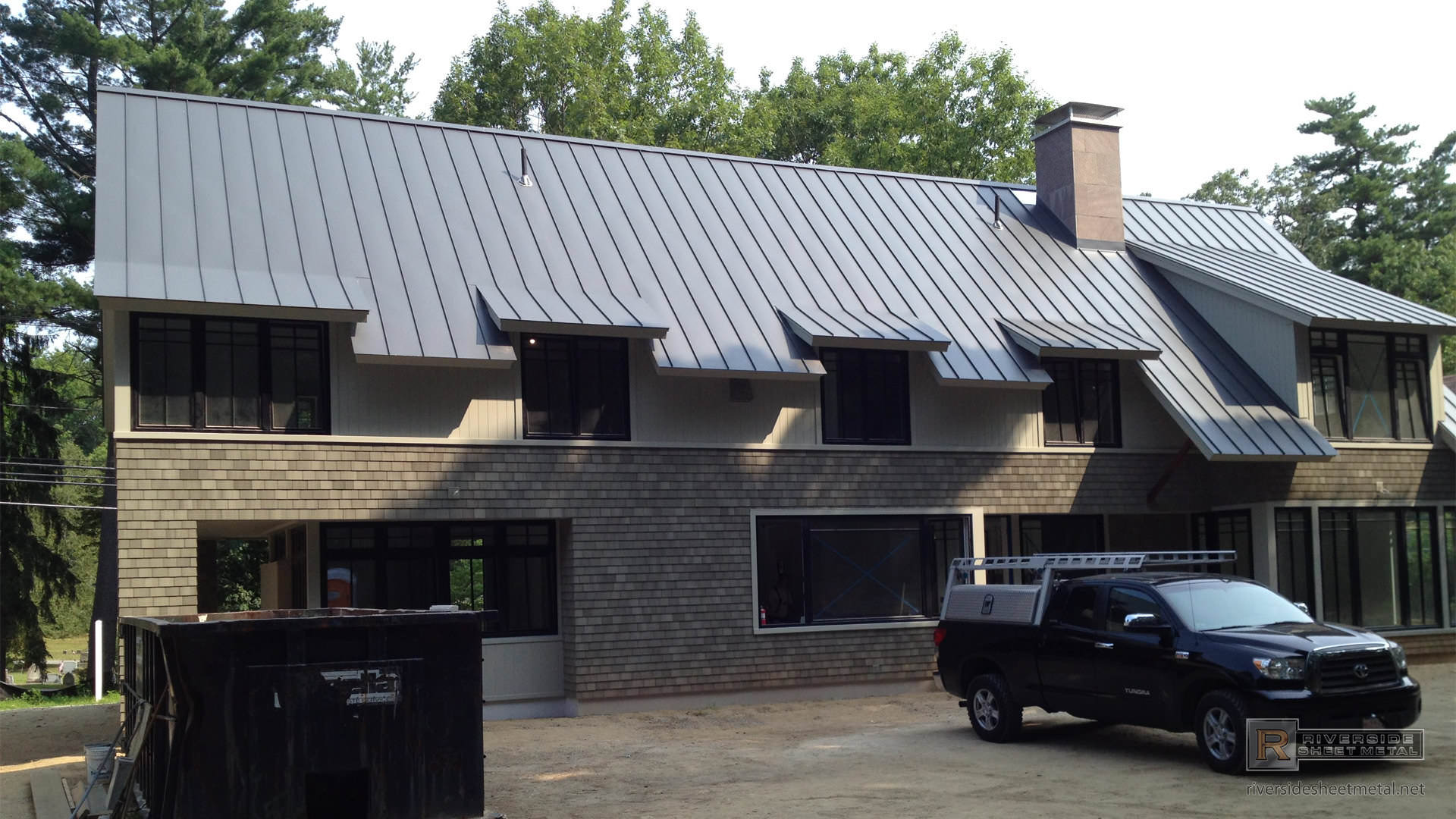

Although we also work with Slate, Shingle and Rubber Roofing, we specialize in metal roof systems with Aluminum, Galvalume, Roofinox and more

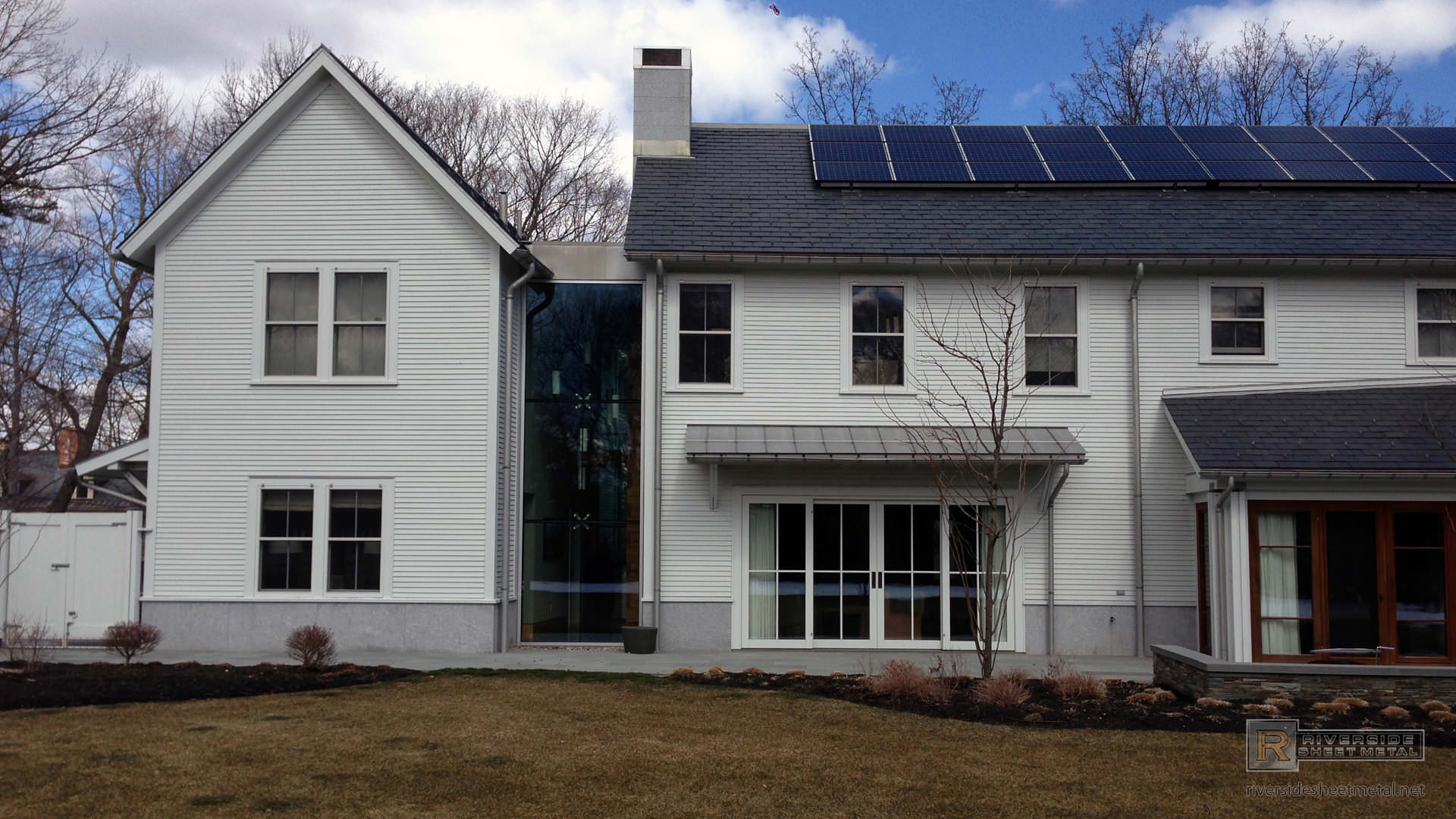

precisely, Copper, Lead Coated Copper, Freedom Gray and Zinc roofs.
Single Lock Panels
Double Lock Panels
Snap Lock Panels
Flat Lock Panels

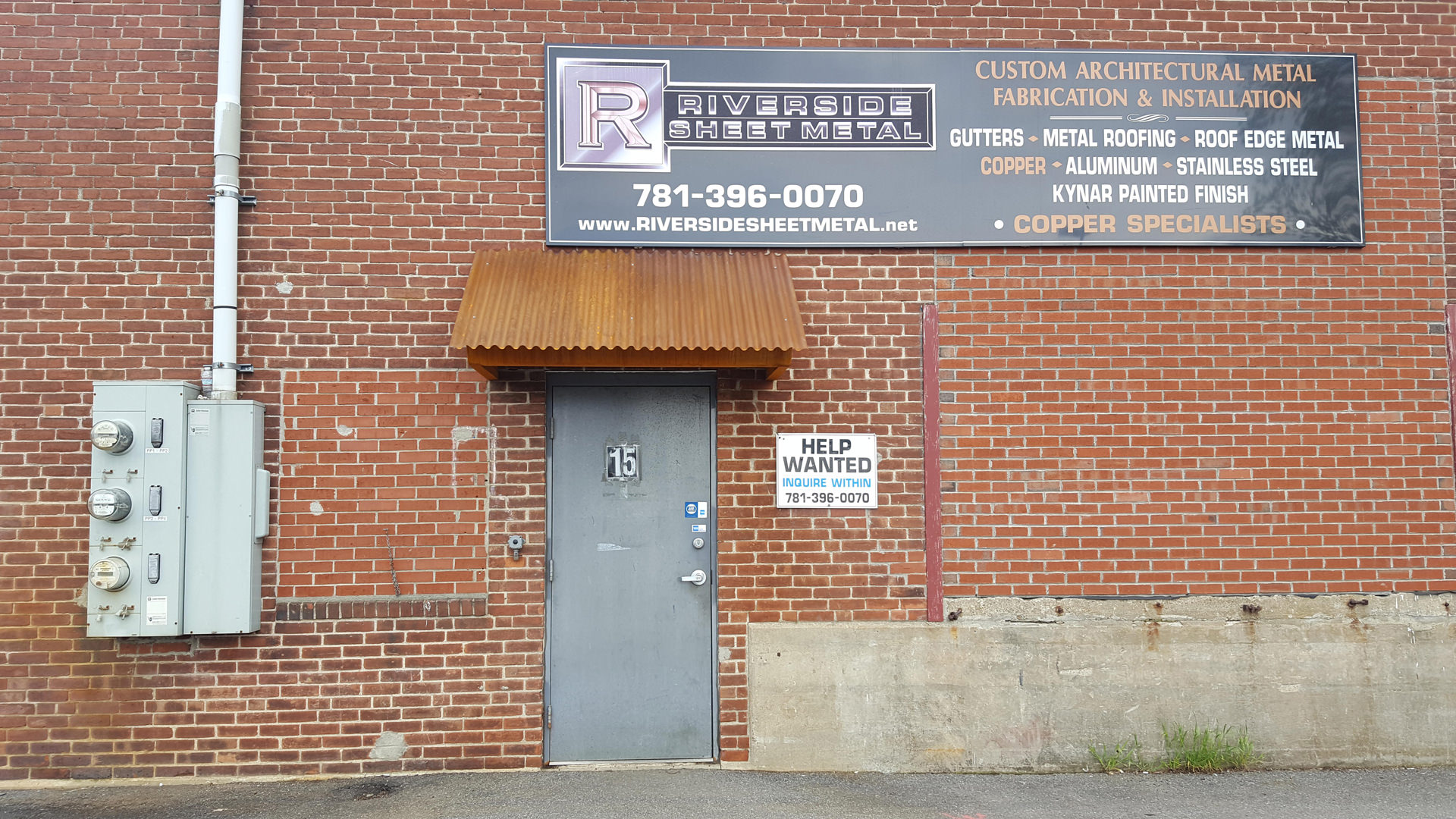

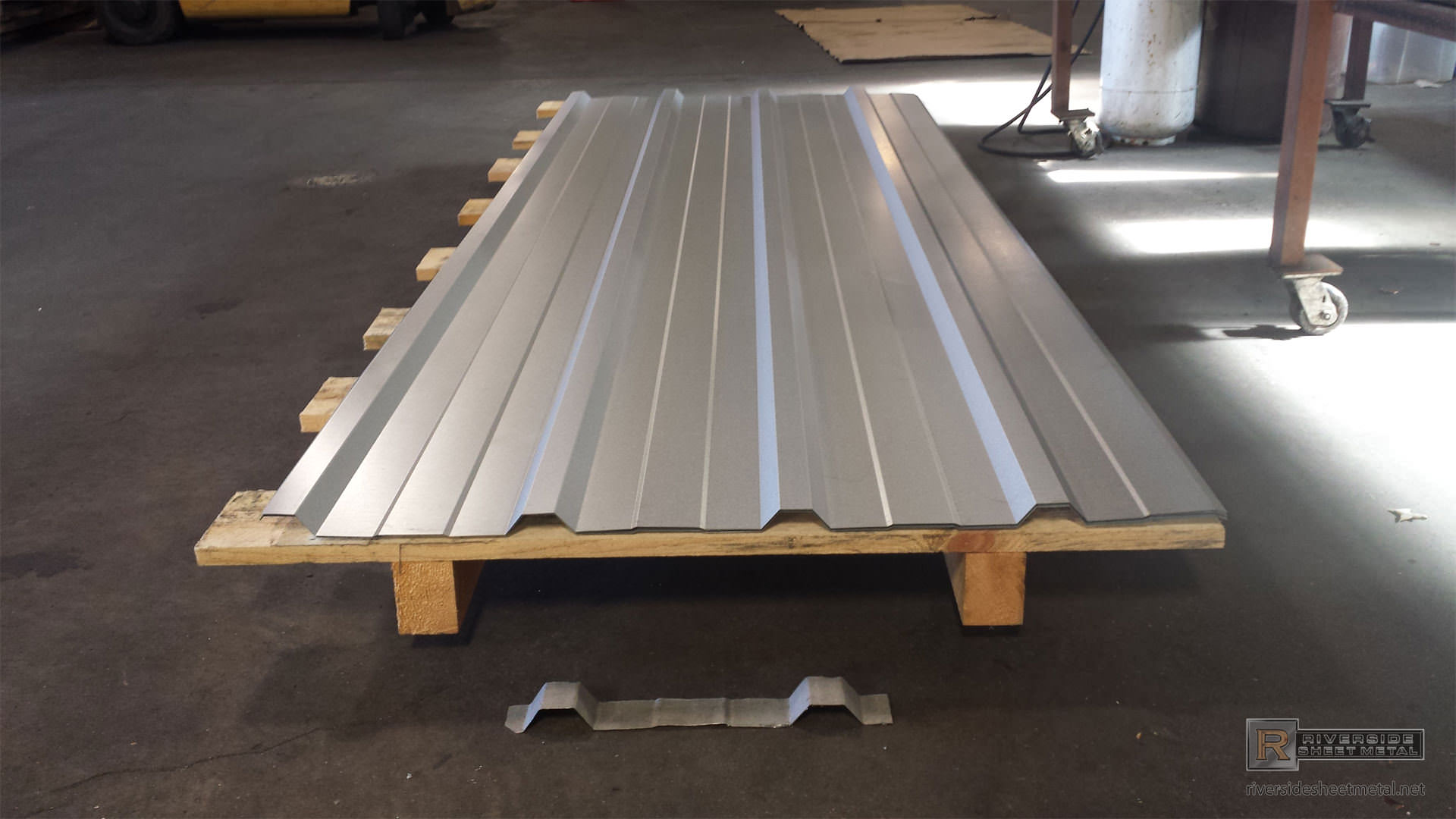

Corrugated Panels
Concealed Soffit Panels
Product Details |
| Panel Type | Lock size | Length | Ribs / Striations | Radius | Tapered |
|---|---|---|---|---|---|
| Corrugated roof and wall panels | N/A | Any | Yes | N/A | N/A |

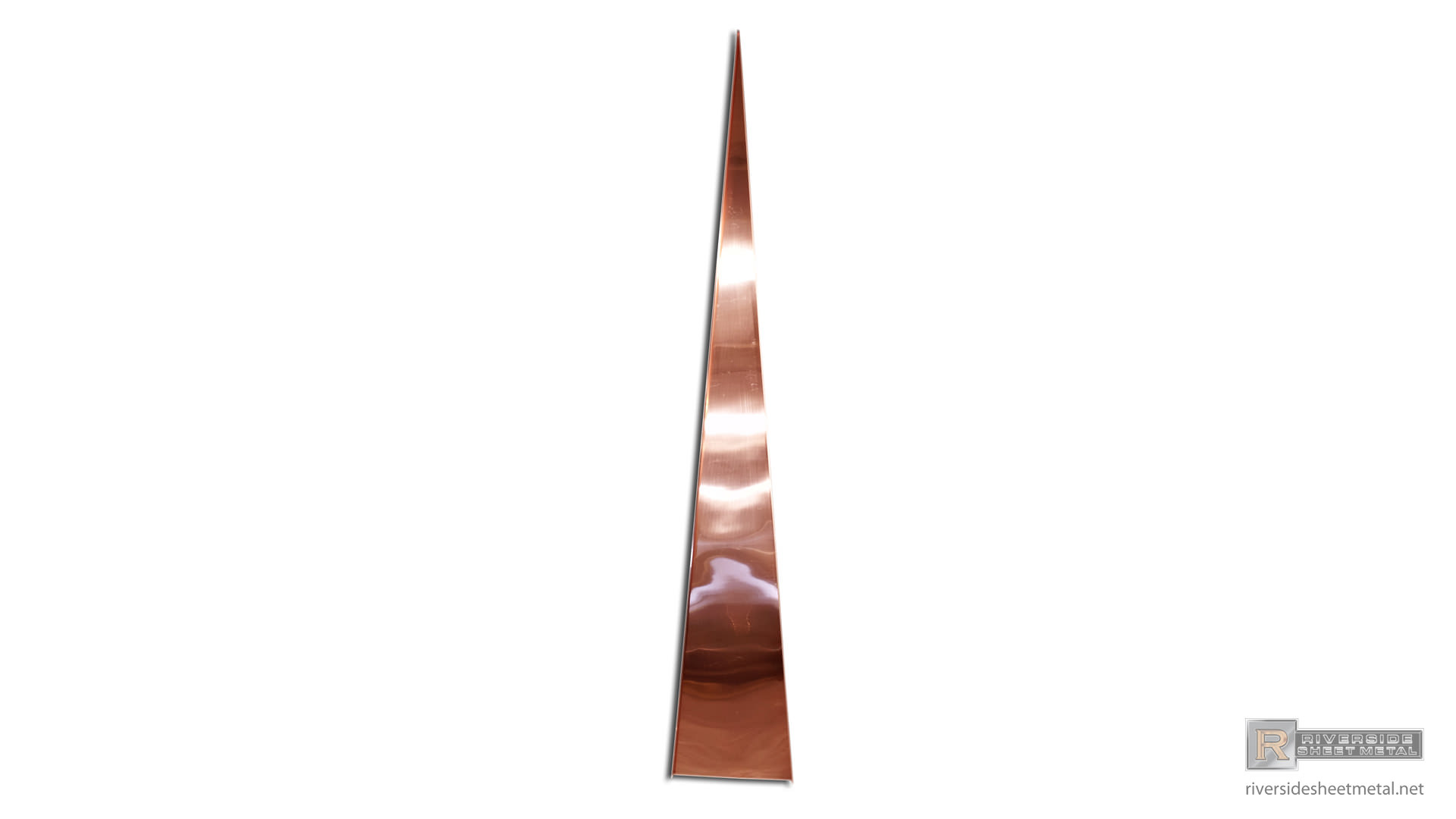

| Flat lock roof panels | 0.5" to 1" | Any | N/A | Available | Available |

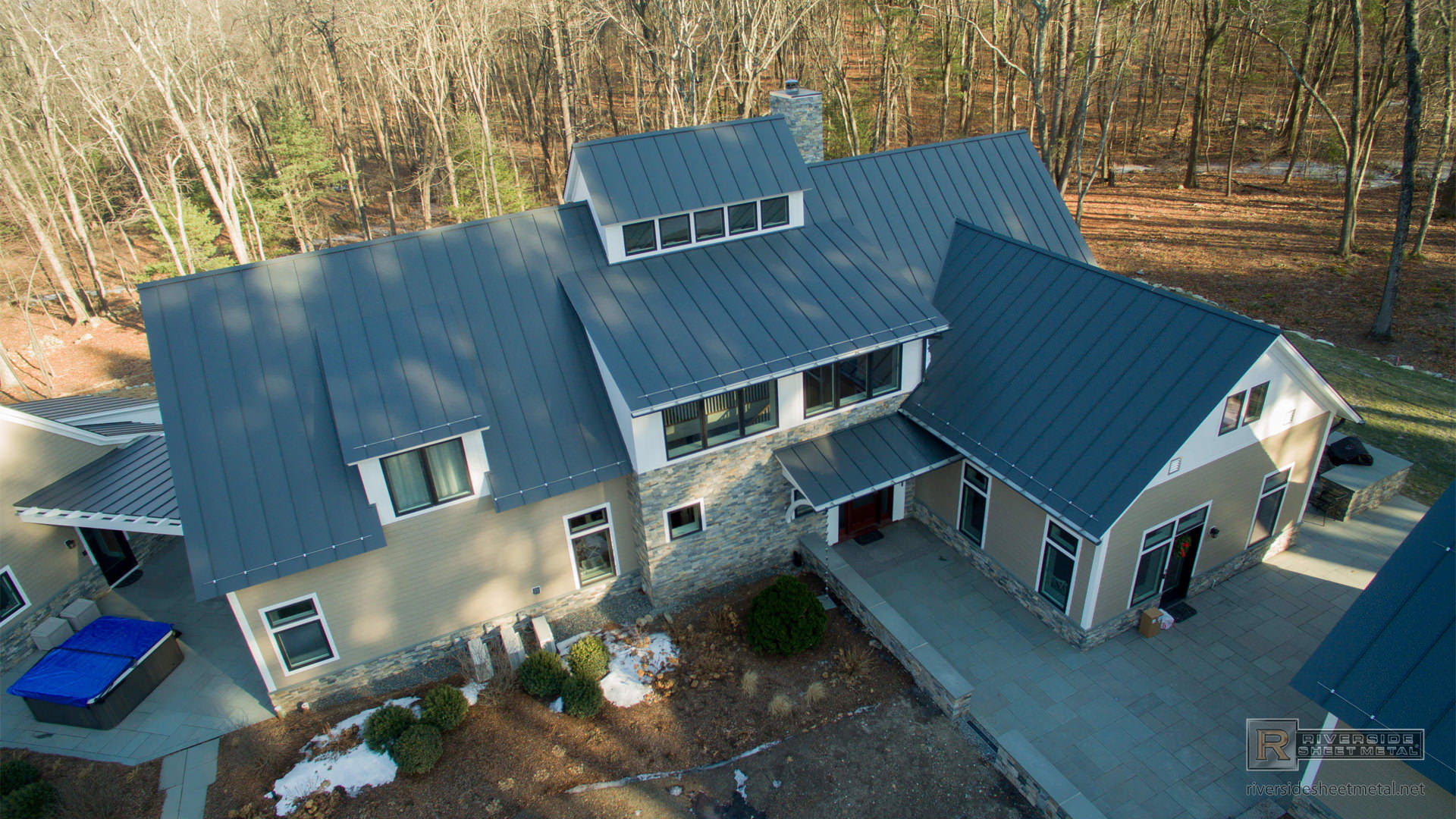

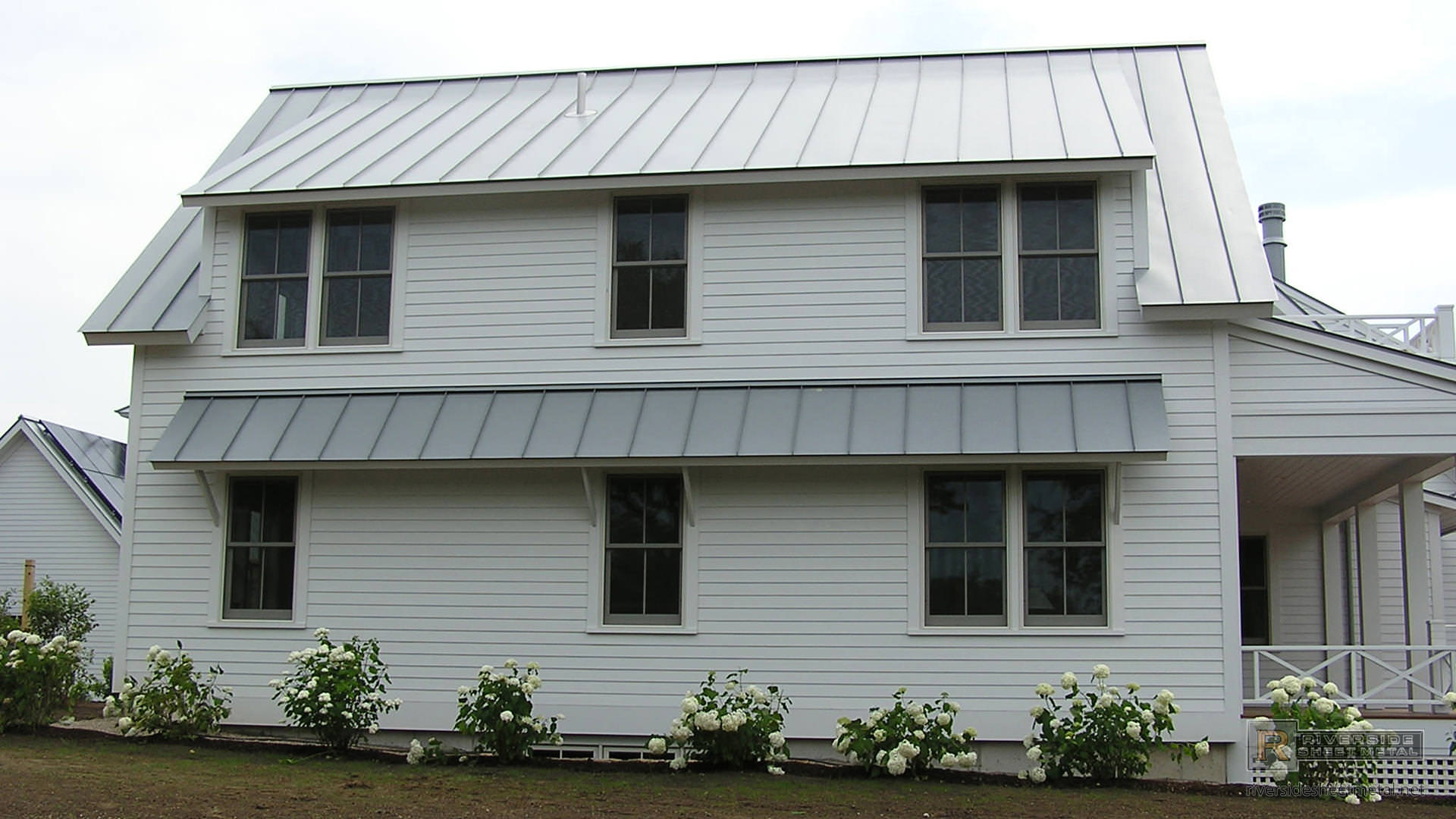

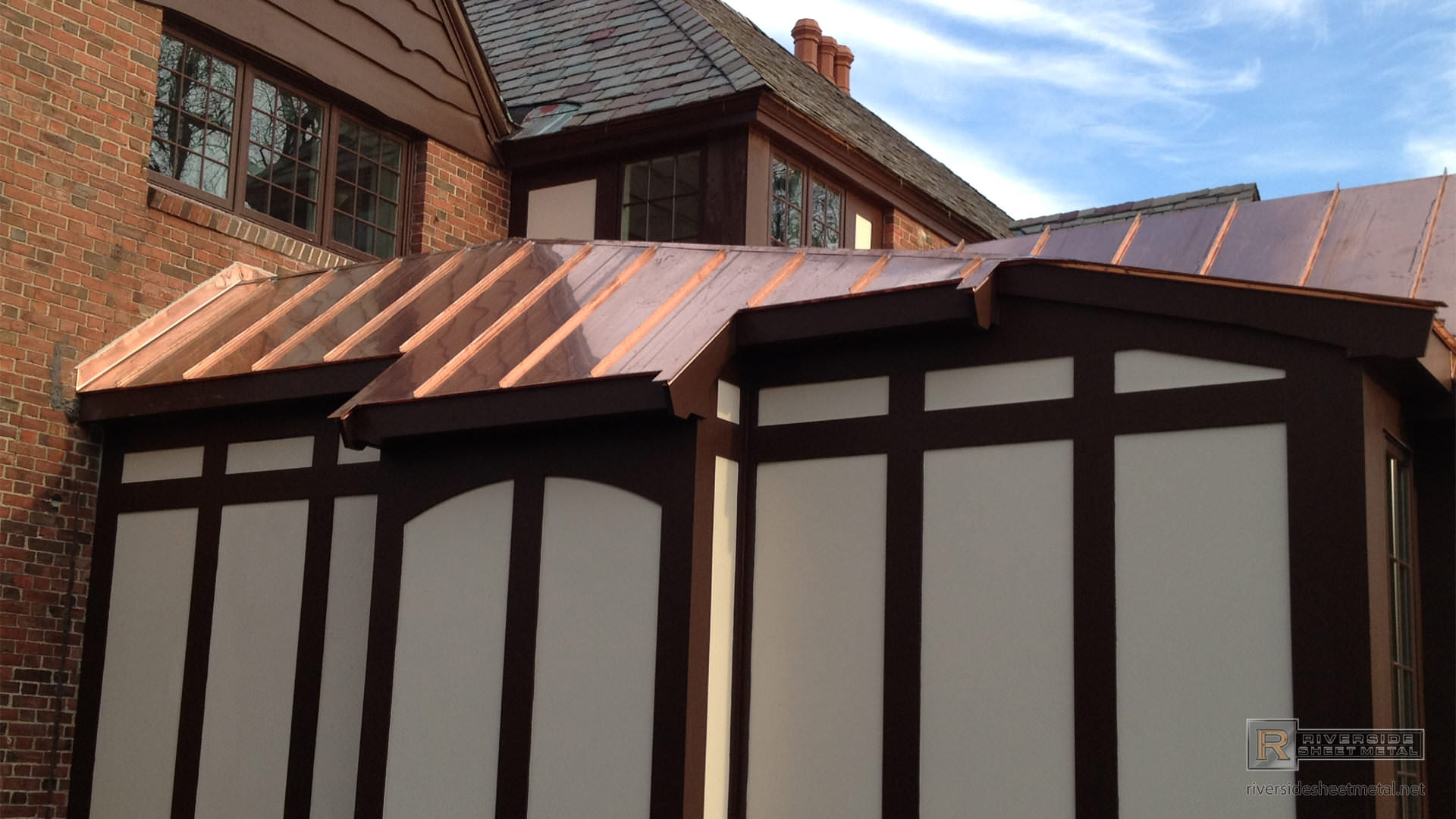

| Standing seam roof panels | 1", 1.5" & 2" | Any | Available | Available | Available |
| Snap lock roof panels | 1.75" | Any | Available | N/A | Available |
Metal Roof Panel Sizes:
Coil stocks for panels, are usually available in 18", 20" and 24", as seen in the chart below.
Although we can custom slit coils to other dimensions, then offering panels at different widths,
the previously mentioned are more easily available with a smaller cost. For odd jobs, we can also manually bend panels up to 12' in length on our Autobrakes,
matching any odd width profiles.
Finished Roof Panel sizes and Drawings |
| Panel Type | 18" Coil Stock | 20" Coil Stock | 24" Coil Stock | Other Coil Stock | Drawing |
|---|---|---|---|---|---|
| Standing seam roof panels (1" Height) | 15" Finished Panel | 17" Finished Panel | 21" Finished Panel | Special Order | |
| Standing seam roof panels (1.5" Height) | 14" Finished Panel | 16" Finished Panel | 20" Finished Panel | Special Order | |
| Standing seam roof panels (2" Height) | 12" Finished Panel | 14" Finished Panel | 18" Finished Panel | Special Order | |
| Snap lock roof panels (1.75" Height) | 12" Finished Panel | 14" Finished Panel | 18" Finished Panel | Special Order |
Metal roofing products are commonly fabricated with these materials:
Accessories:
Riverside offers some of the accessories necessary for installation of standing seam, wall and flat lock roof panels such as clips. Although we don't sell tools, we have a list on our website of some of our favorite tools and can point you in the right direction for purchasing or renting tools and for buying other accessories.
Edge and Flashing Metal:
Metal Roof systems don't consist only of panels. Edge and Flashing metal is required to start and finish the job, and Riverside manufacturers all that is necessary for your project. Normally, to start a job, you will need at least drip edge, to hook your panels onto, J channel (or Z channel if you prefer), either to accept a Ridge Cap, or a Head Wall Flashing and in most cases, you will also also need Valley Flashing.

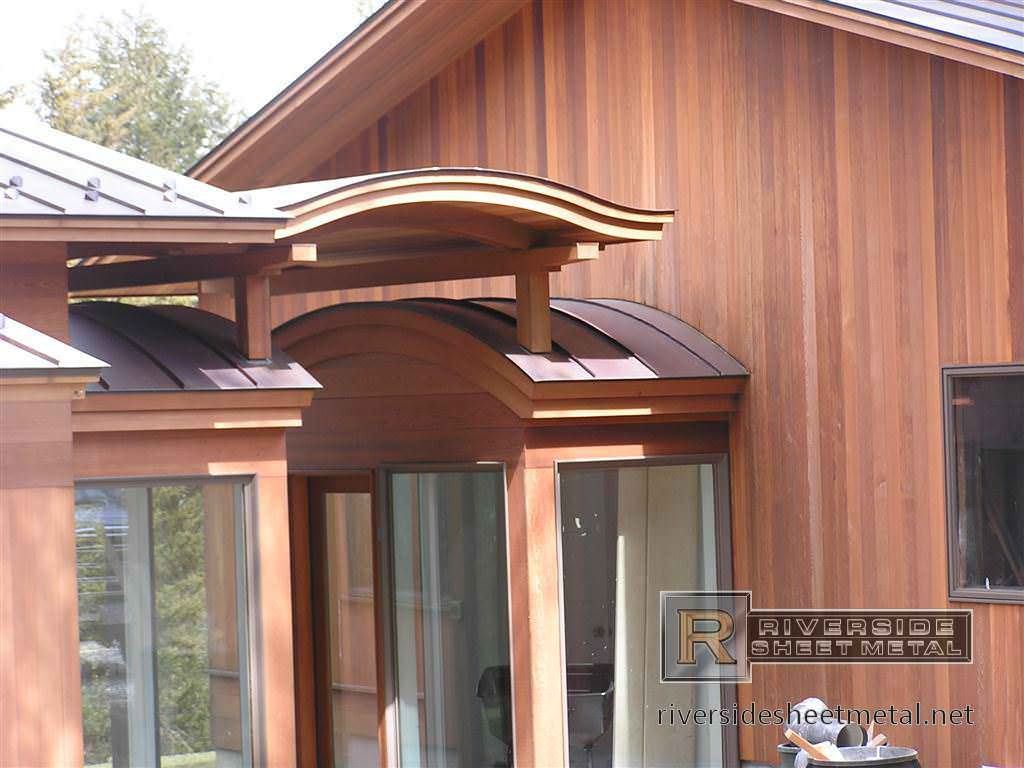

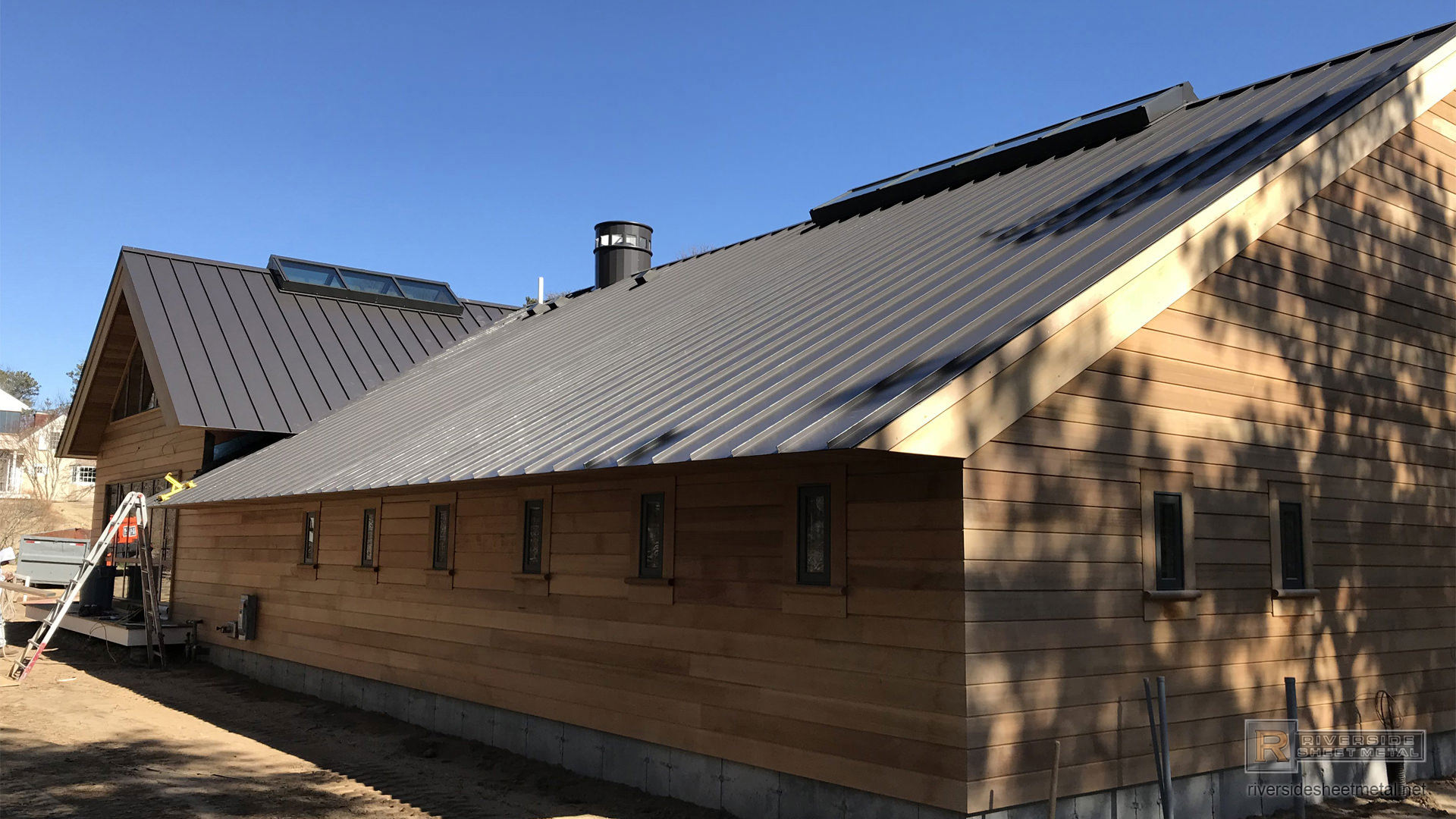

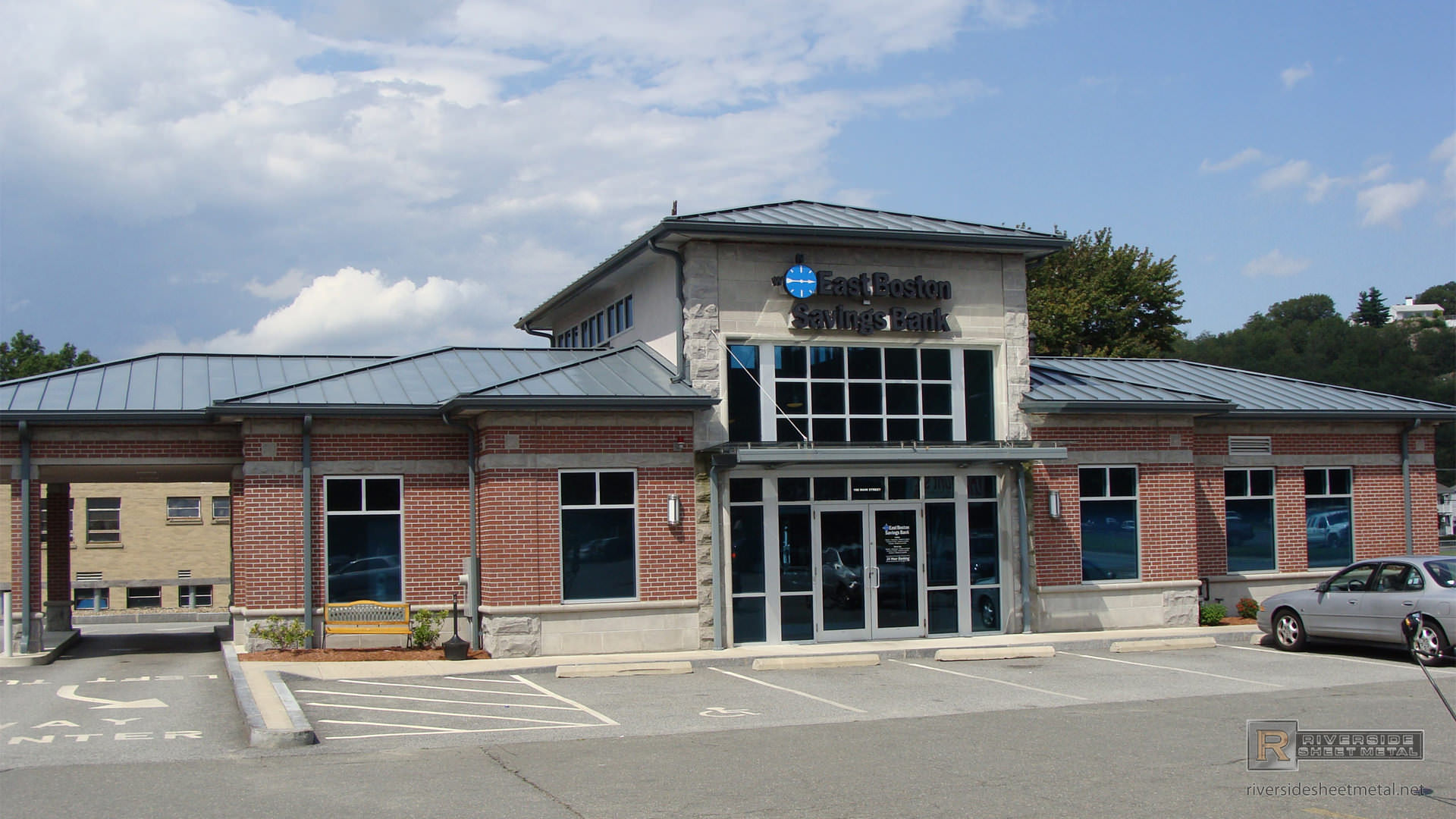

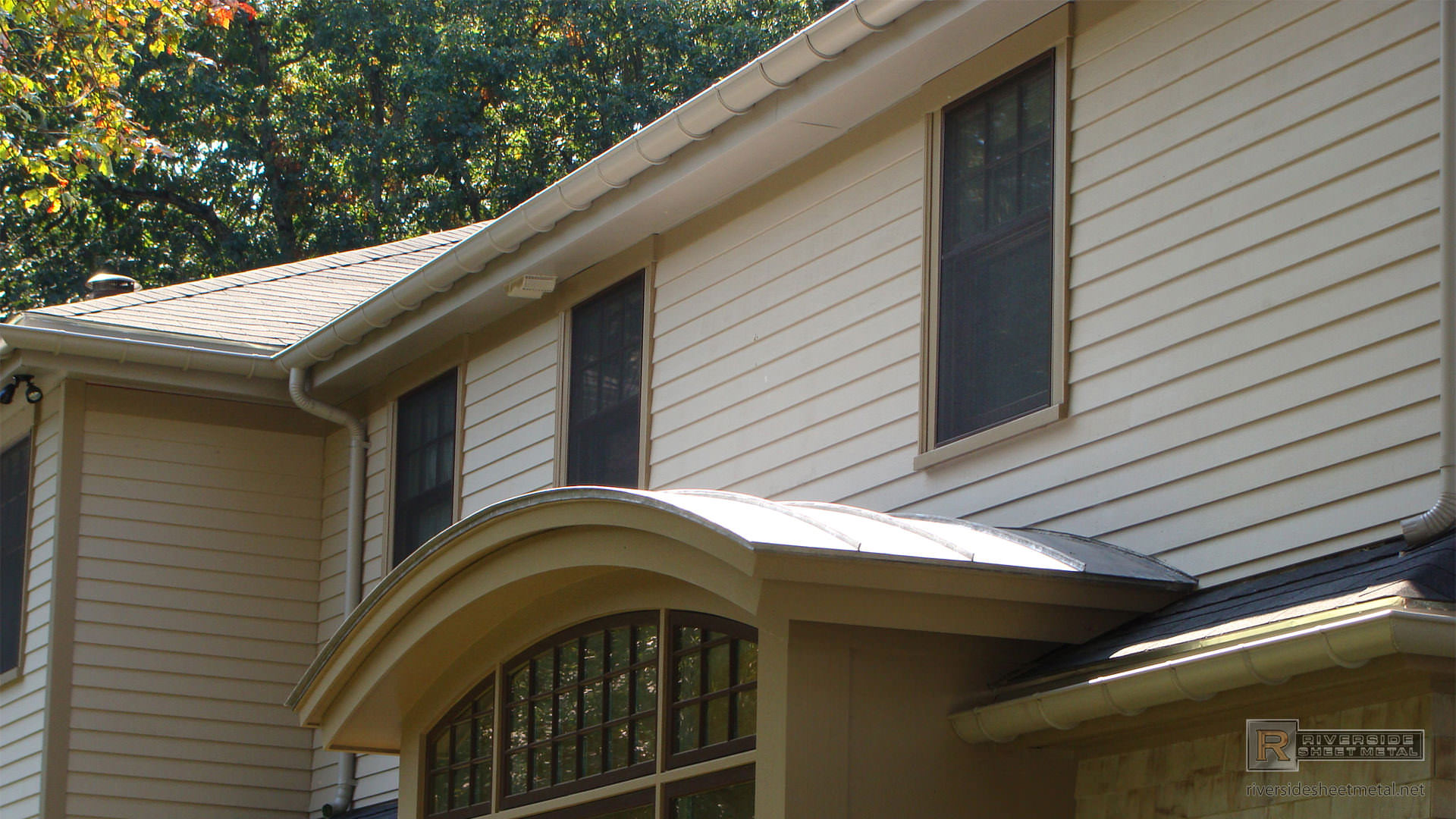

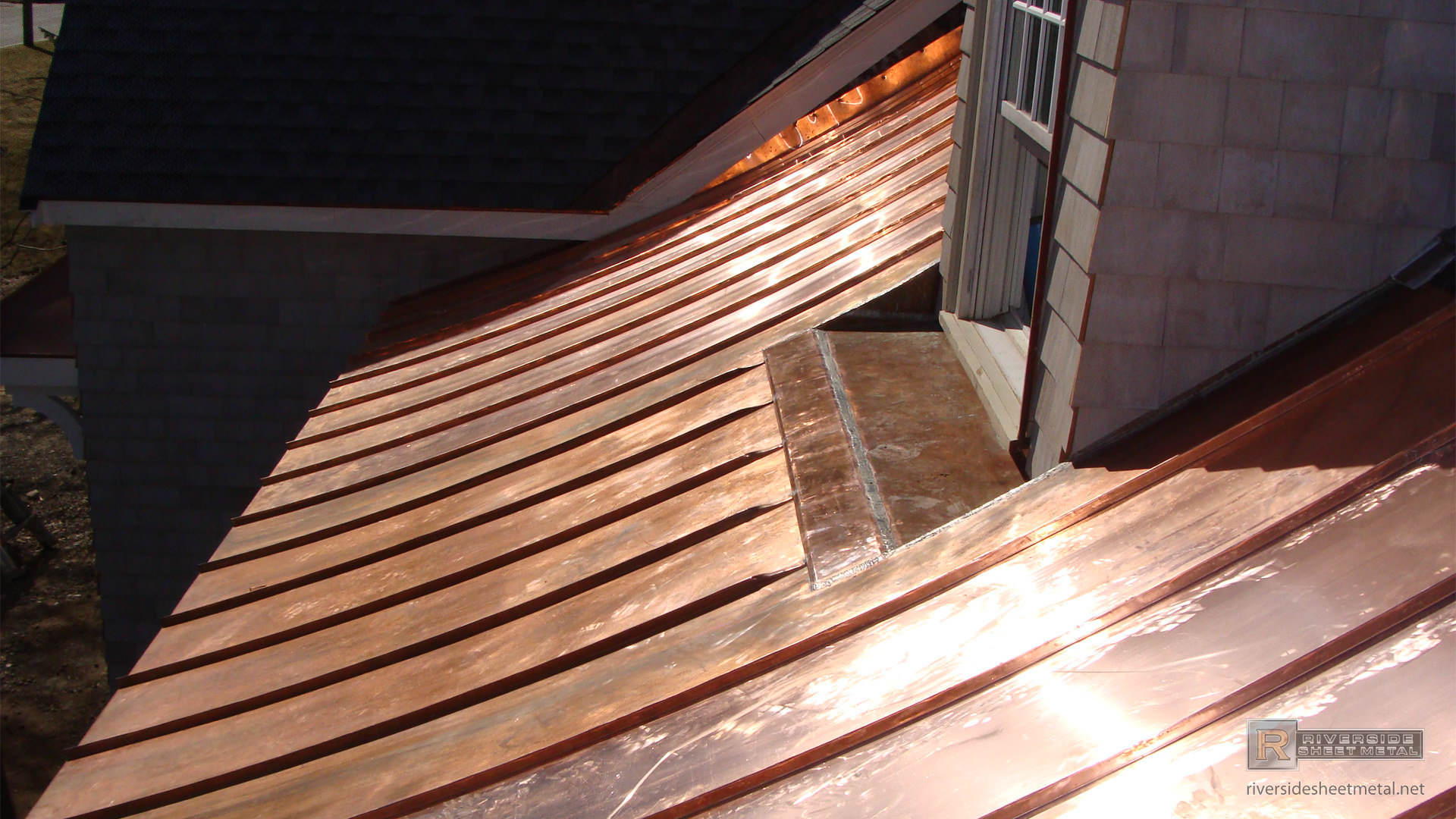

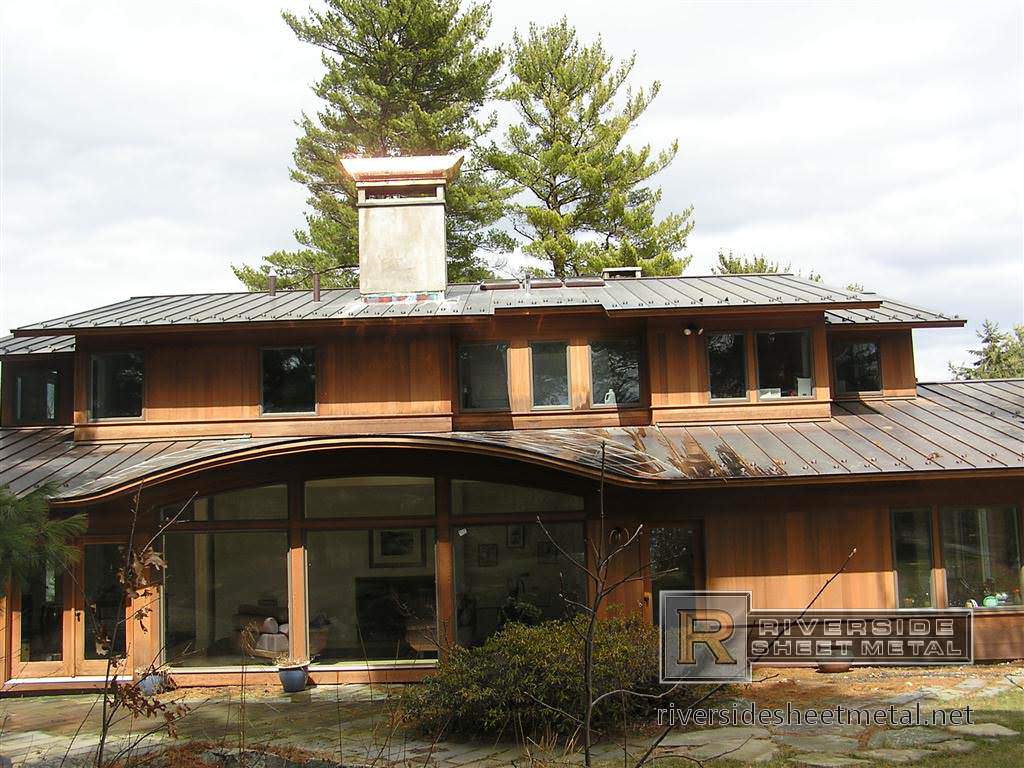

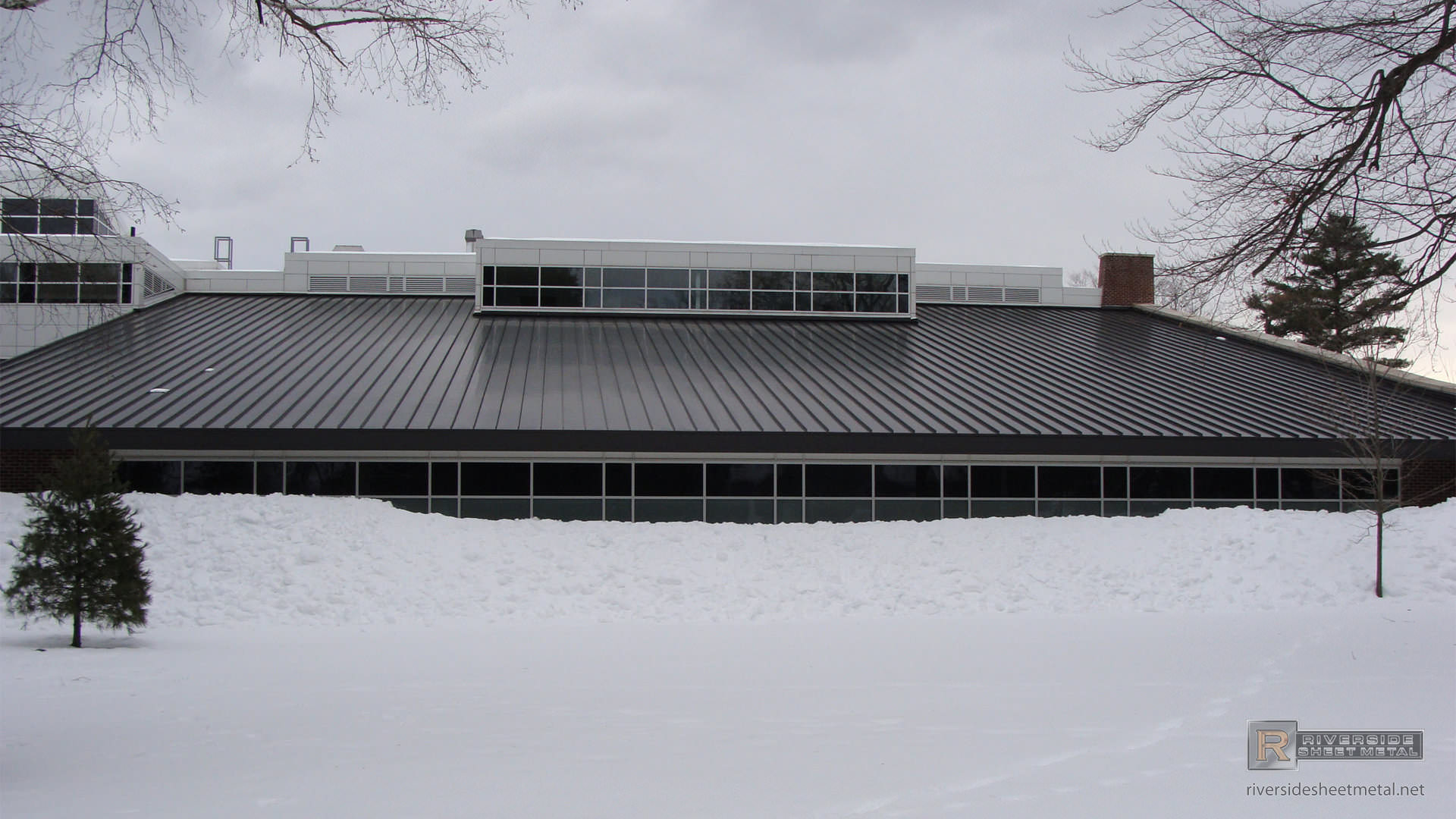

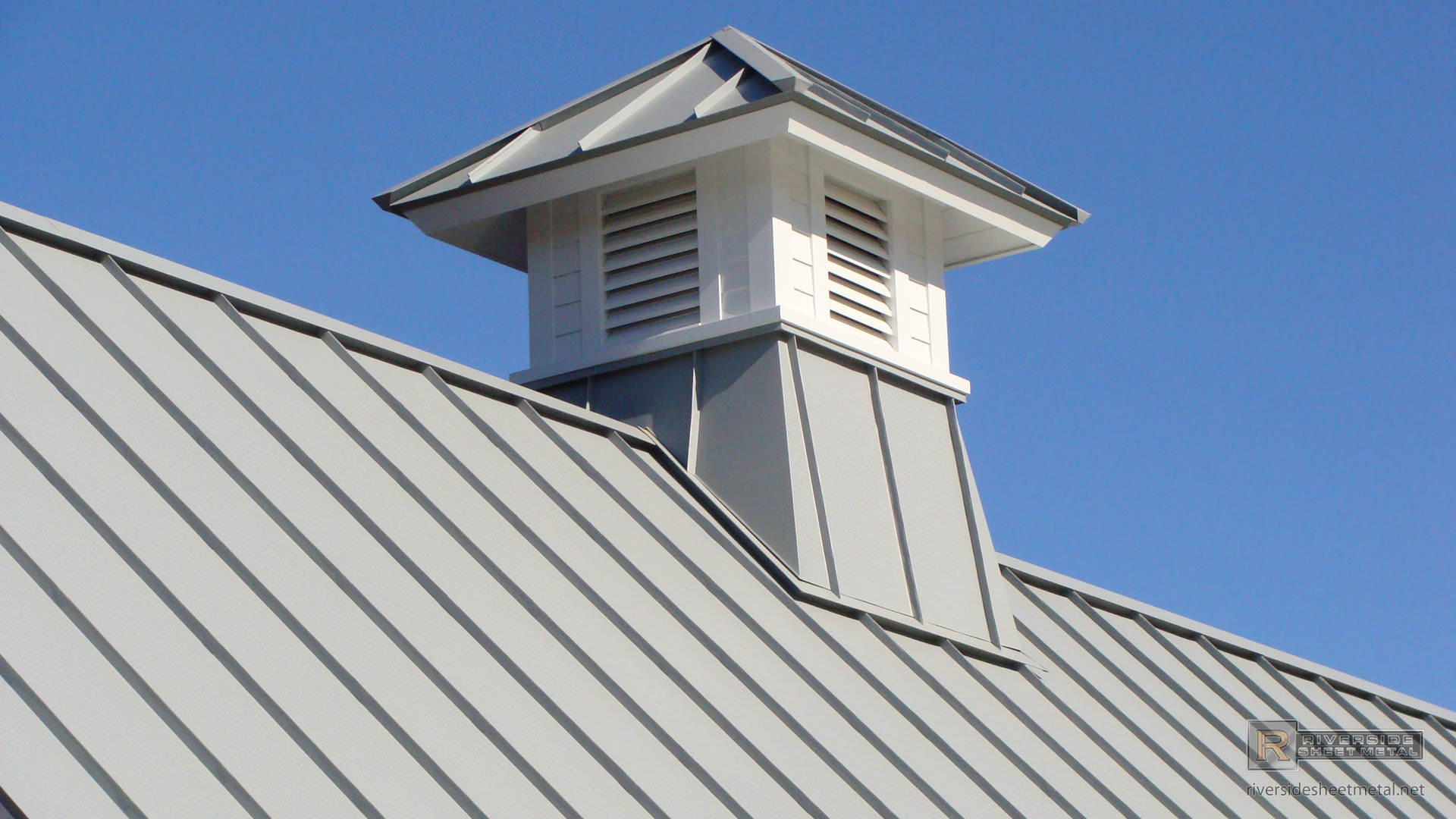

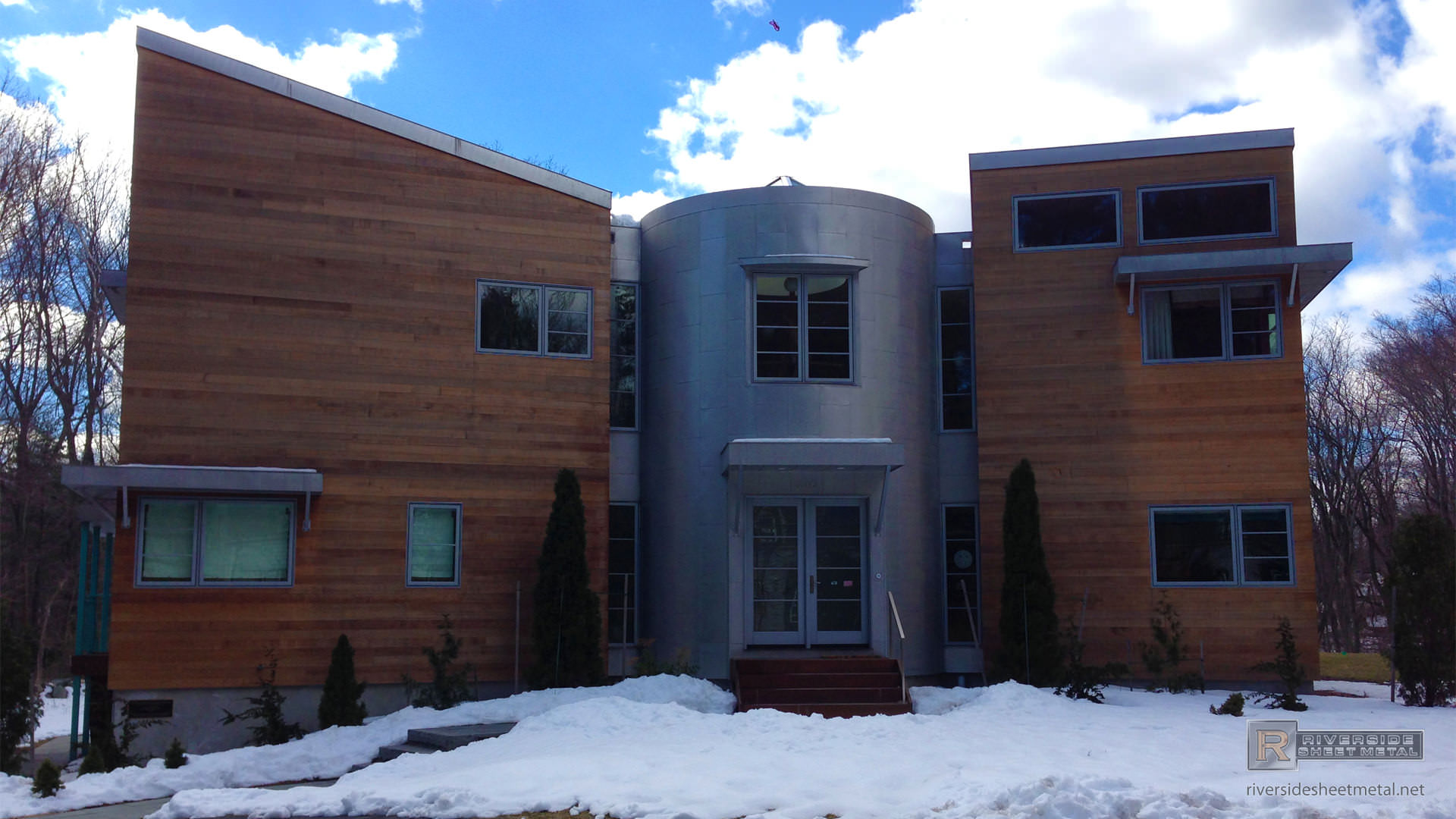

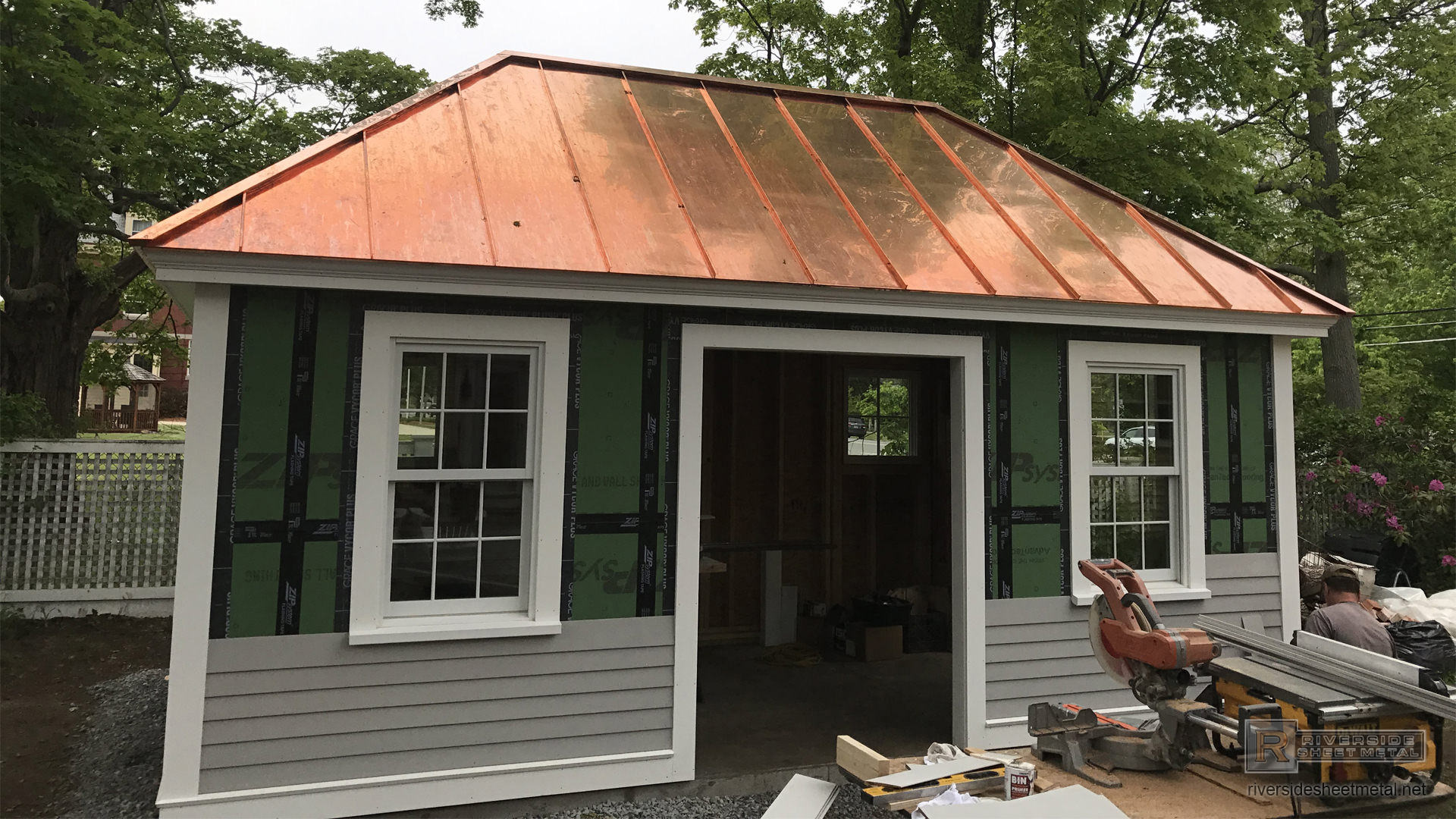

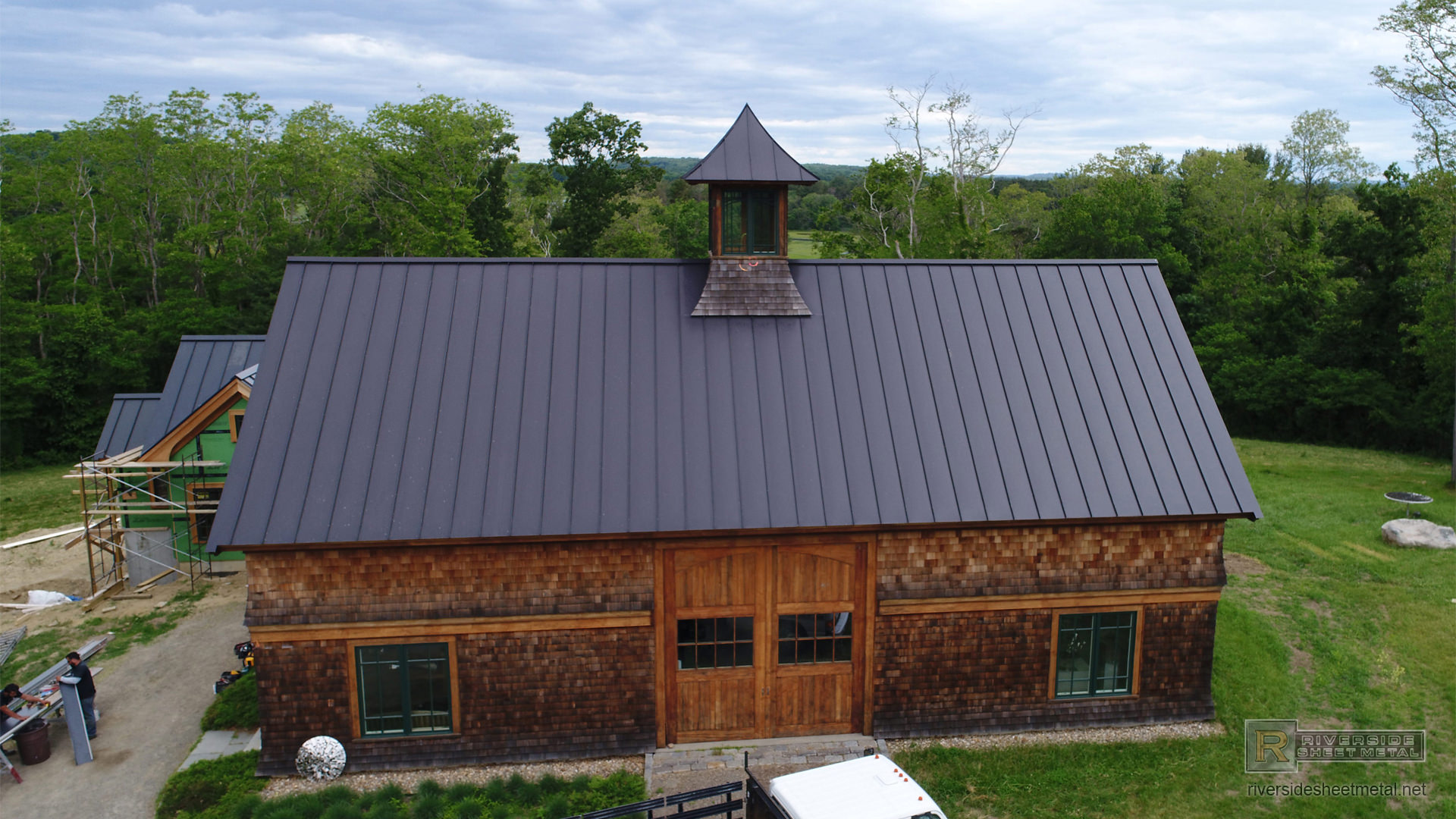

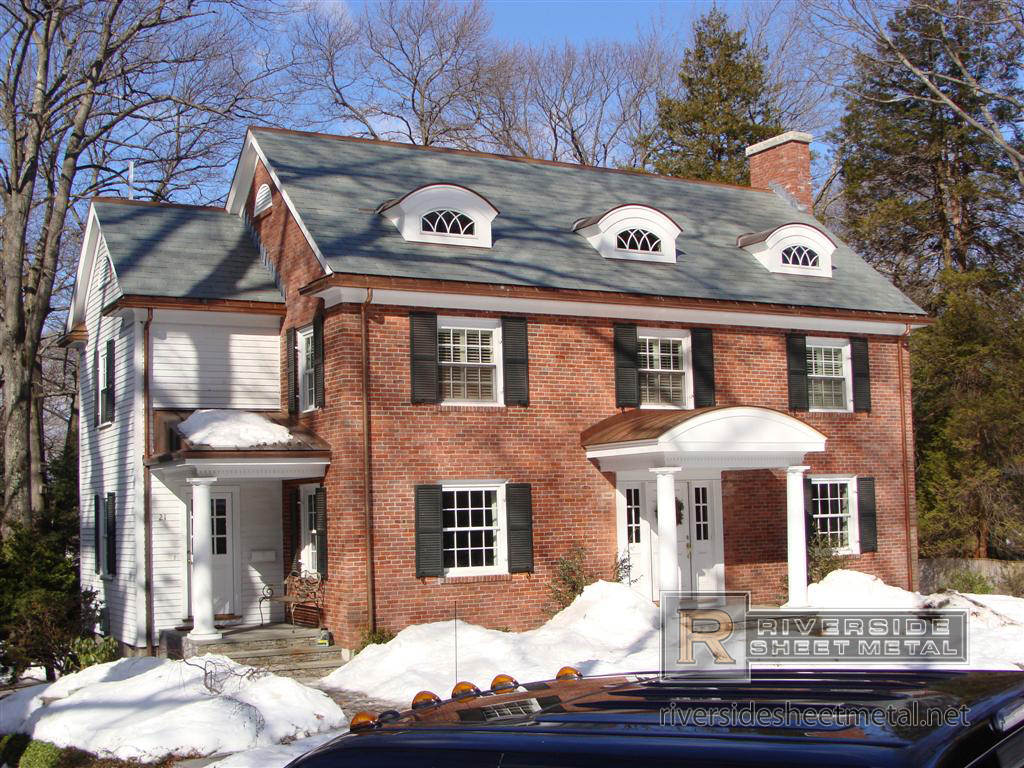

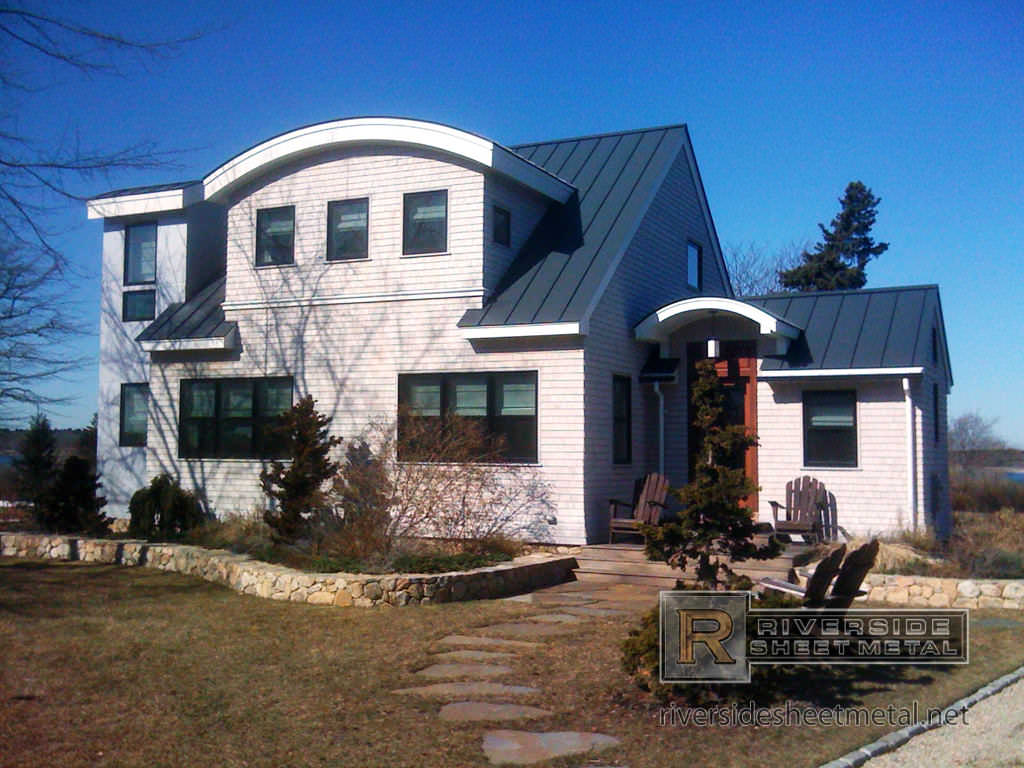

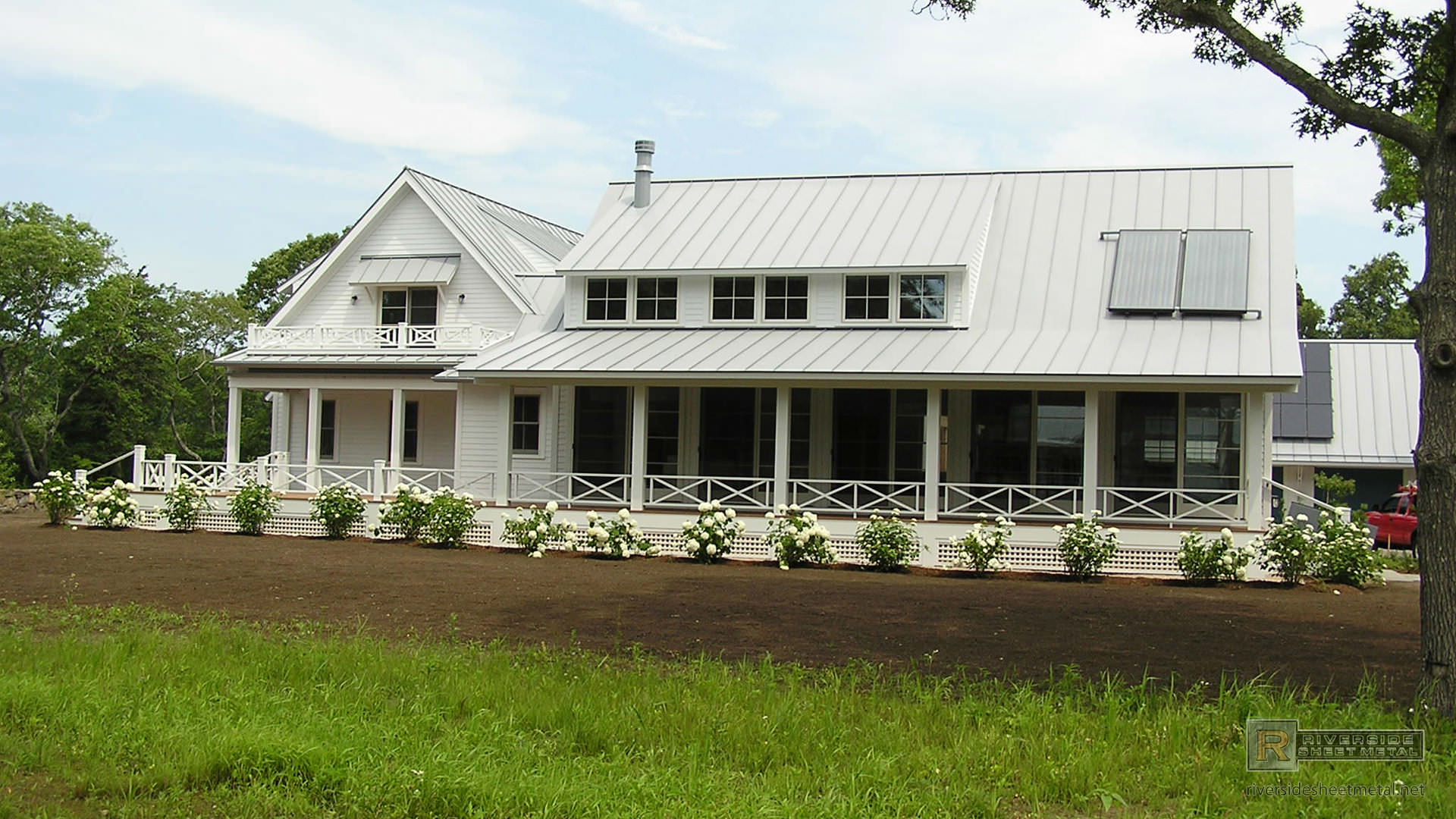

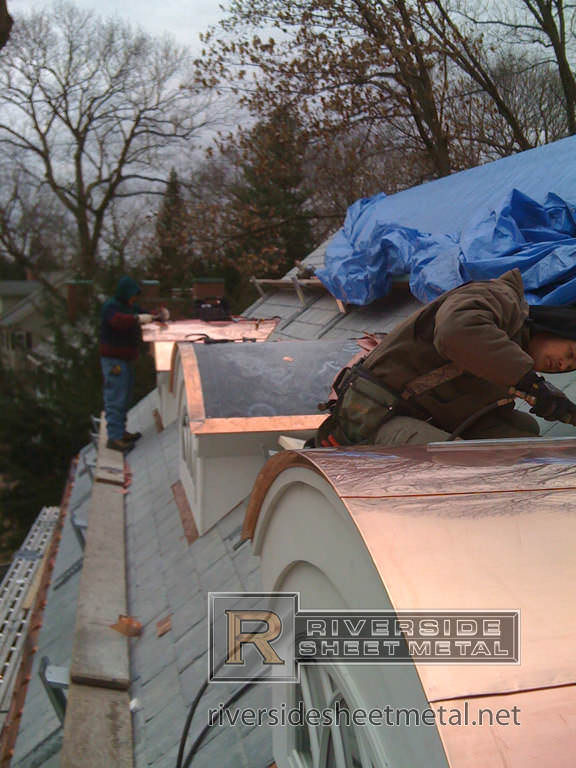

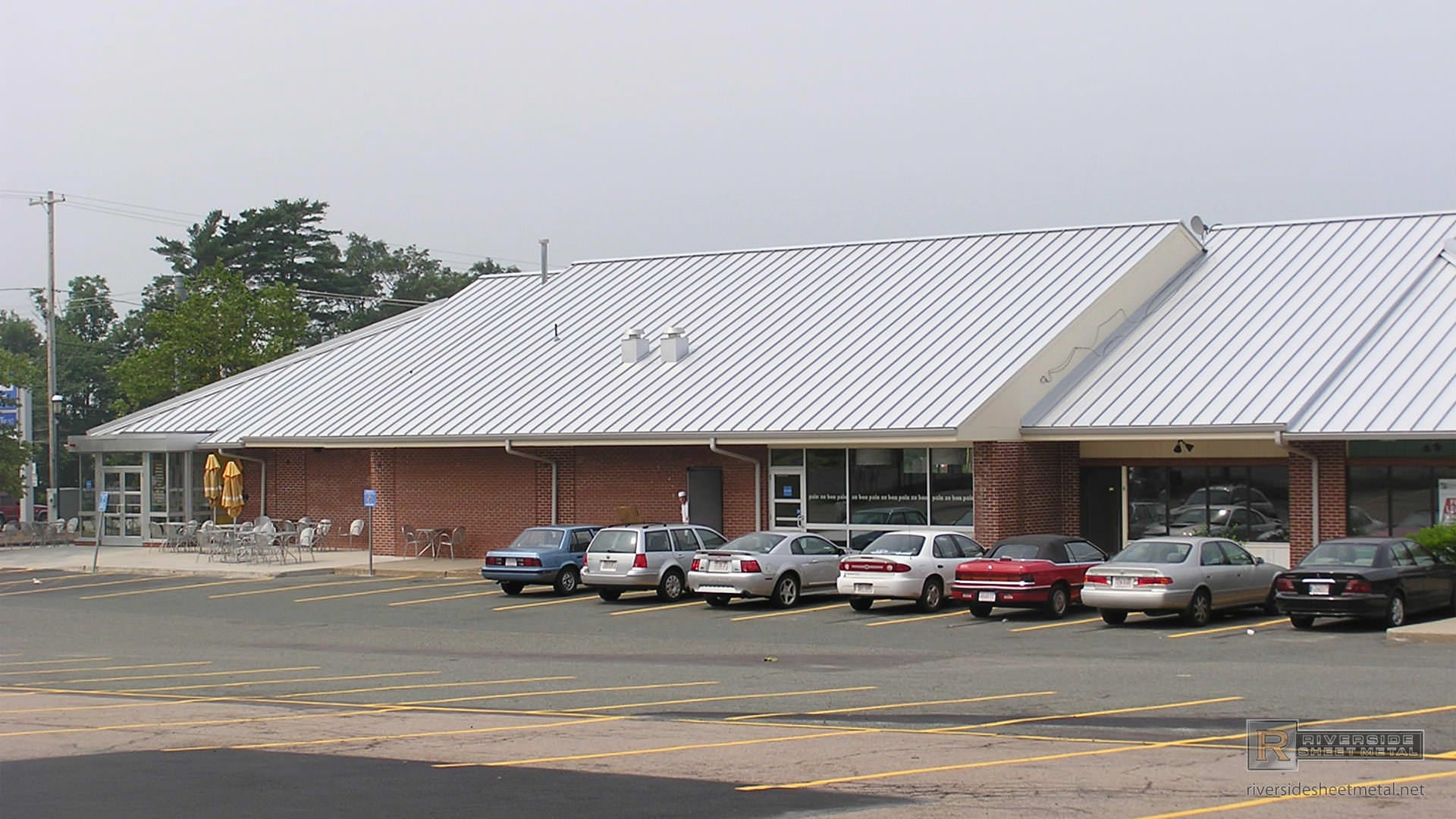

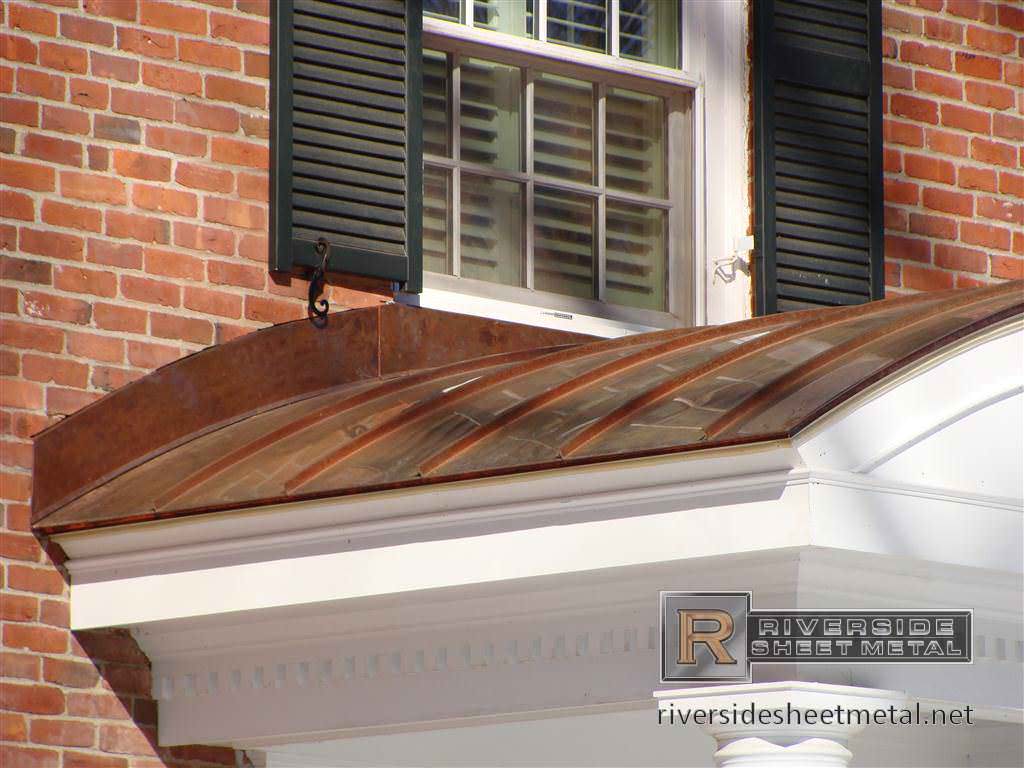

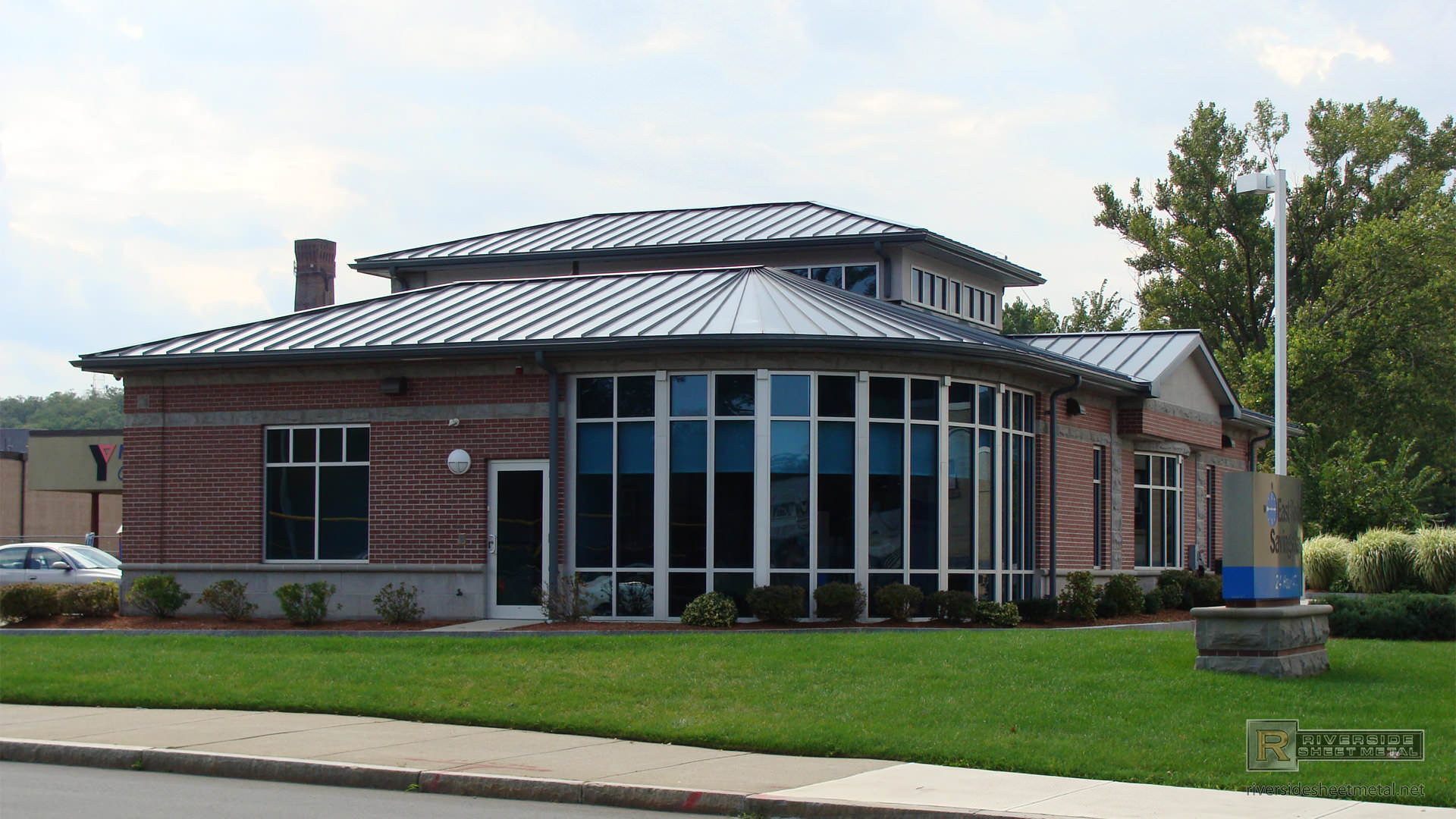

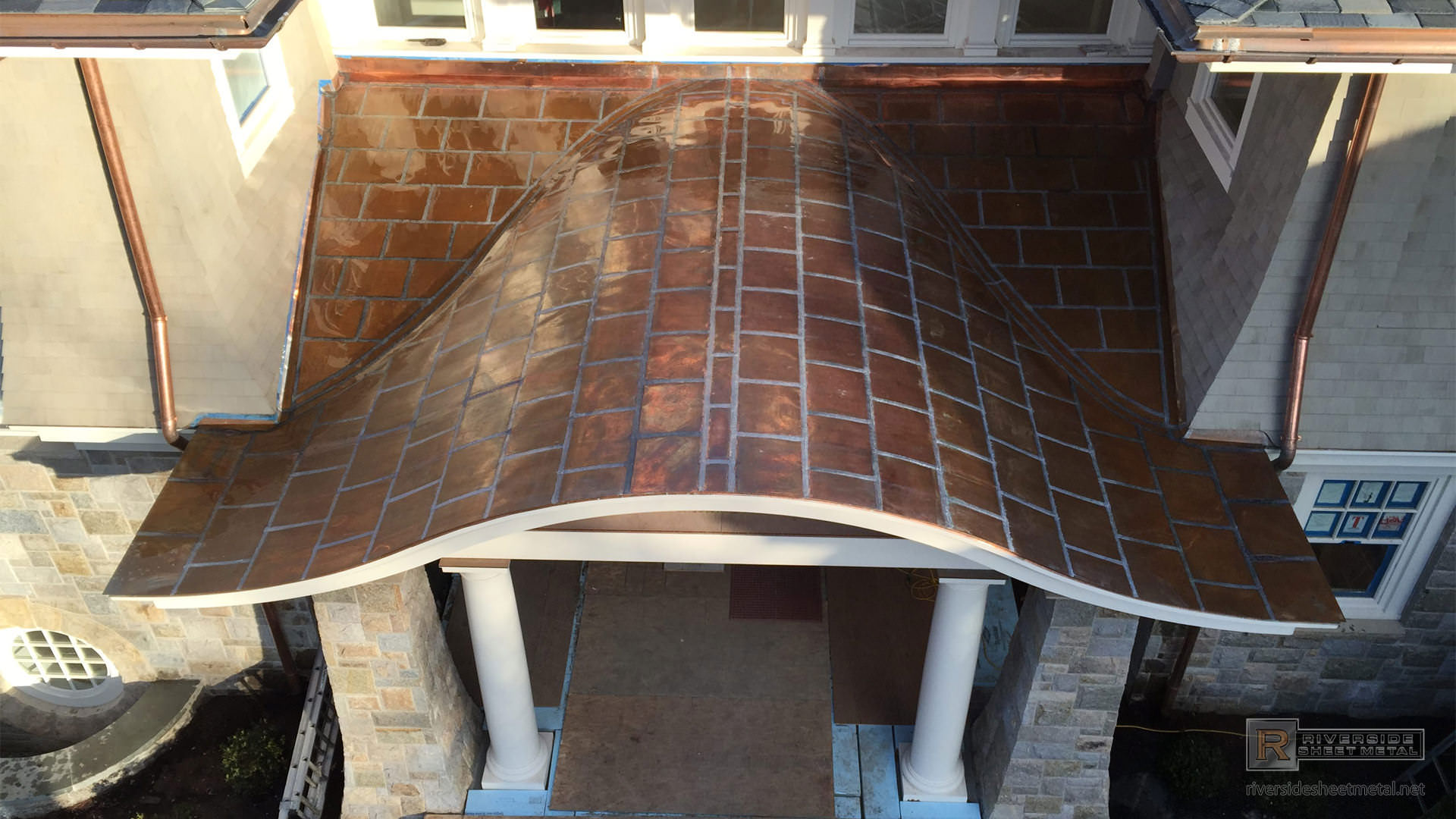

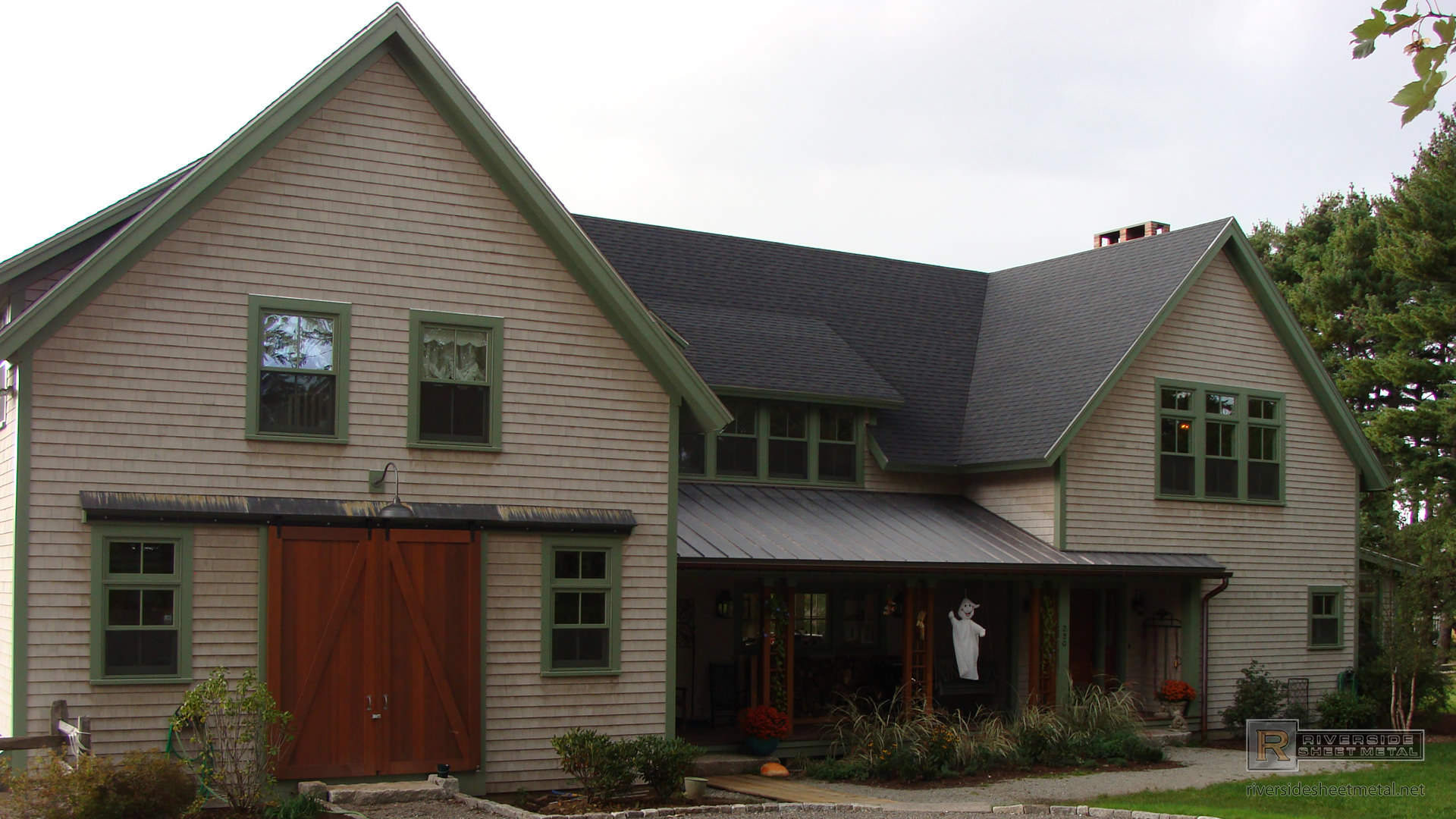

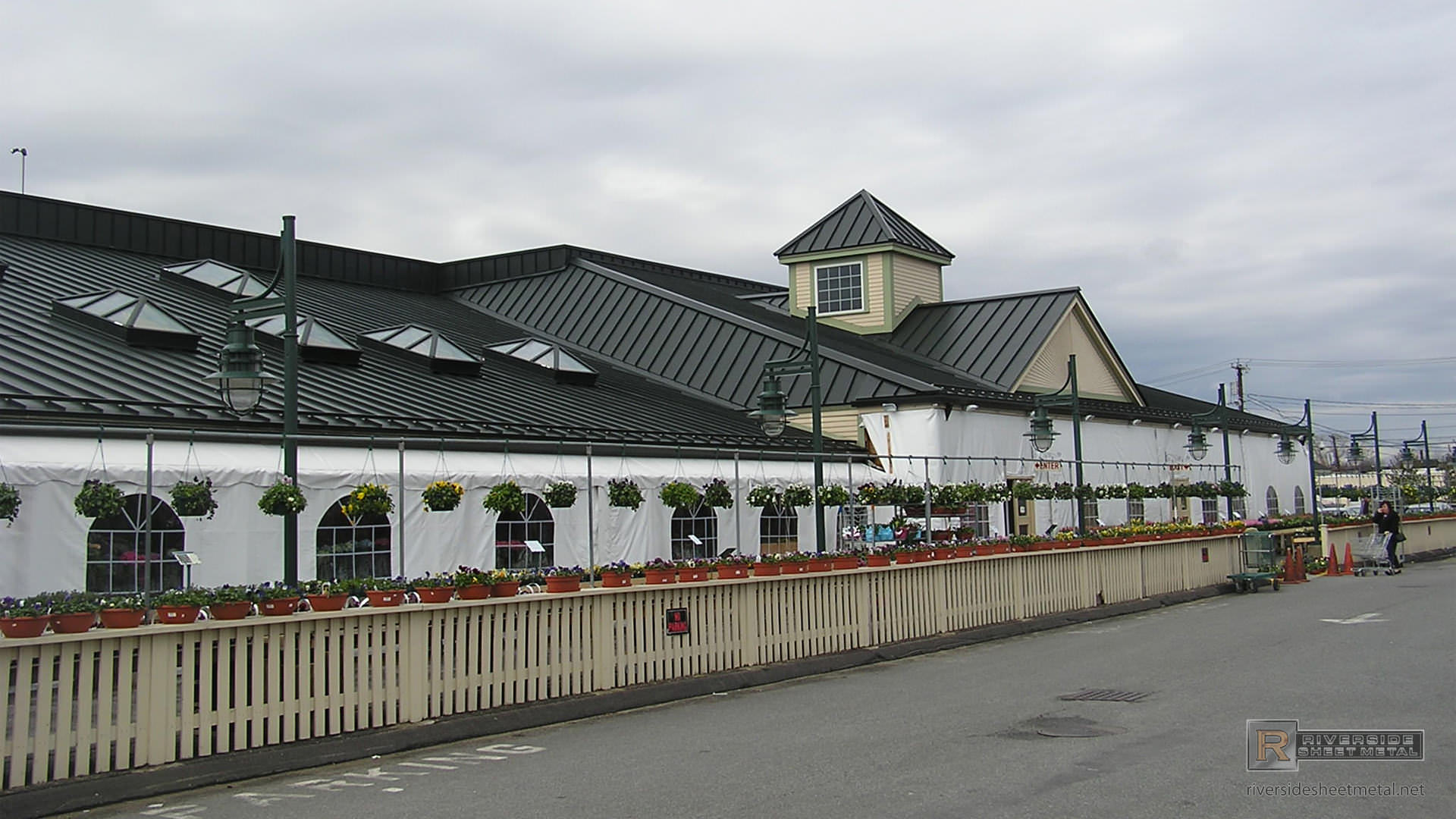

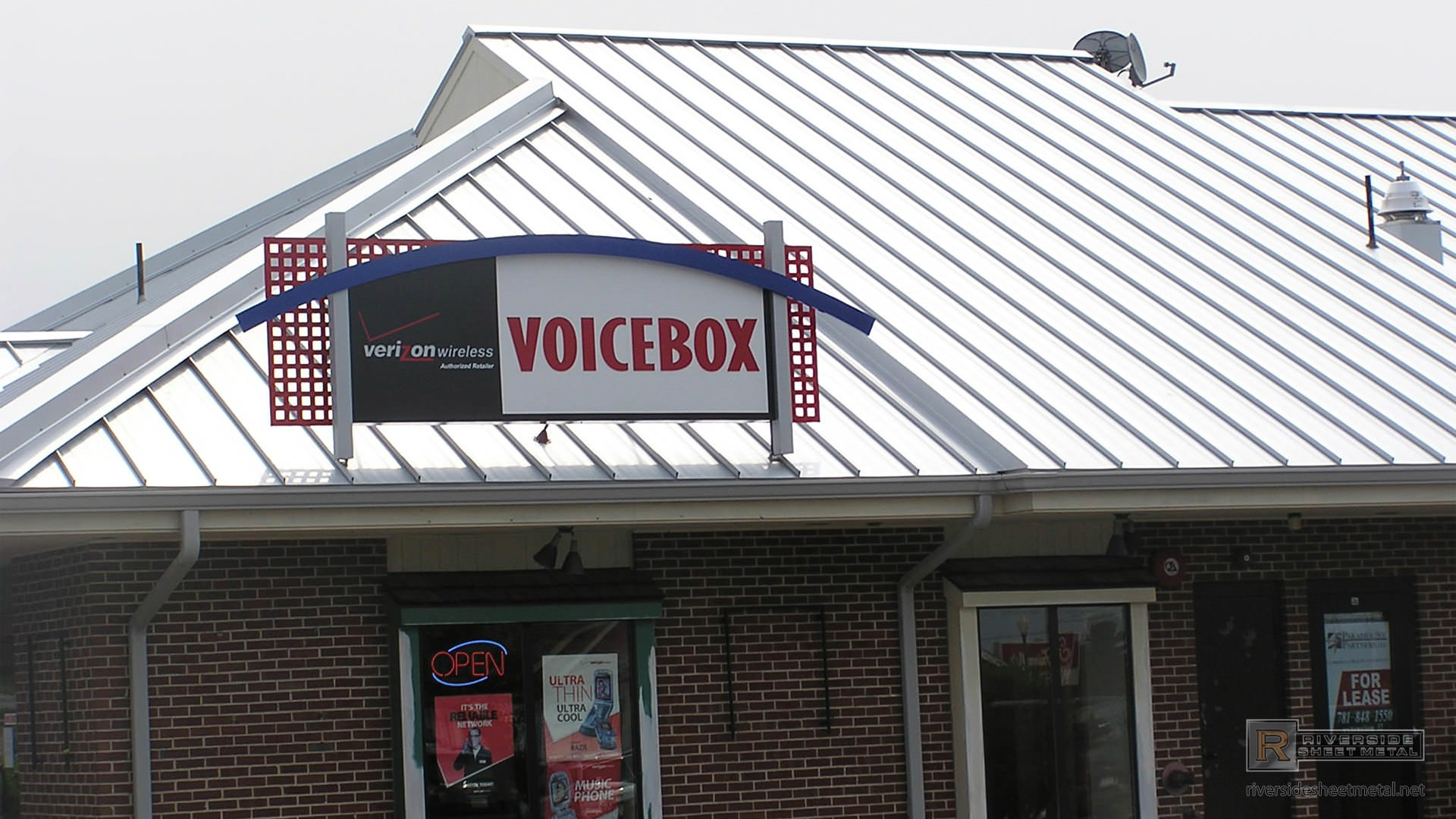

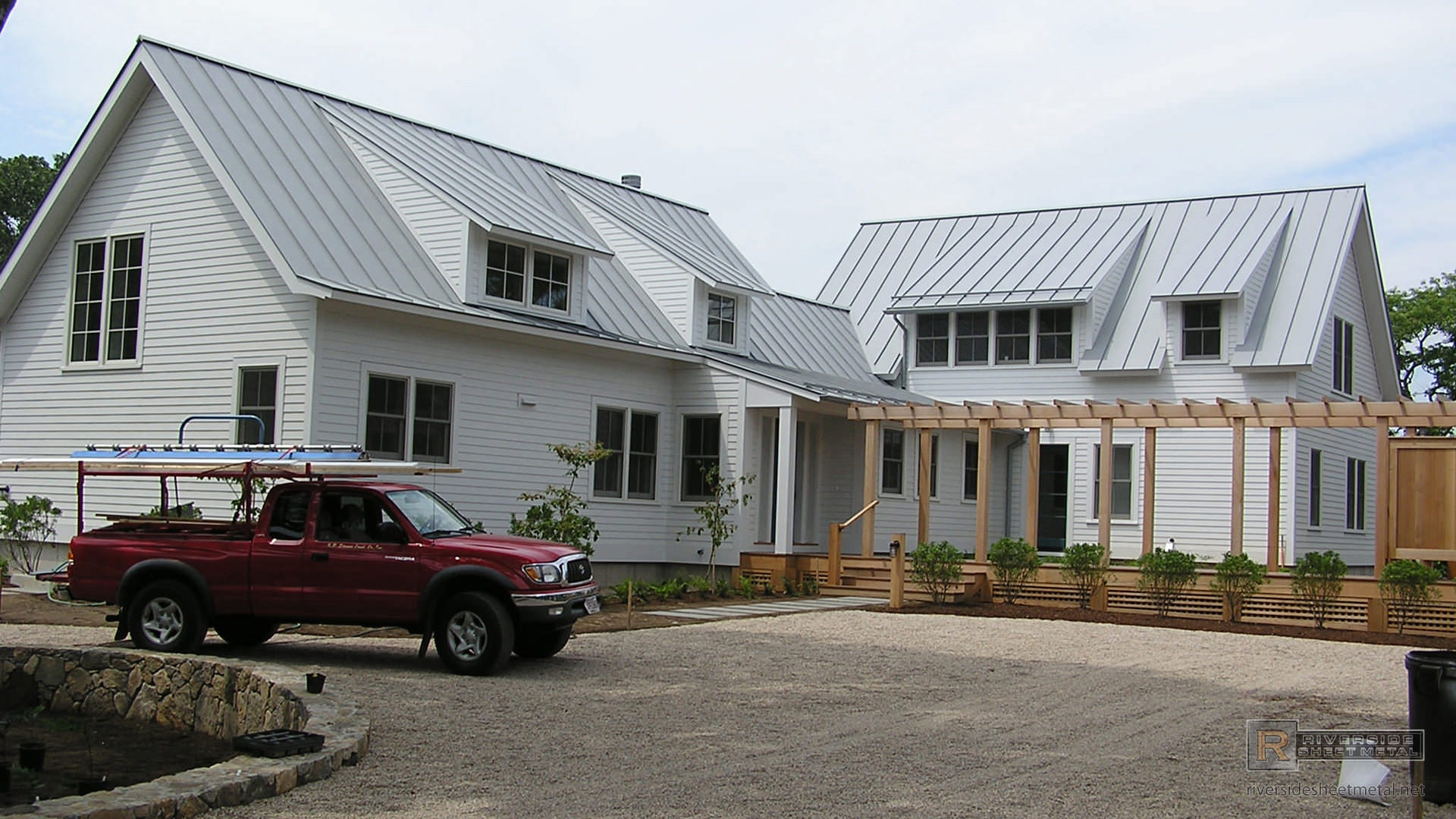

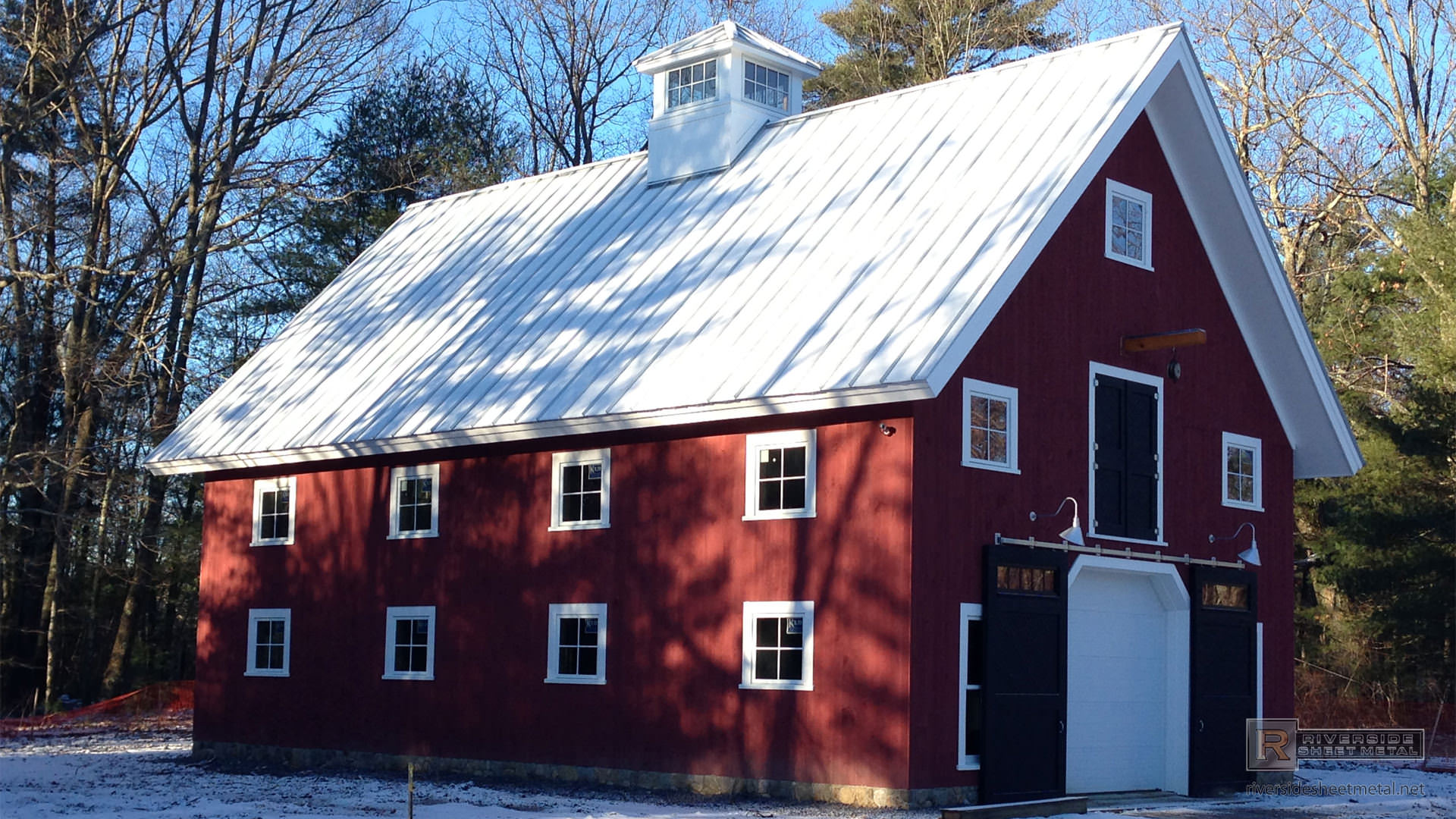

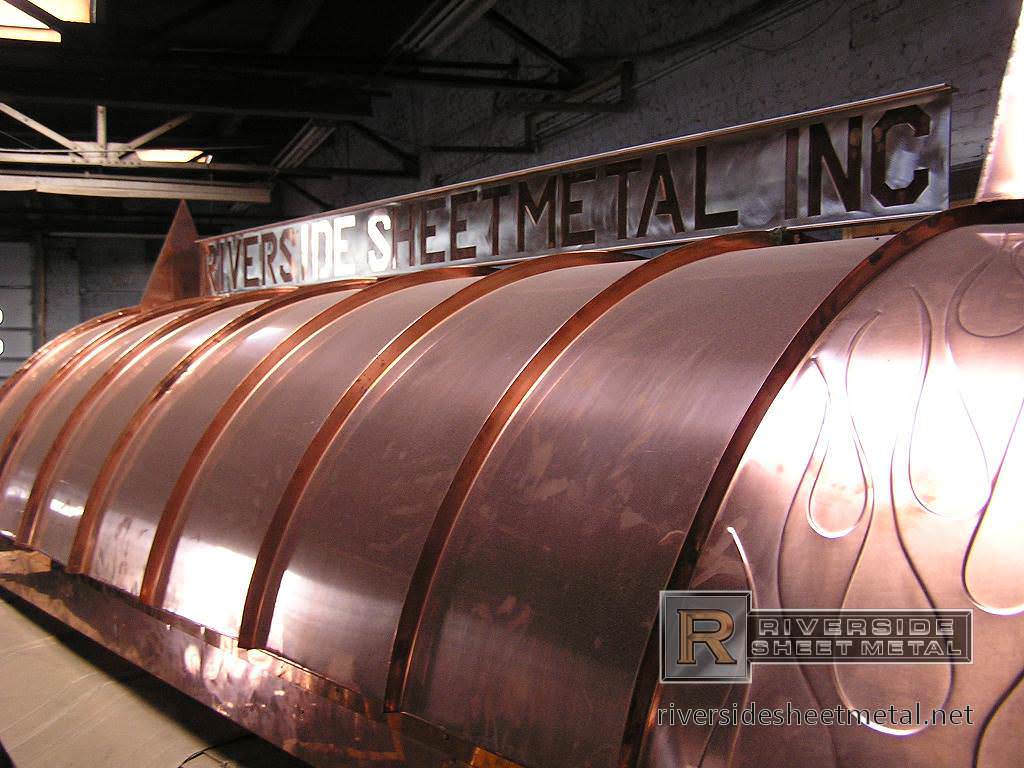

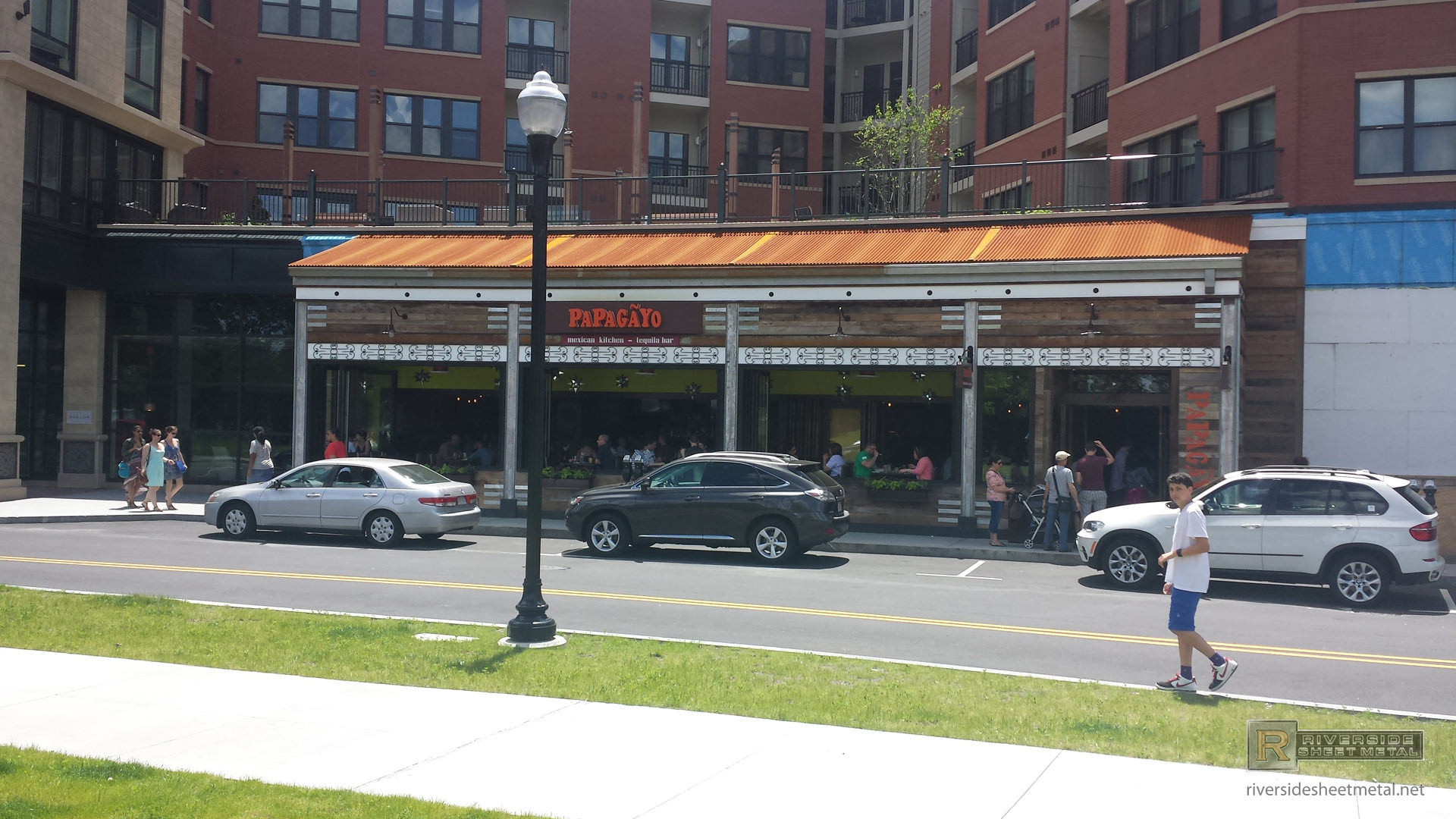

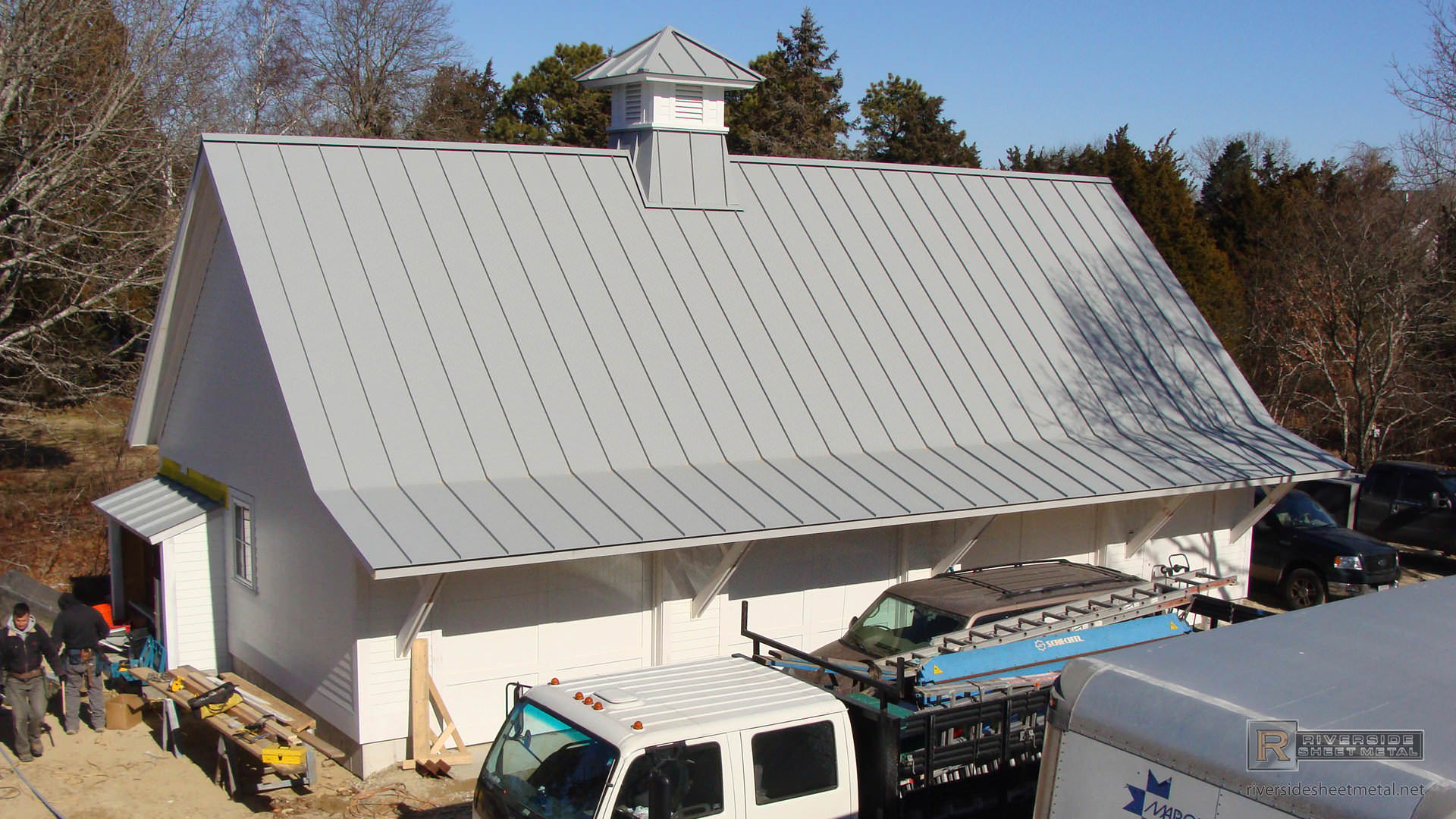

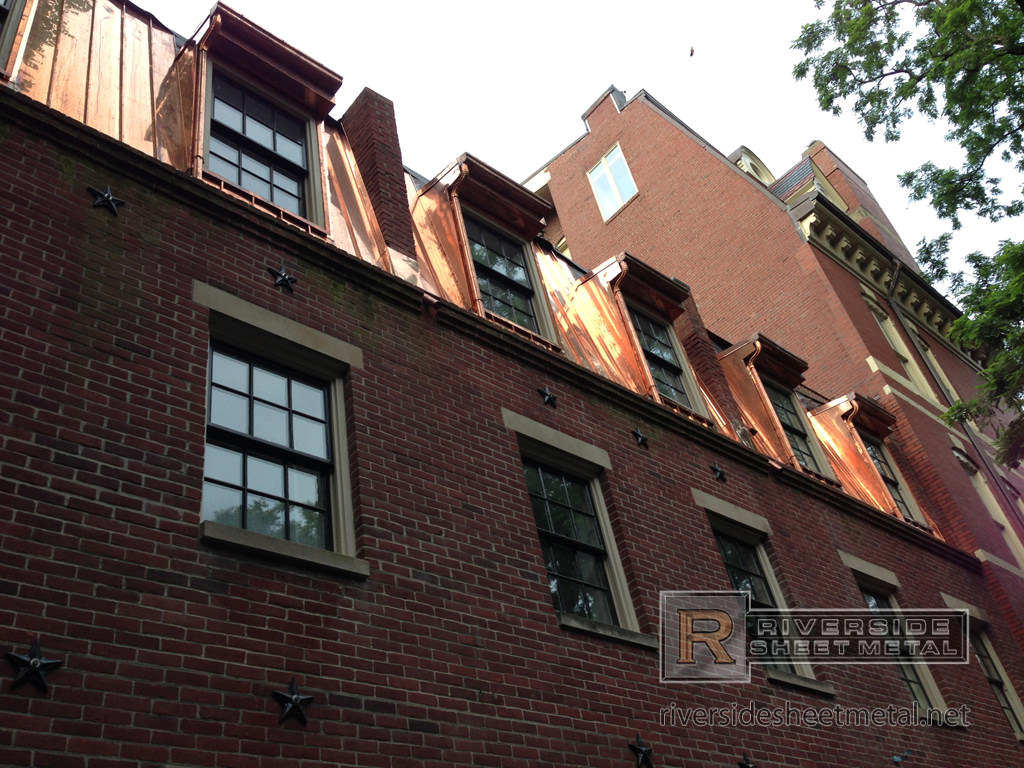

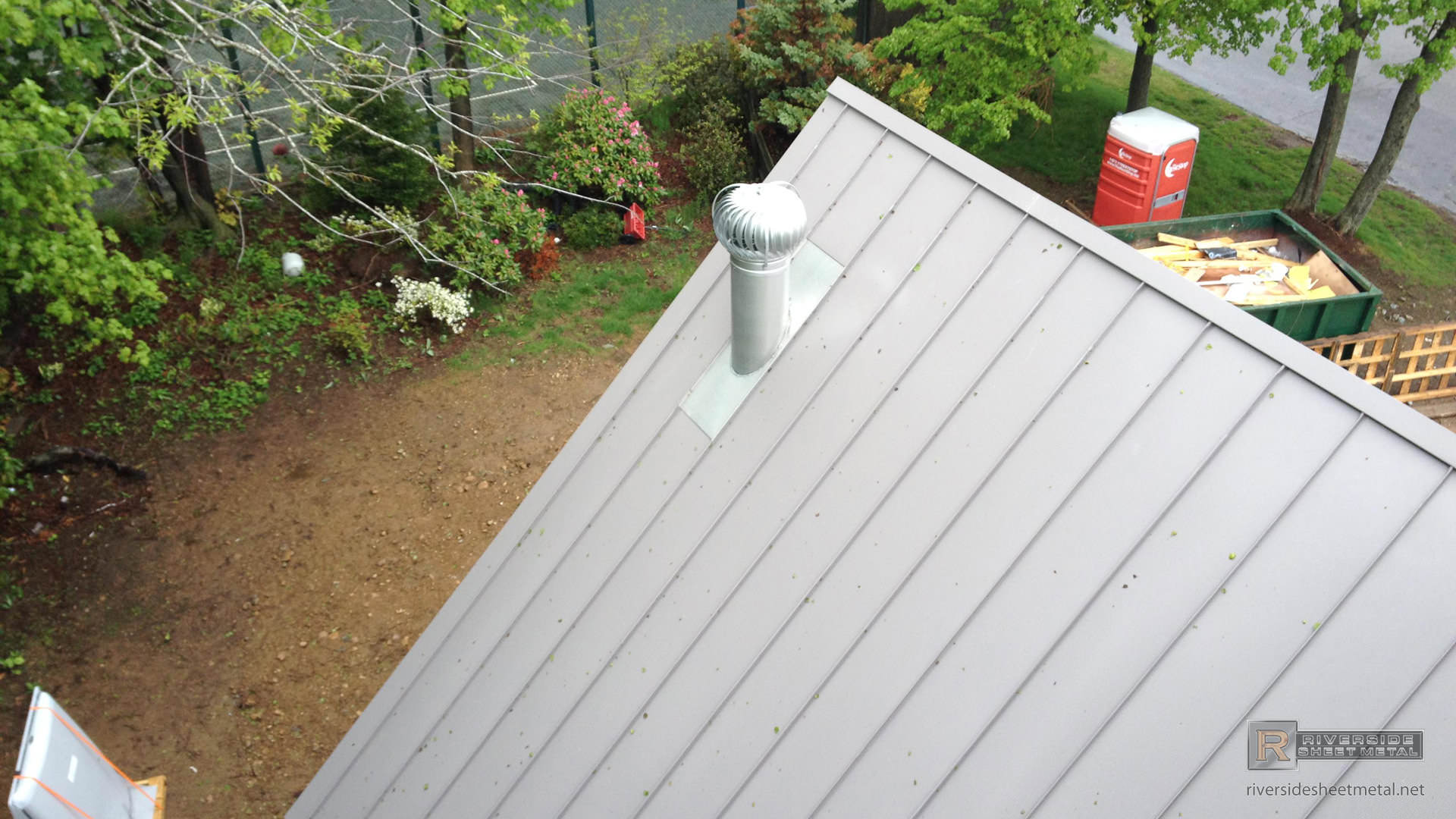

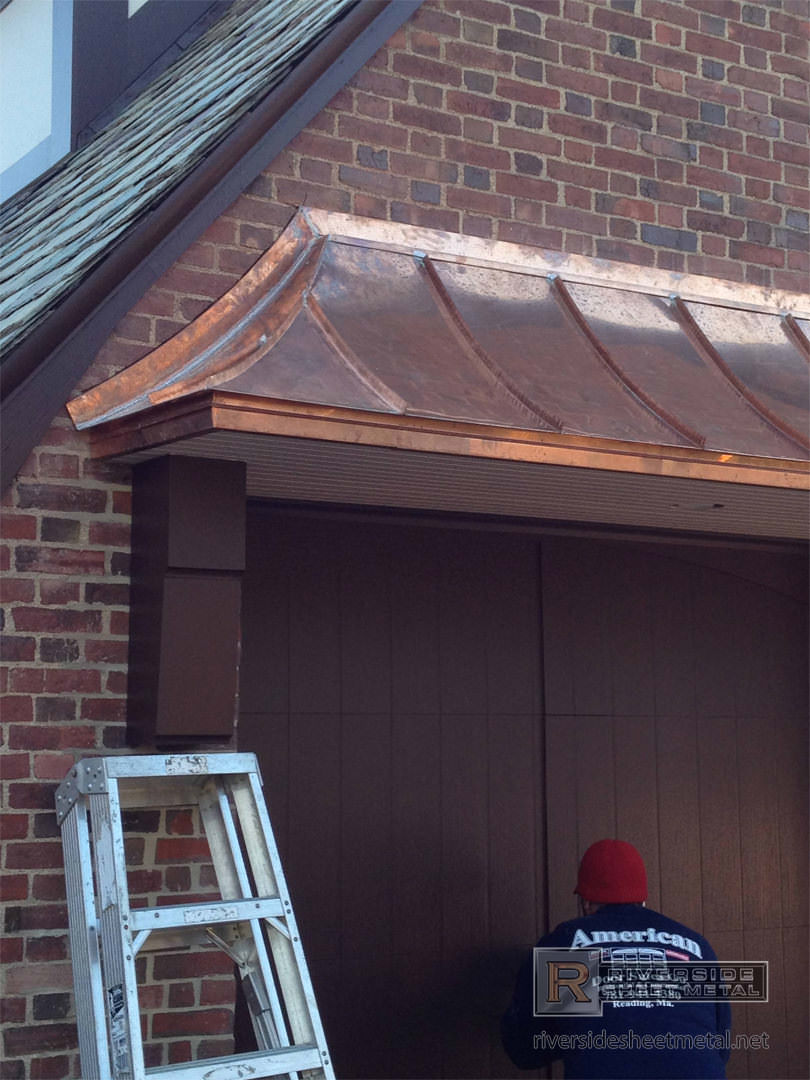

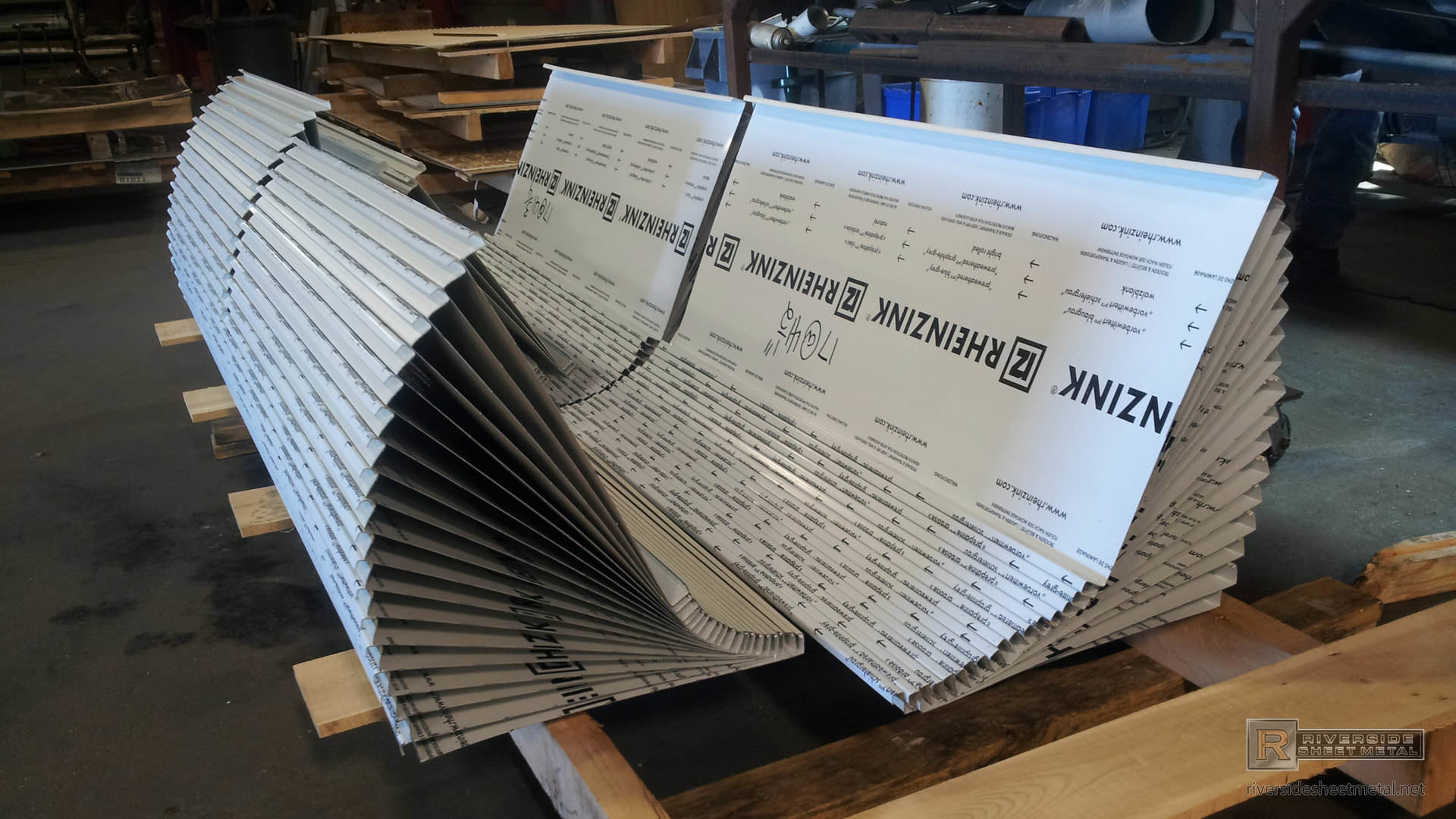

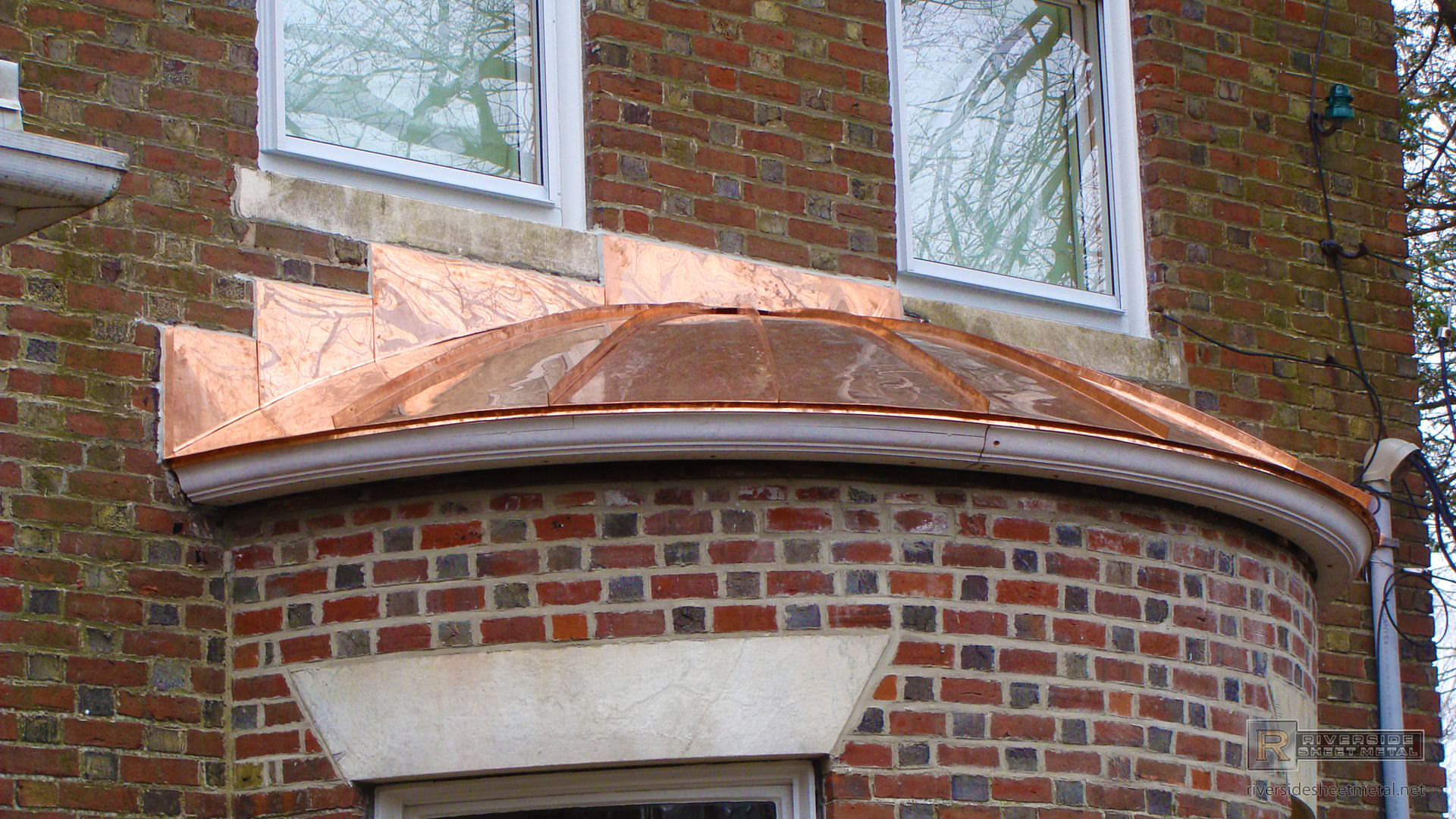

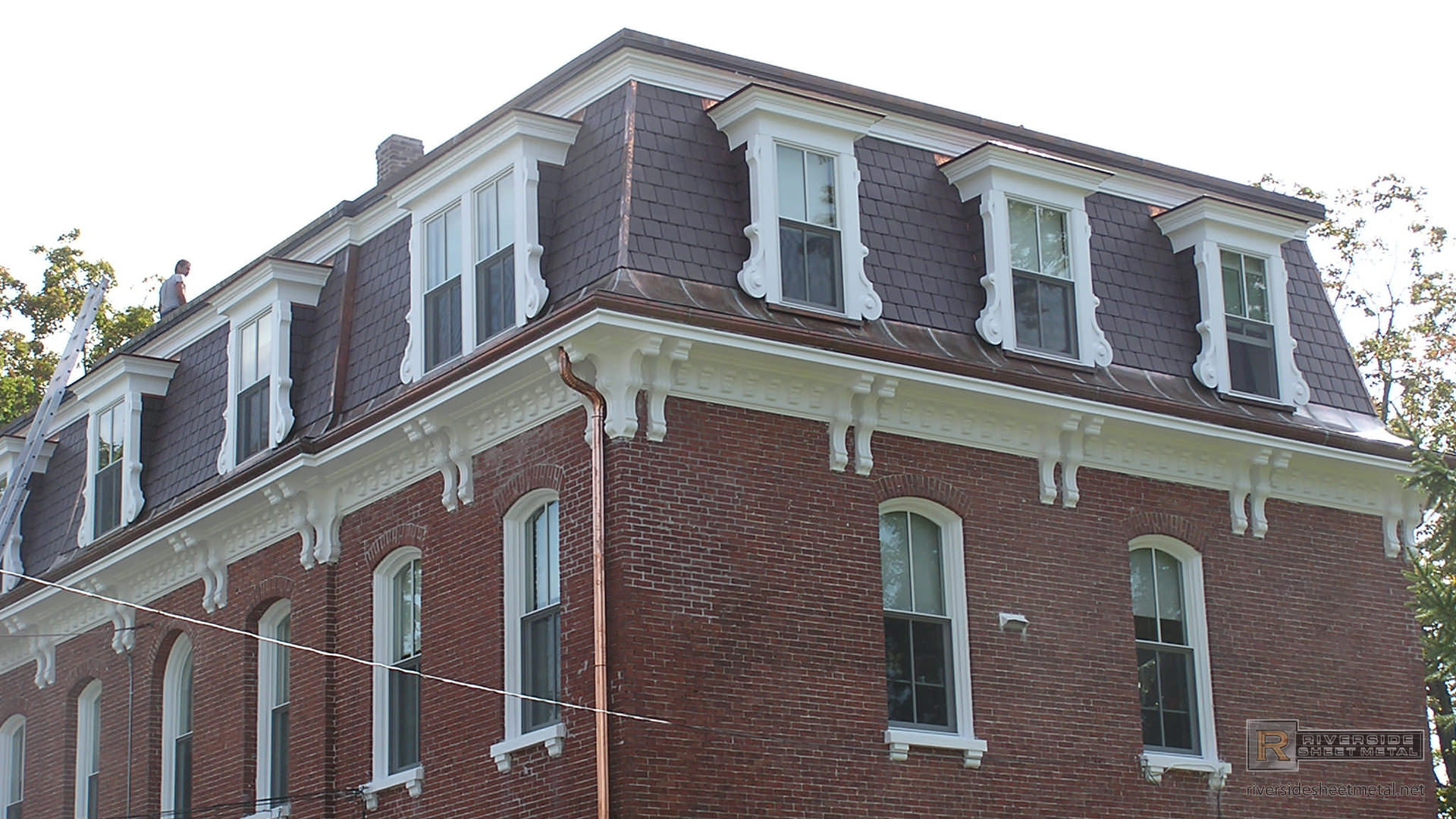

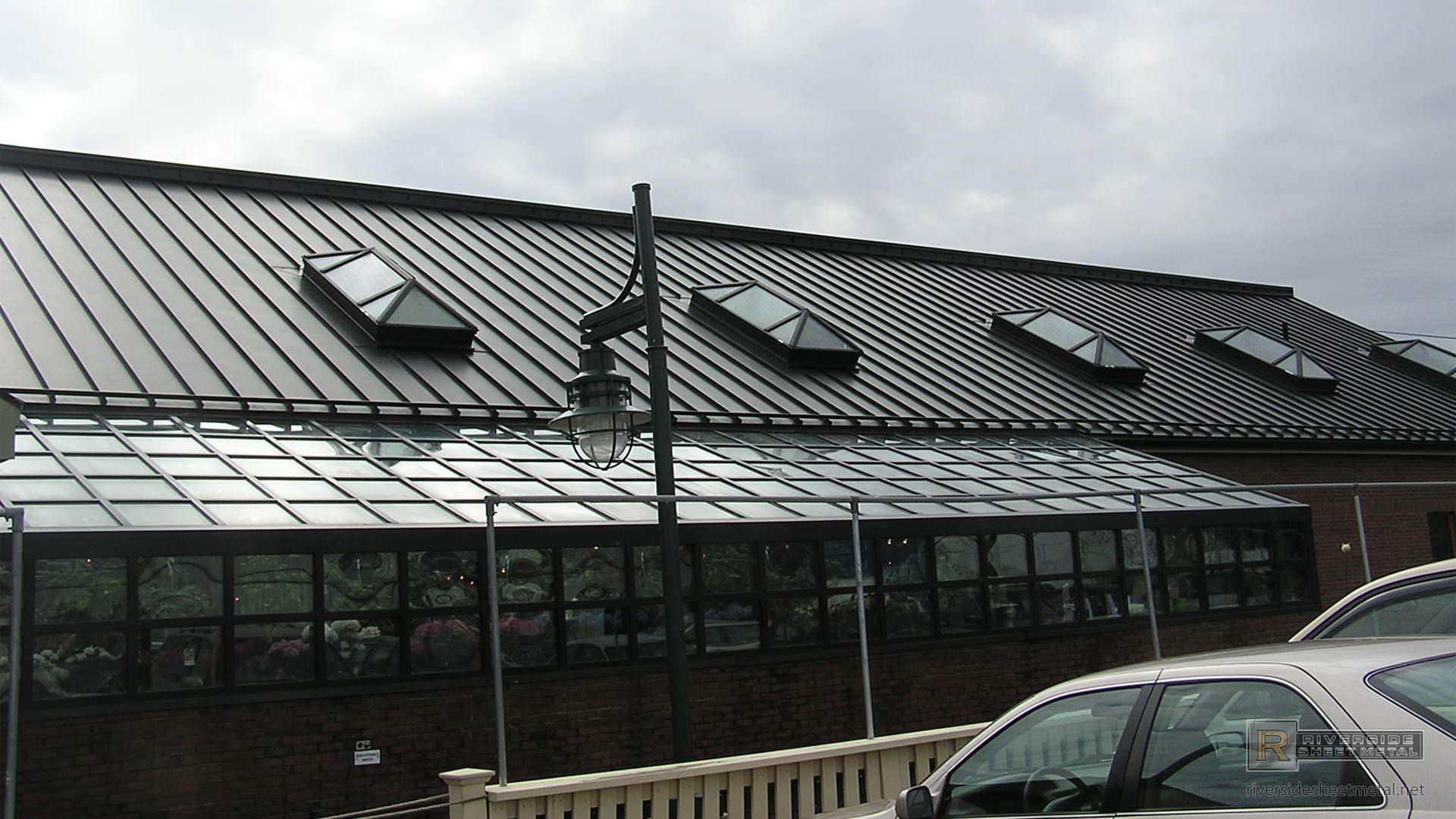

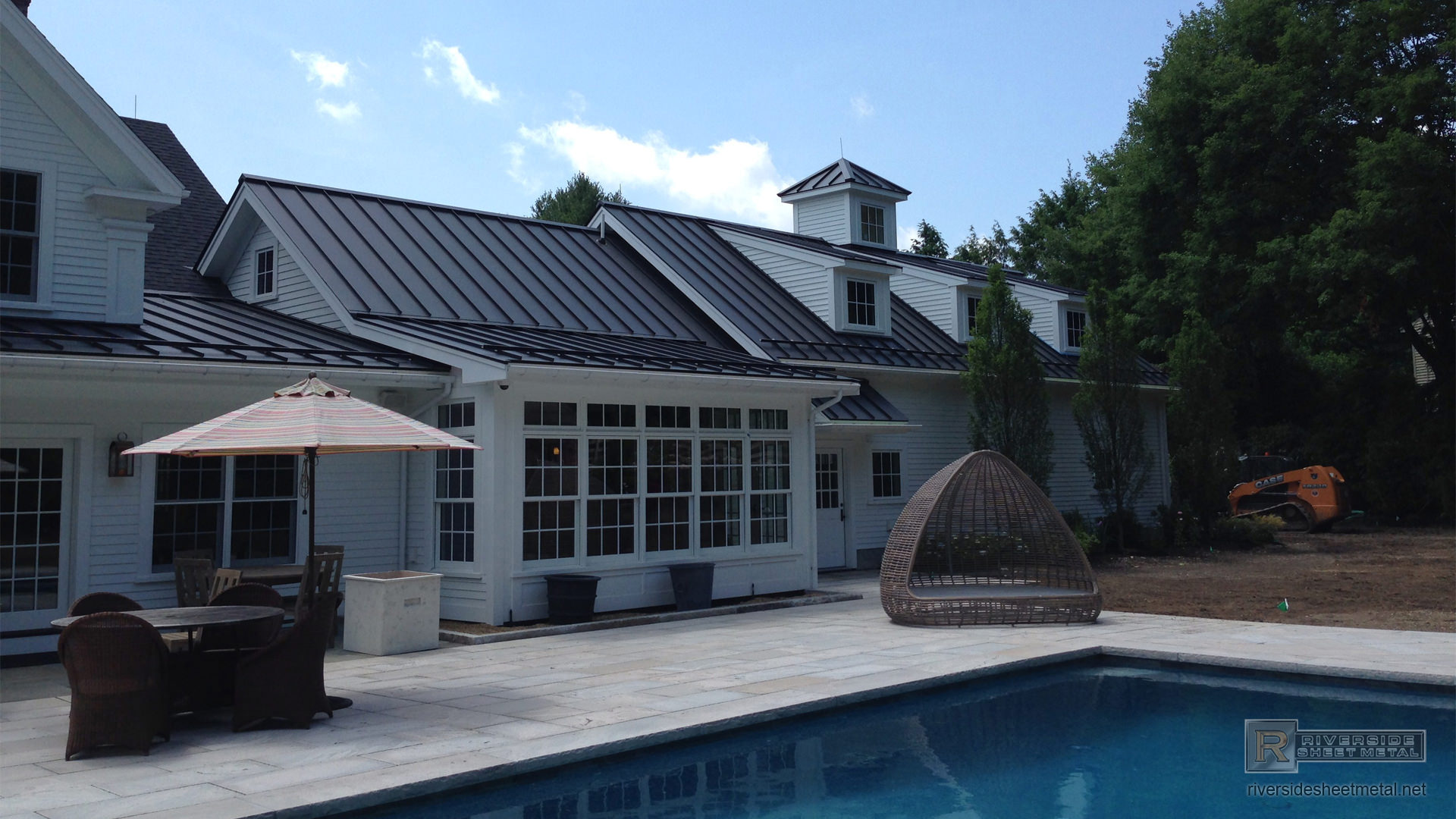

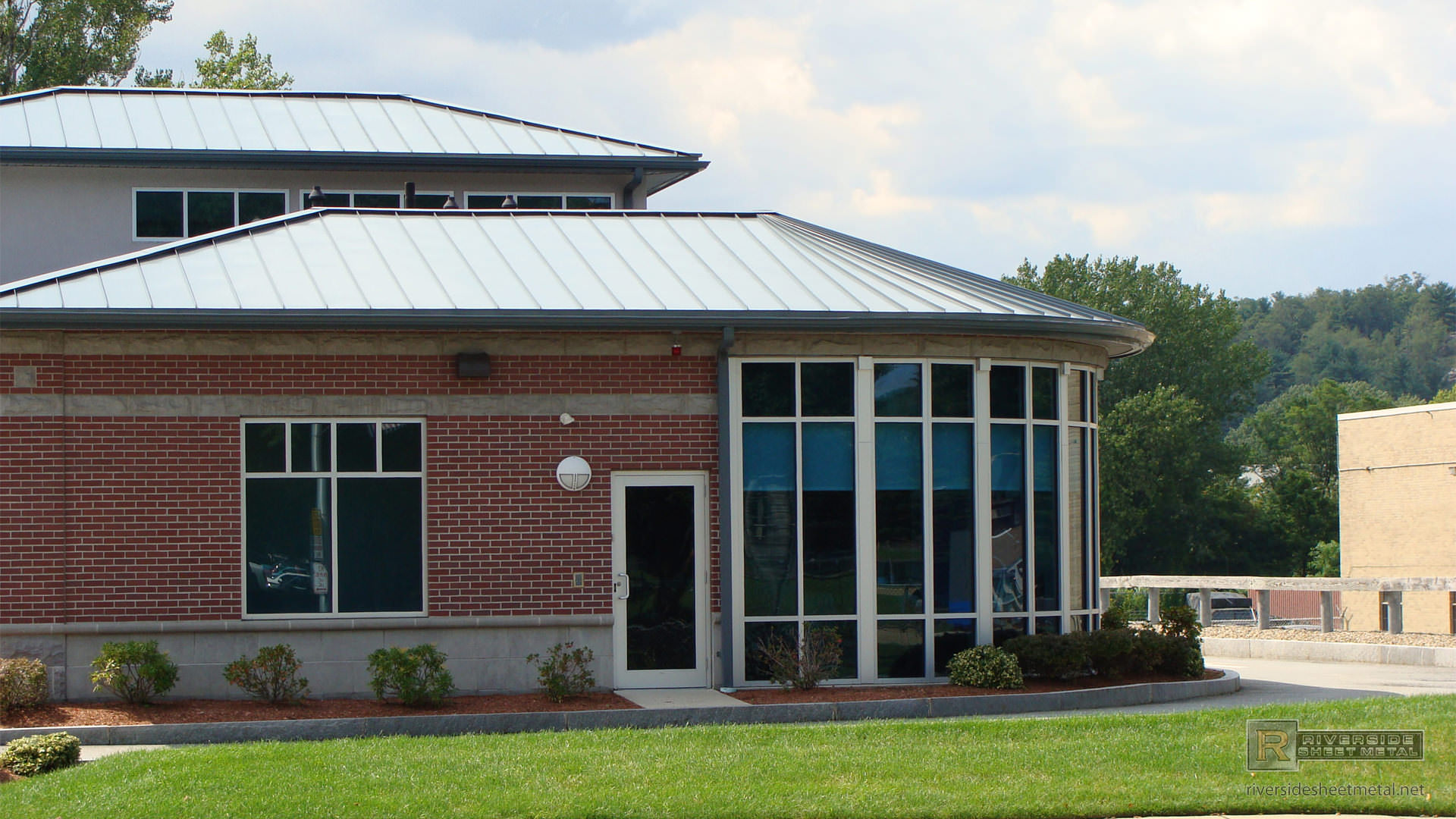

Picture Gallery
