Radius Gutters / Curved Gutters

Custom made to order - Inside and outside curved gutters

Radius Gutters

Riverside Sheet Metal specializes in the custom fabrication of radius gutters. The most common profiles are half-round, k-style, box and brownstone gutters, but we can also manufacture custom designed gutter liners and radius gutter liners.

Radius gutters, or curved gutters can most times be manufacture to accommodate regular hangers, or to have custom made hangers installed. Riverside can also pre-install hangers, outlets and end caps.

To have a radius gutter made, we need to know the profile of the curved gutter, the radius of the arc (if not exact, please provide us with a rigid template), if it's an inside or outside radius and the material for the gutter (normally copper or aluminum).

Radius gutters are normally fabricated all in one piece (5" and 6" k-style, brownstone, box and half round). Additionally, gutters with custom profiles may be manufactured in different lengths. On those, all seams are thoroughly soldered on copper gutters, ensuring a long lasting joint, while the same are riveted on aluminum gutters.

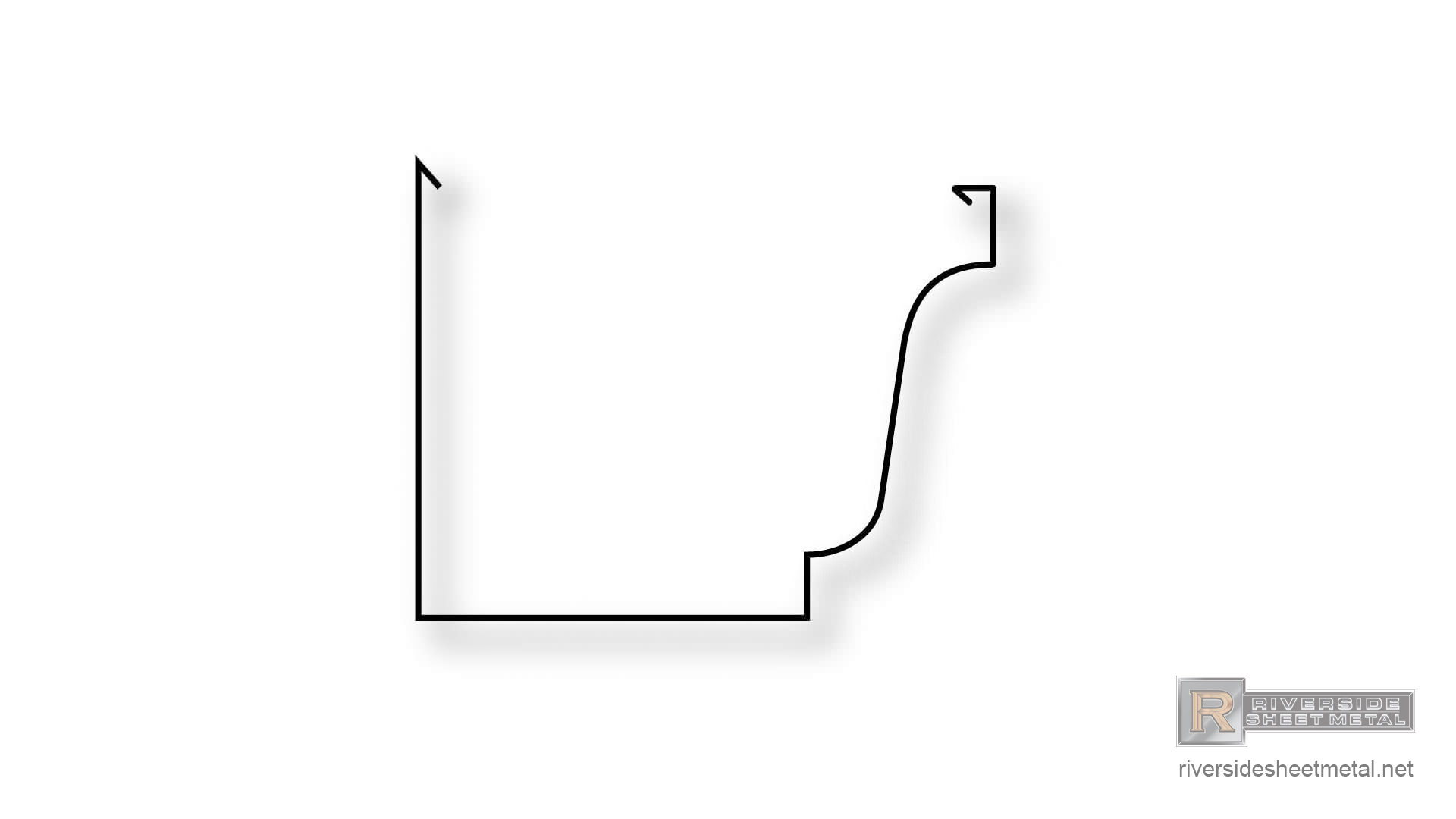

K-style radius single bead gutter - 5 and 6 inches seamless

5" & 6" k-style radius gutter
Up to 11' lengths

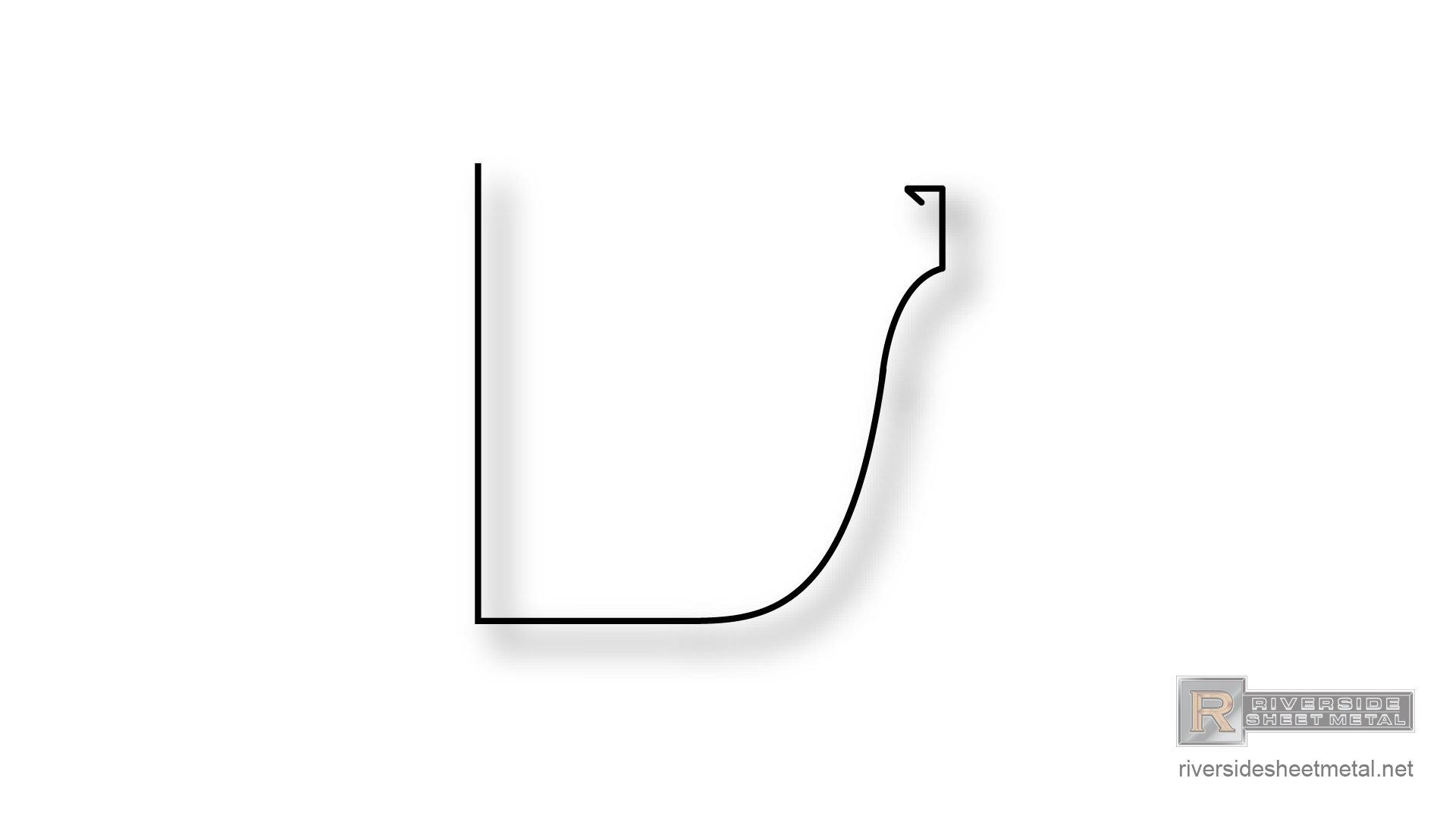

Brownstone gutter profile

5" & 6" brownstone radius gutter
(Example) Up to 11' lengths

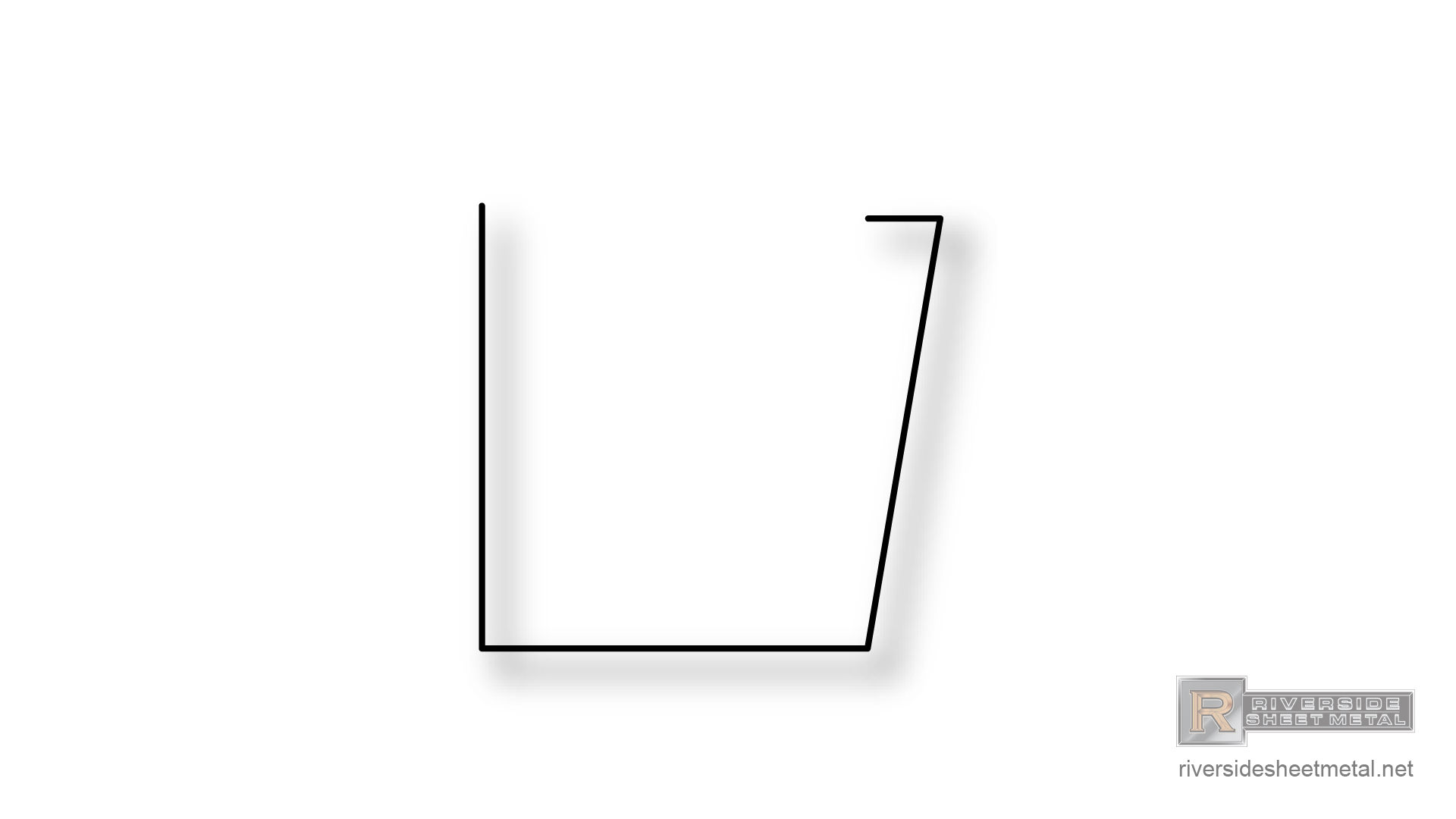

Simple box radius gutter - 5 and 6 inches seamless

5" & 6" simple box radius gutter
(Example) Up to 11' lengths

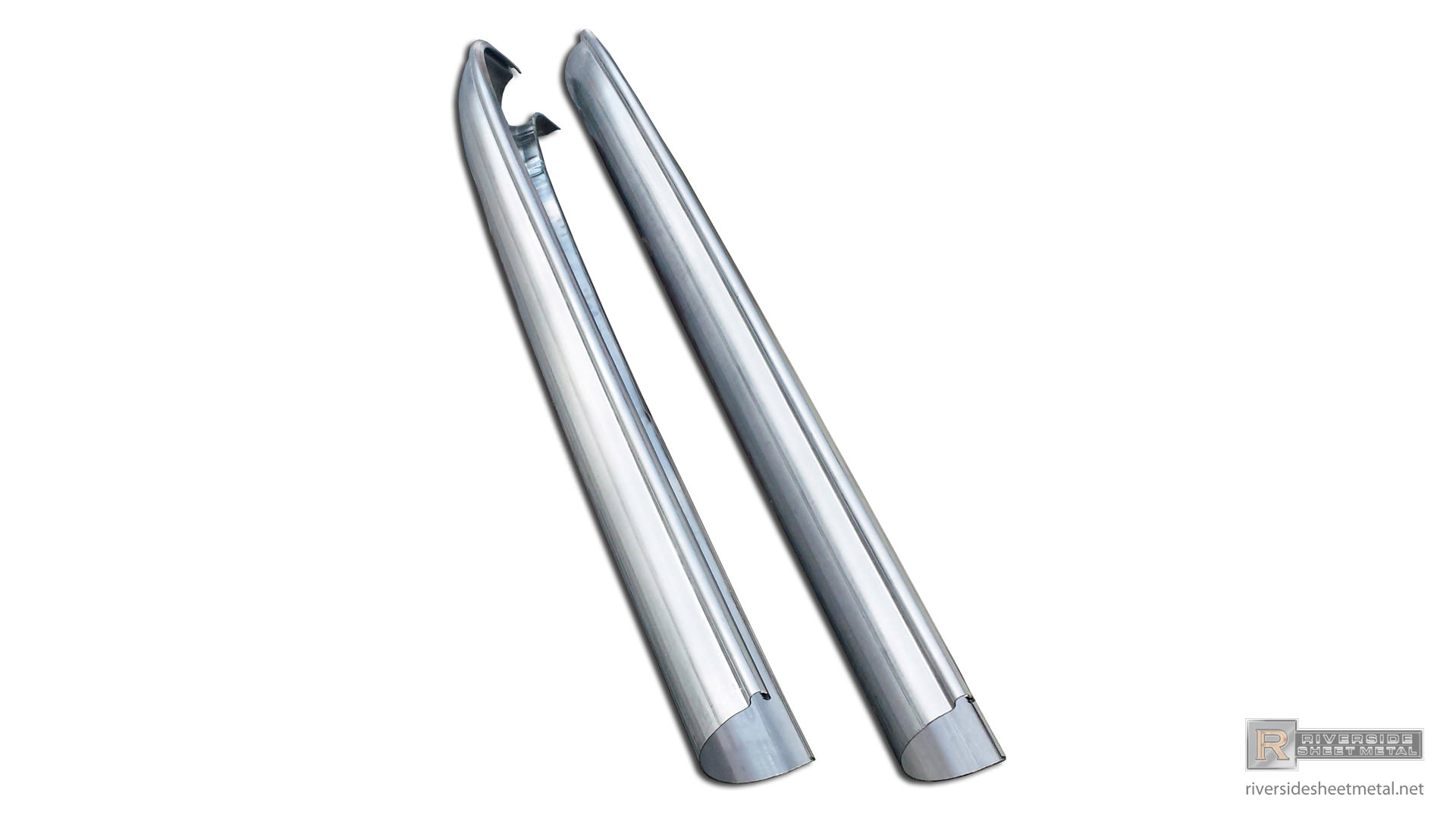

Half-round radius single bead gutter - 5 and 6 inches seamless

5" & 6" half-round radius gutter
Up to 11' lengths

Radius K-Style Gutters

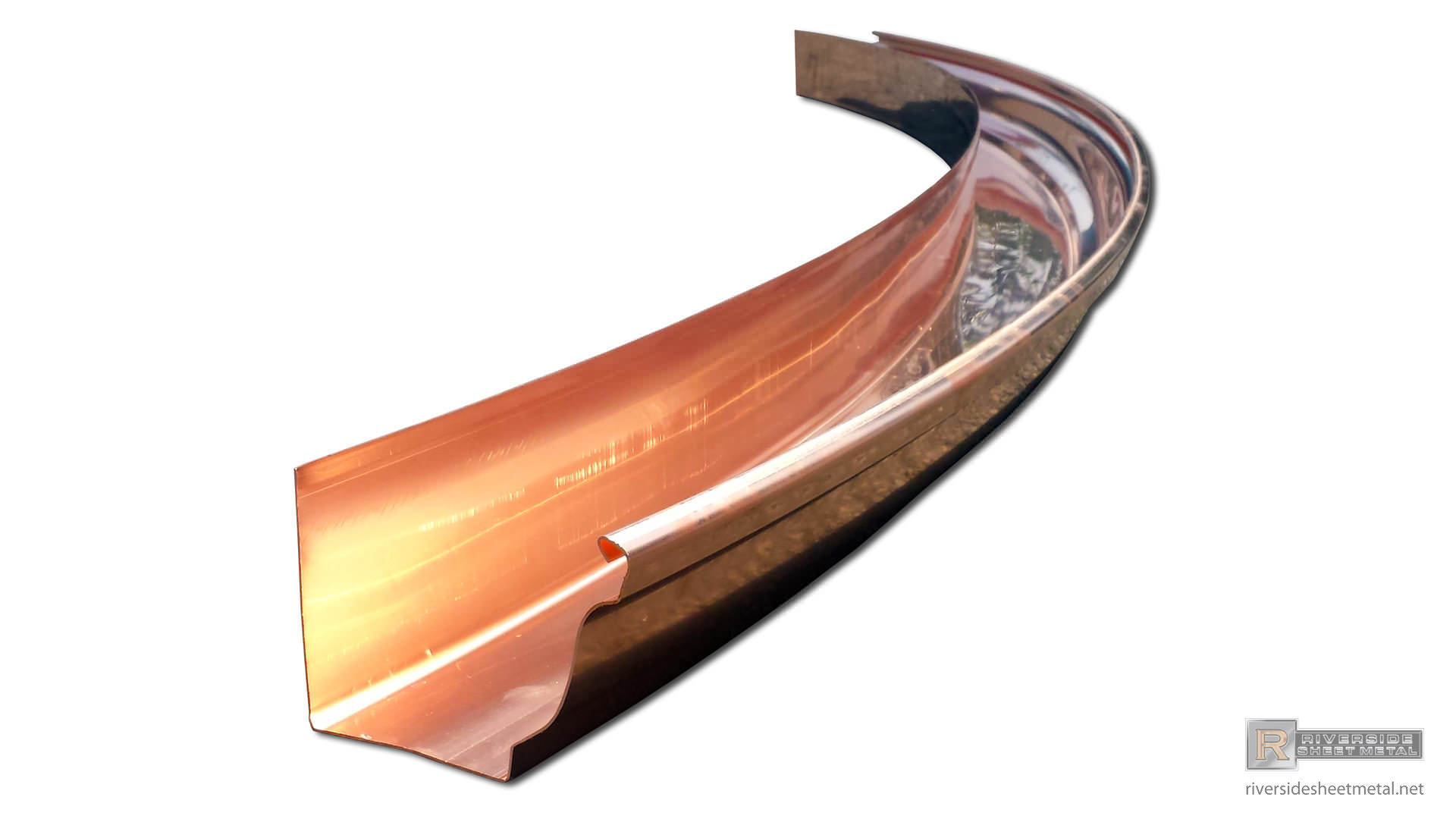

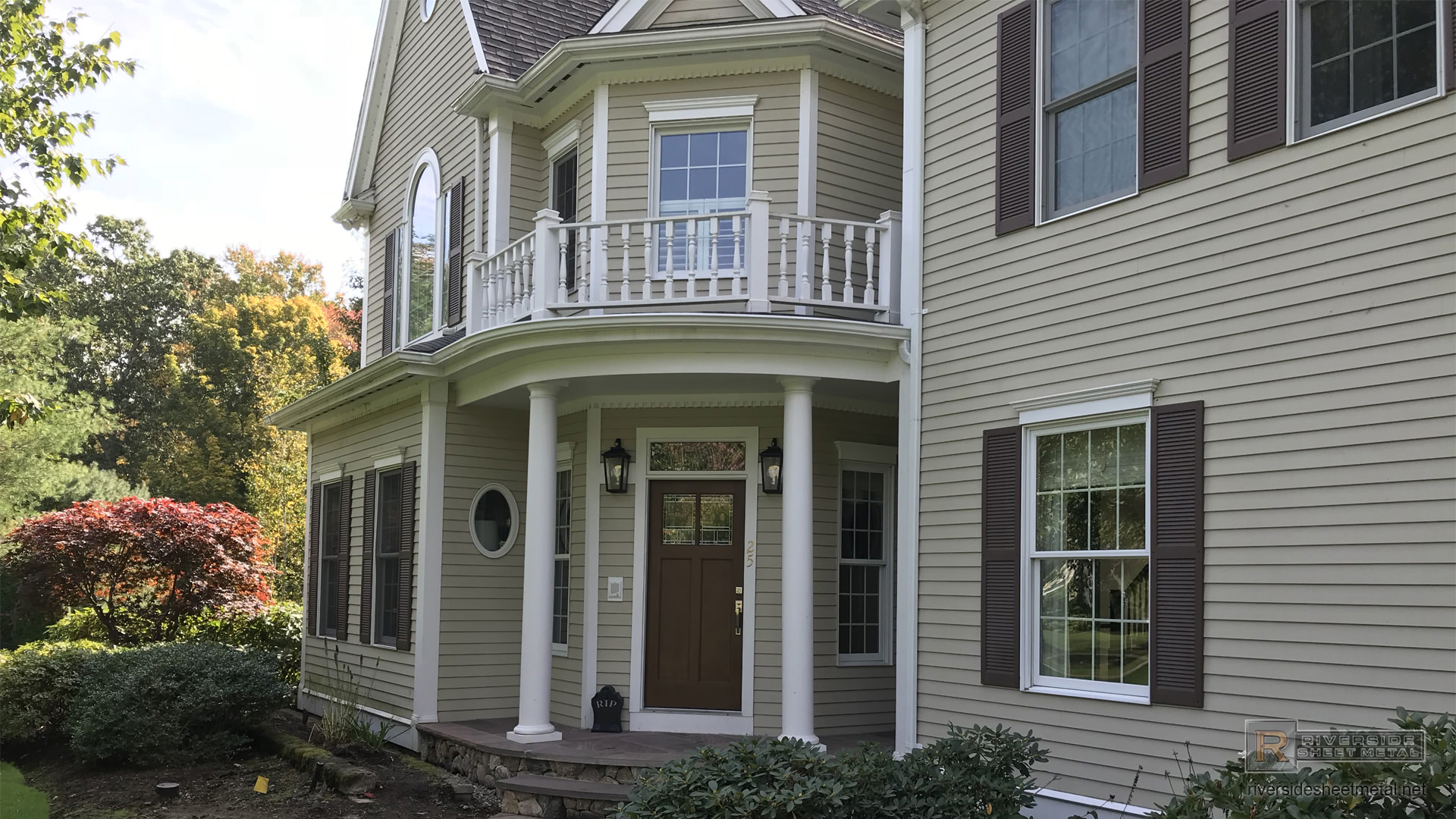

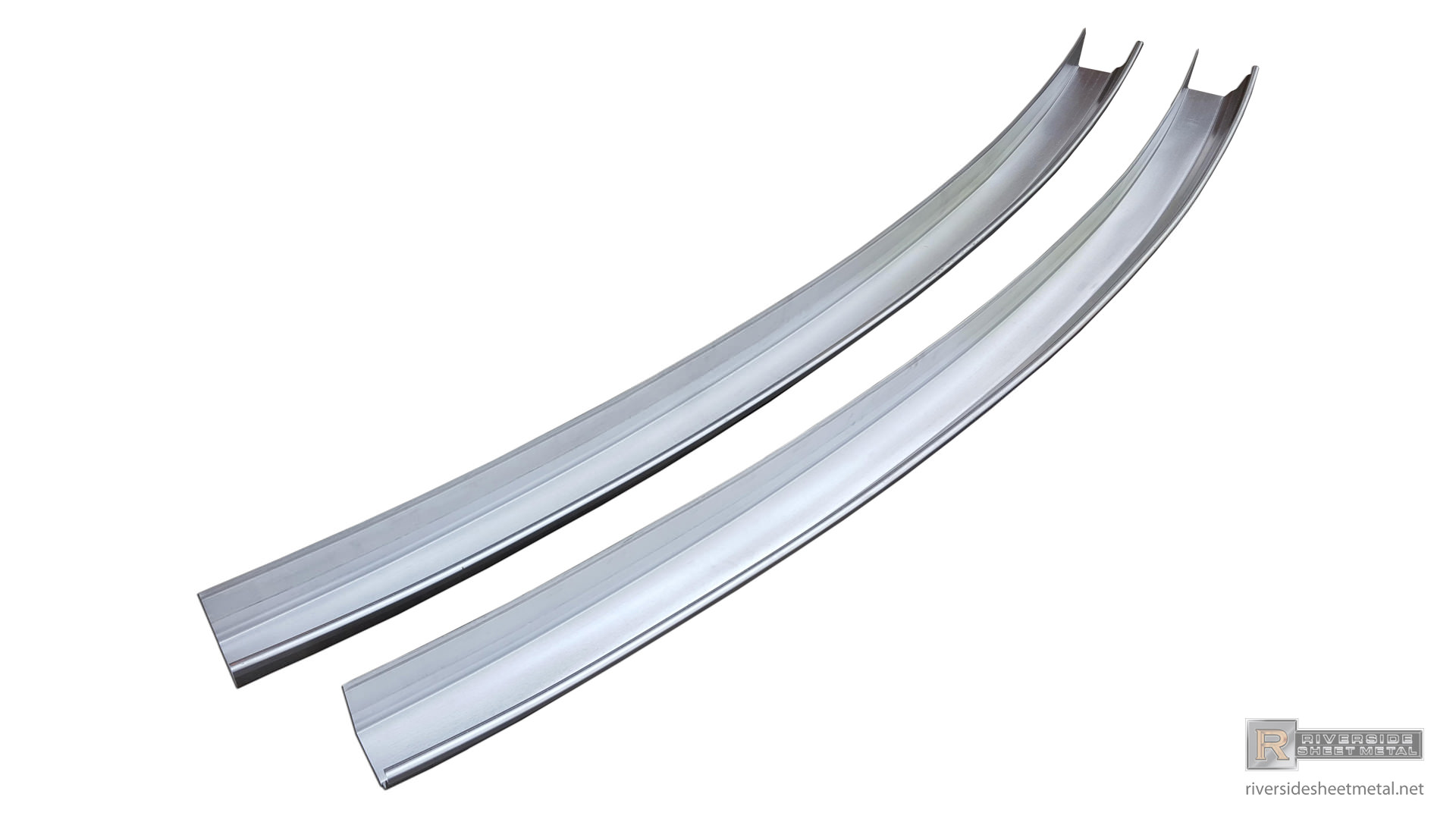

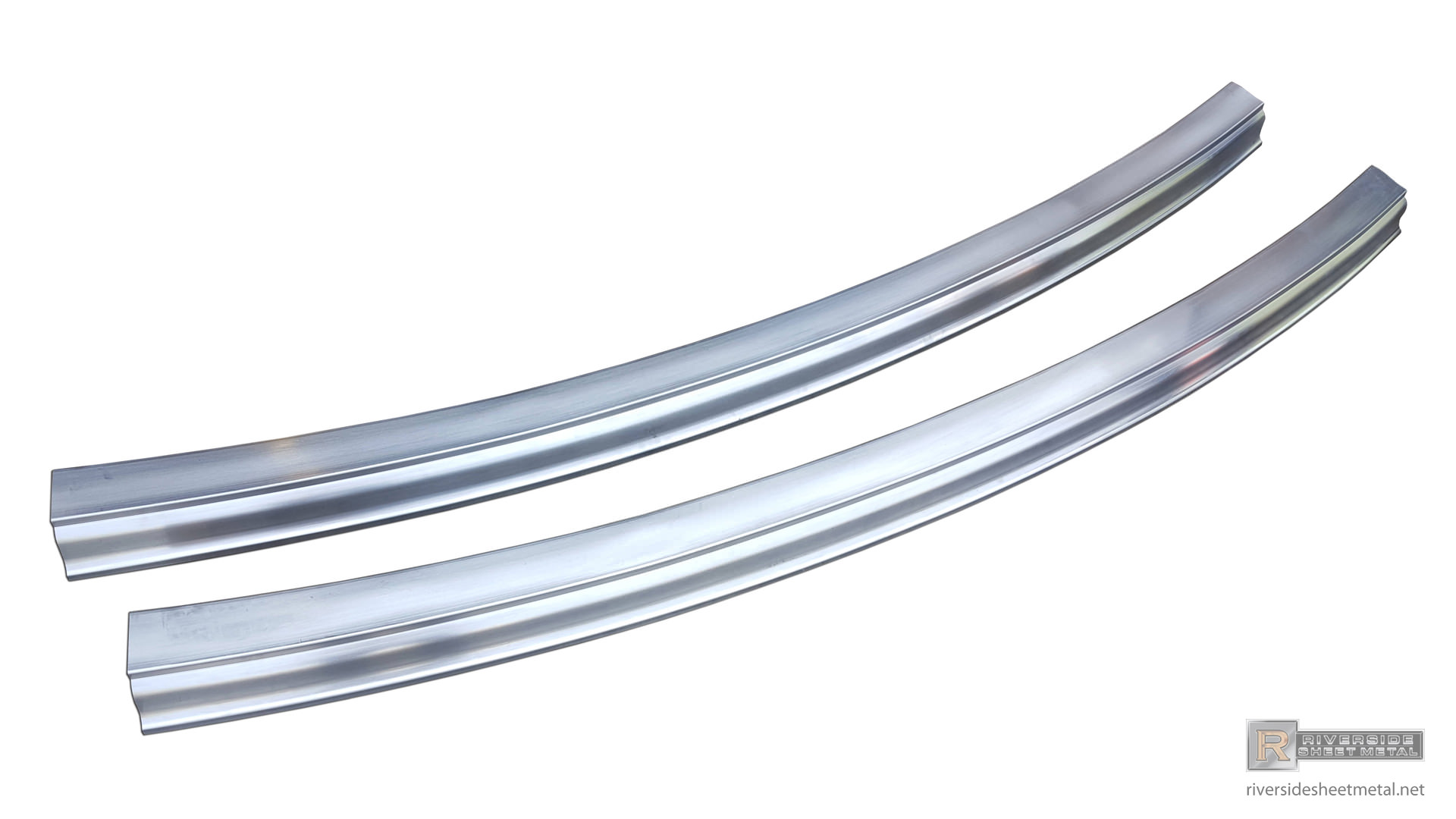

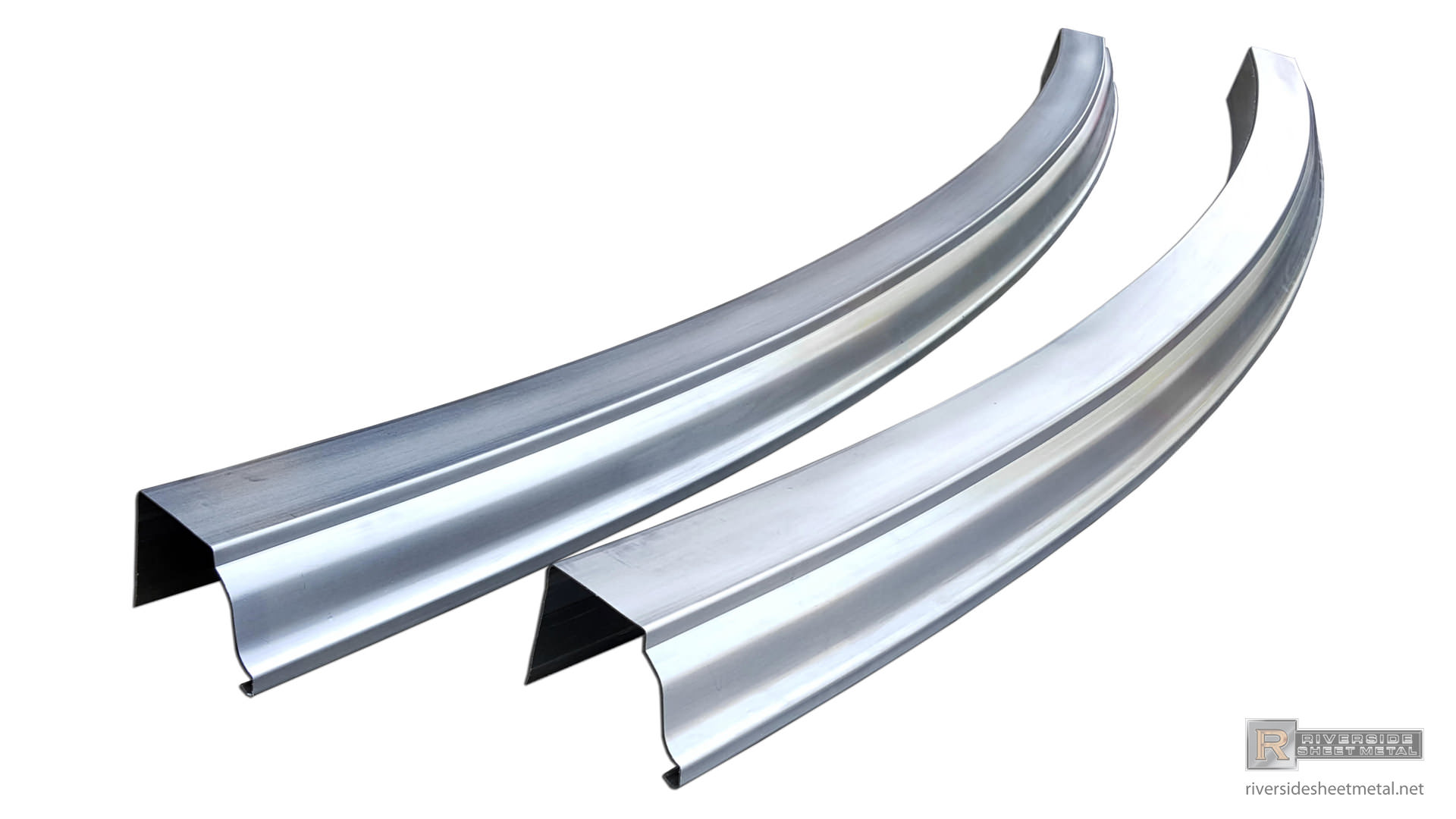

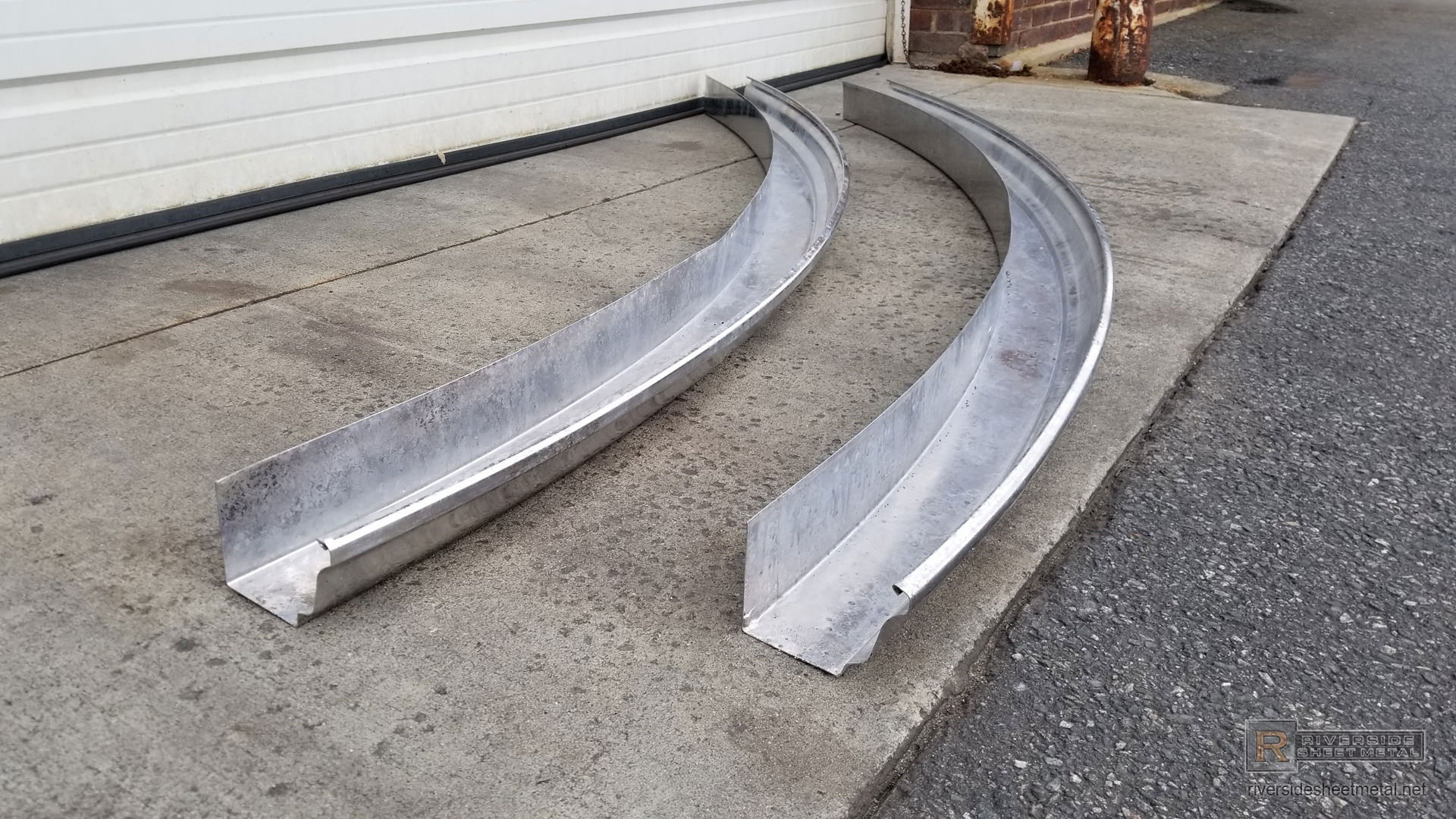

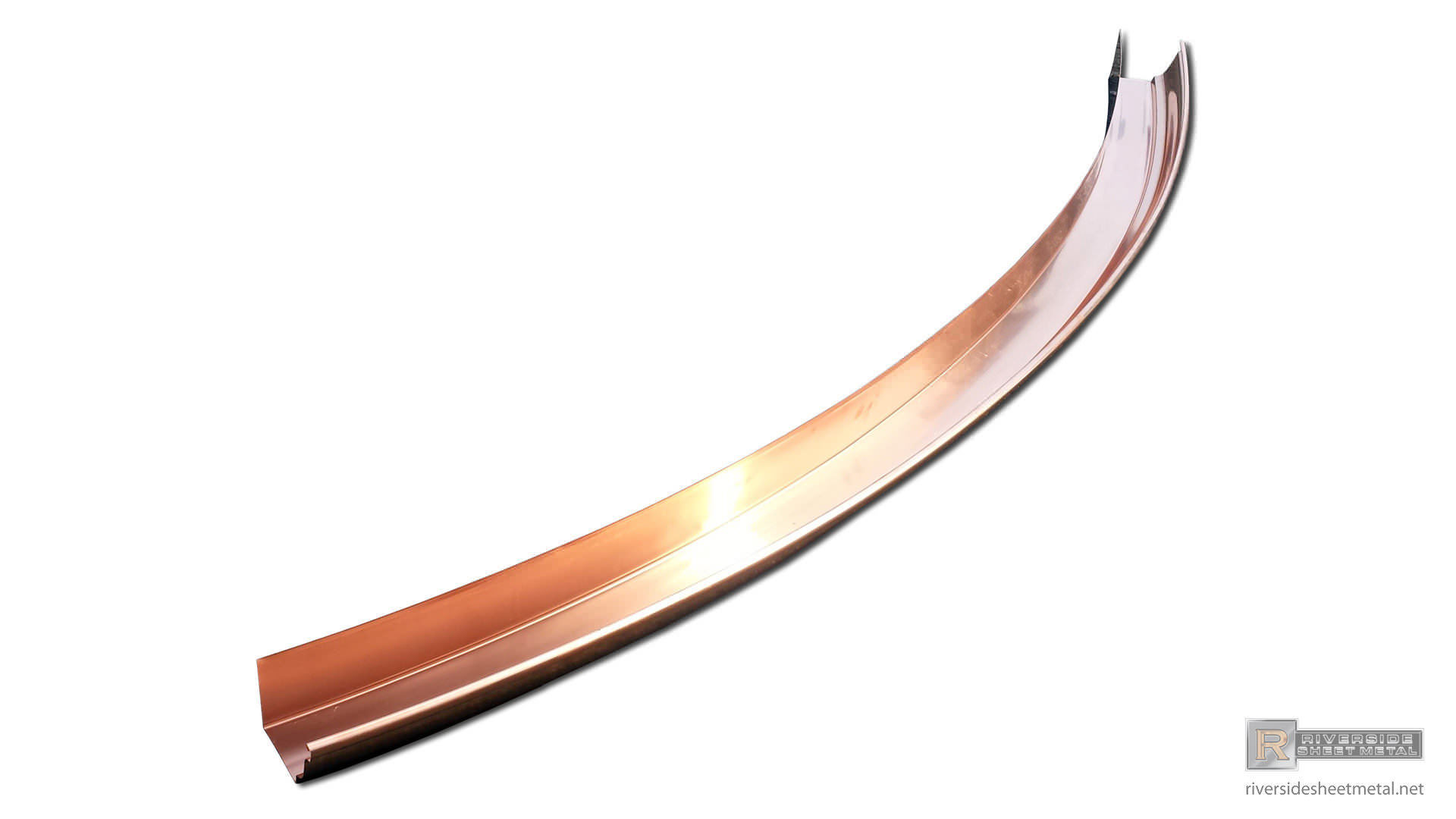

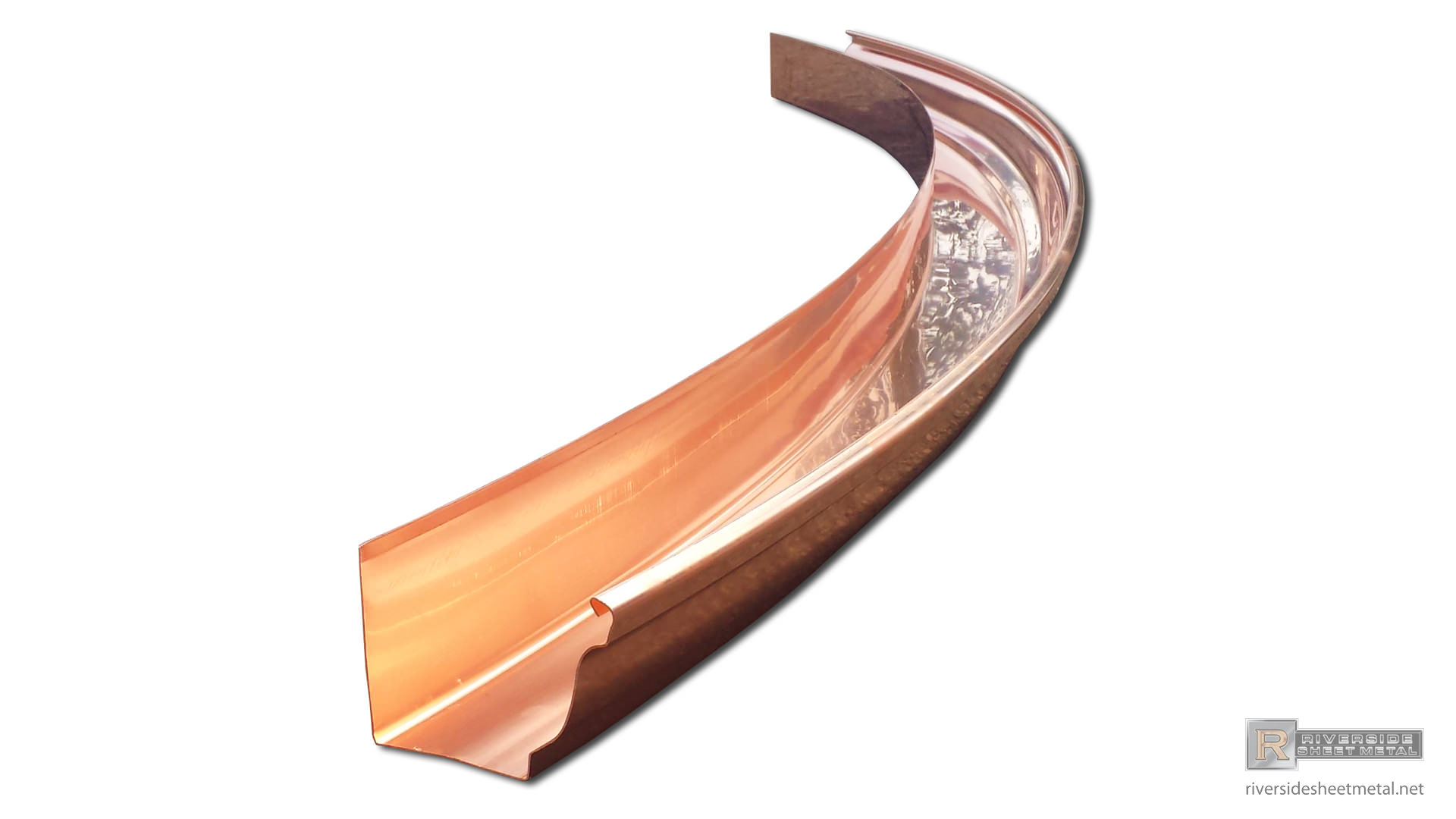

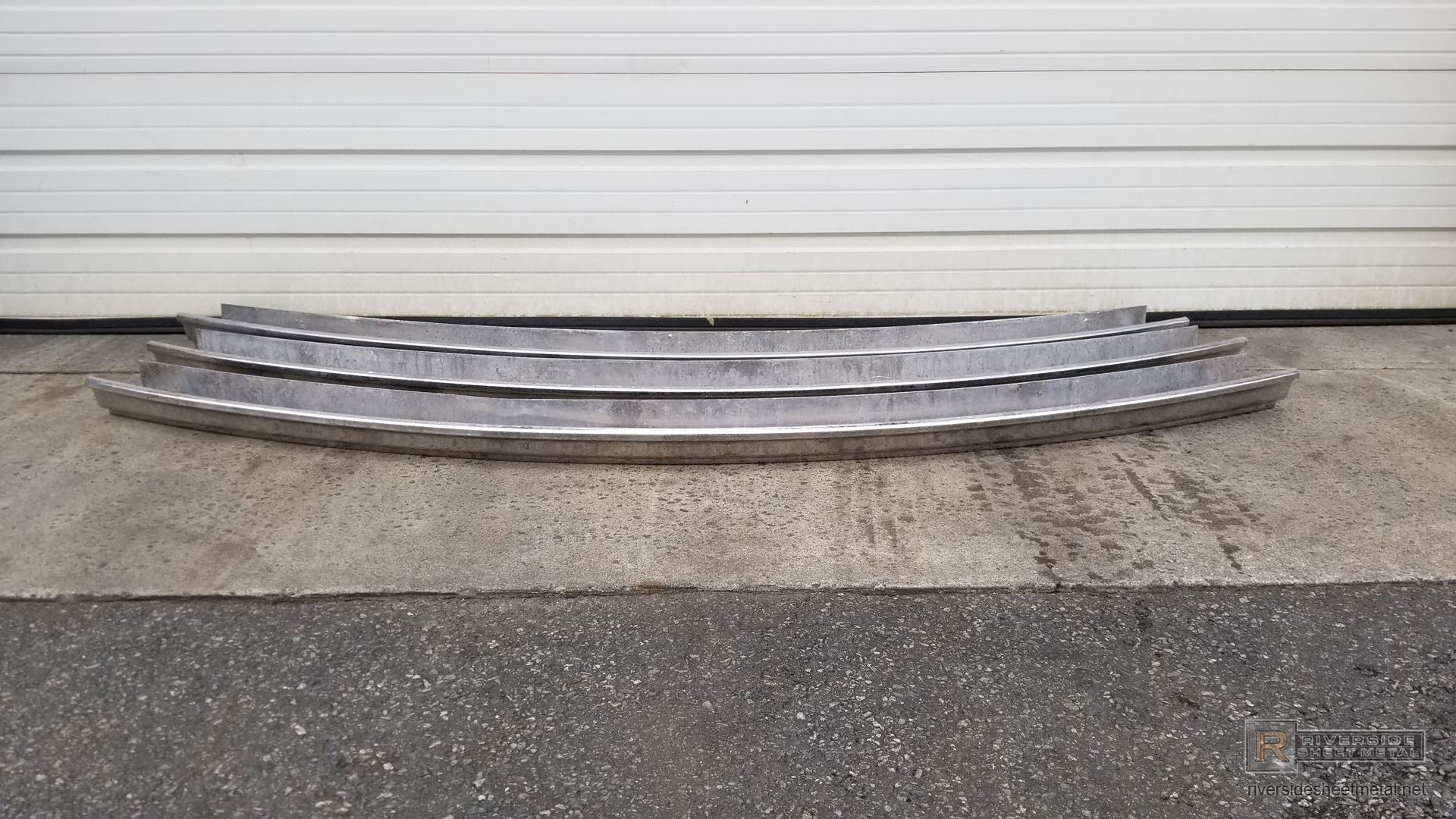

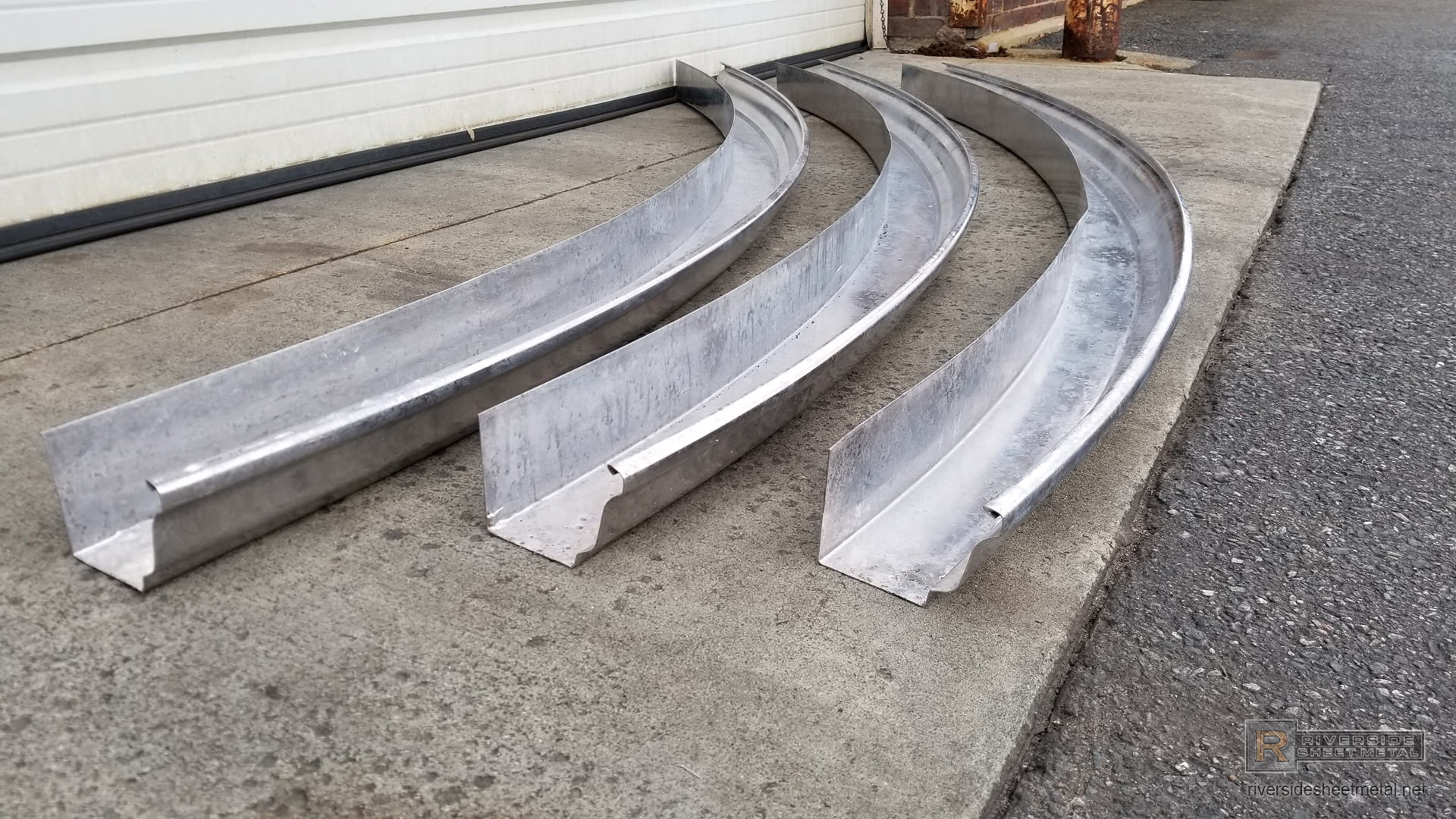

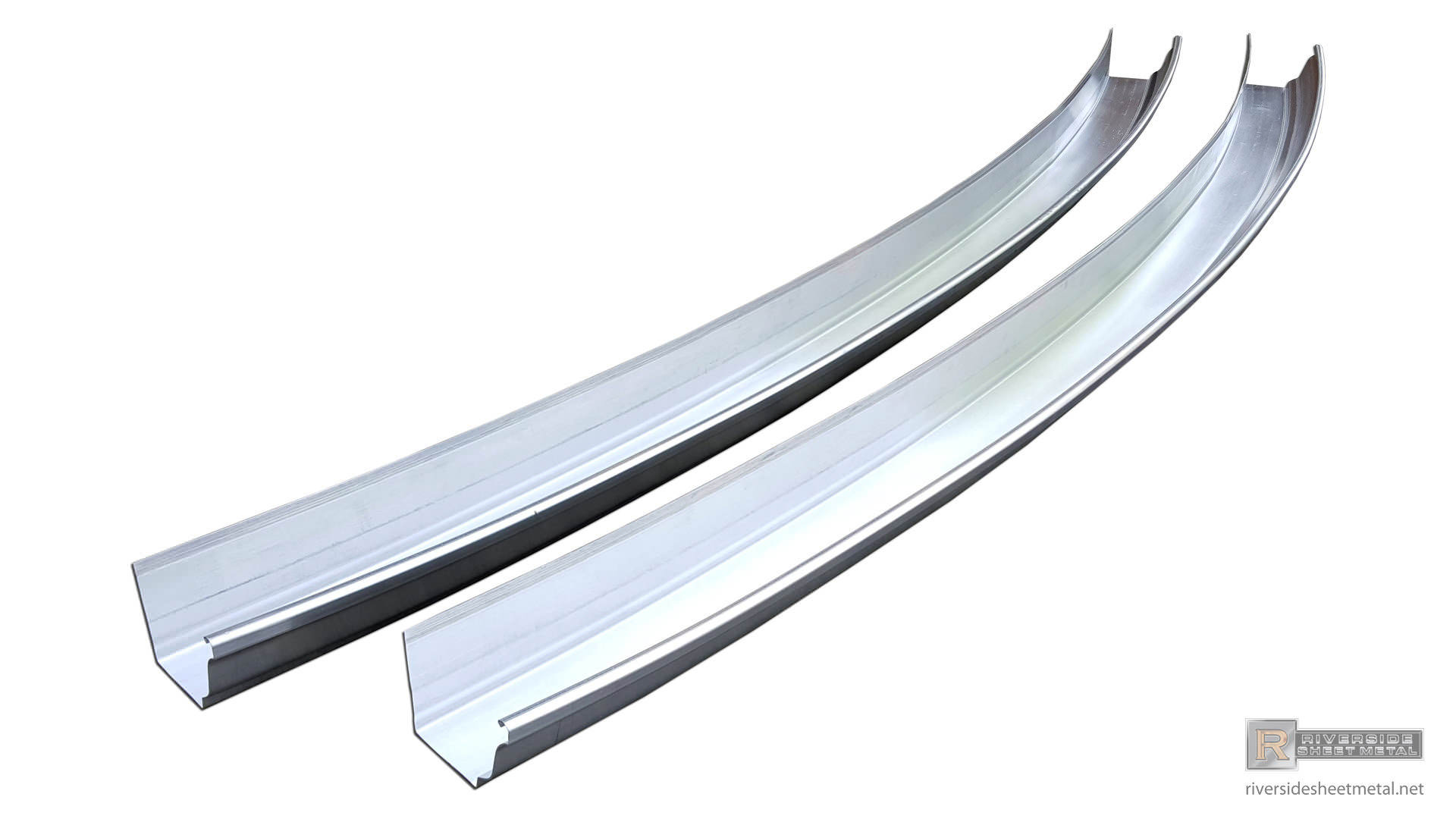

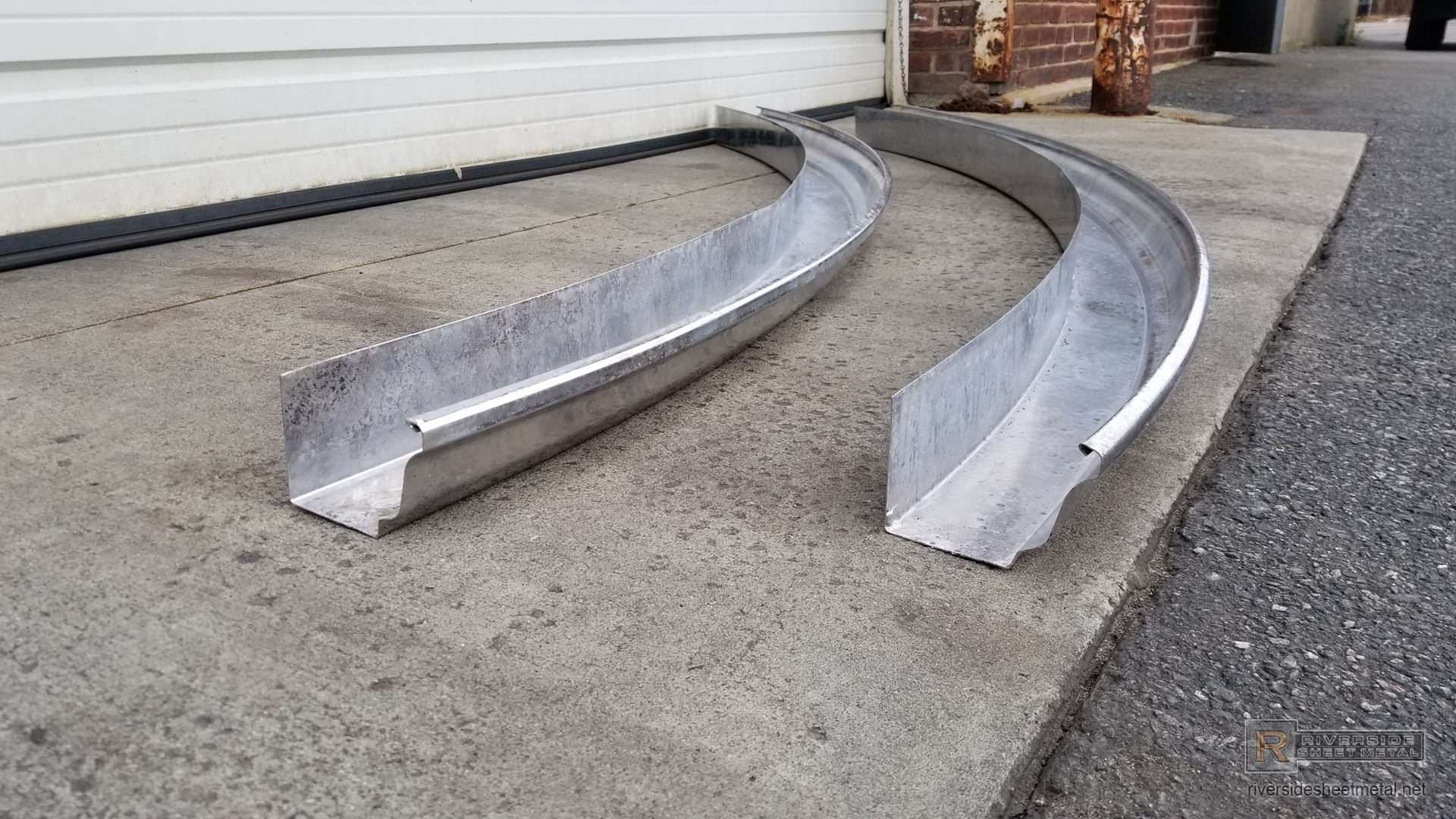

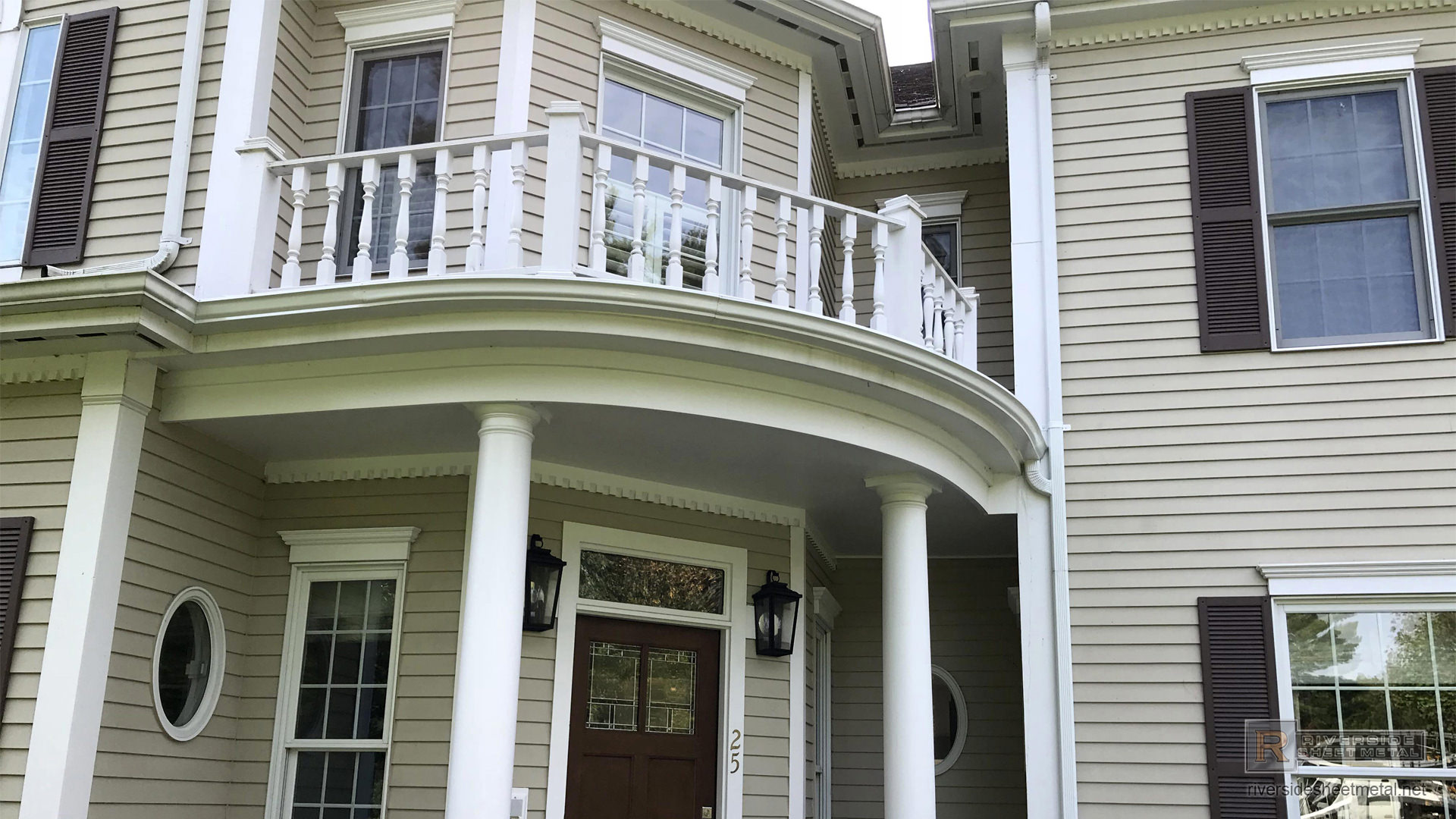

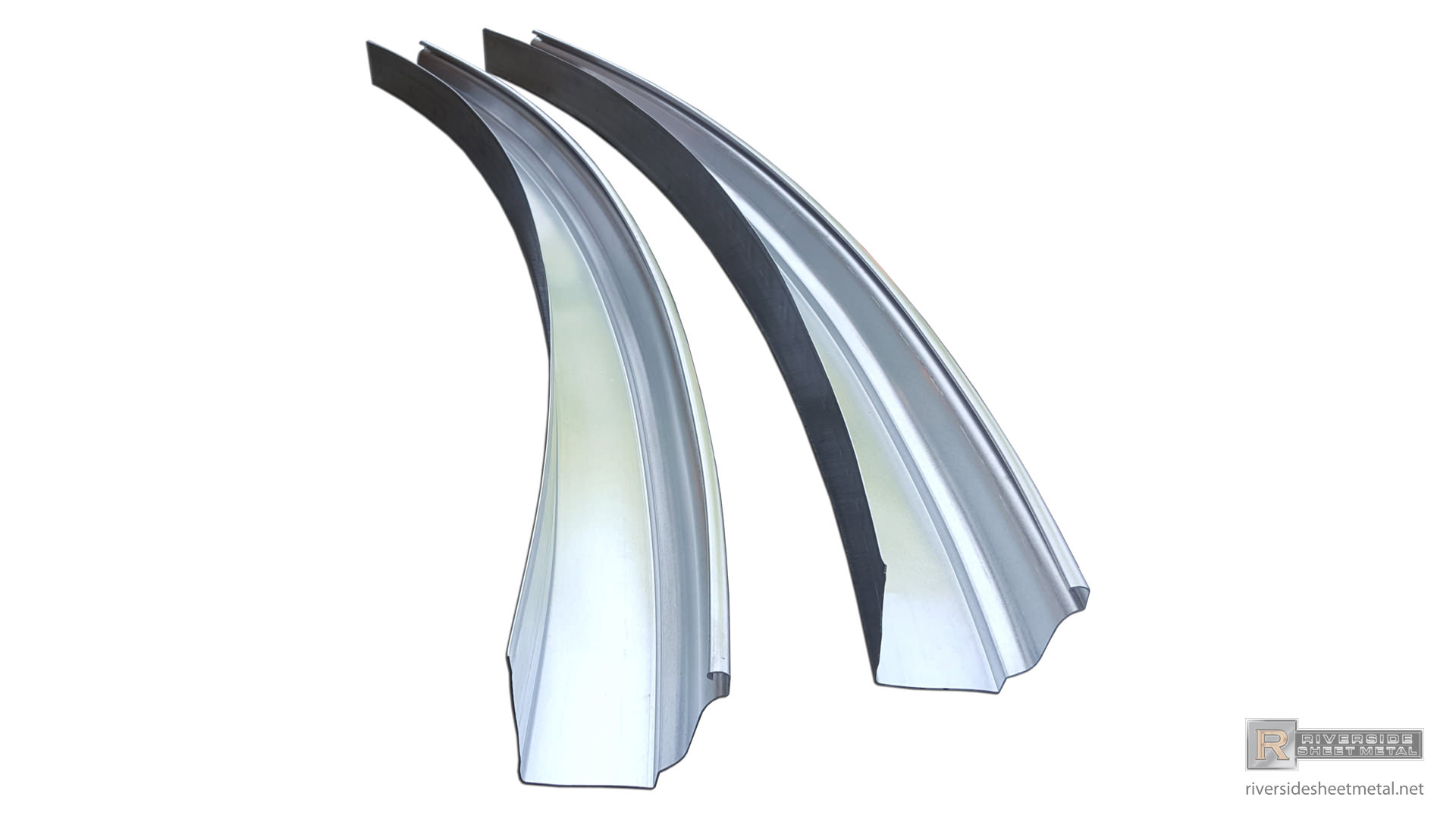

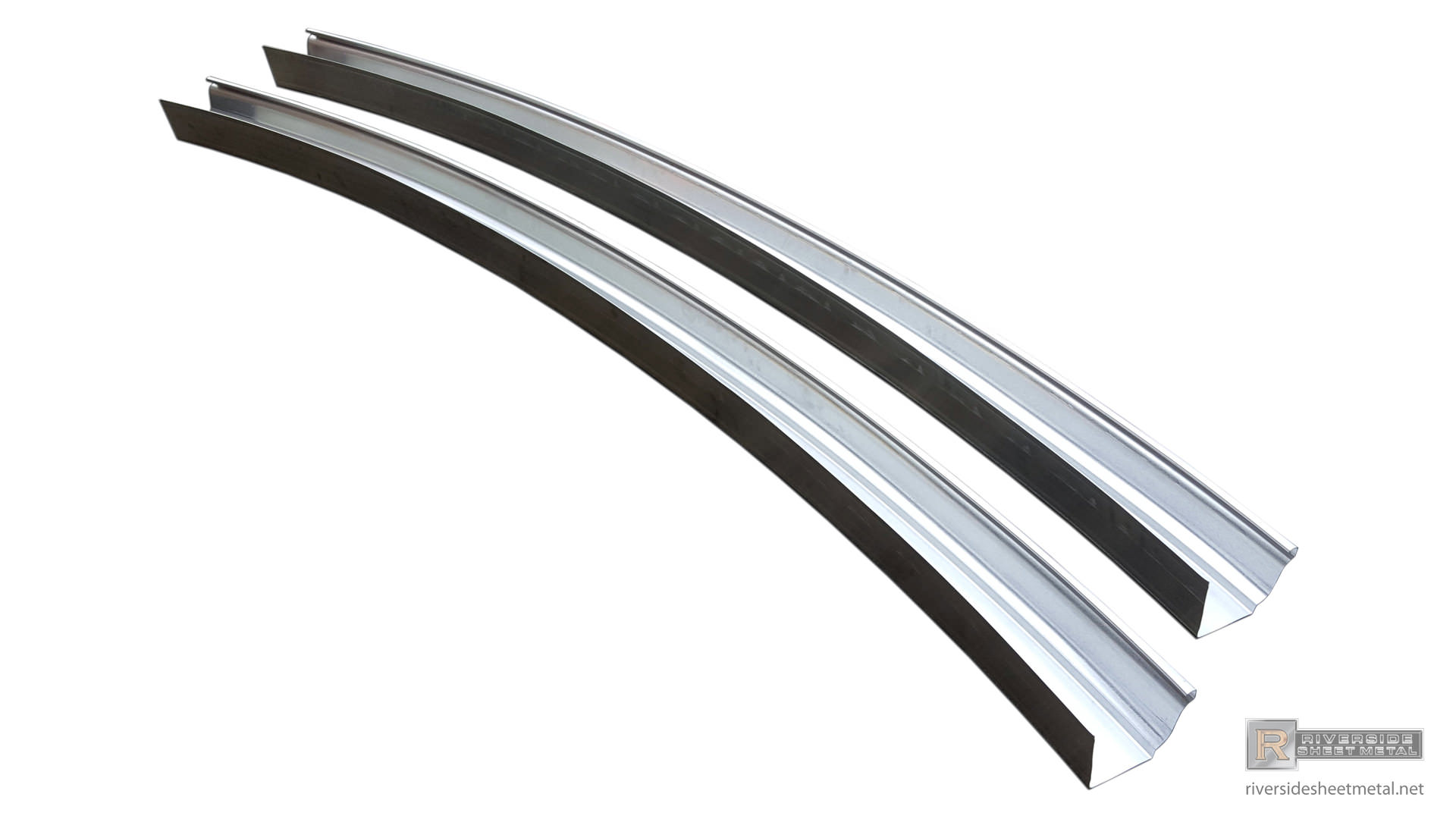

K-style radius copper gutter - view 1 K-style radius copper gutter - view 2 K-style radius copper gutter - view 3 K style aluminum outside radius gutter - view 2 K style aluminum outside radius gutter - view 1 K style aluminum outside radius gutter - view 3 K style aluminum outside radius gutter - view 4 K style aluminum outside radius gutter - view 5 K style aluminum outside radius gutter - view 6 Custom radius k-style aluminum white gutter installation - view 1 Custom radius k-style aluminum white gutter installation - view 2 Radius lead coated copper k-style gutter - view 1 Radius lead coated copper k-style gutter - view 2 Radius lead coated copper k-style gutter - view 3 Radius lead coated copper k-style gutter - view 4

Radius Brownstone Gutters

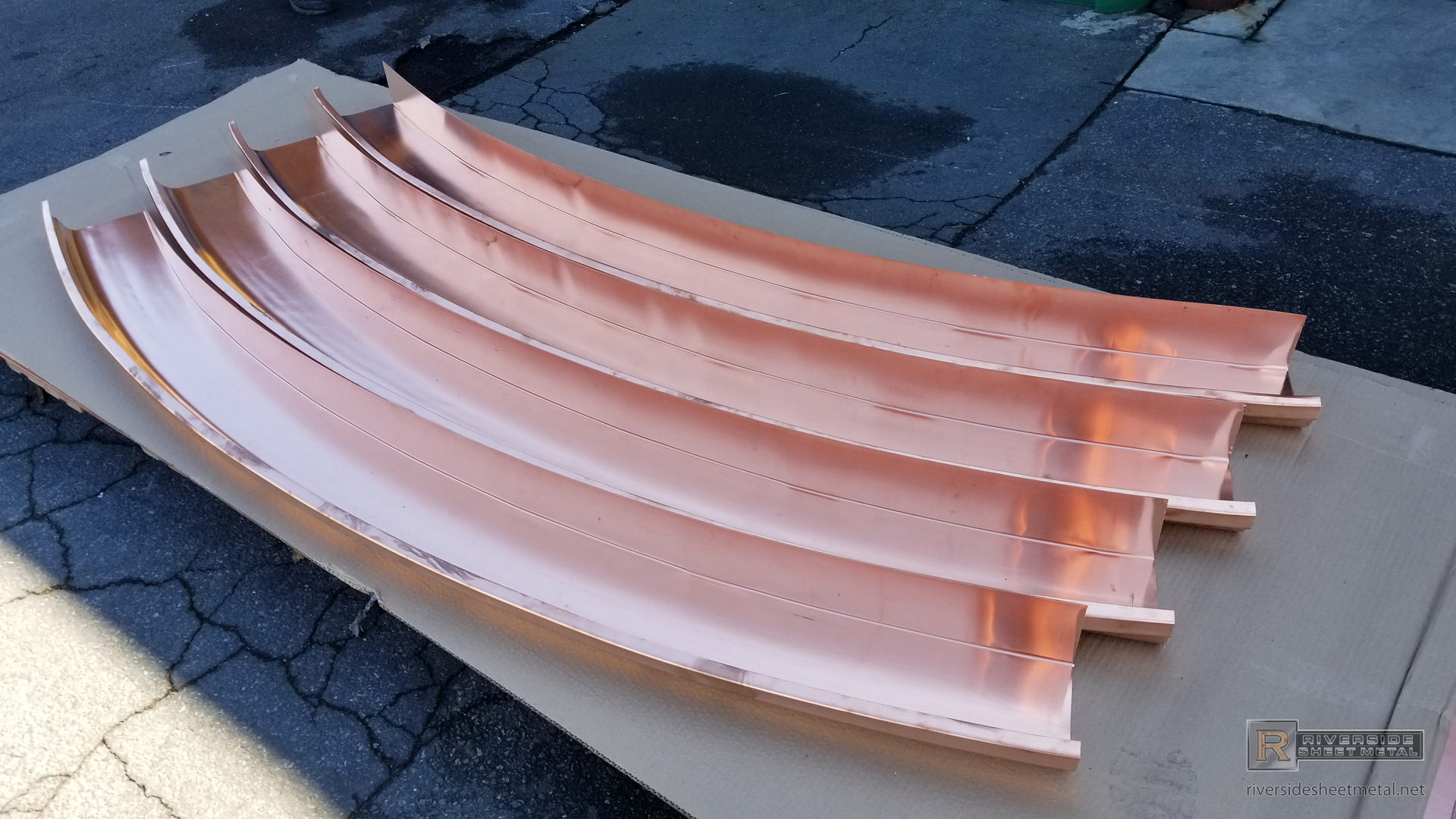

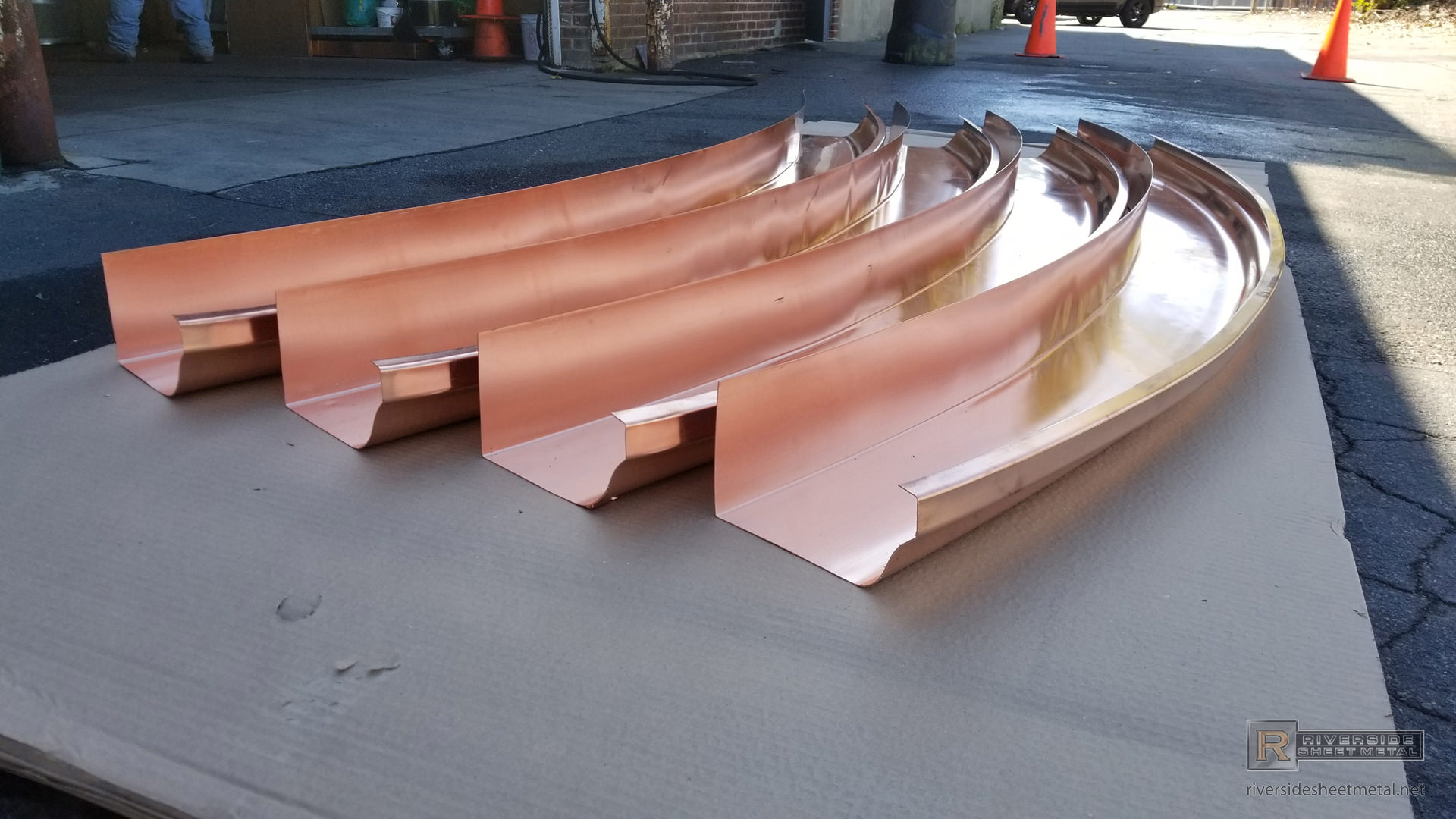

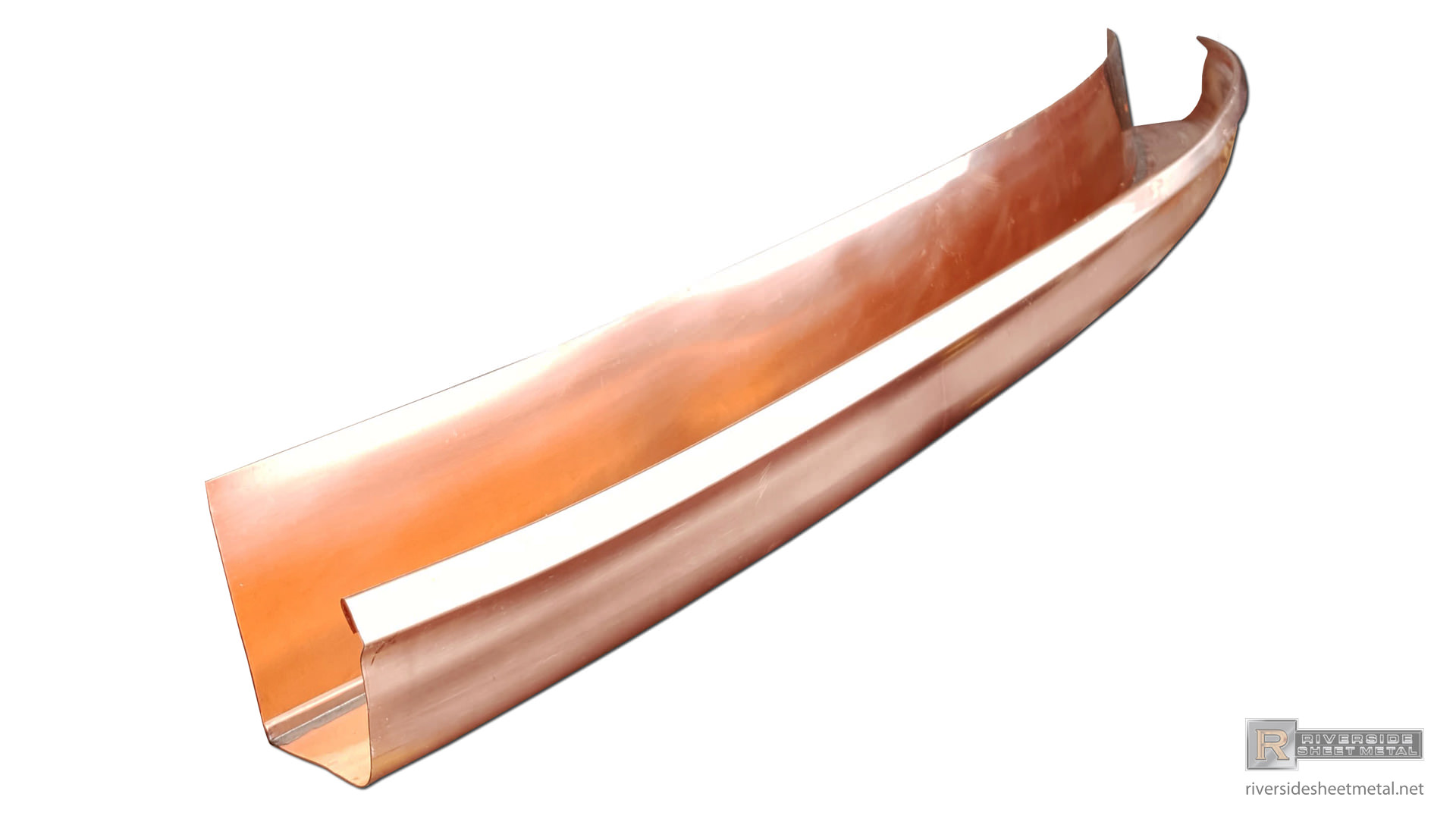

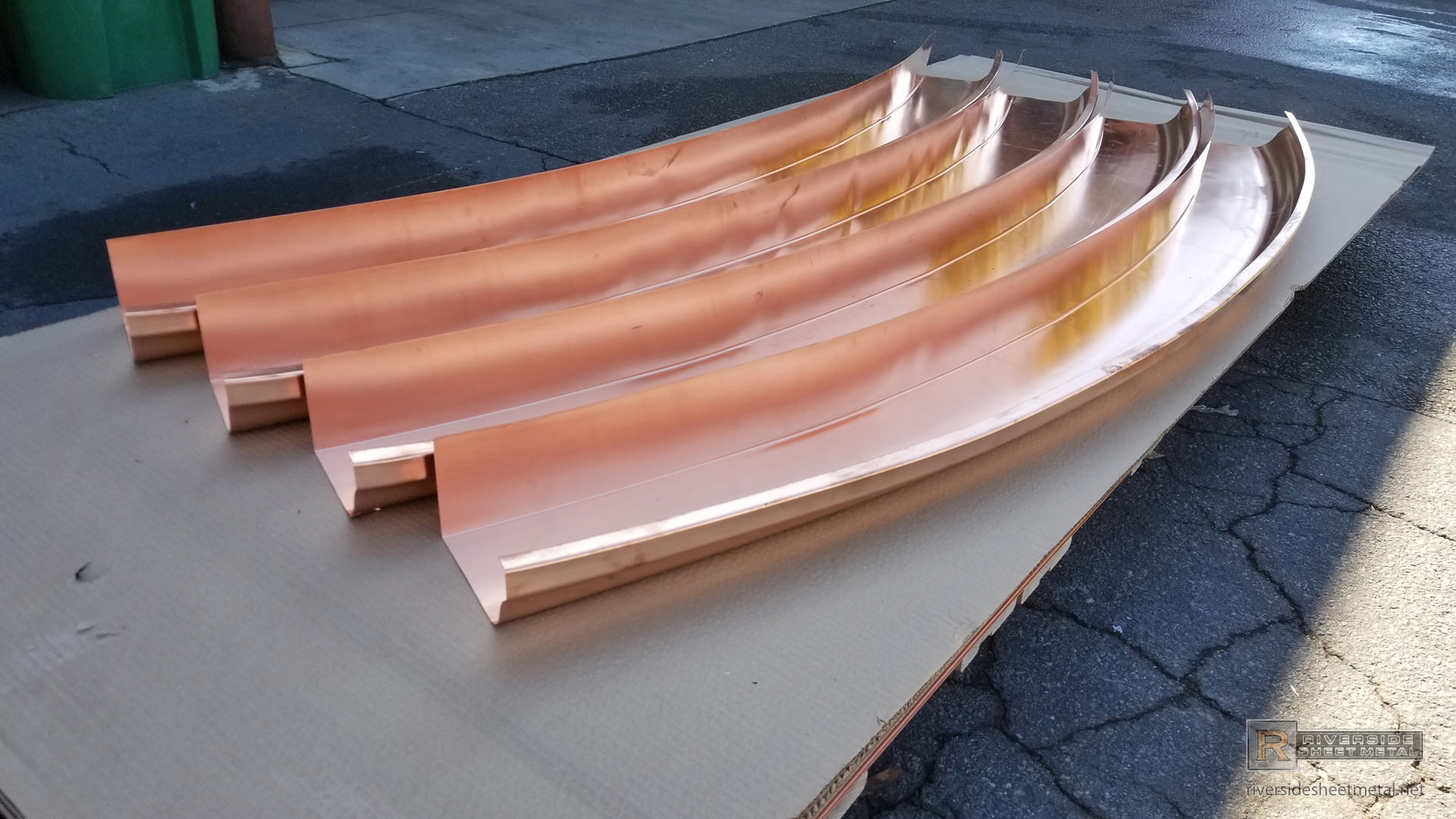

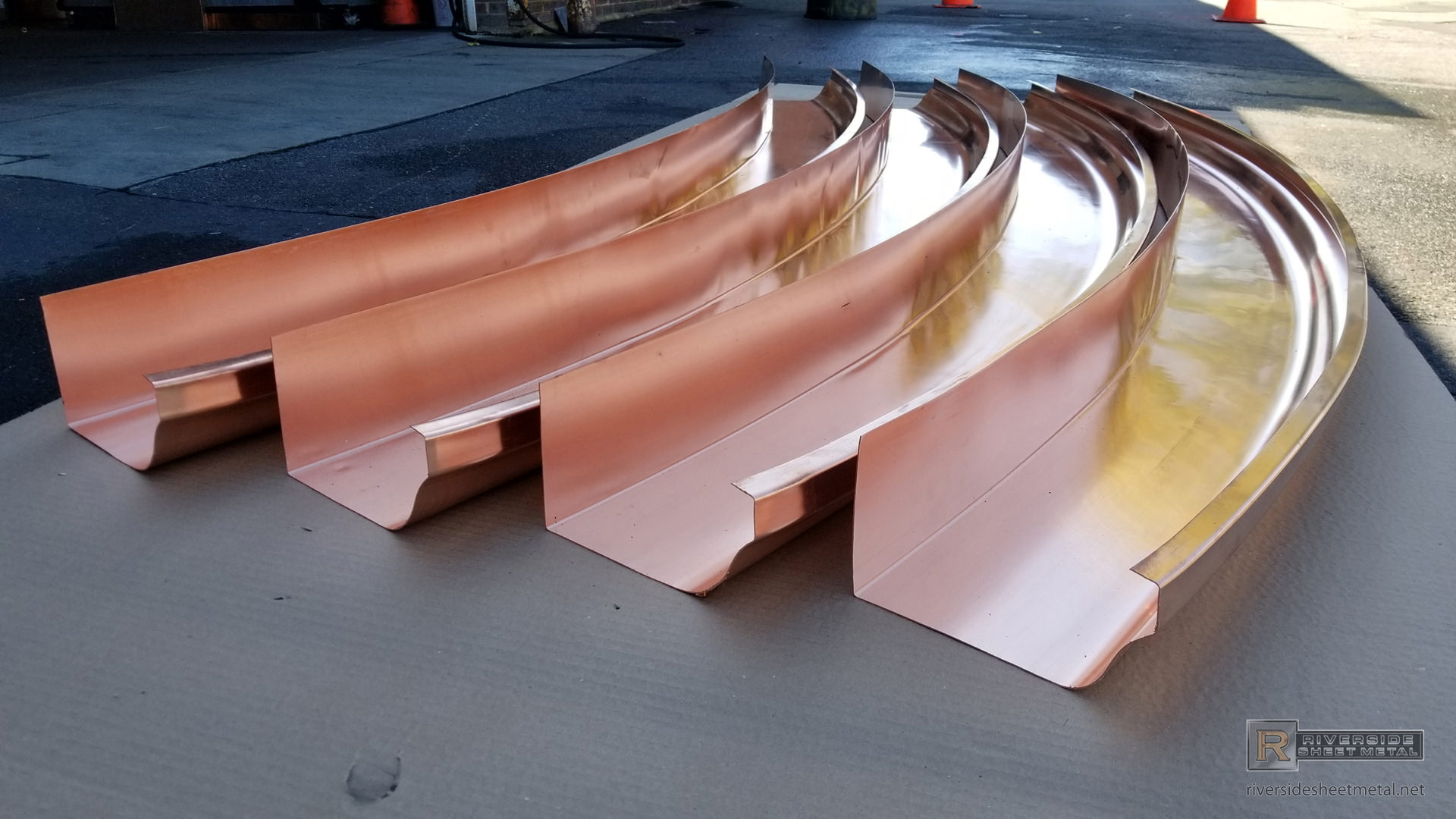

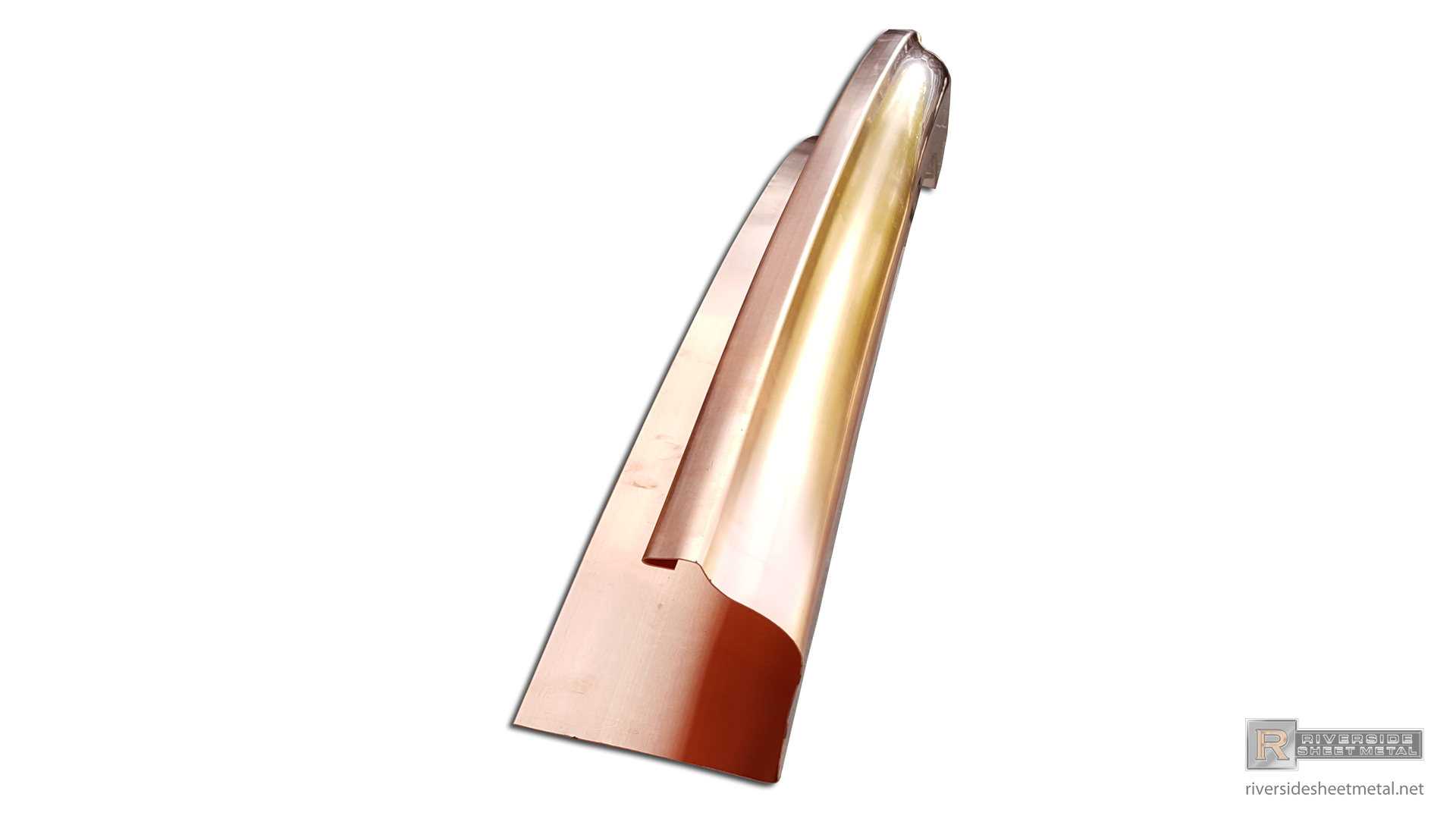

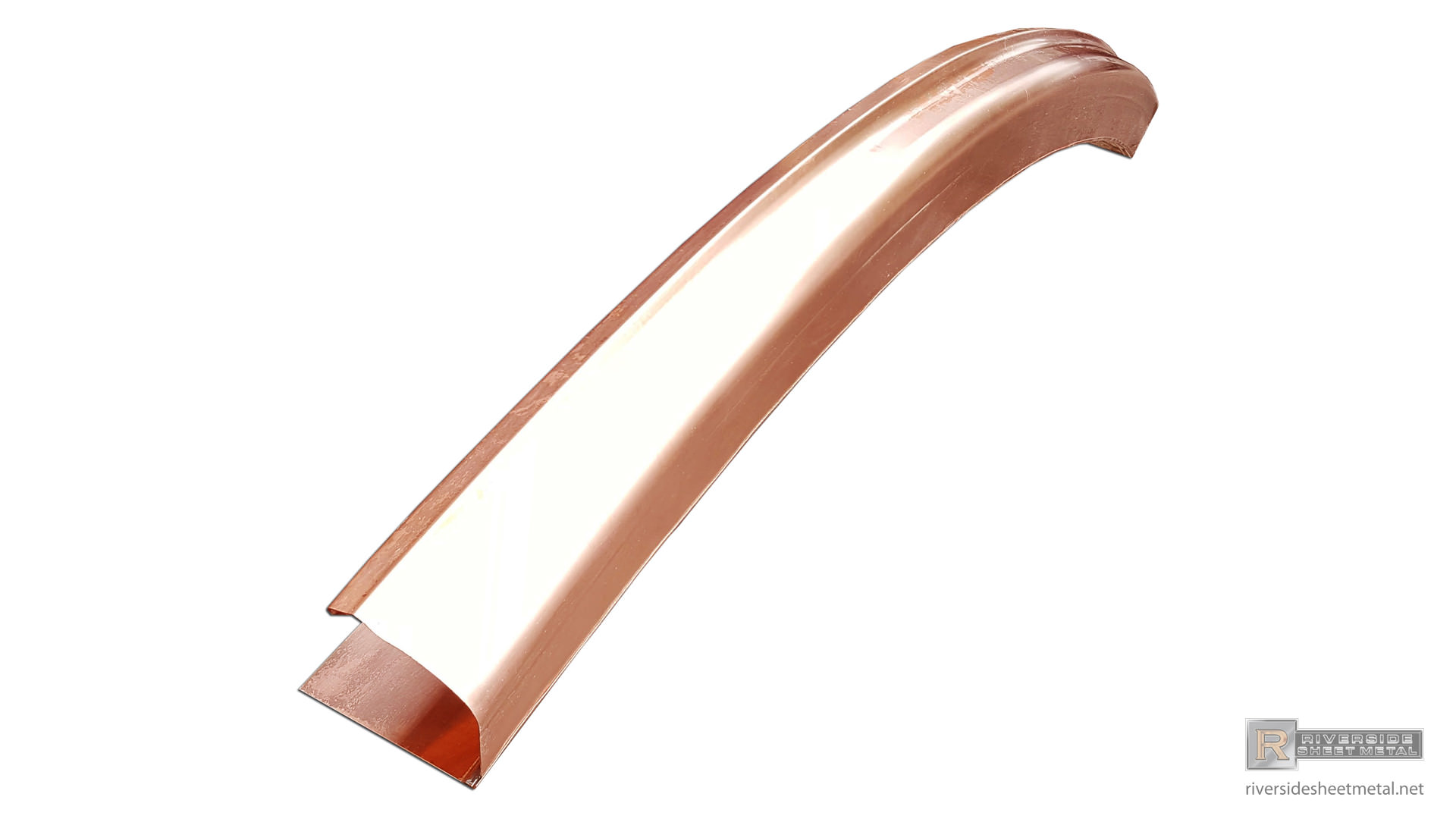

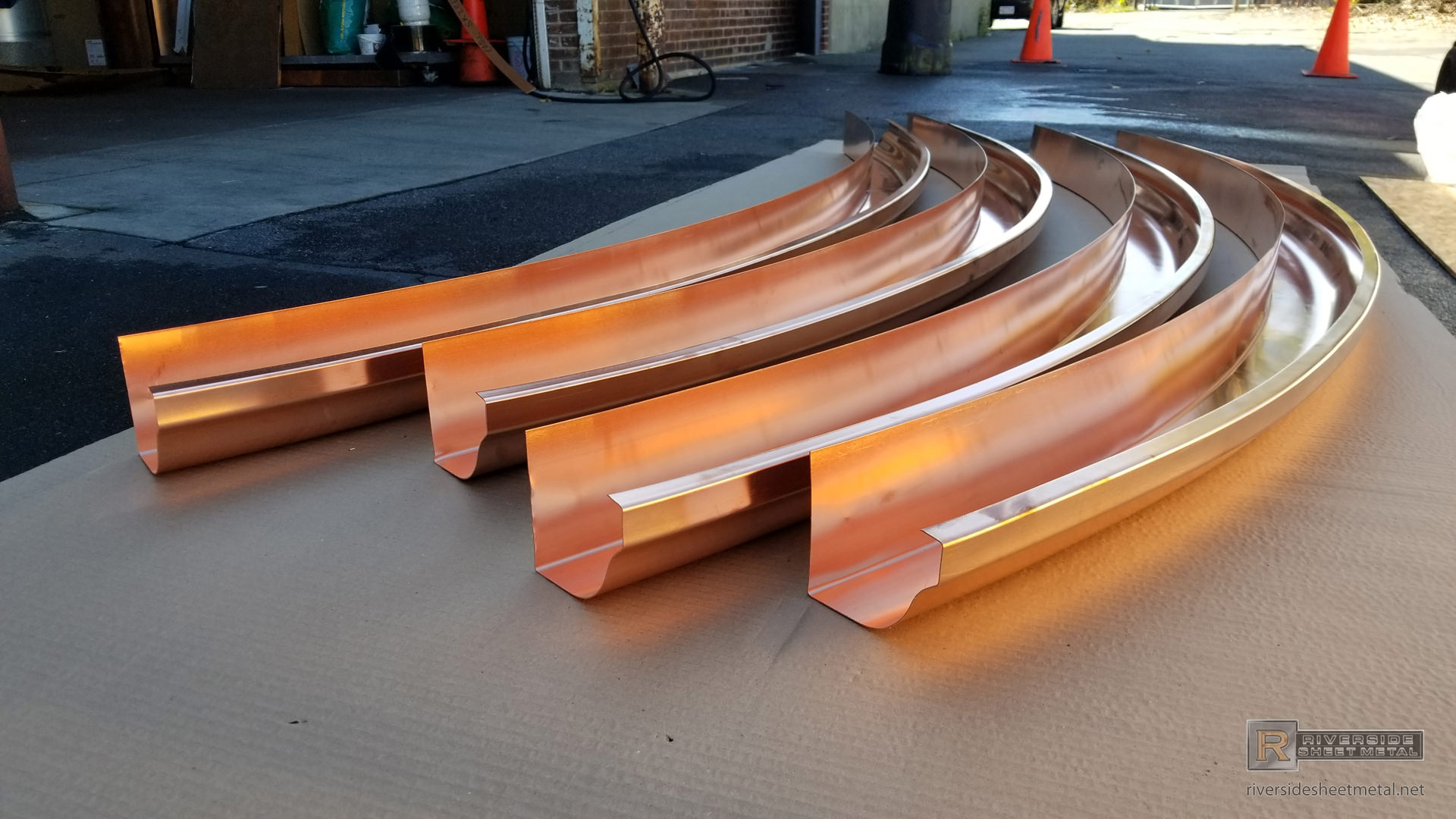

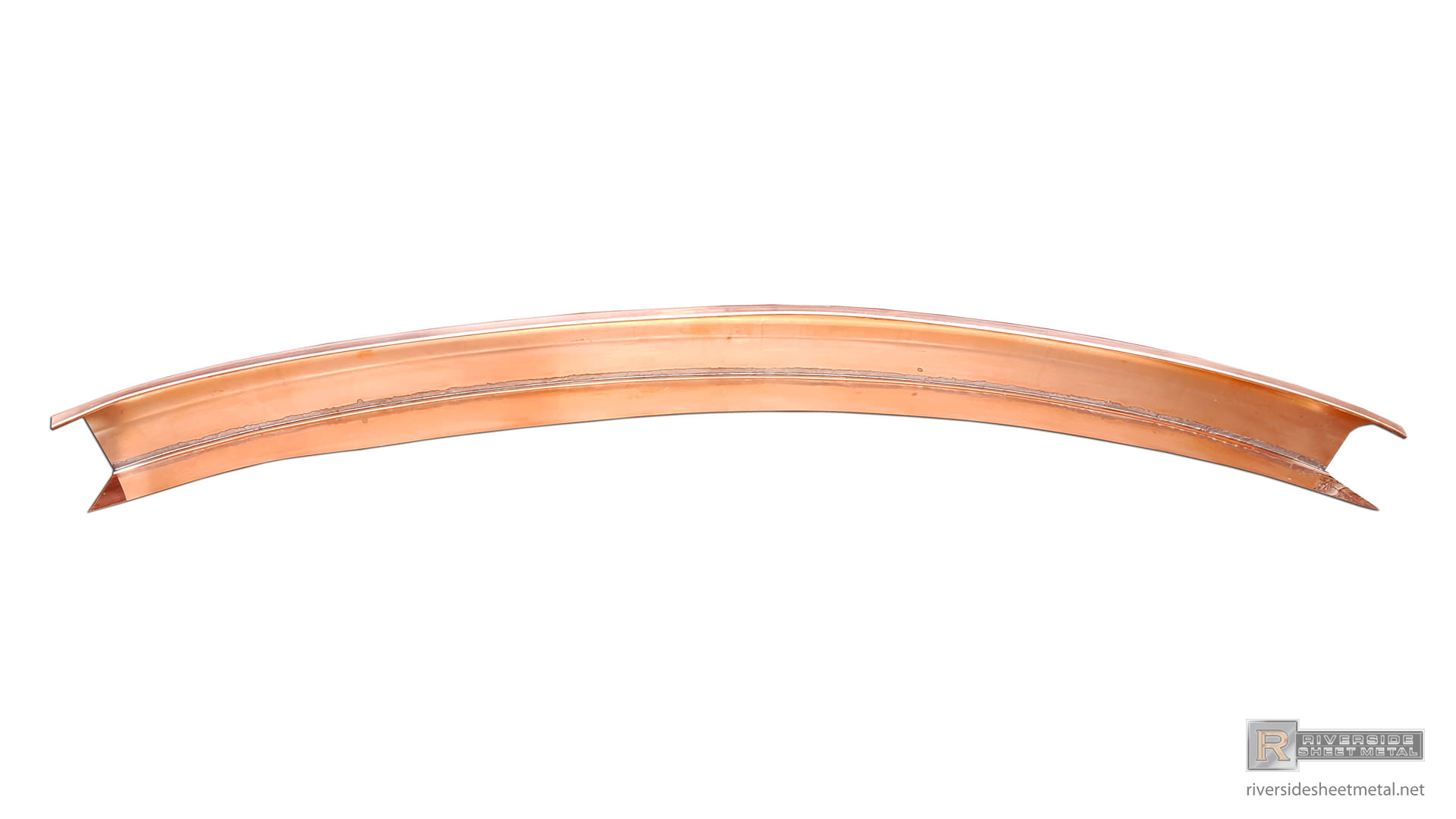

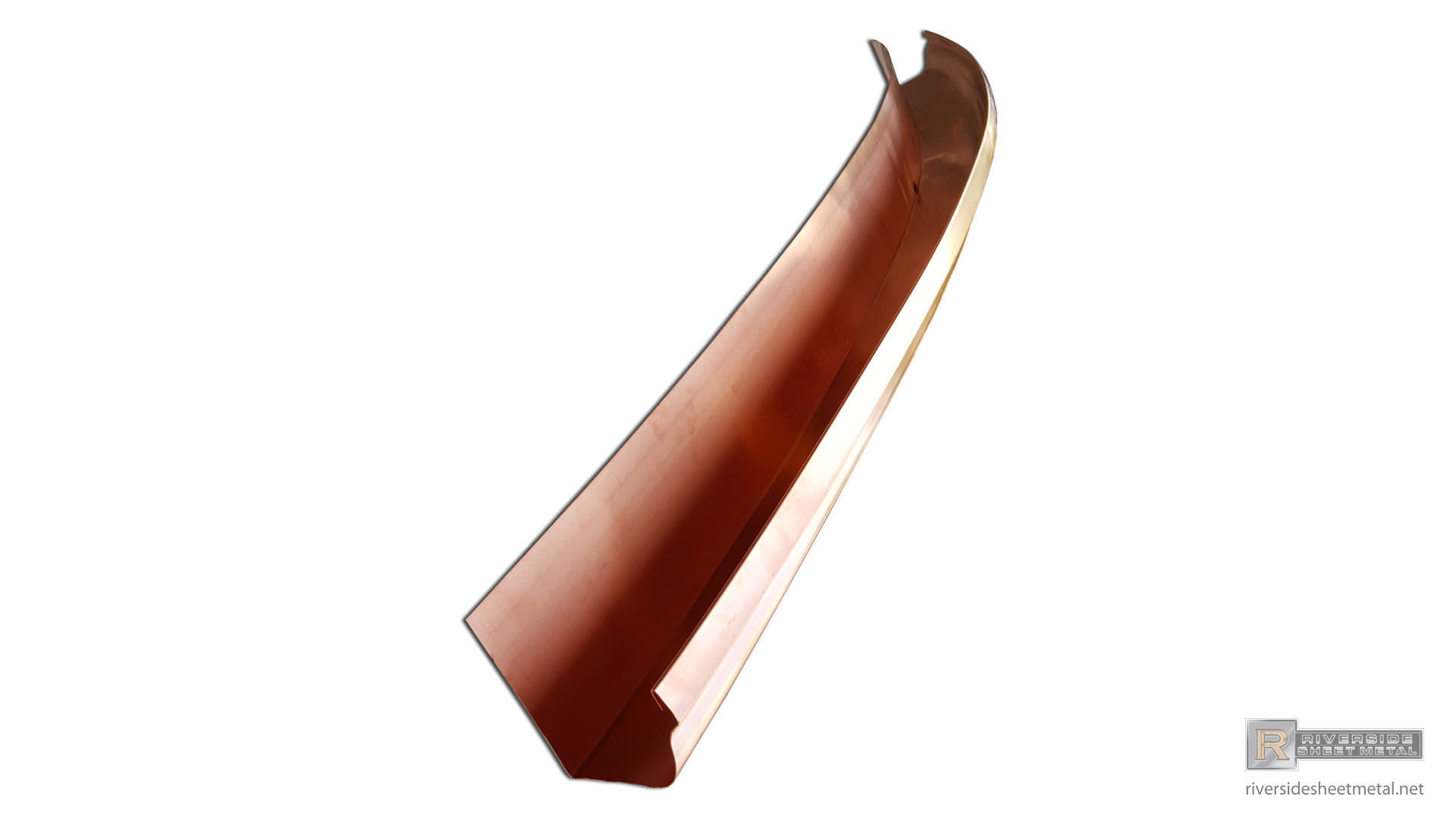

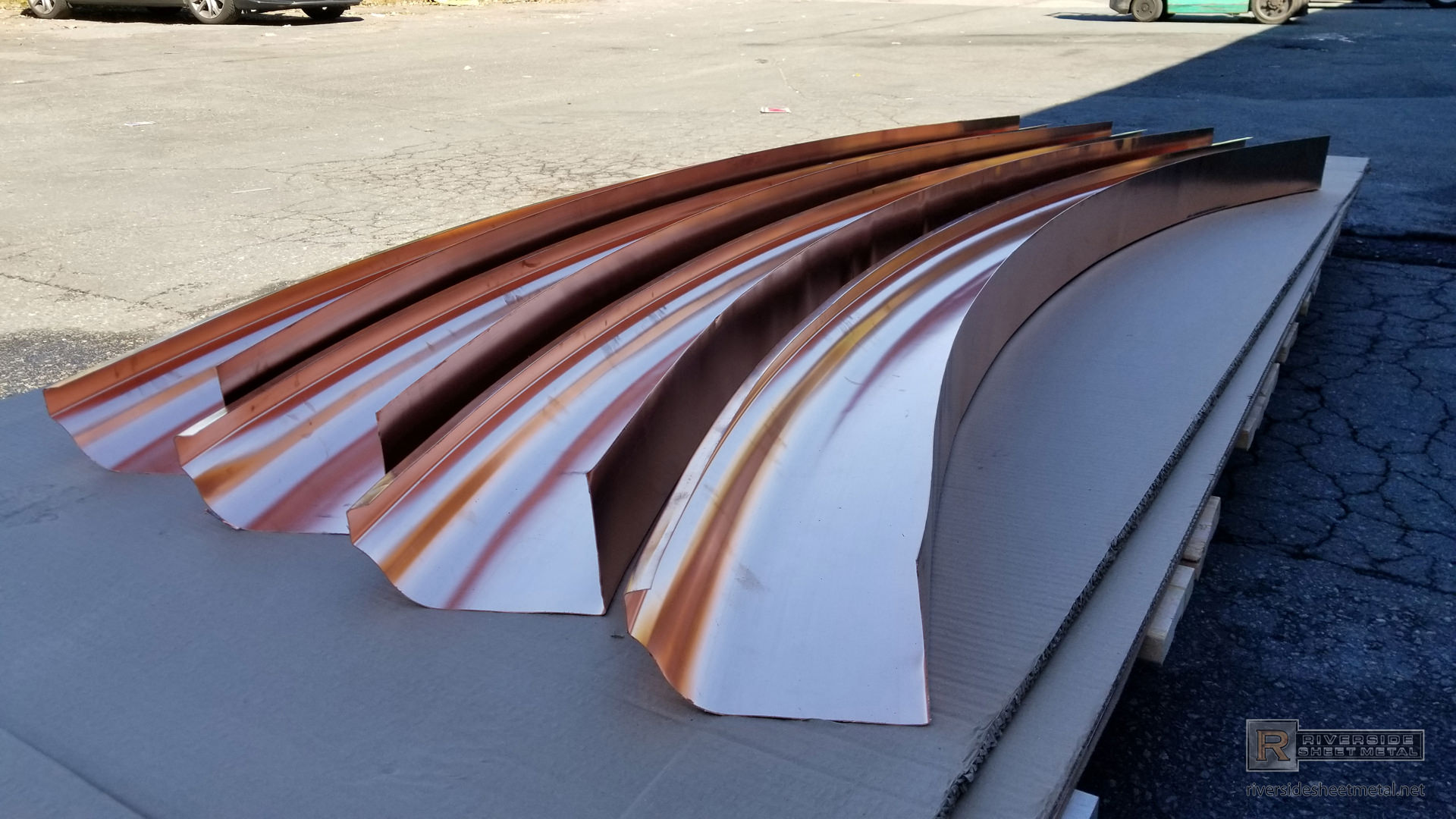

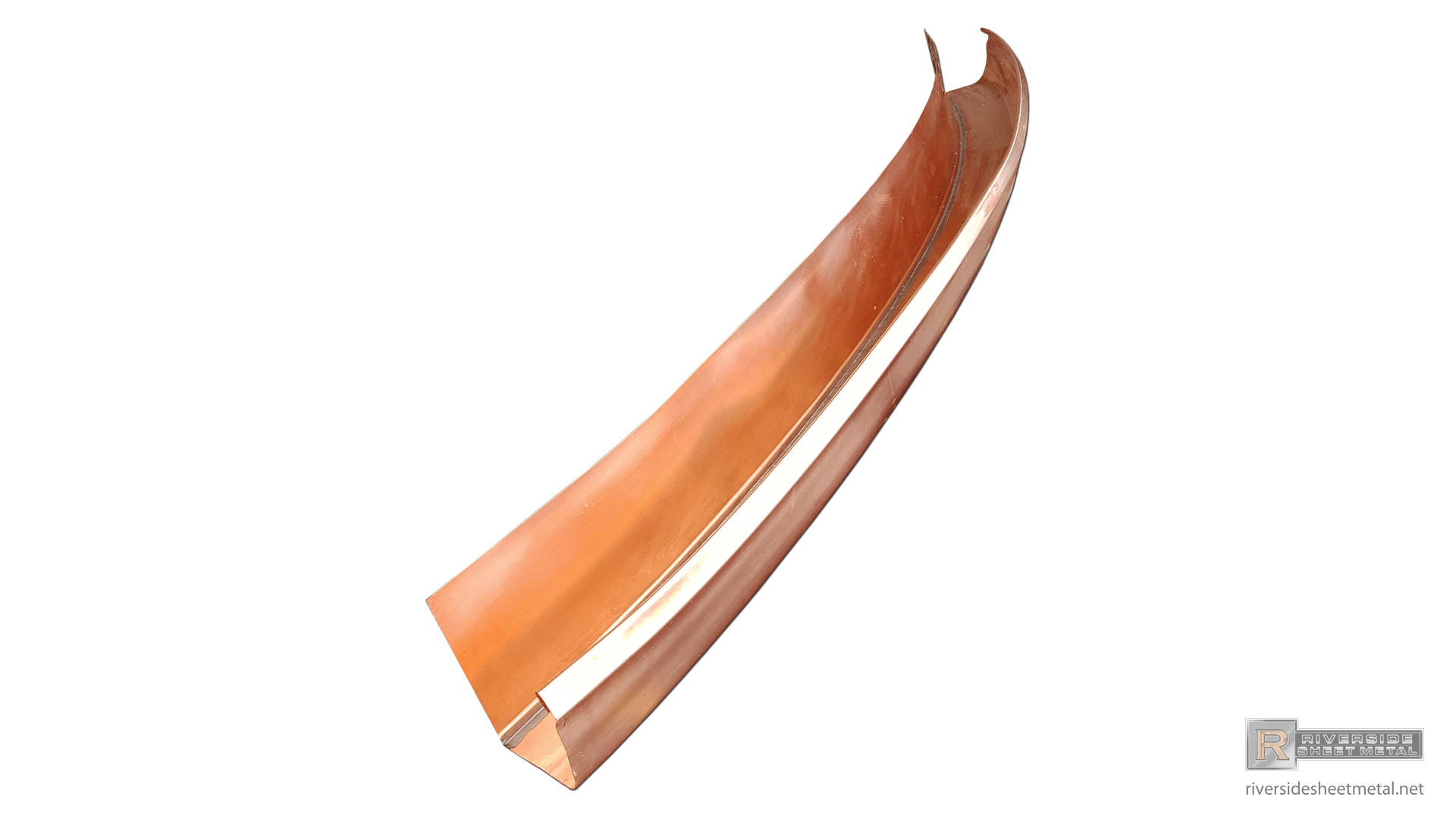

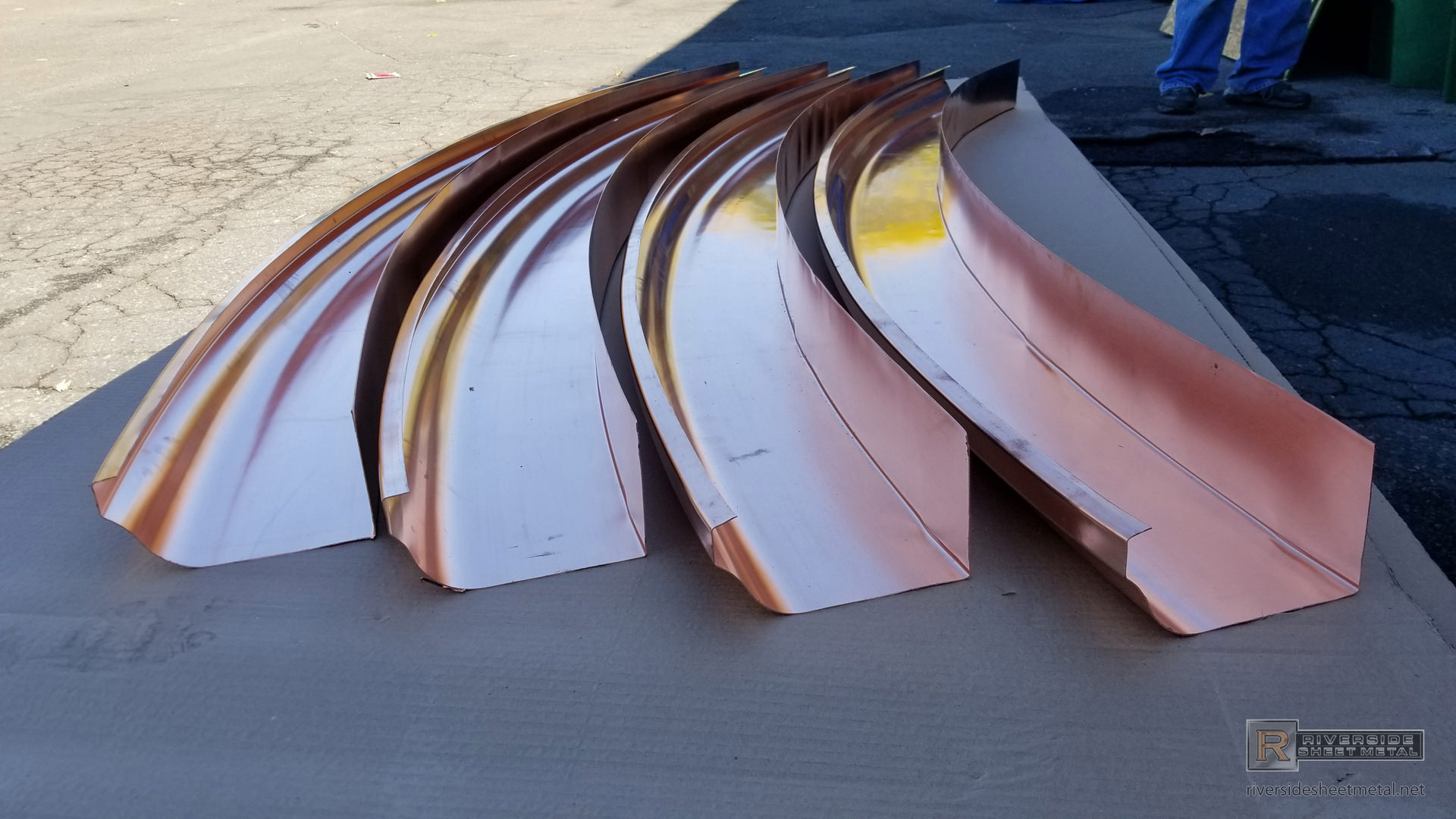

Outside radius copper brownstone gutter - view 1 Outside radius copper brownstone gutter - view 2 Radius browsntone copper gutter - view 1 Radius browsntone copper gutter - view 2 Radius browsntone copper gutter - view 3 Radius browsntone copper gutter - view 4 Narrow custom radius brownstone copper gutters - view 1 Narrow custom radius brownstone copper gutters - view 2 Narrow custom radius brownstone copper gutters - view 3 Wide custom radius brownstone copper gutters - view 1 Wide custom radius brownstone copper gutters - view 2 Wide custom radius brownstone copper gutters - view 3 Wide custom radius brownstone copper gutters - view 4 Wide custom radius brownstone copper gutters - view 5 Wide custom radius brownstone copper gutters - view 6

Radius Half-Round Gutters

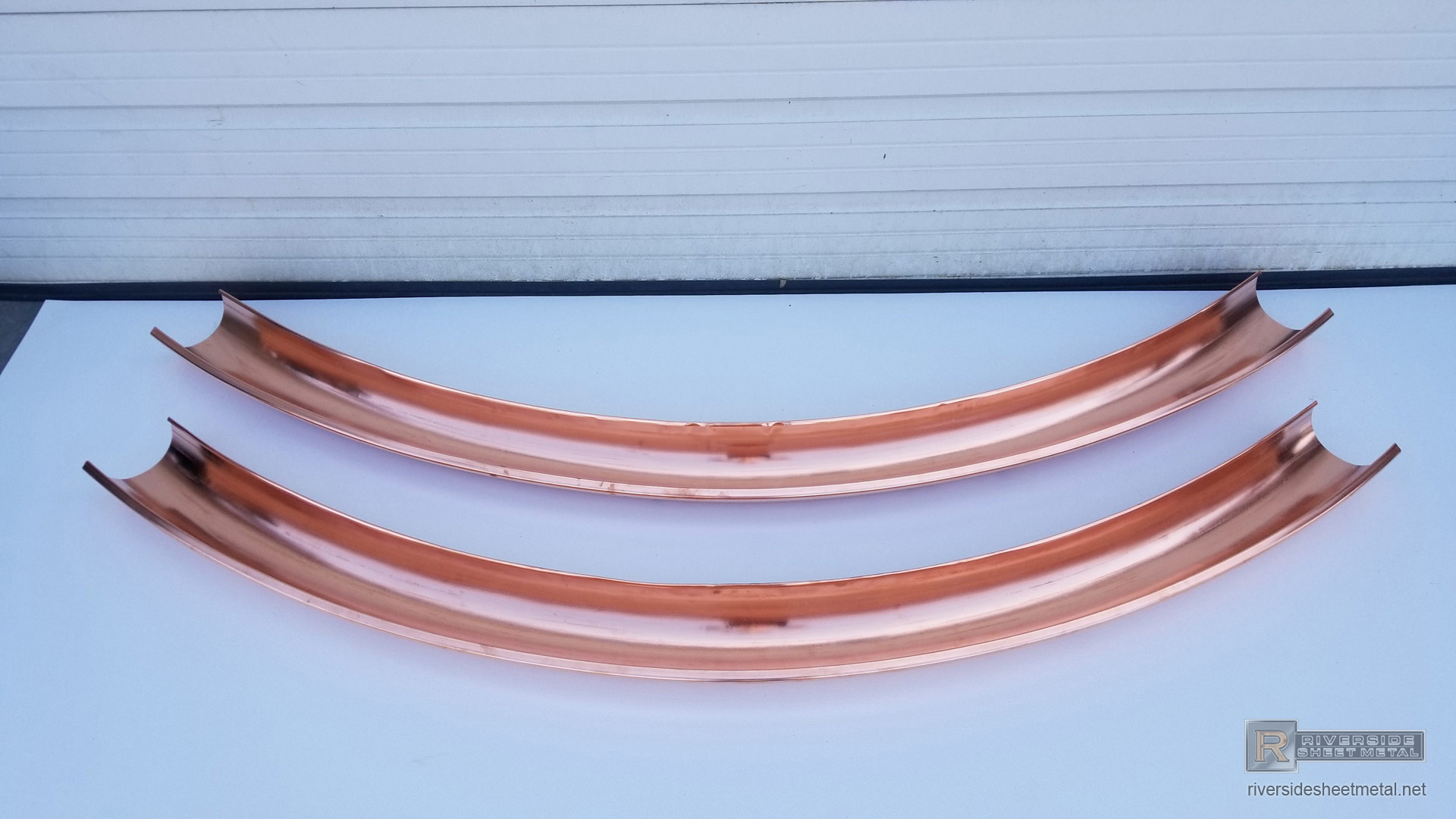

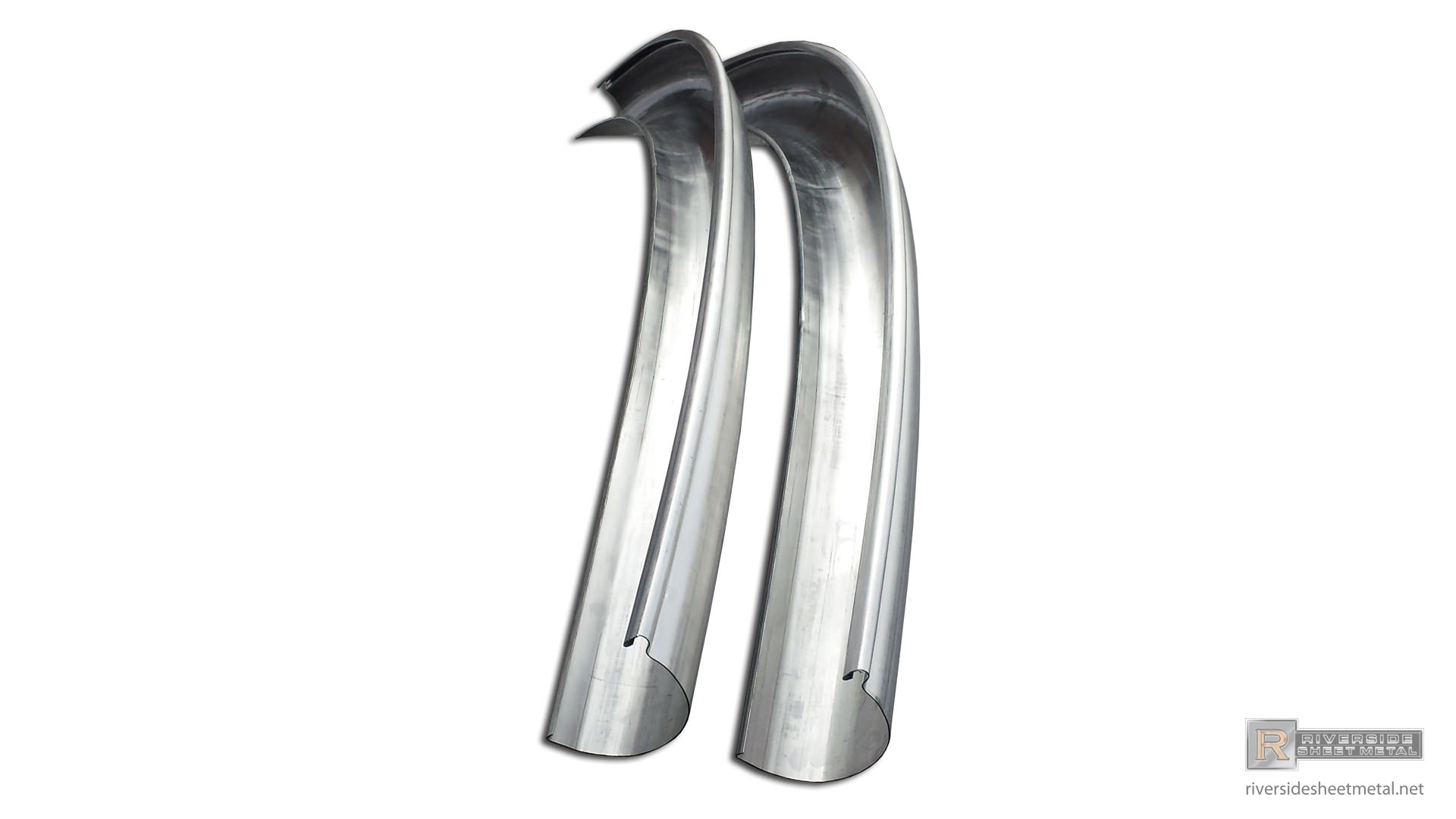

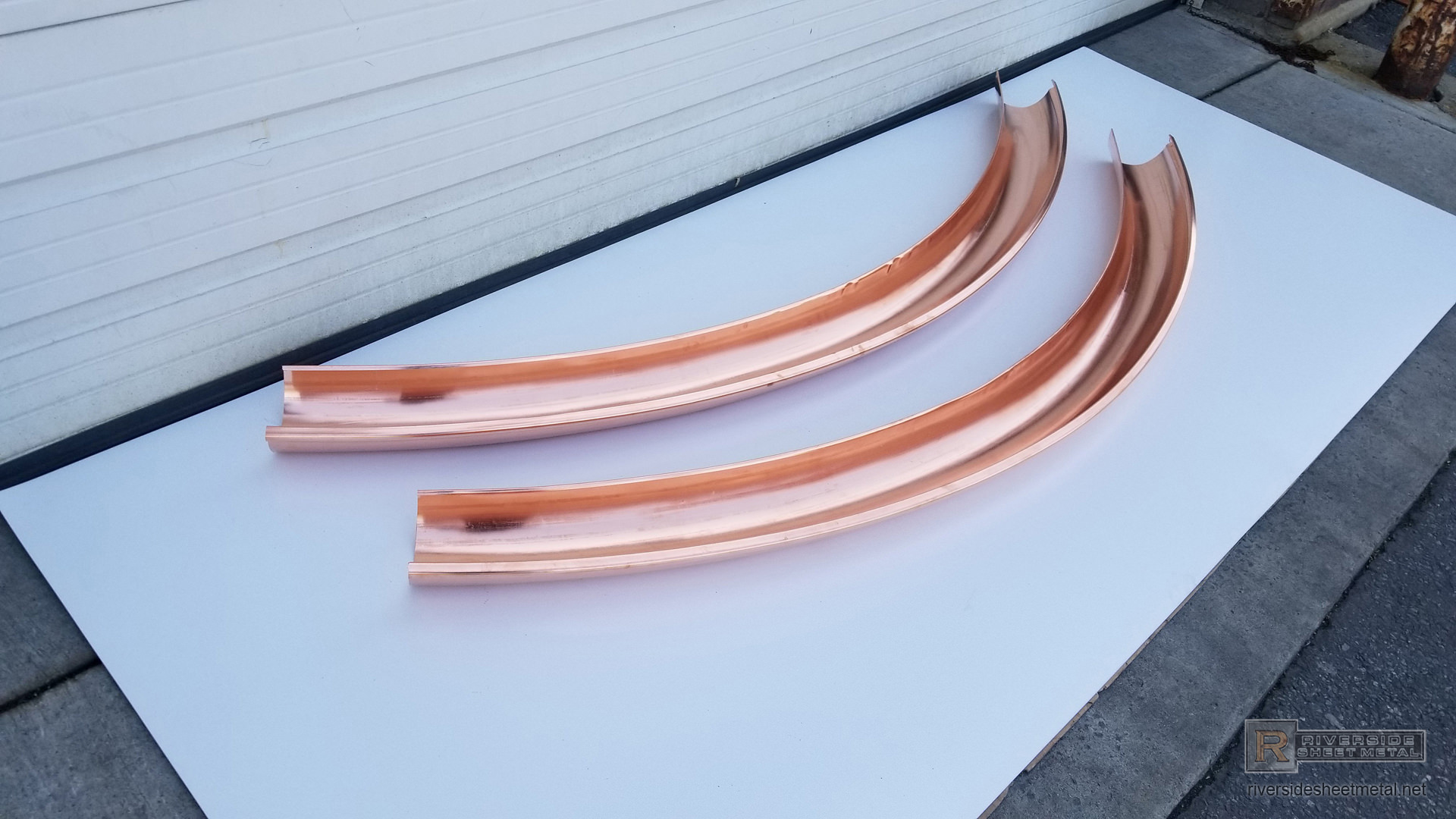

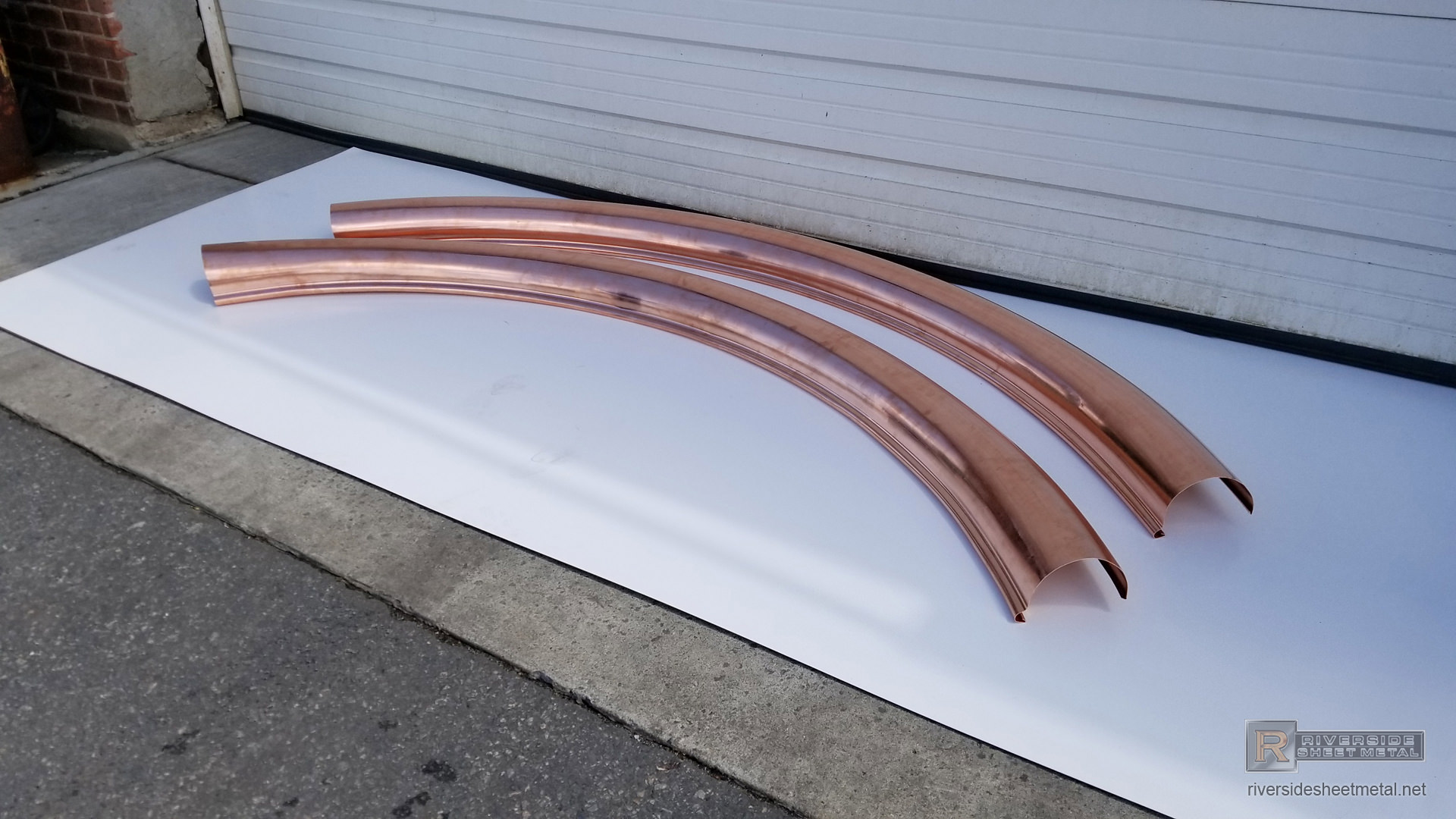

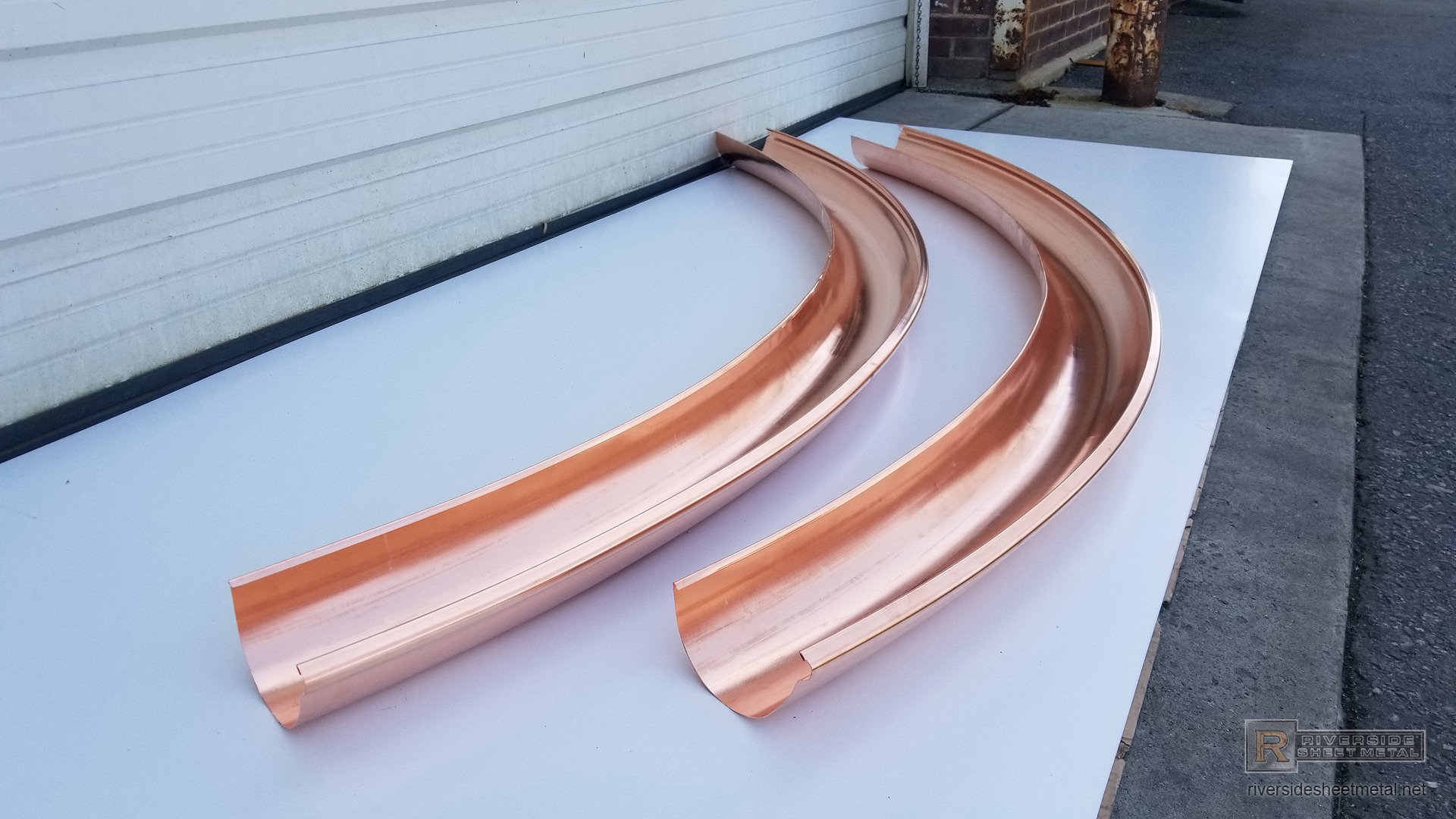

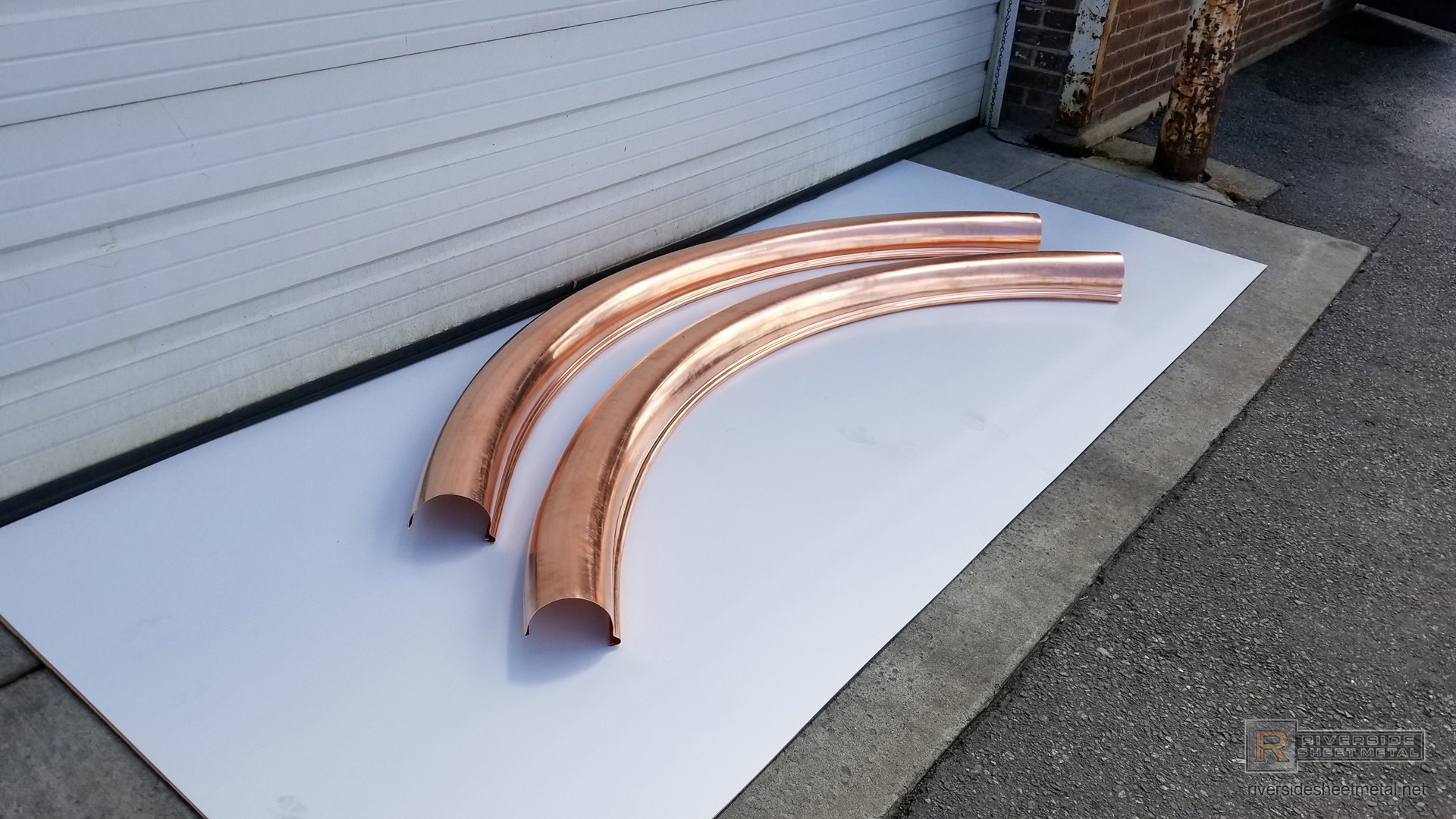

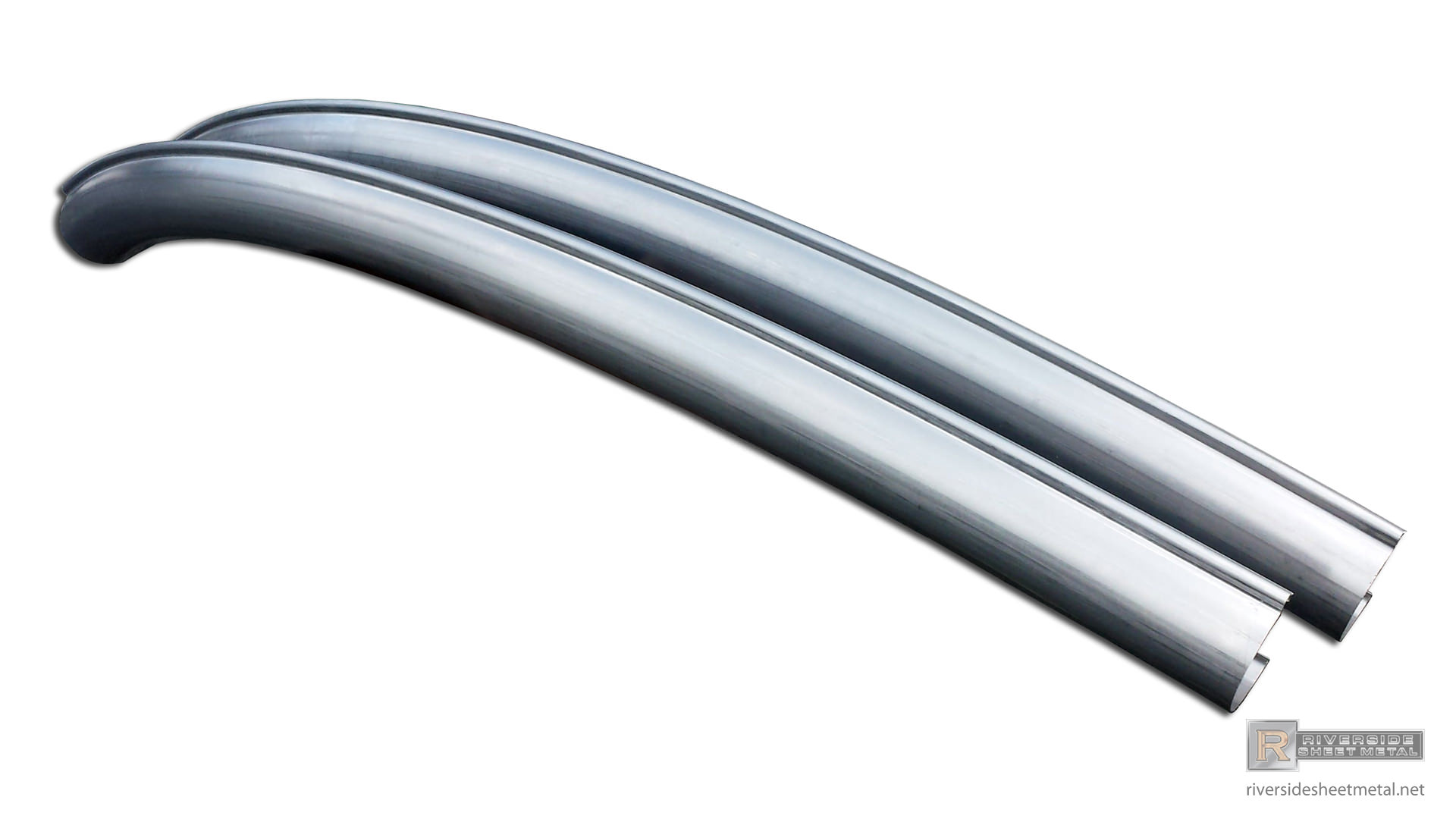

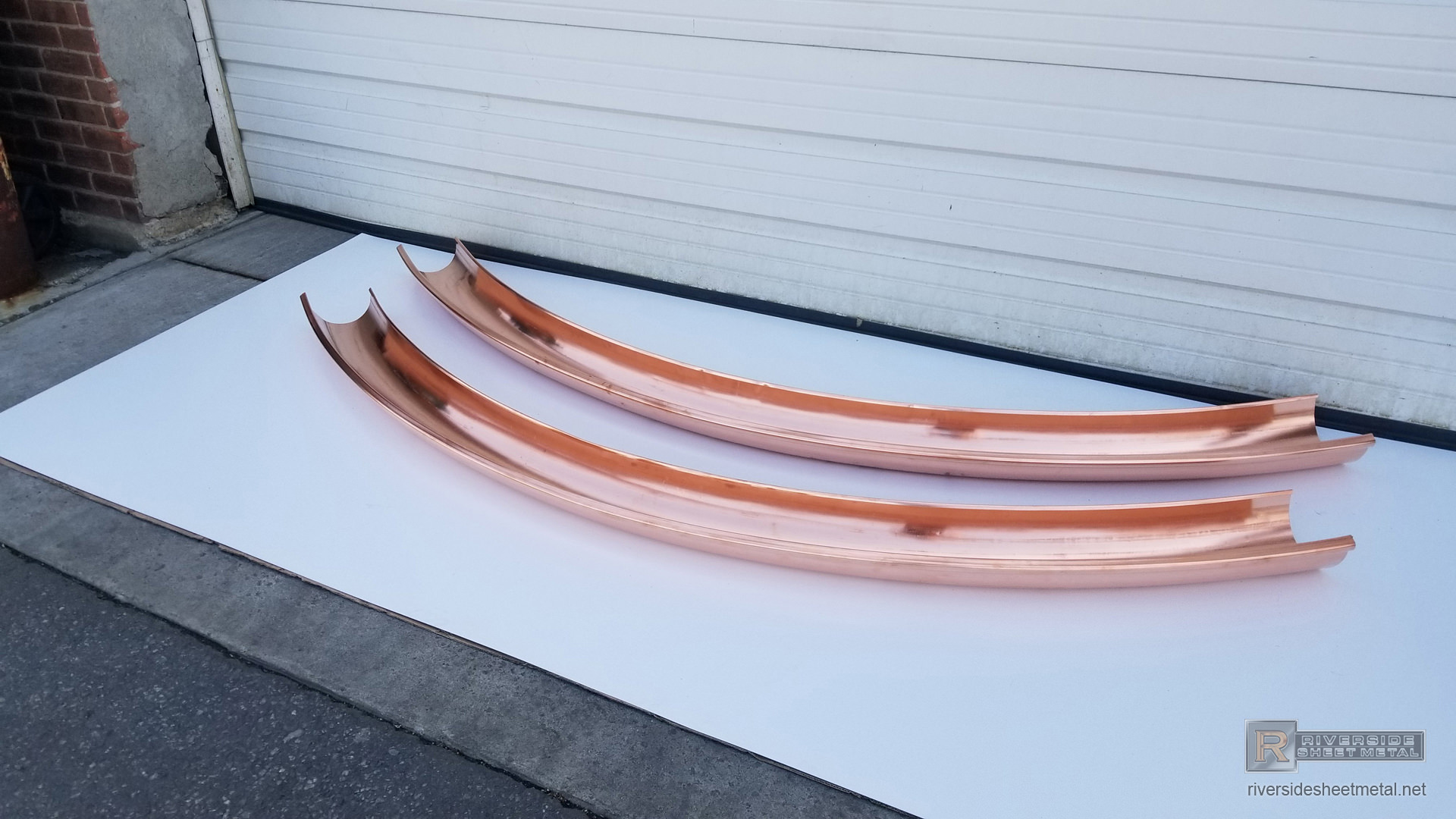

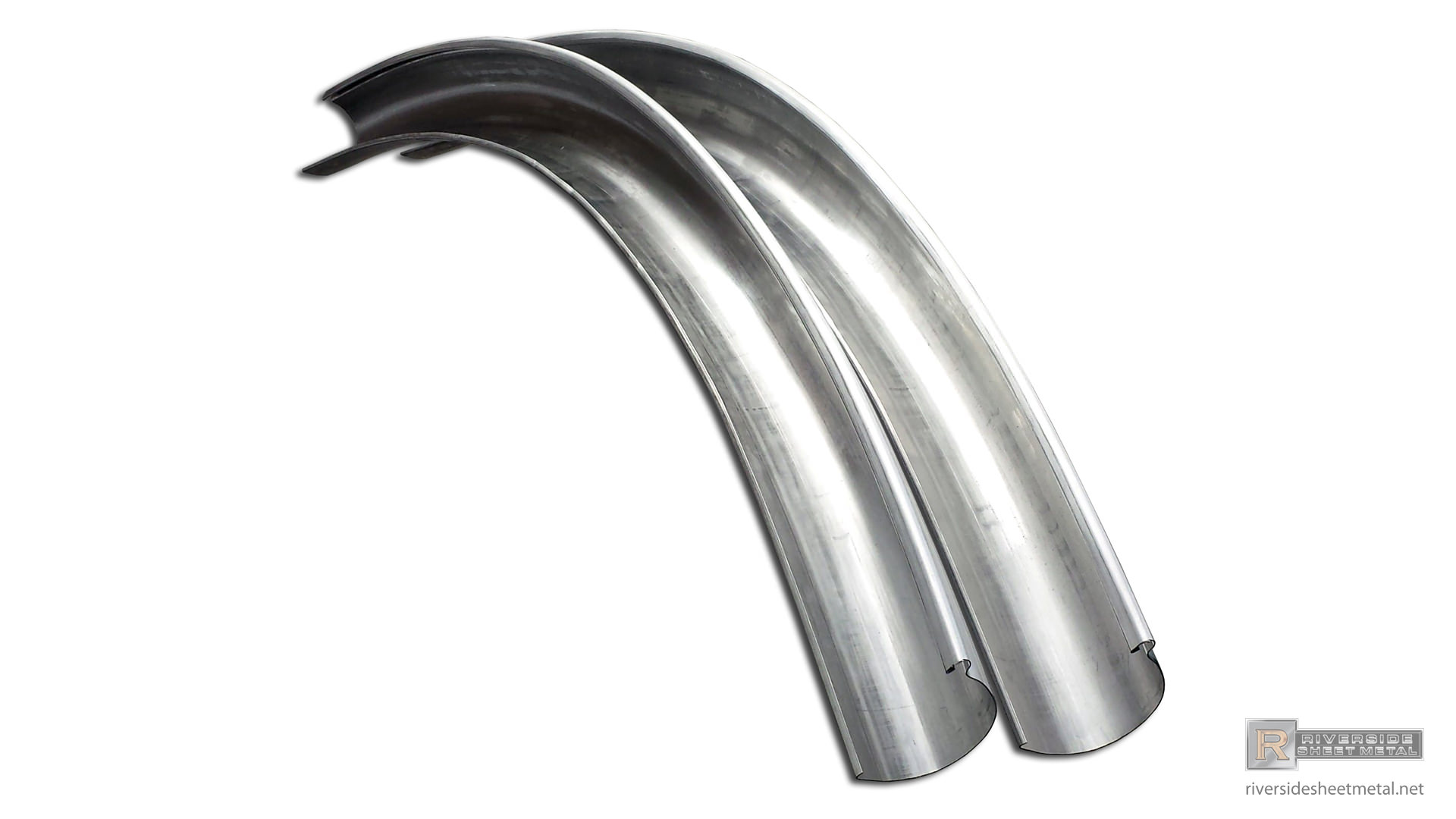

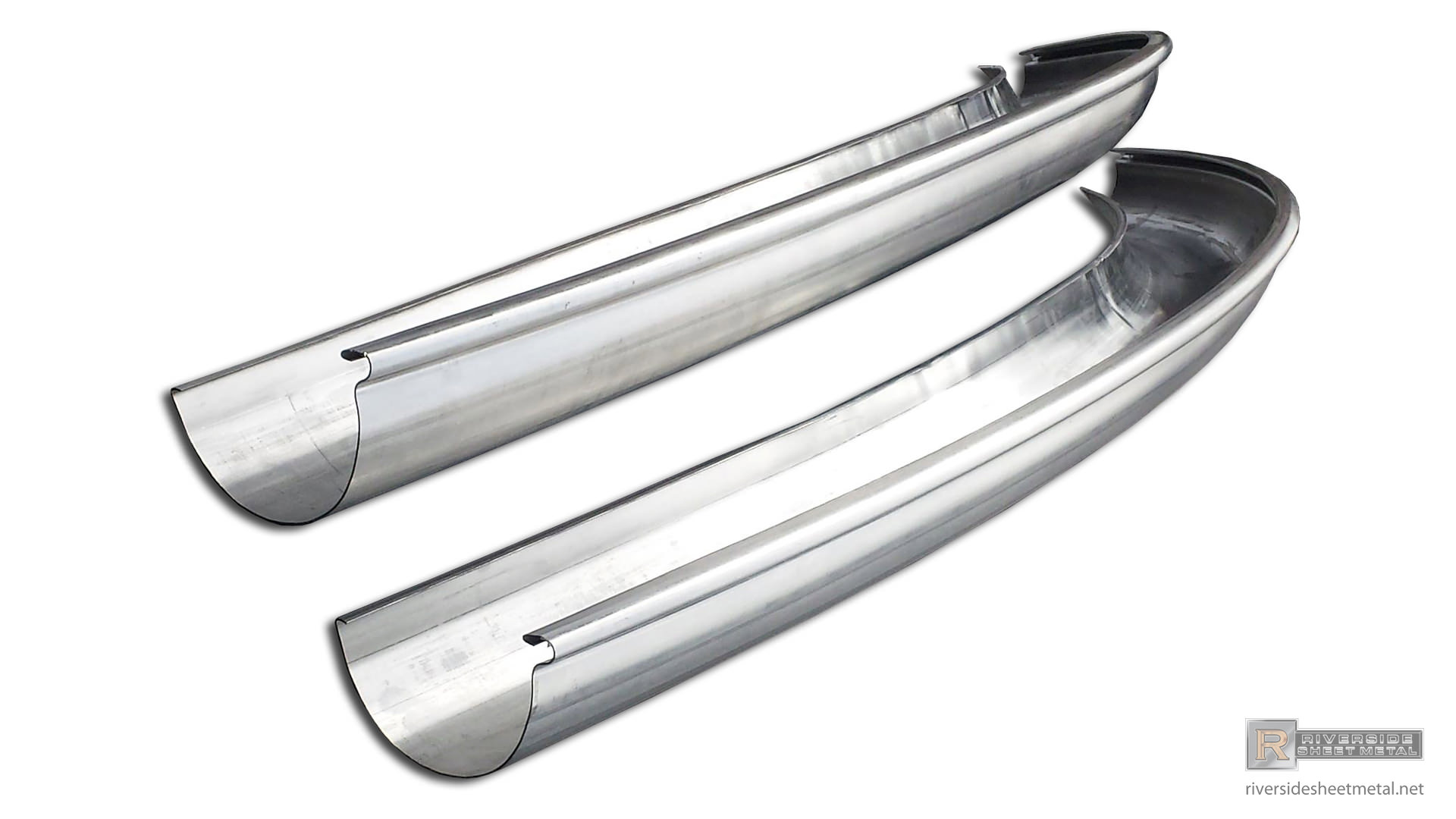

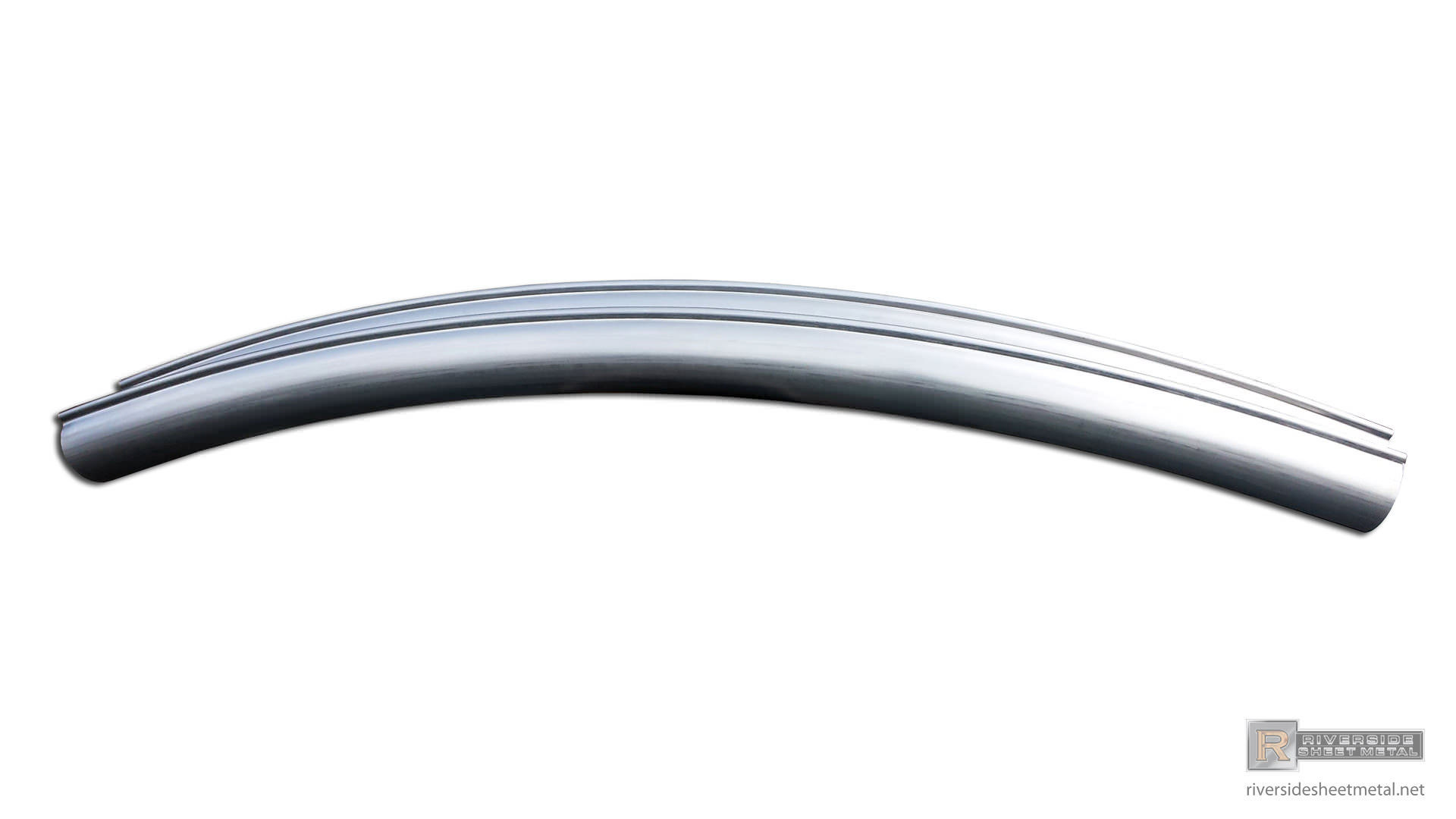

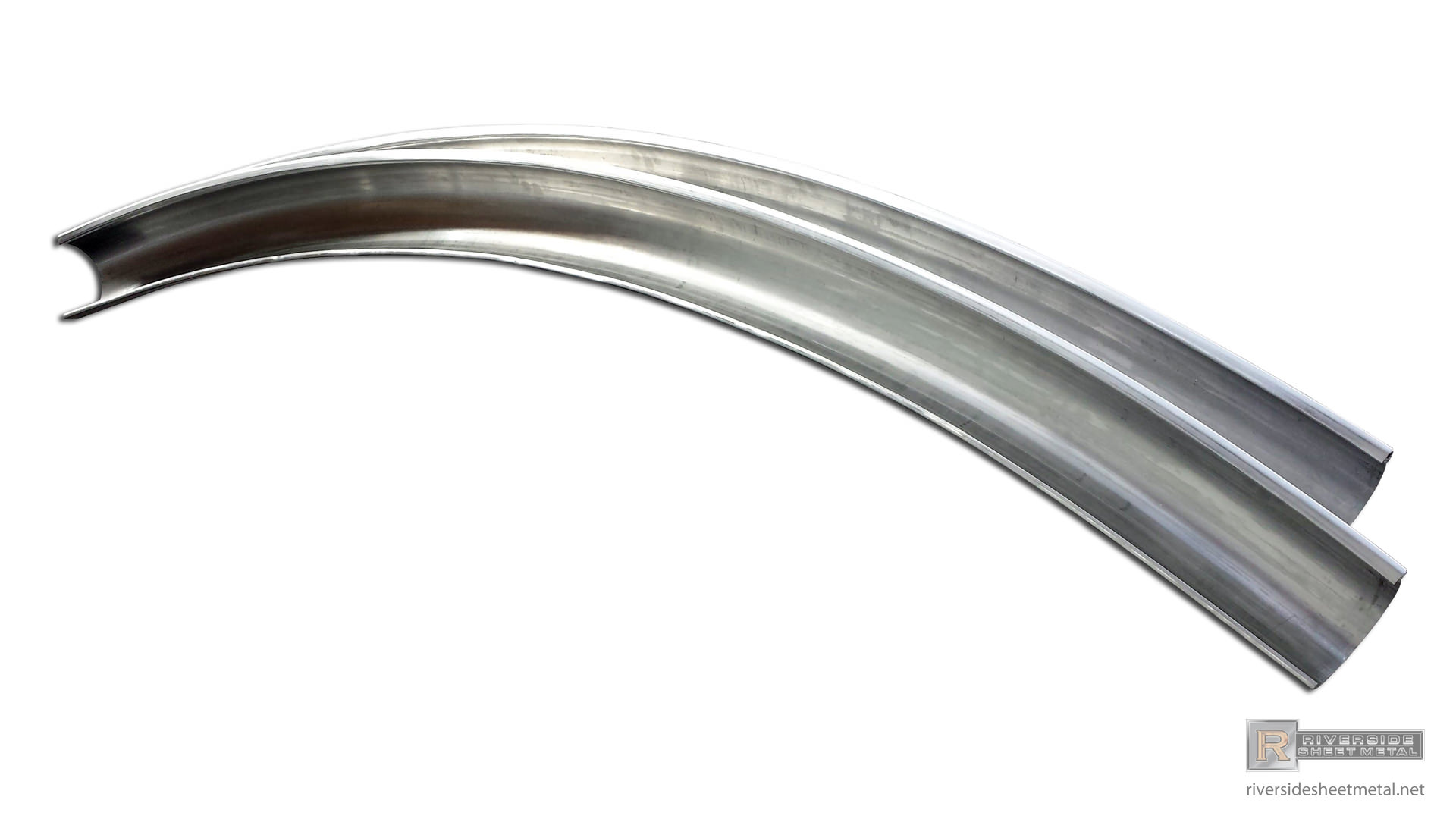

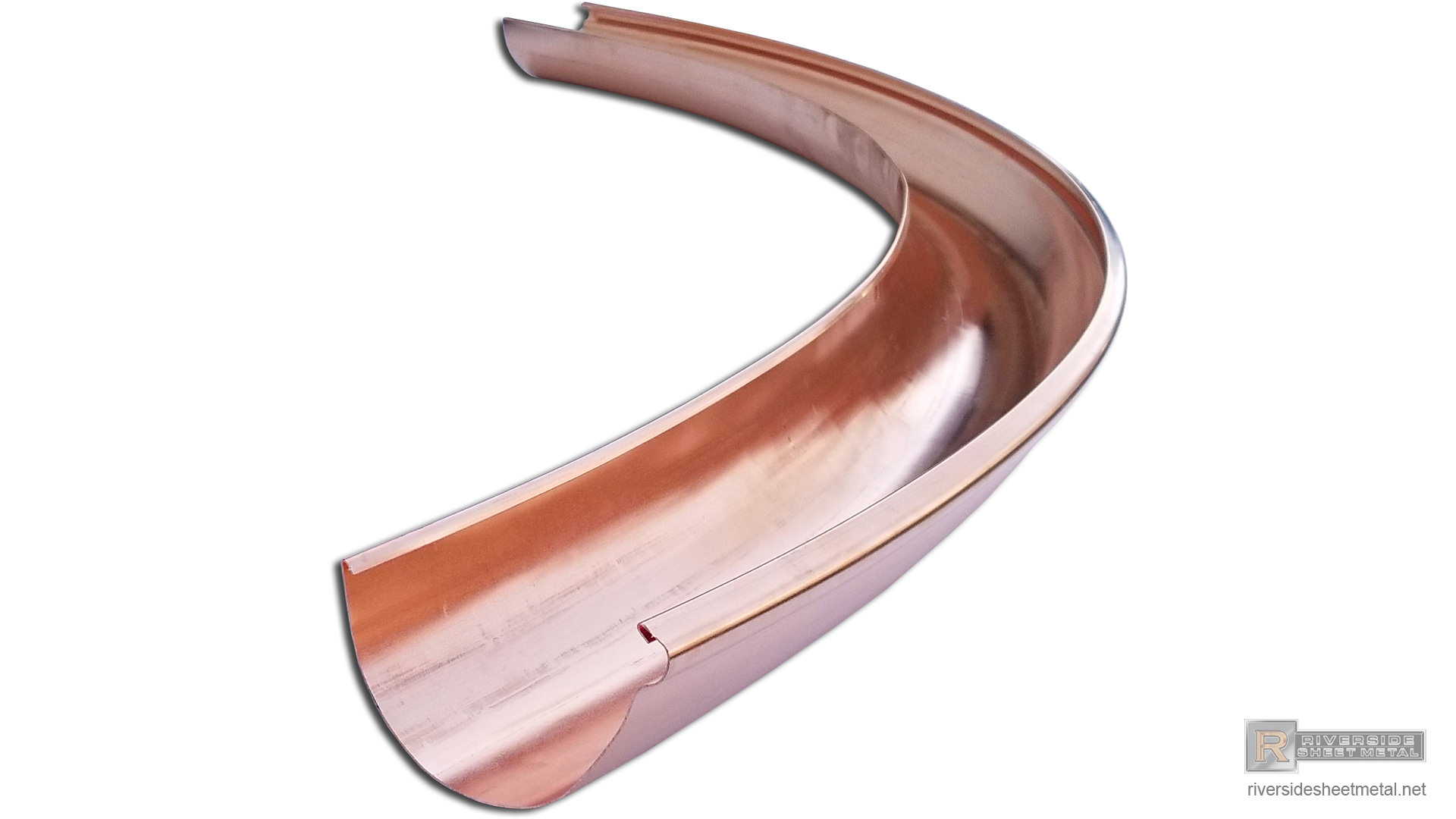

Outside radius - half-round single bead gutter - view 1 Outside radius - half-round single bead gutter - view 2 Outside radius - half-round single bead gutter - view 3 Outside radius - half-round single bead gutter - view 4 Outside radius - half-round single bead gutter - view 5 Outside radius - half-round single bead gutter - view 6 Outside radius - half-round single bead gutter - view 7 Radius half-round single bead gutter - view 1 Radius half-round single bead gutter - view 2 Radius half-round single bead gutter - view 3 Radius half-round single bead gutter - view 4 Radius half-round single bead gutter - view 5
Radius half-round single bead gutter - view 6 Radius half-round single bead gutter - view 7

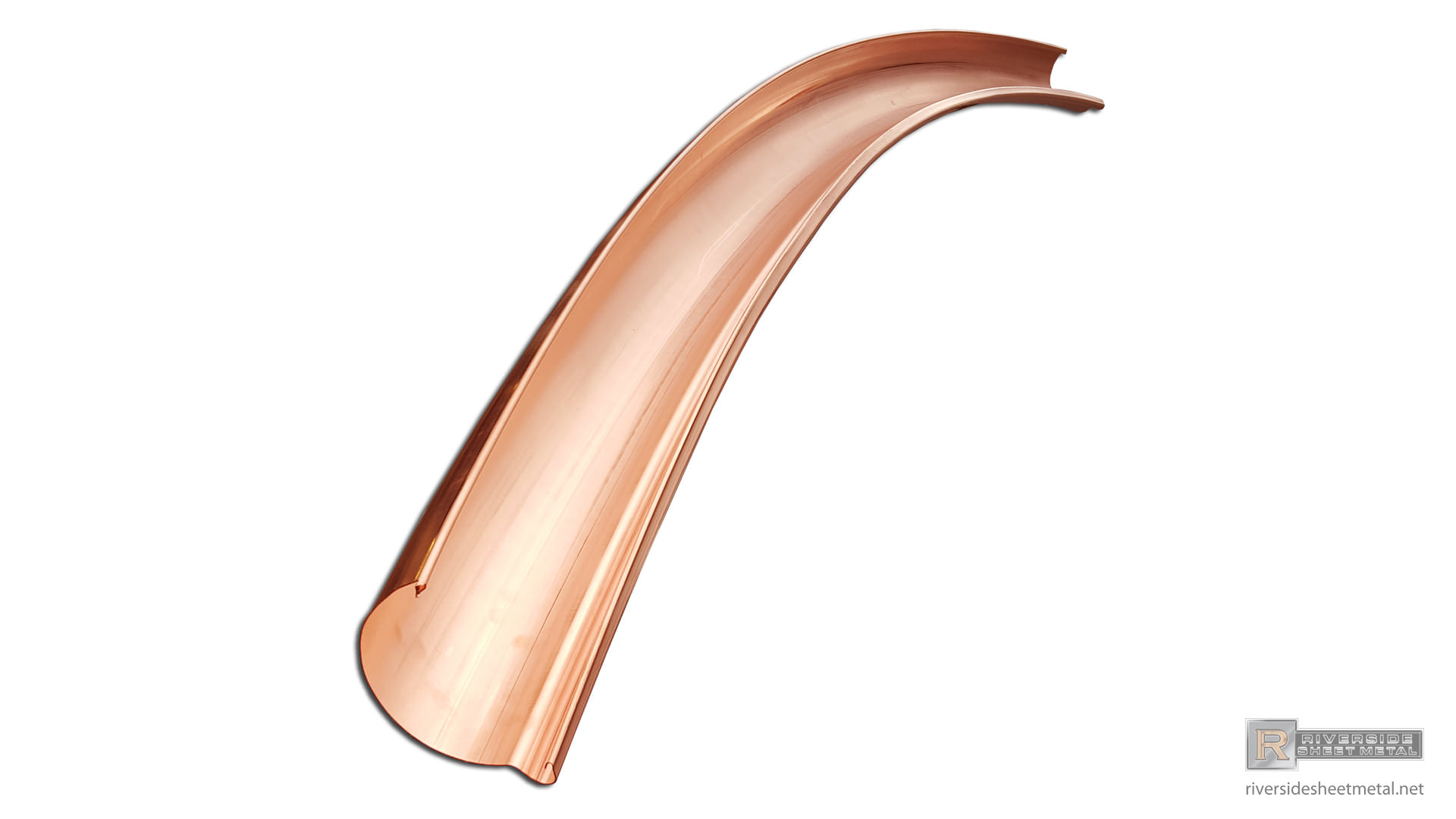

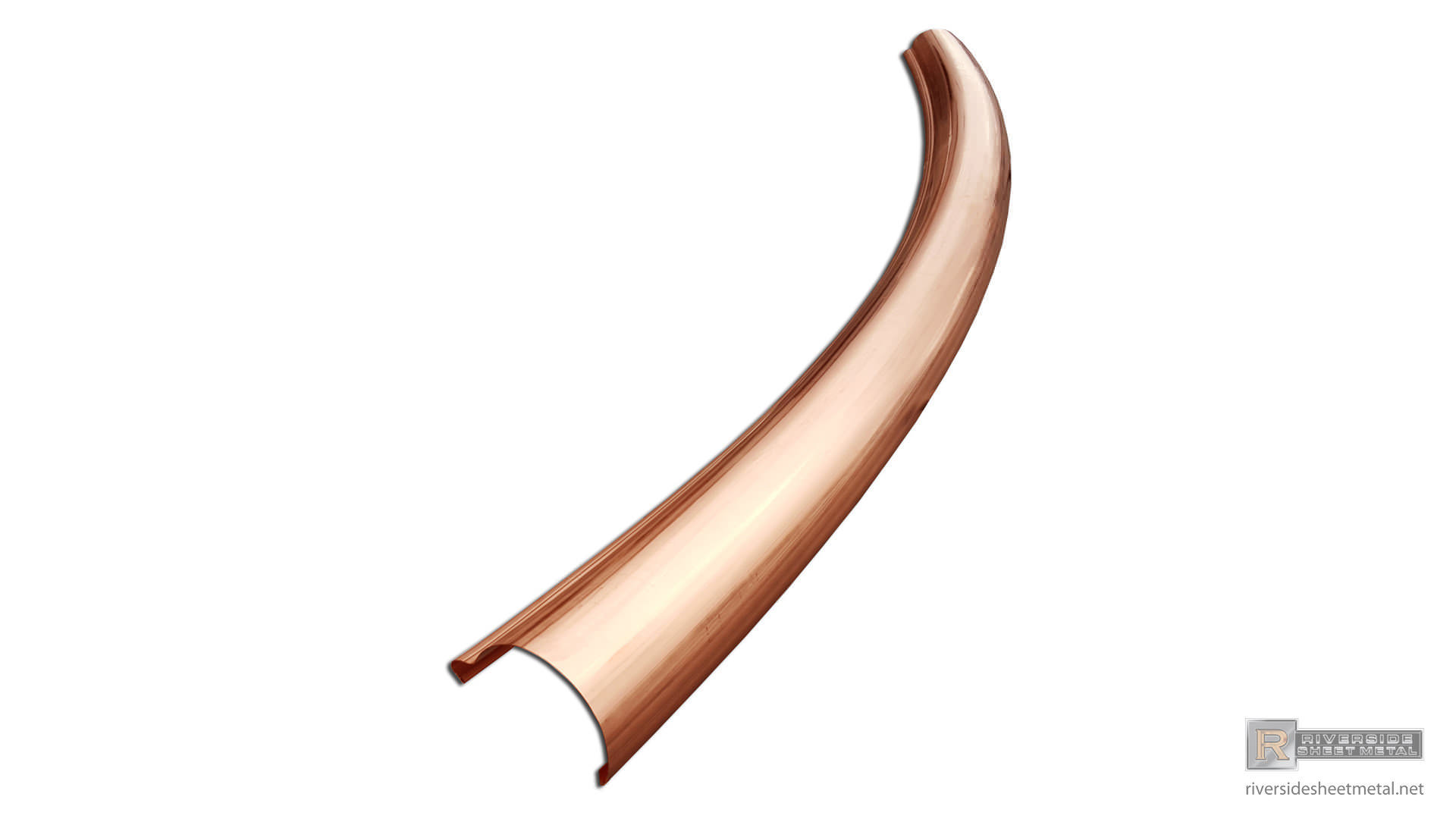

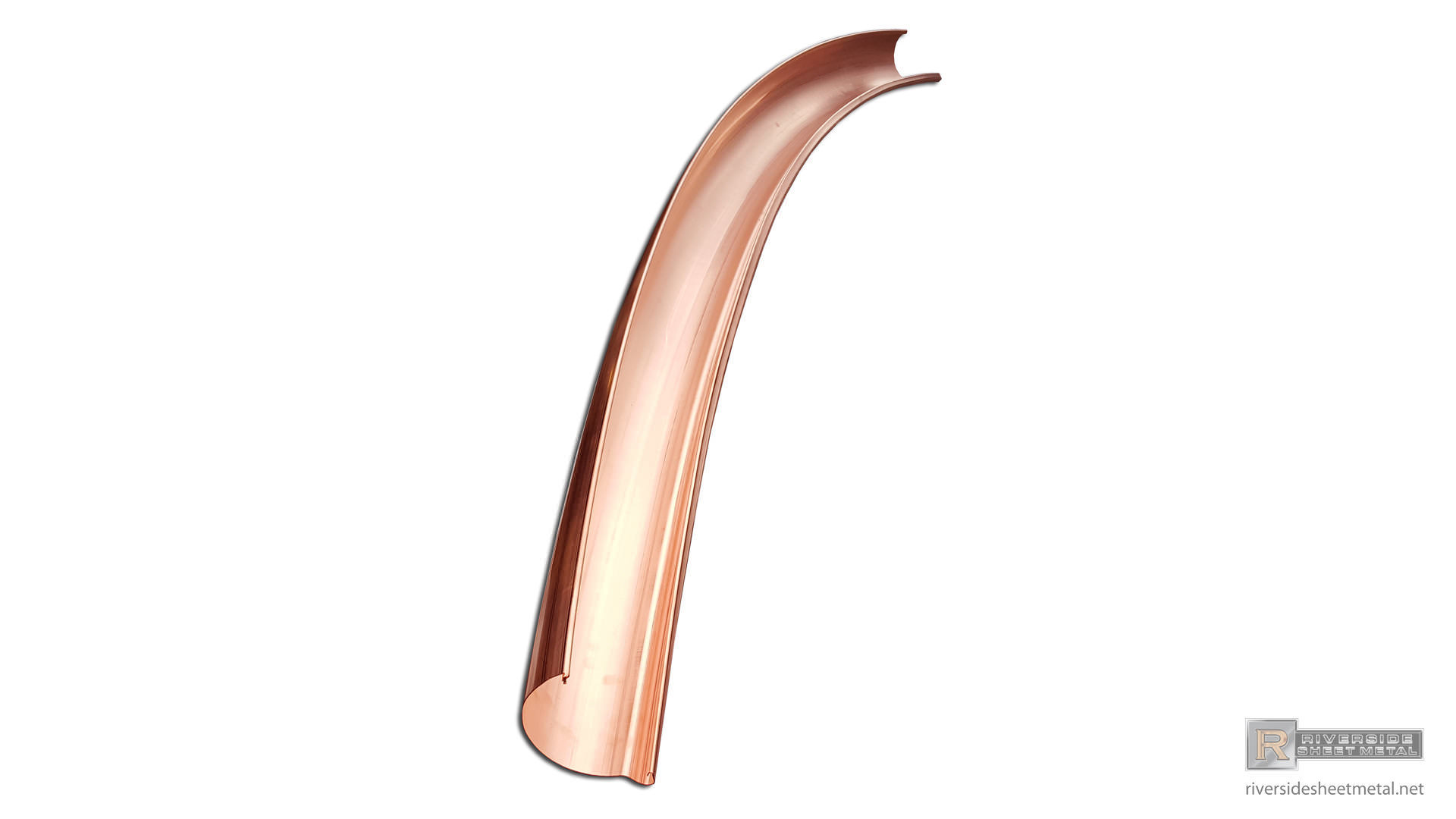

Inside radius half round copper gutter - view 1 Inside radius half round copper gutter - view 2 Inside radius half round copper gutter - view 3

Radius Box Gutters

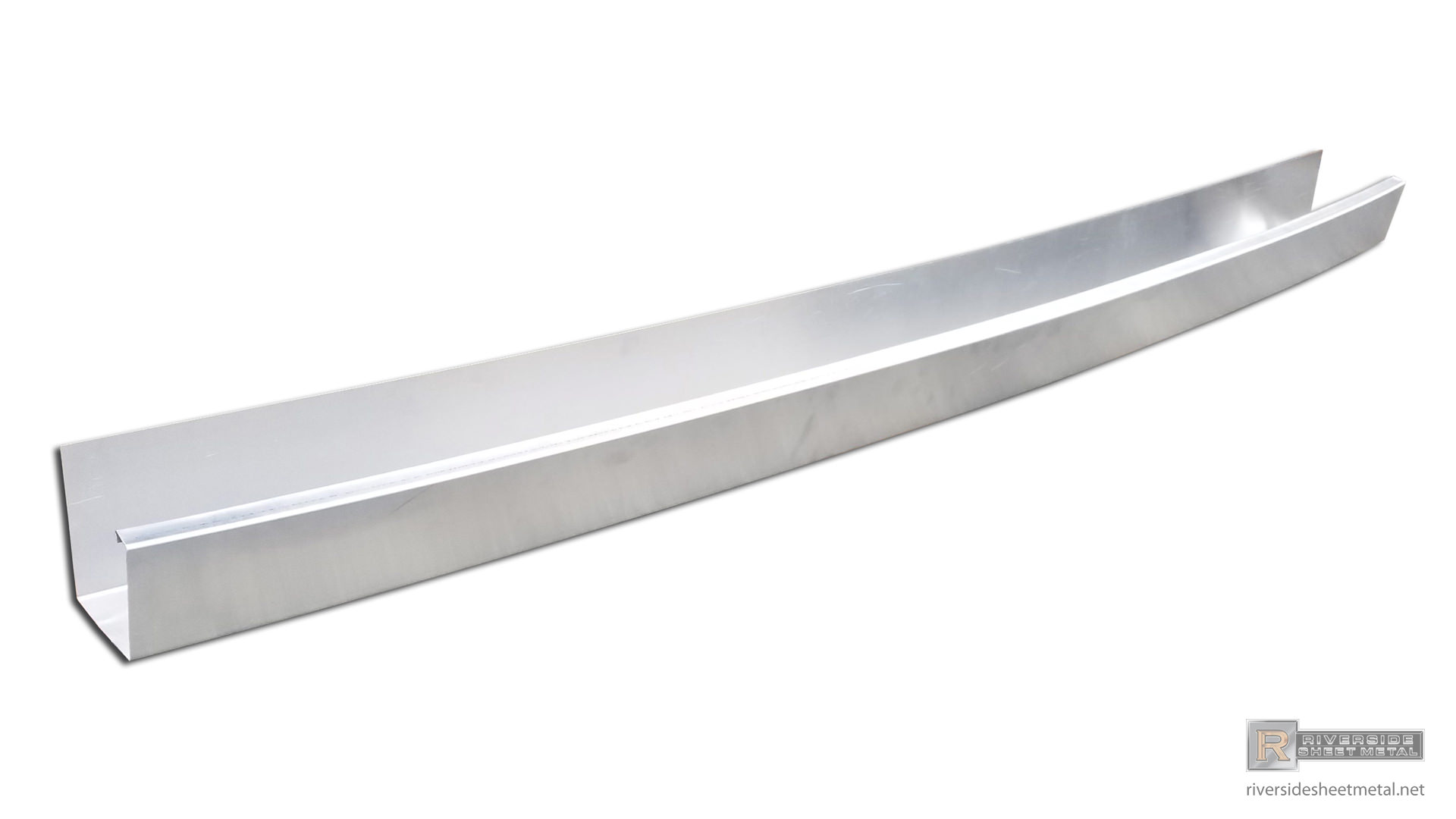

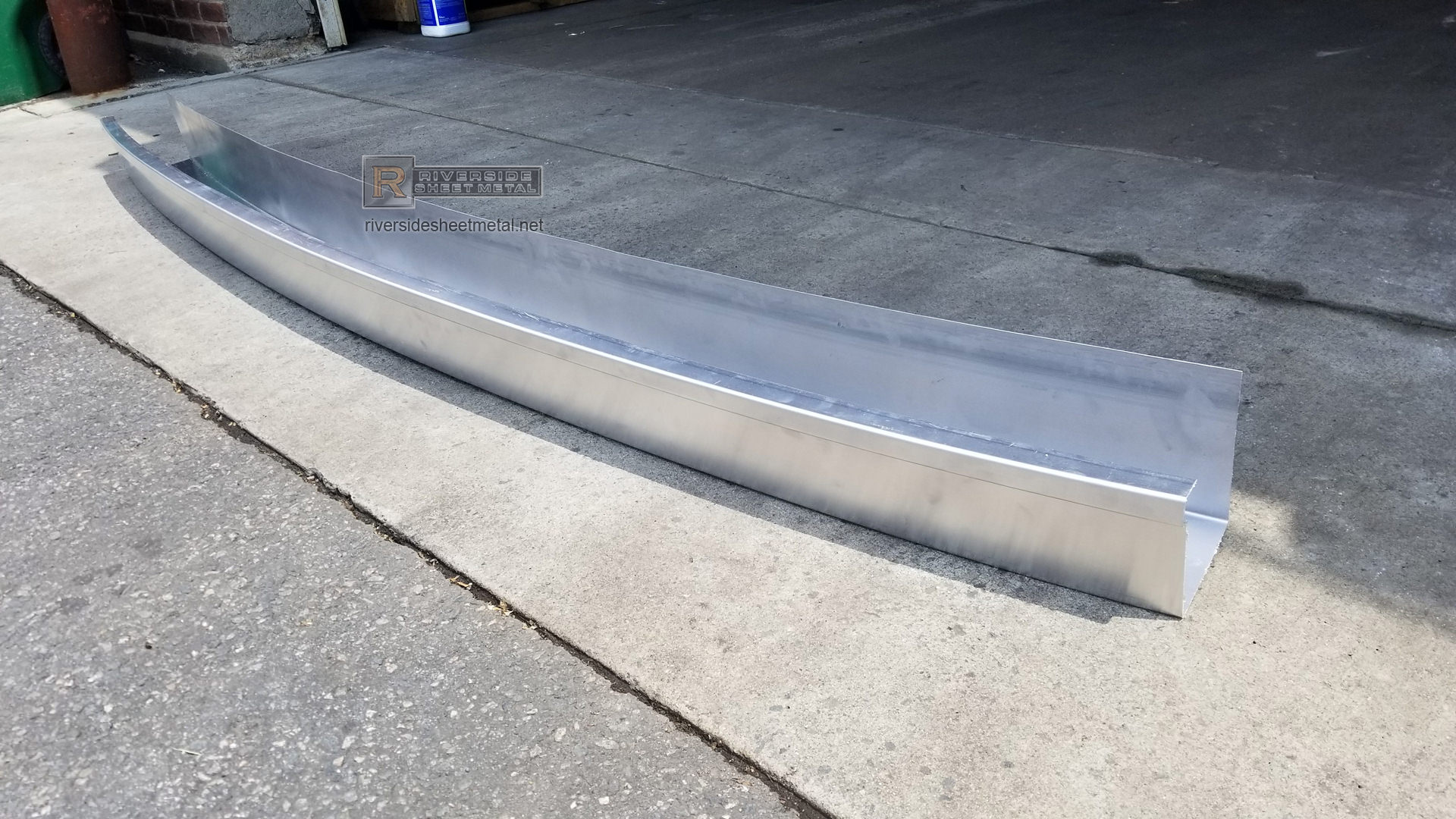

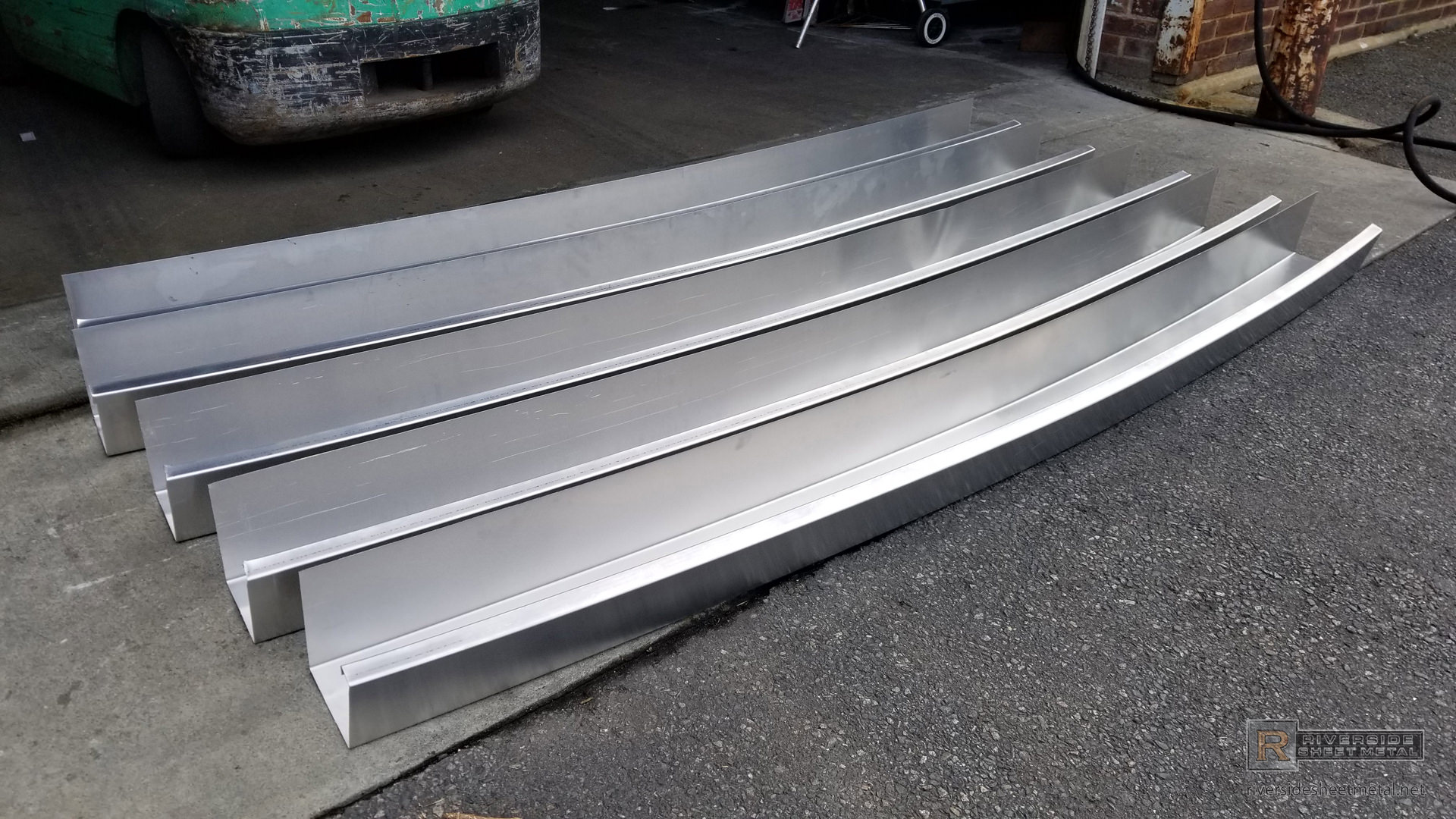

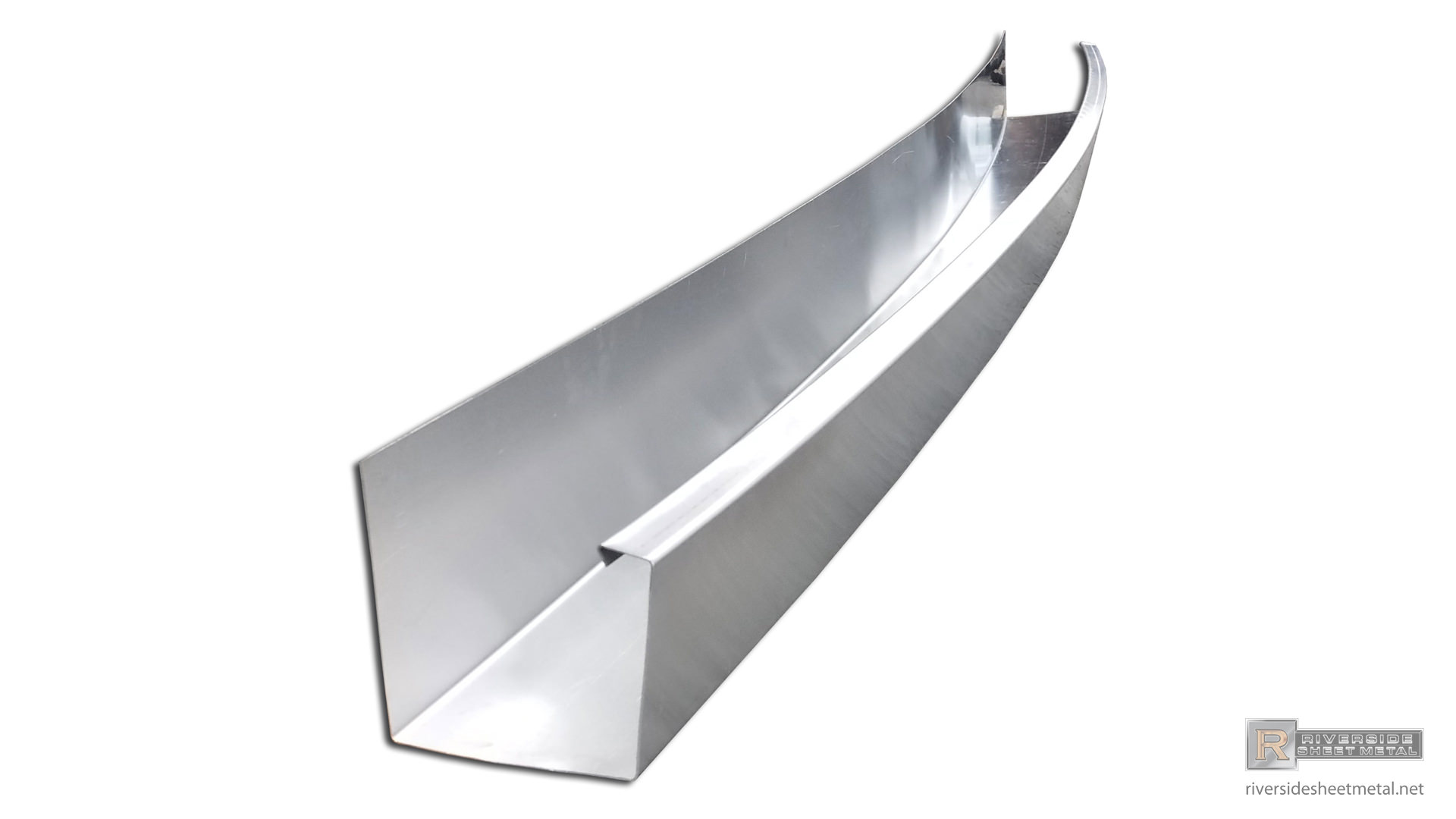

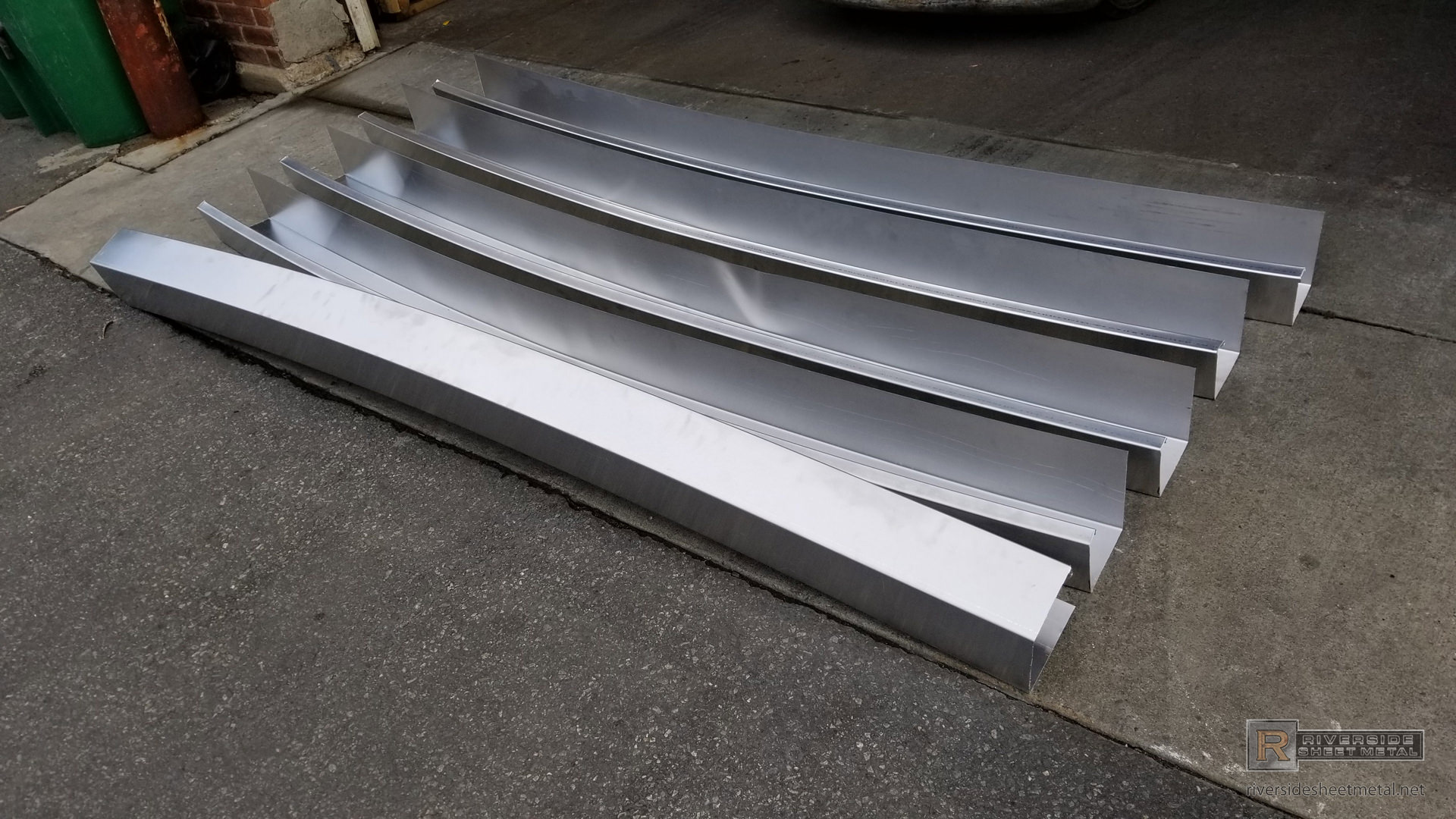

Custom radius aluminum box gutter - view 1 Custom radius aluminum box gutter - view 2 Custom radius aluminum box gutter - view 3
Custom radius aluminum box gutter - view 4

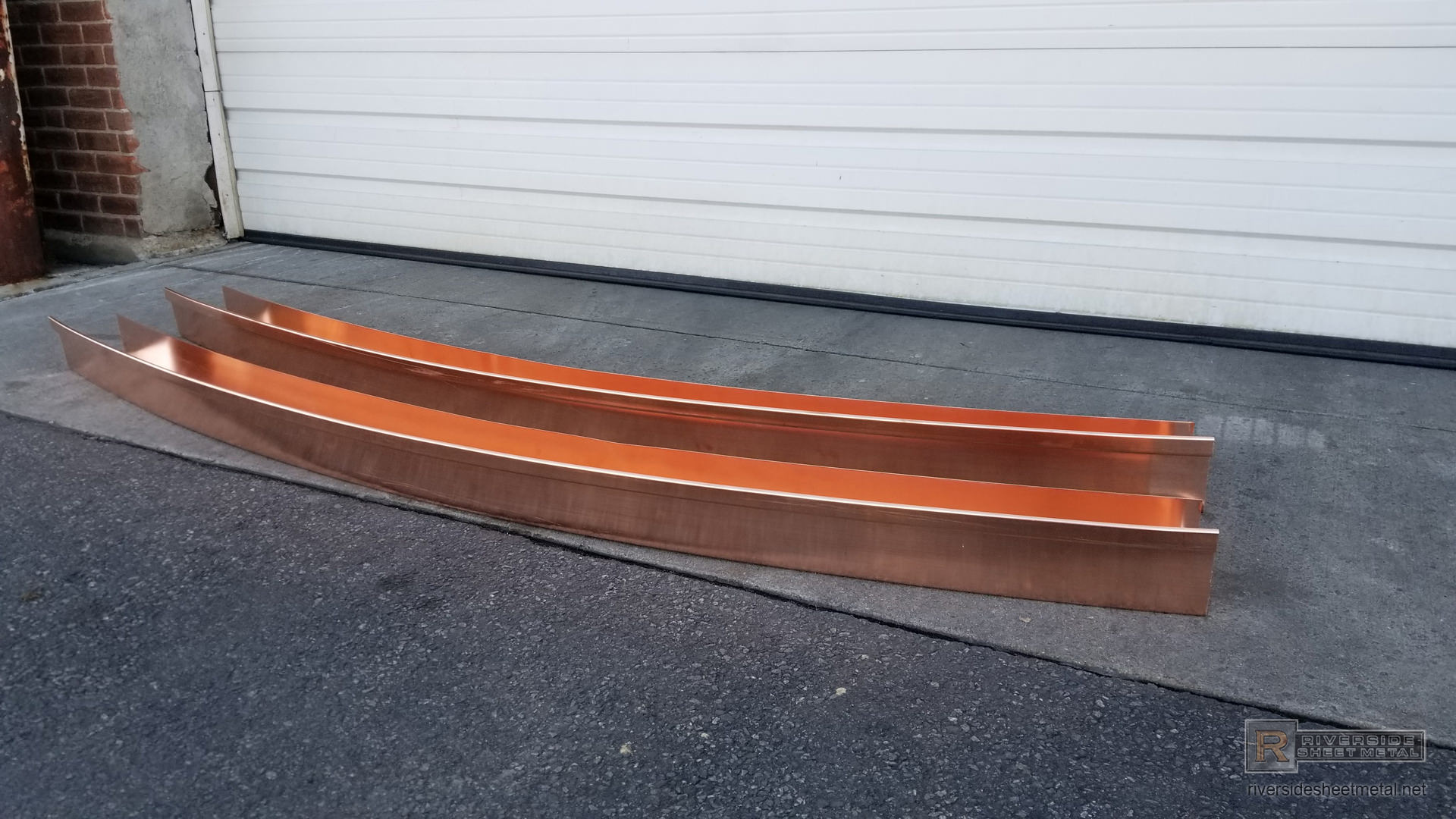

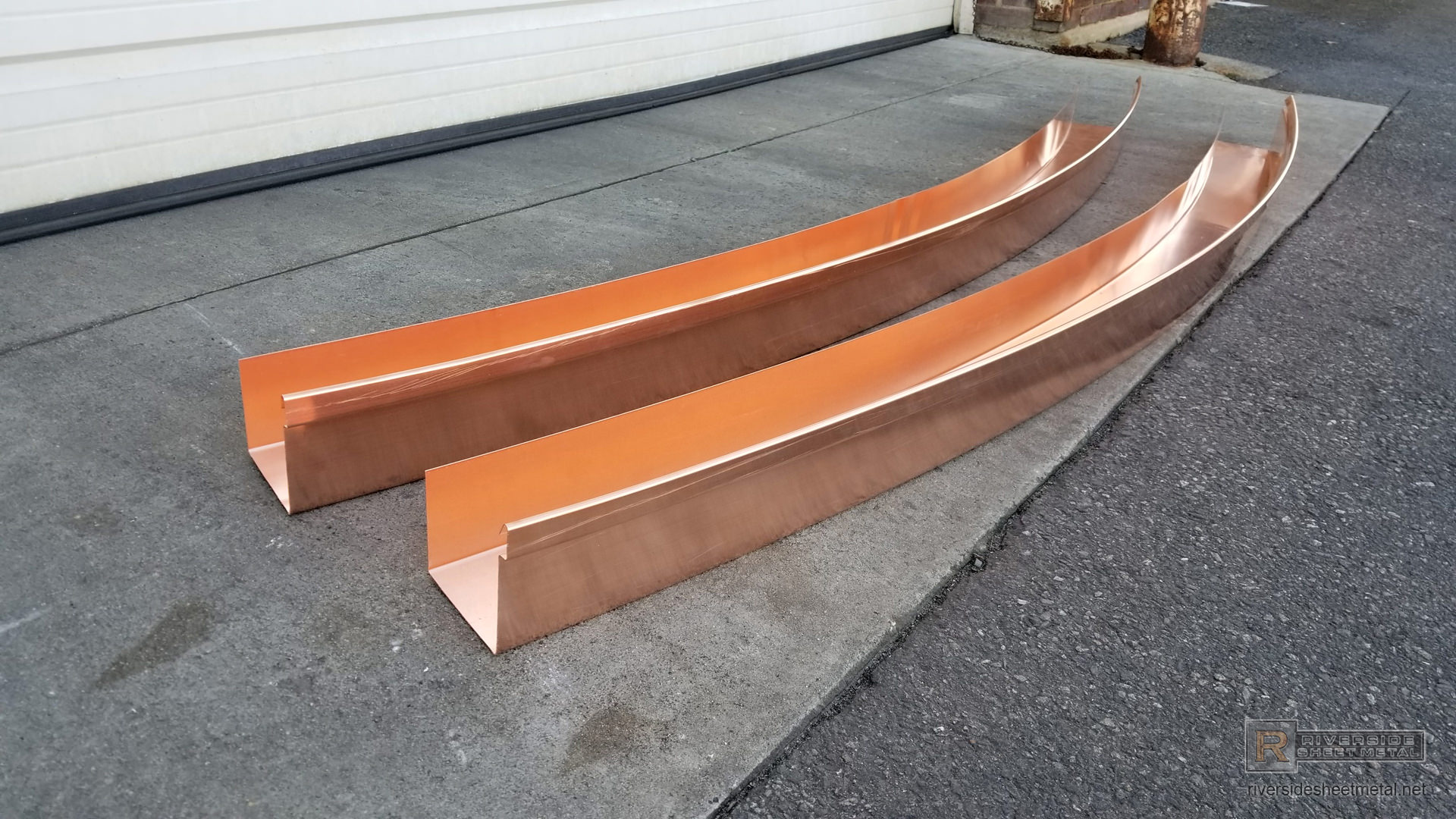

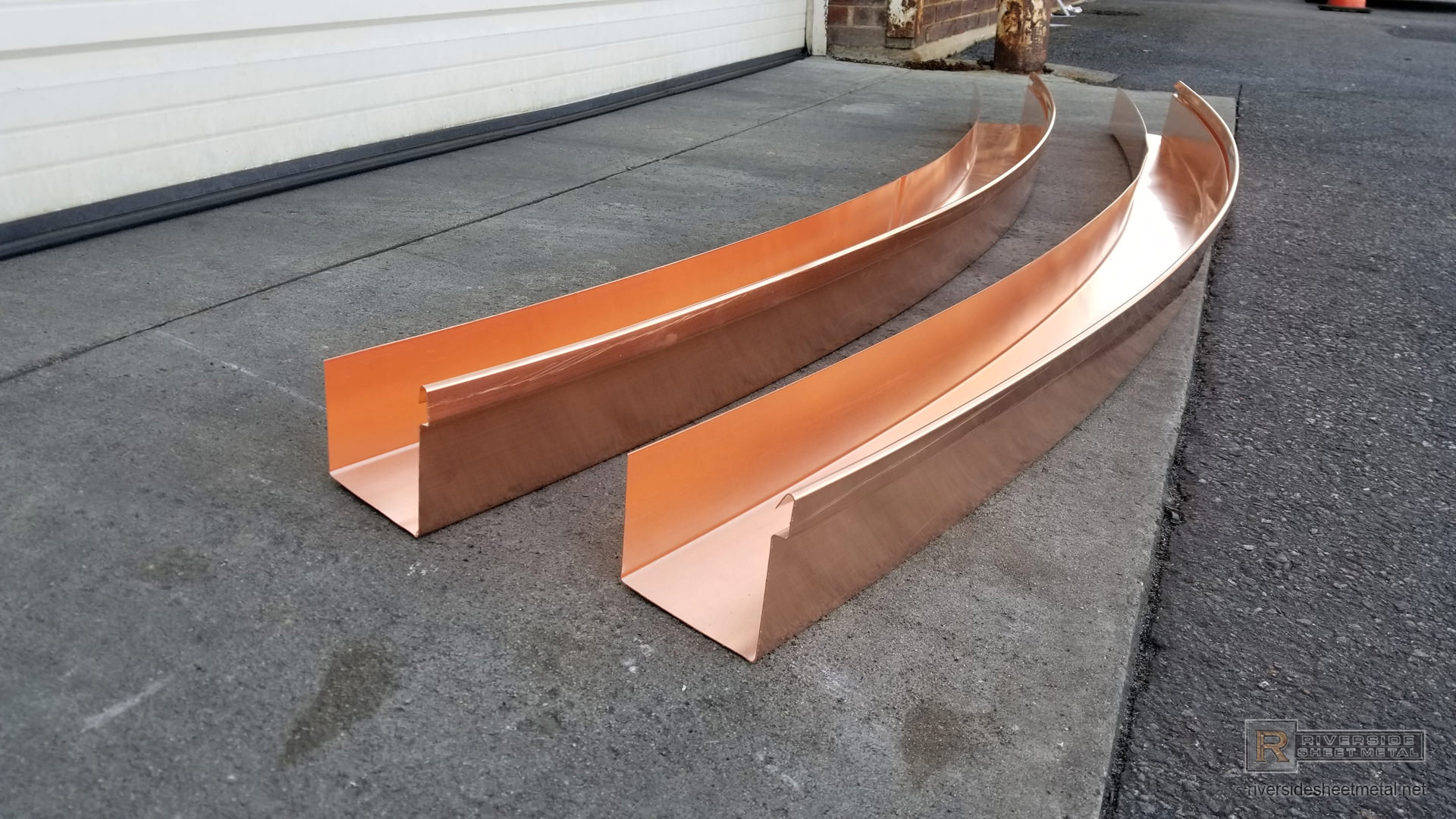

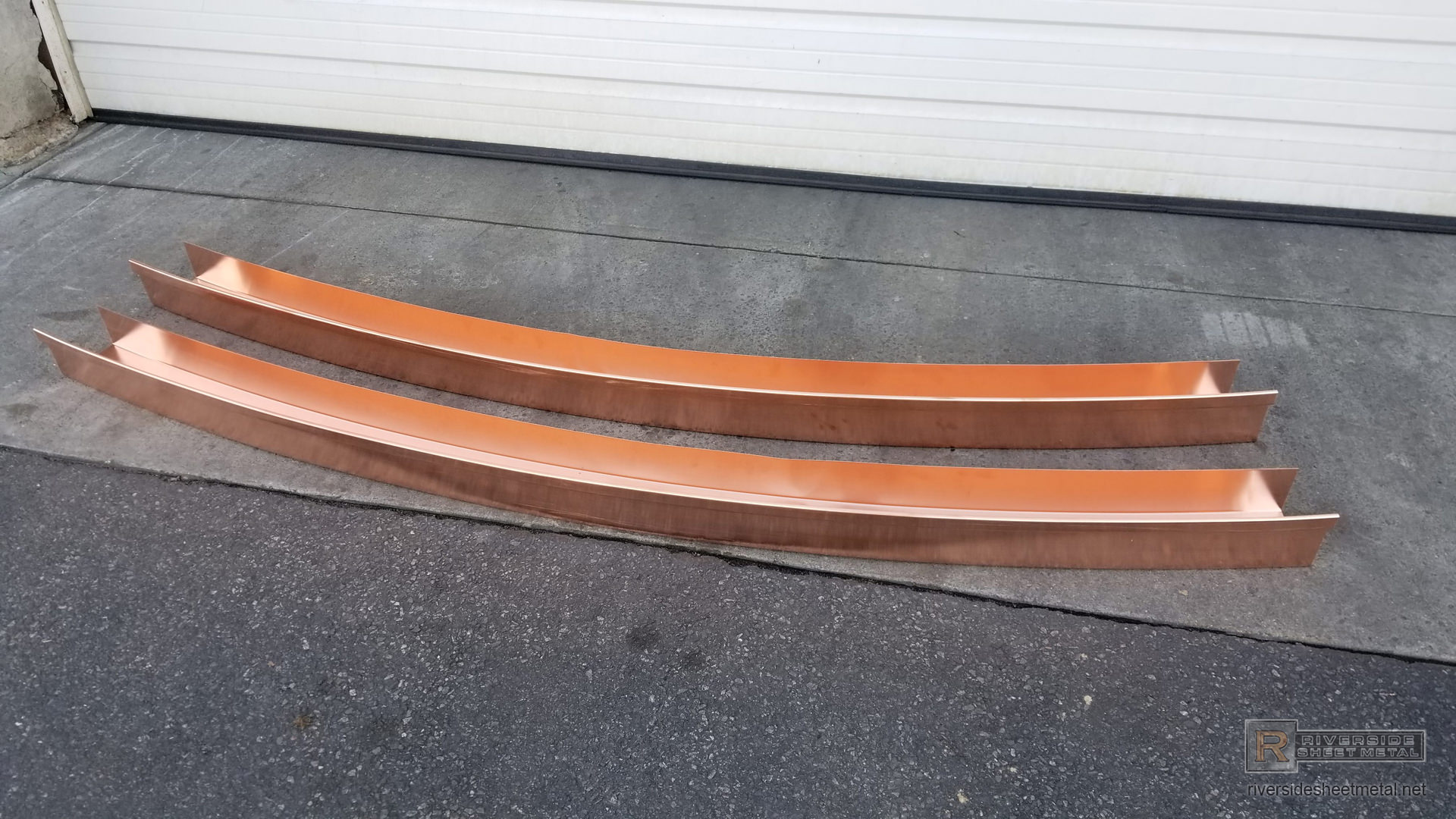

Custom radius copper box gutter - view 1 Custom radius copper box gutter - view 2
Custom radius copper box gutter - view 3

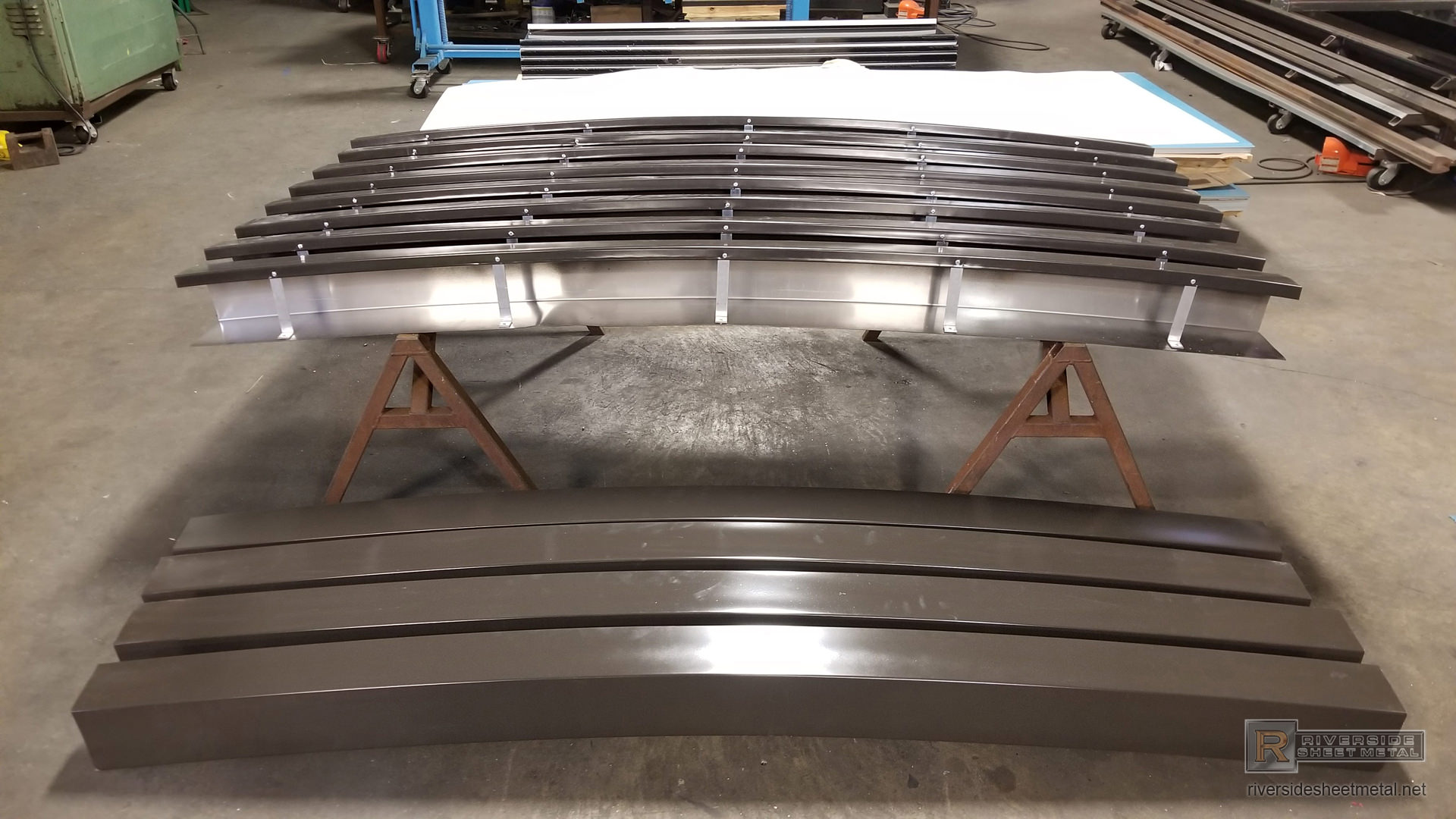

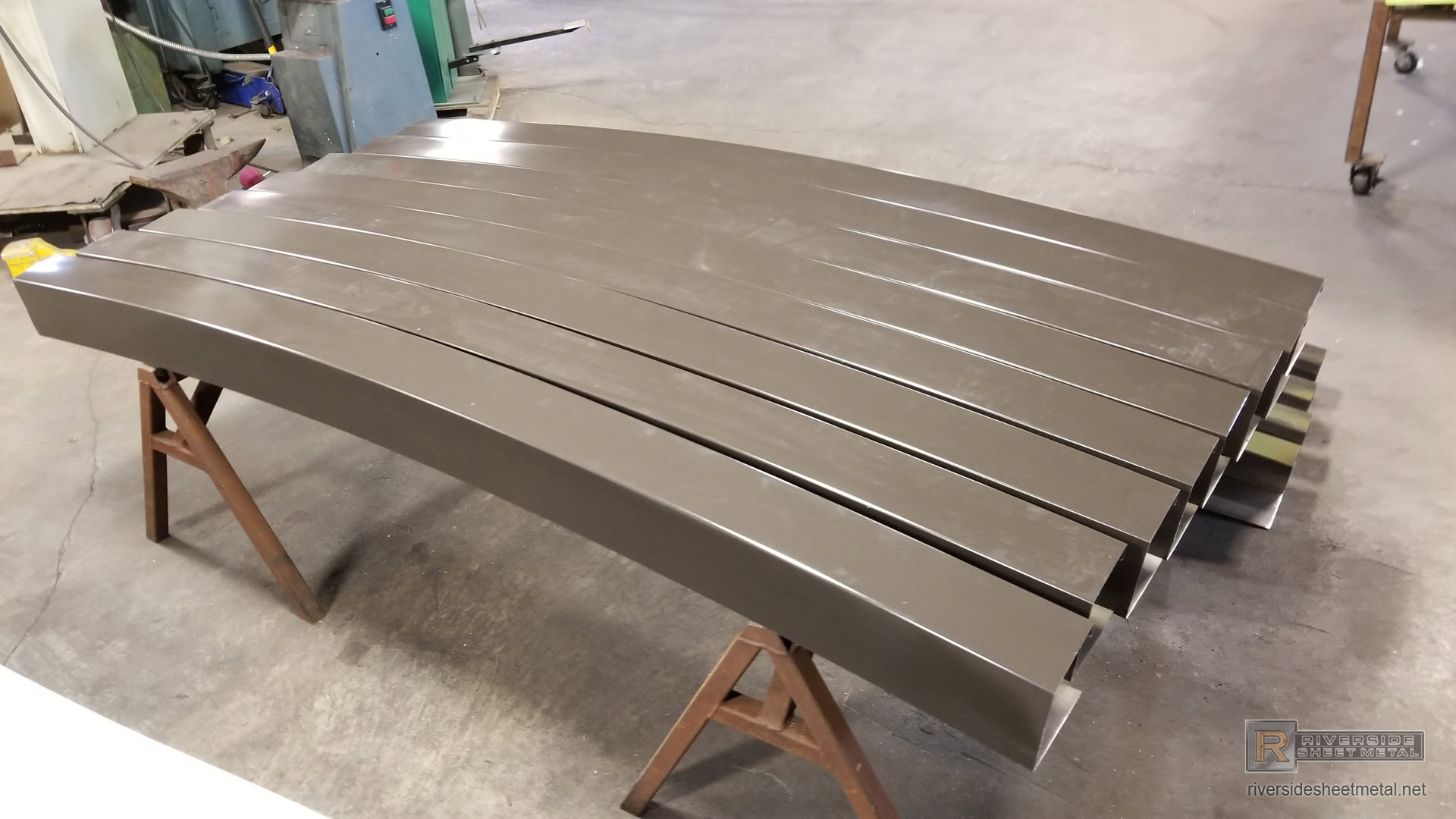

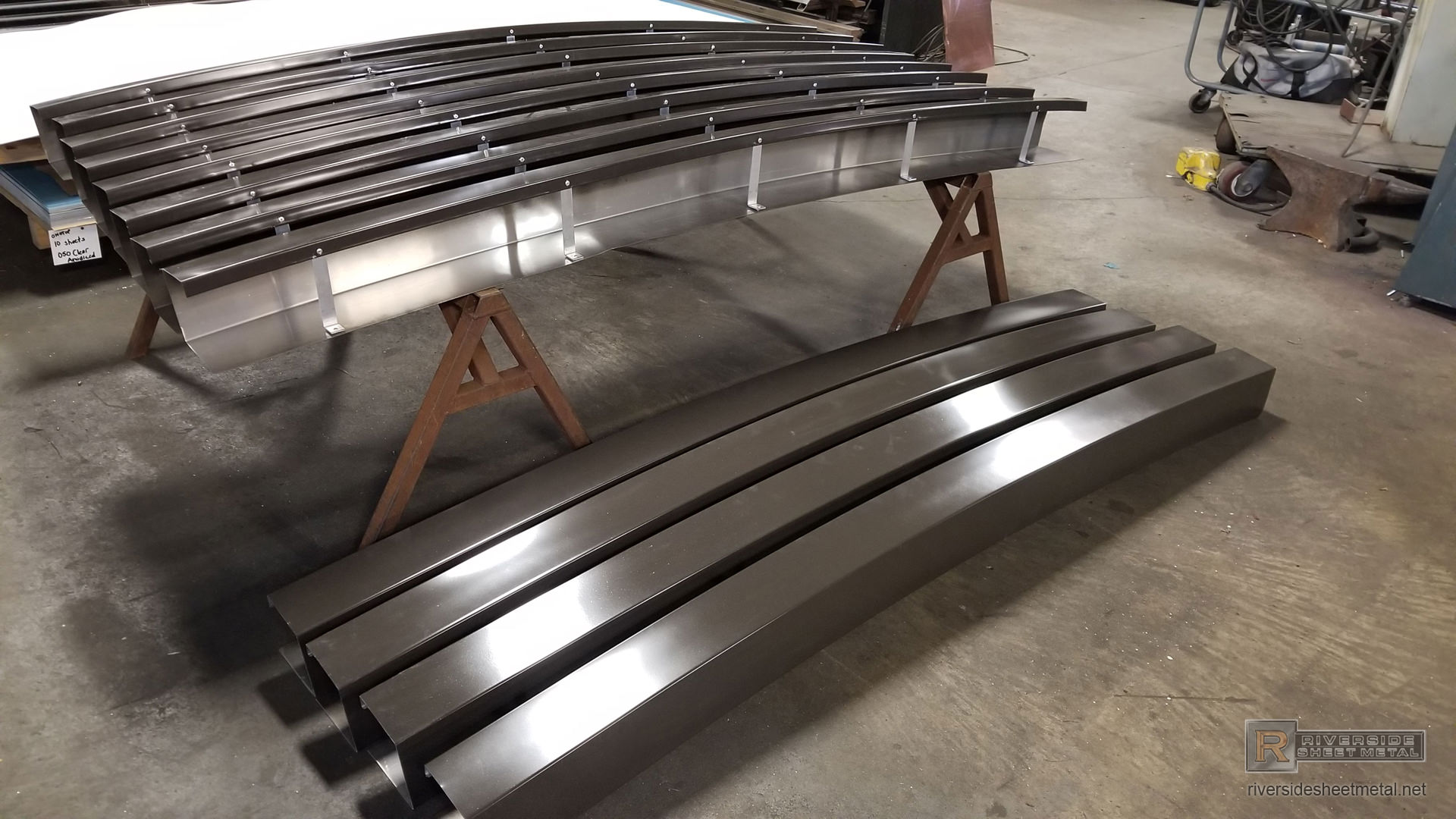

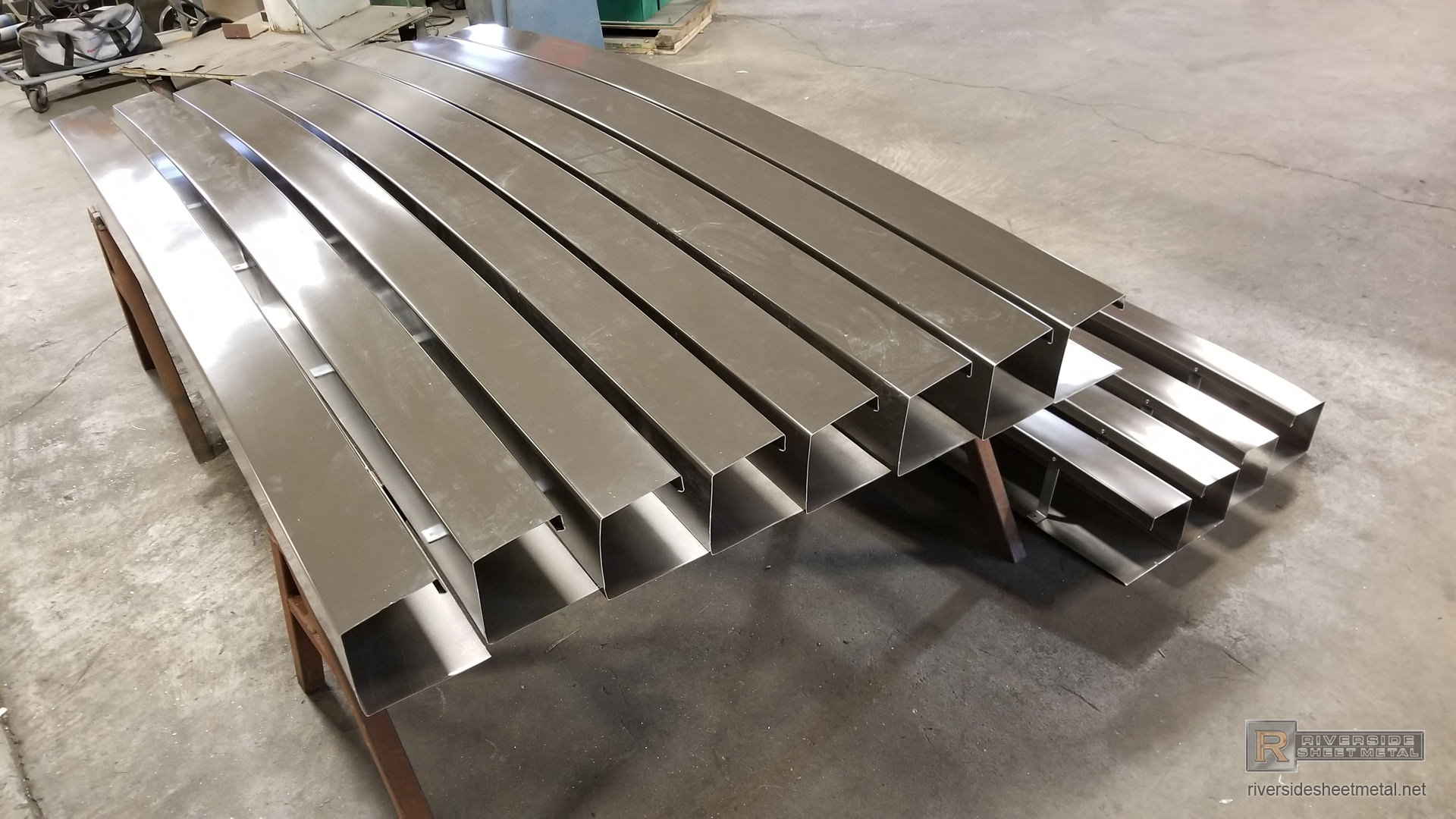

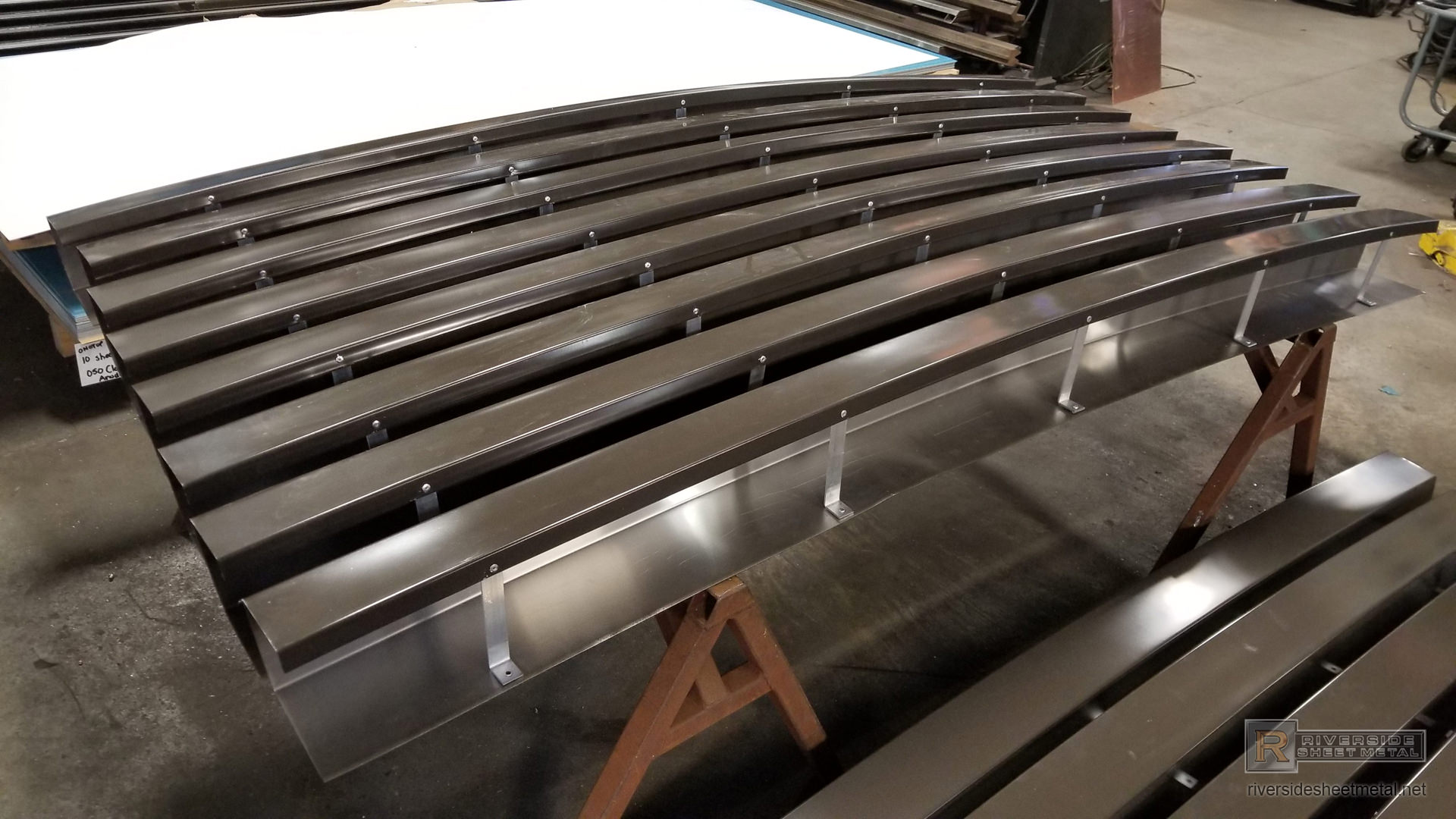

Custom radius copper box gutter - view 4 Custom radius bronze aluminum box gutter - view 1 Custom radius bronze aluminum box gutter - view 2 Custom radius bronze aluminum box gutter - view 3 Custom radius bronze aluminum box gutter - view 4
Custom radius bronze aluminum box gutter - view 5

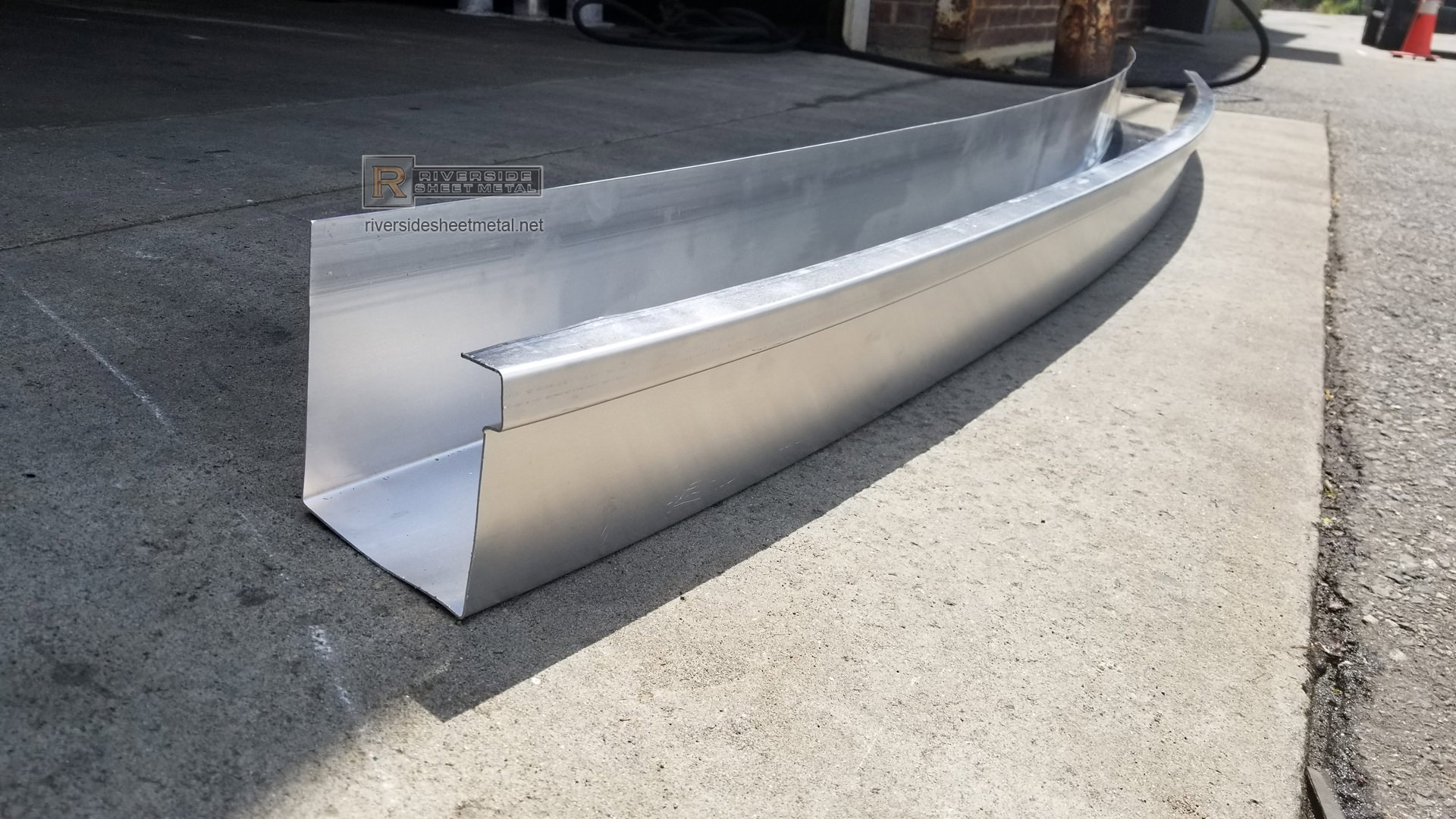

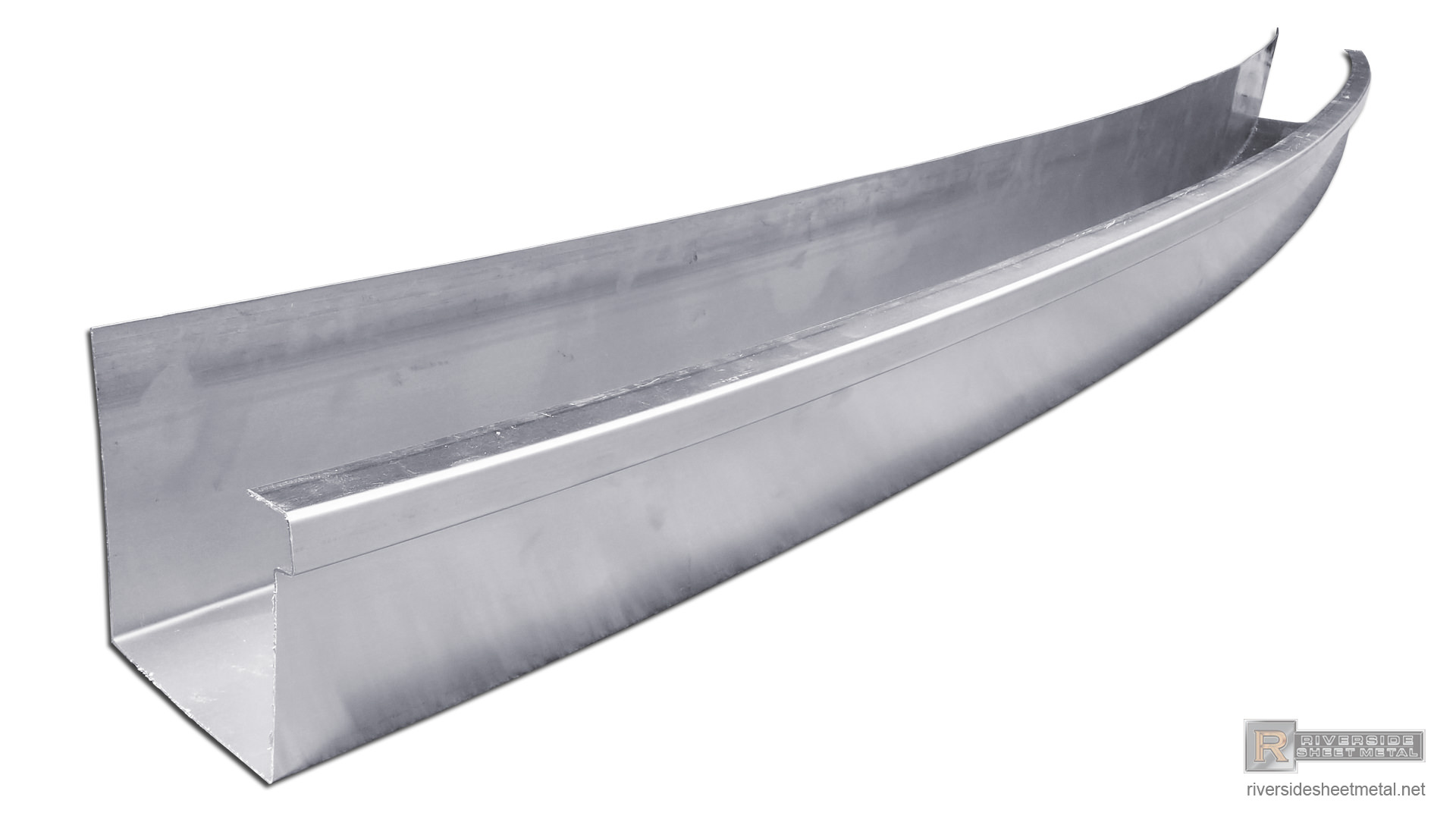

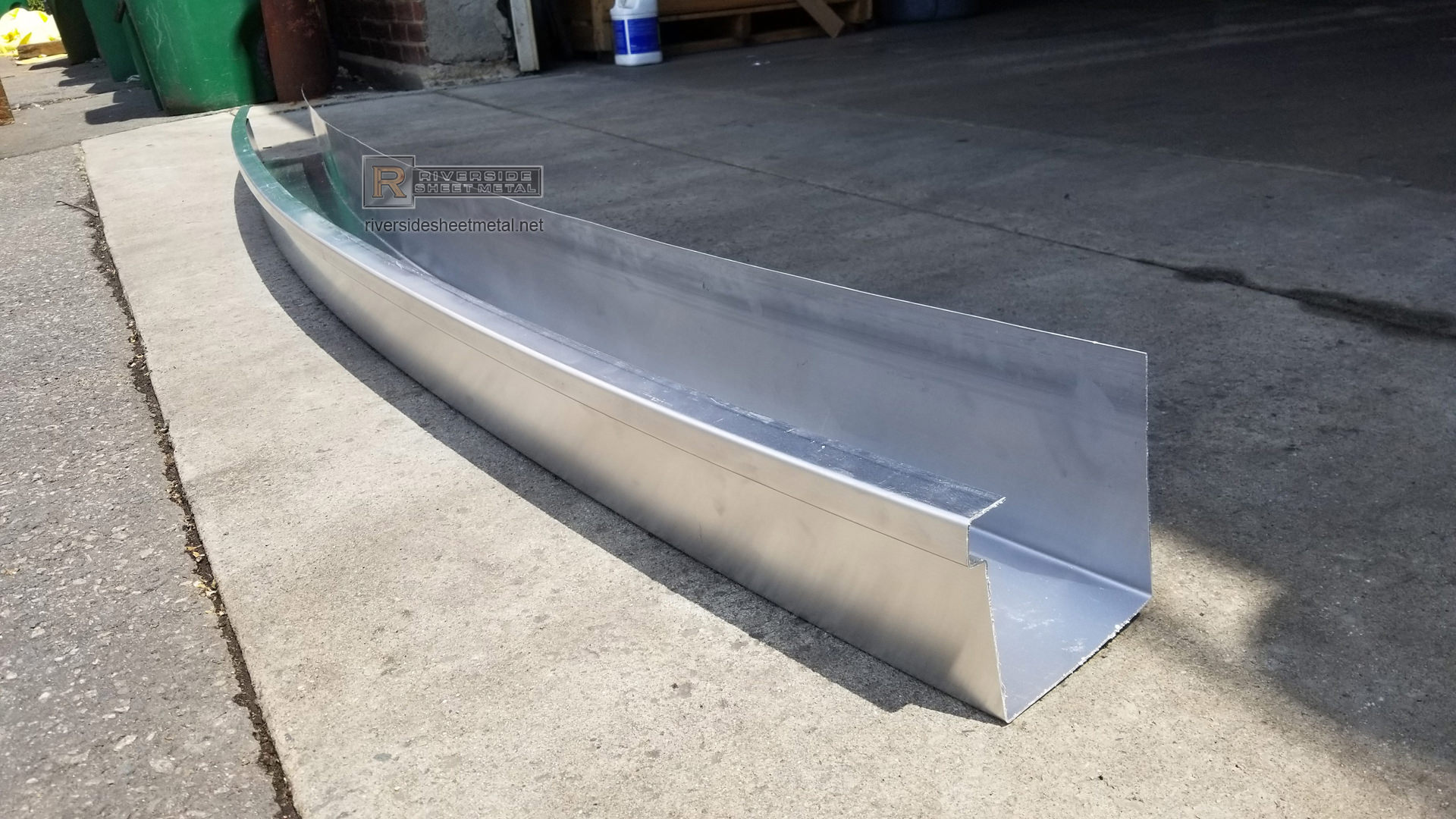

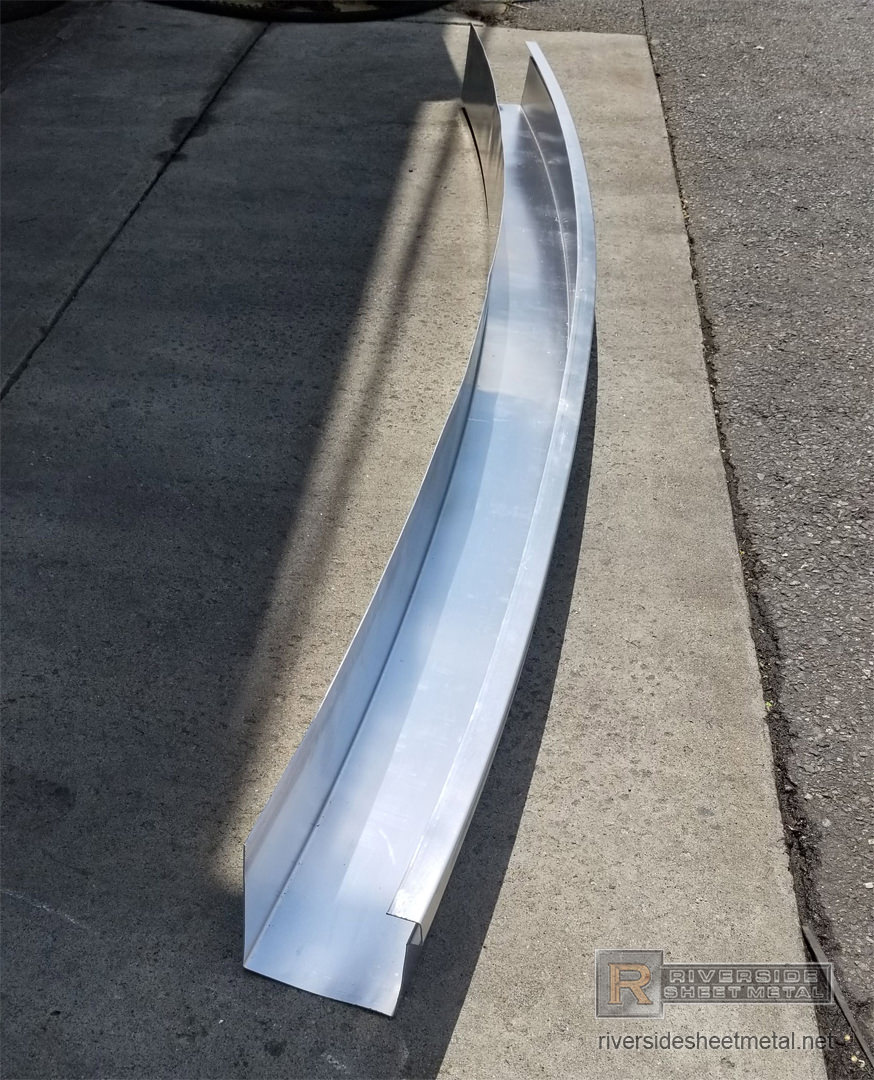

Radius mill finish aluminum box gutter - view 1 Radius mill finish aluminum box gutter - view 2 Radius mill finish aluminum box gutter - view 3 Radius mill finish aluminum box gutter - view 4 Radius mill finish aluminum box gutter - view 5
Radius mill finish aluminum box gutter - view 6

Radius Custom Profile Gutters

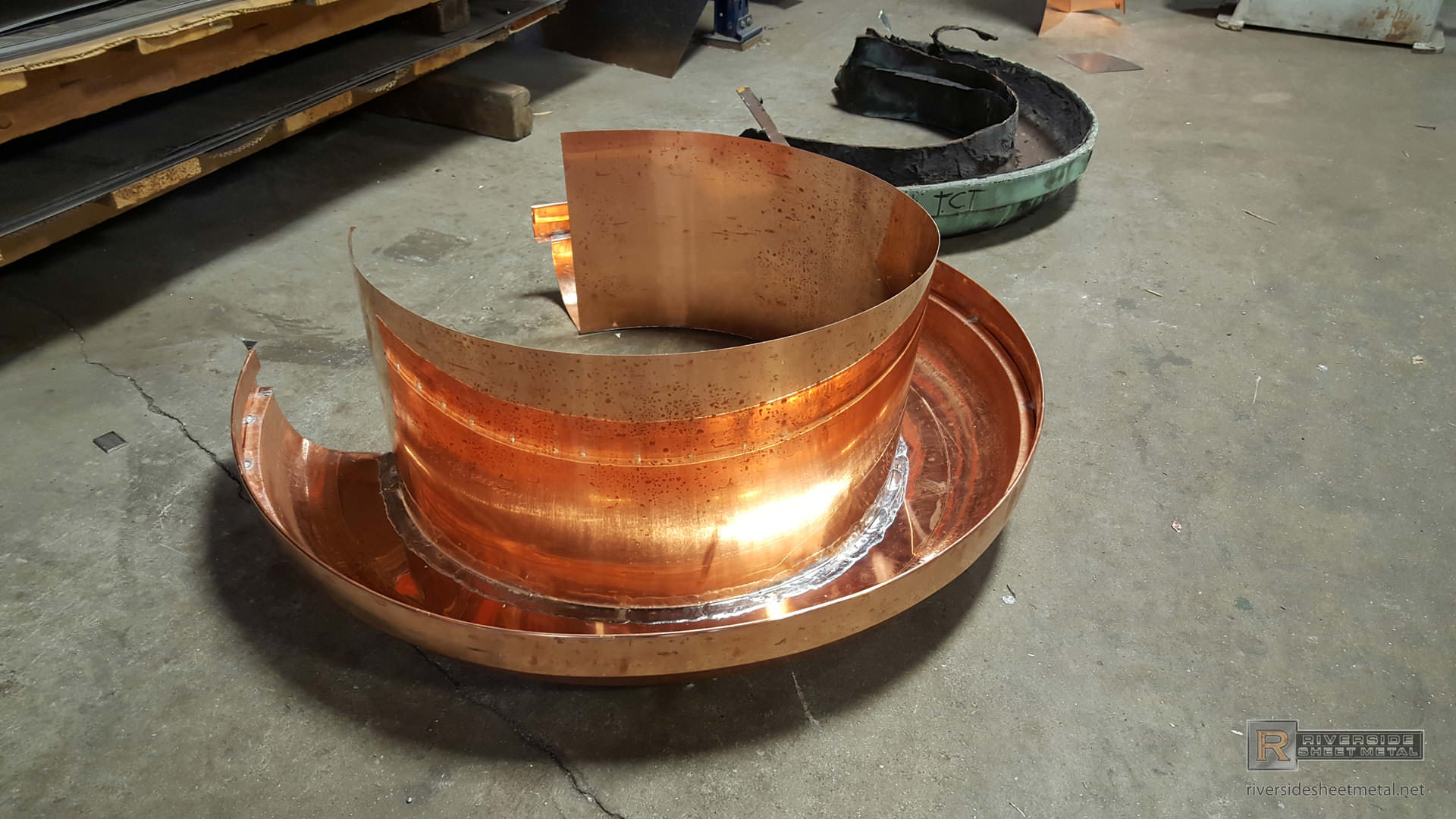

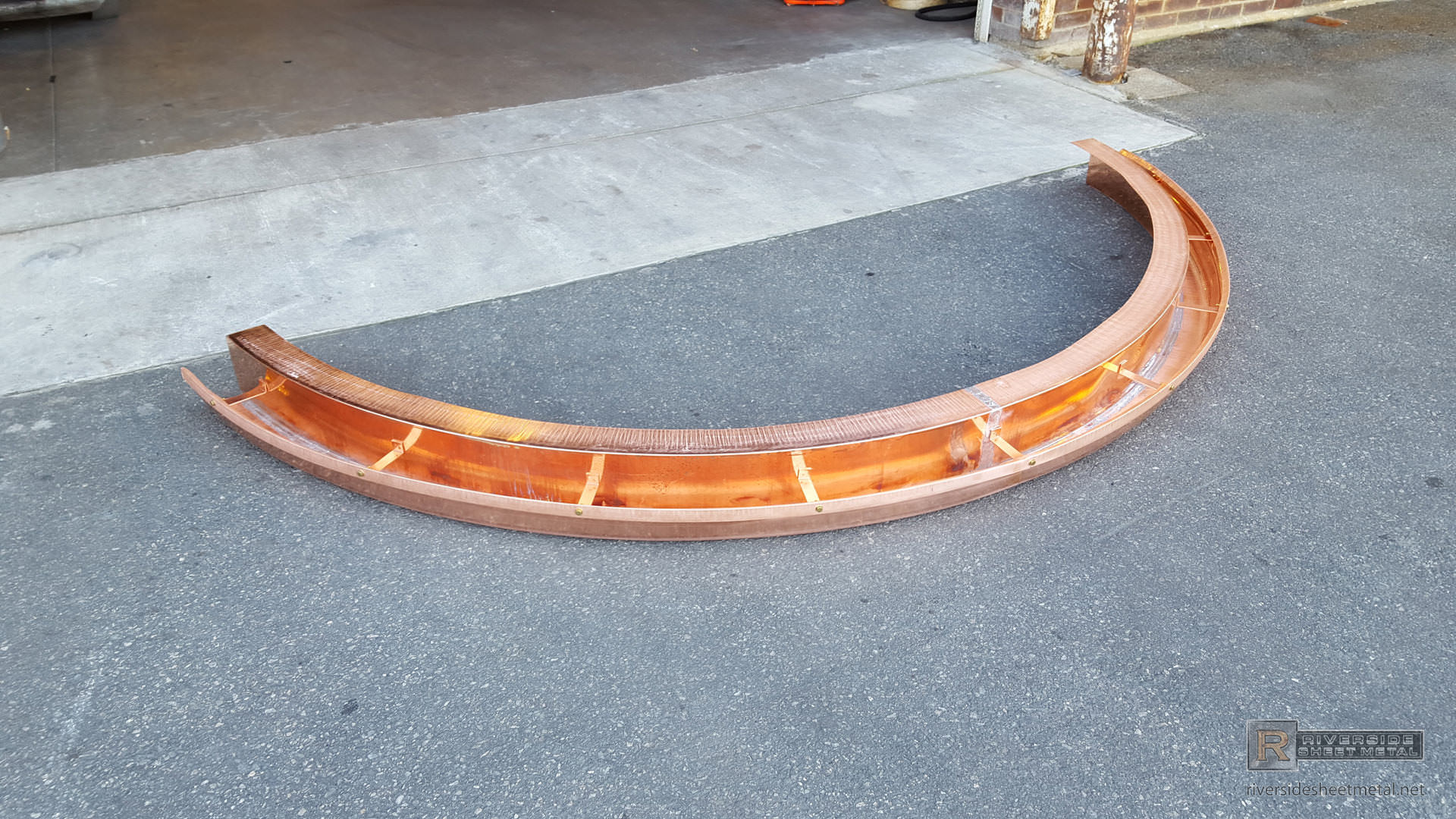

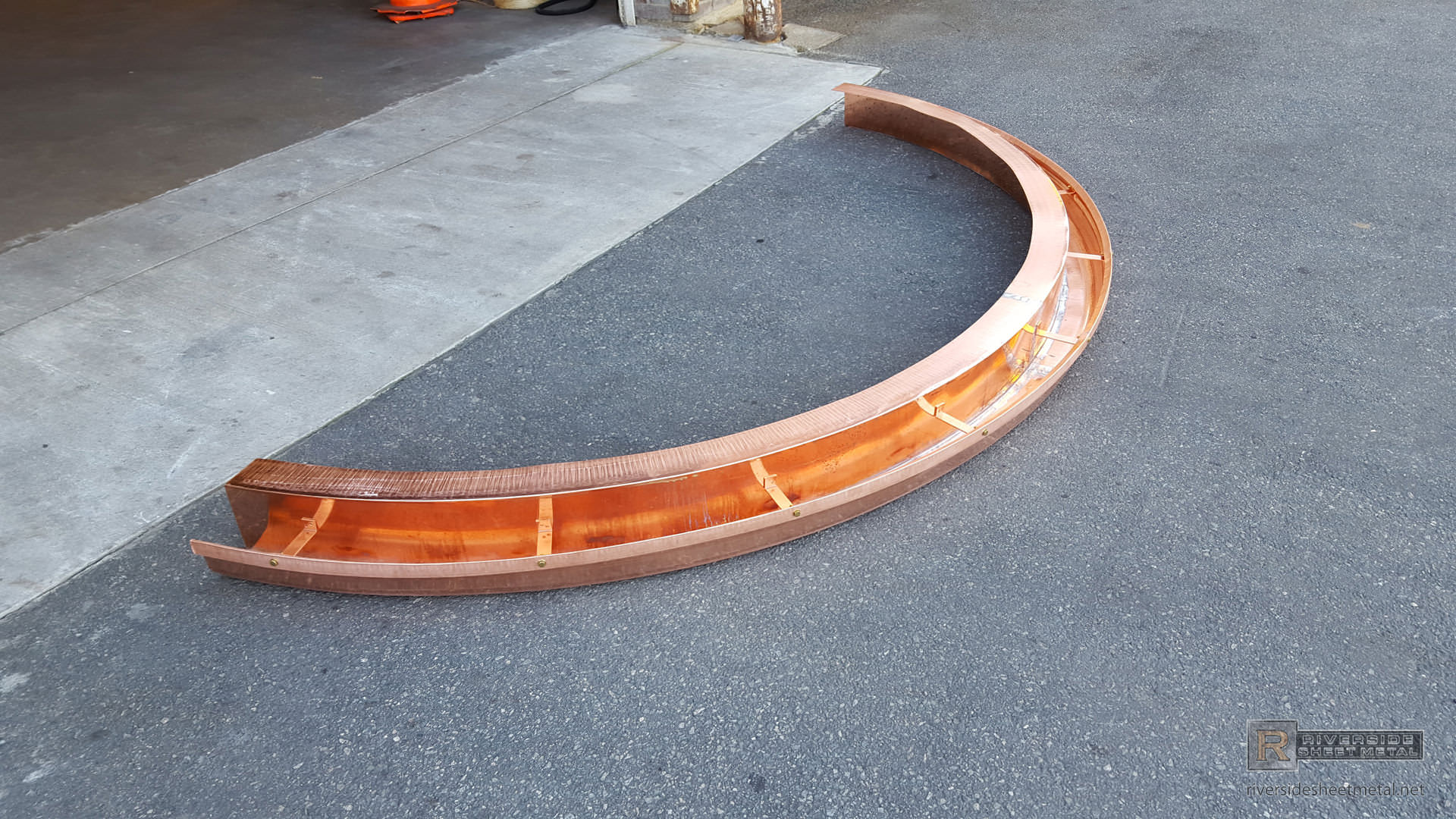

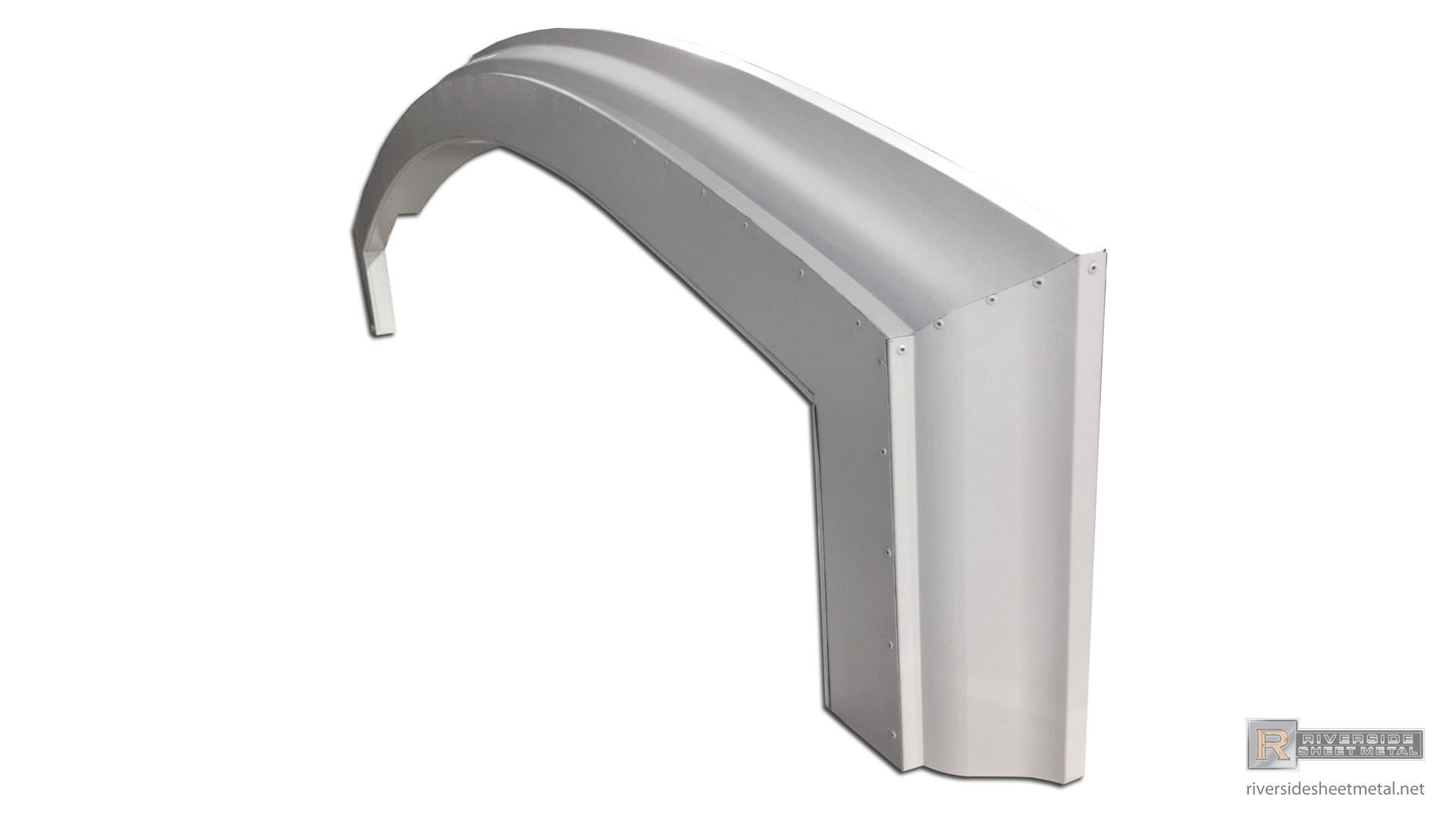

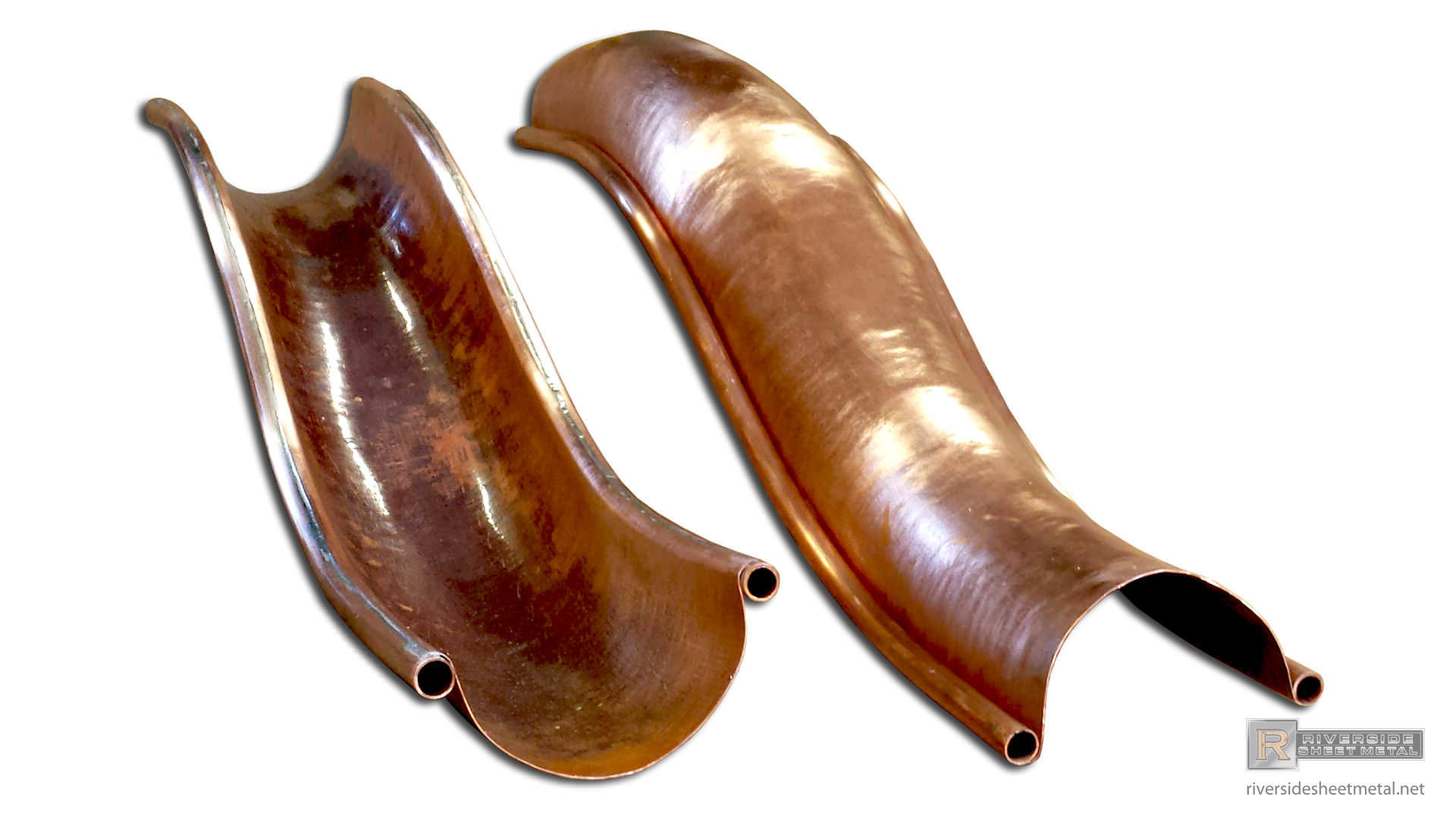

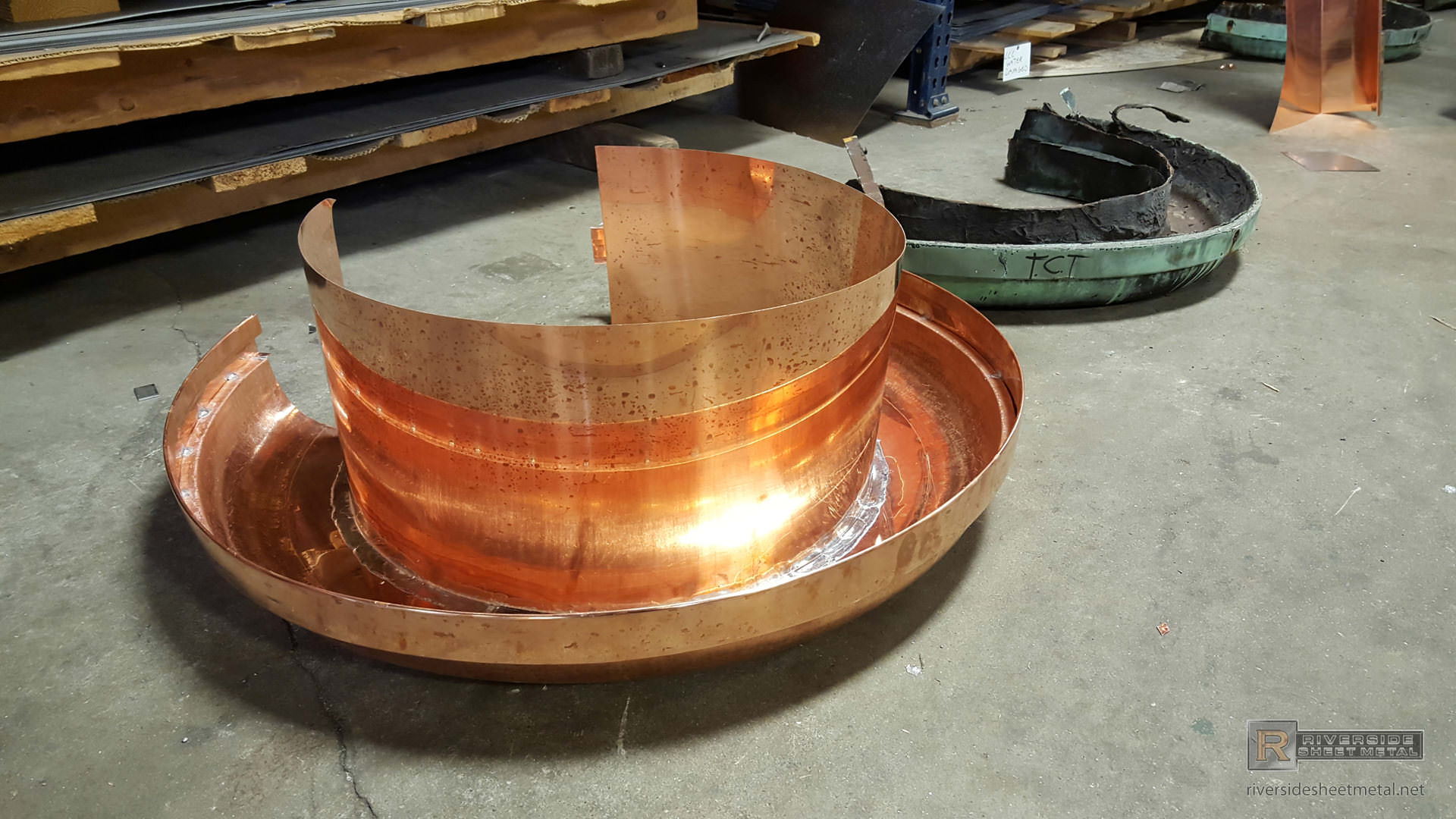

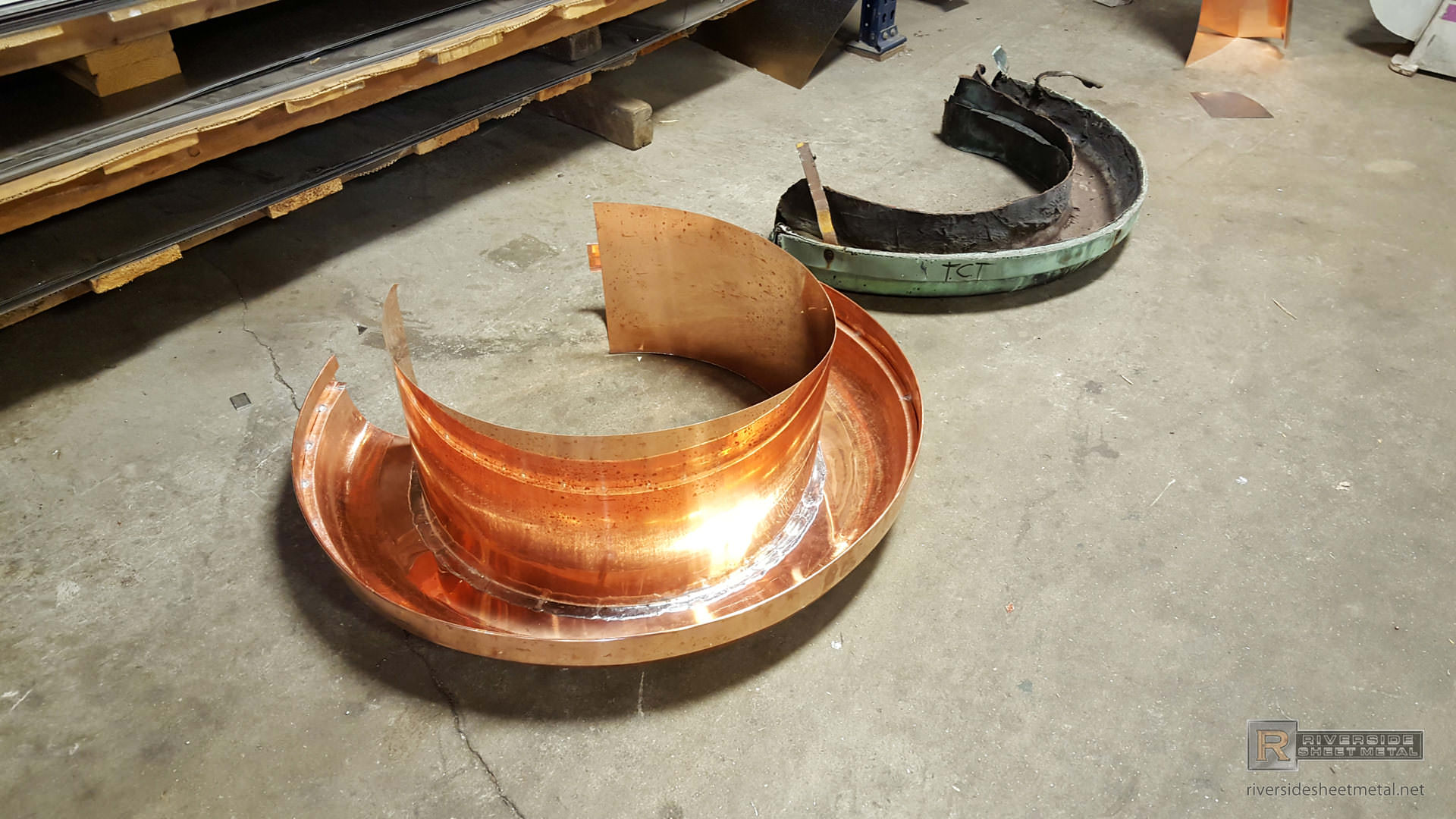

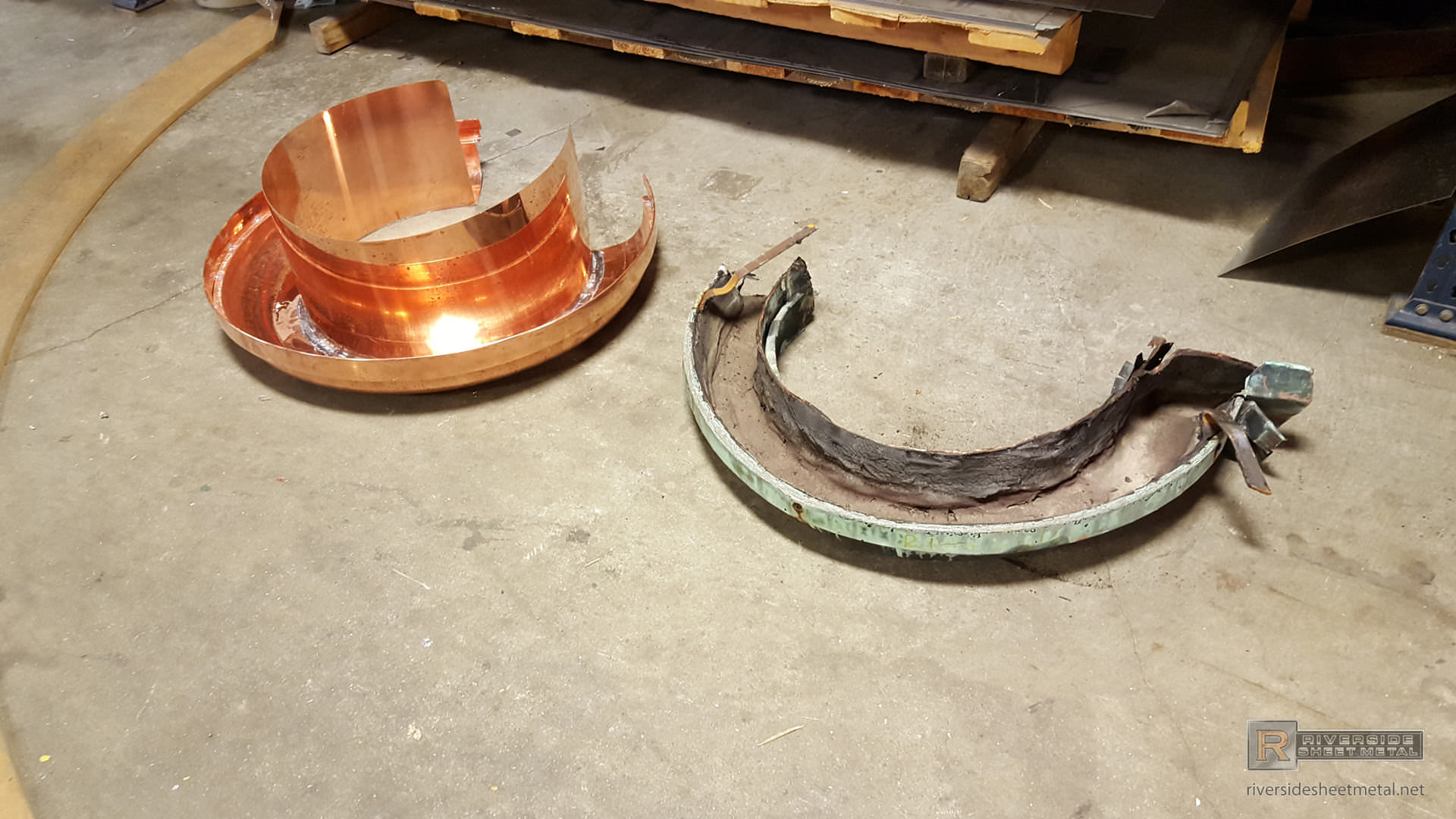

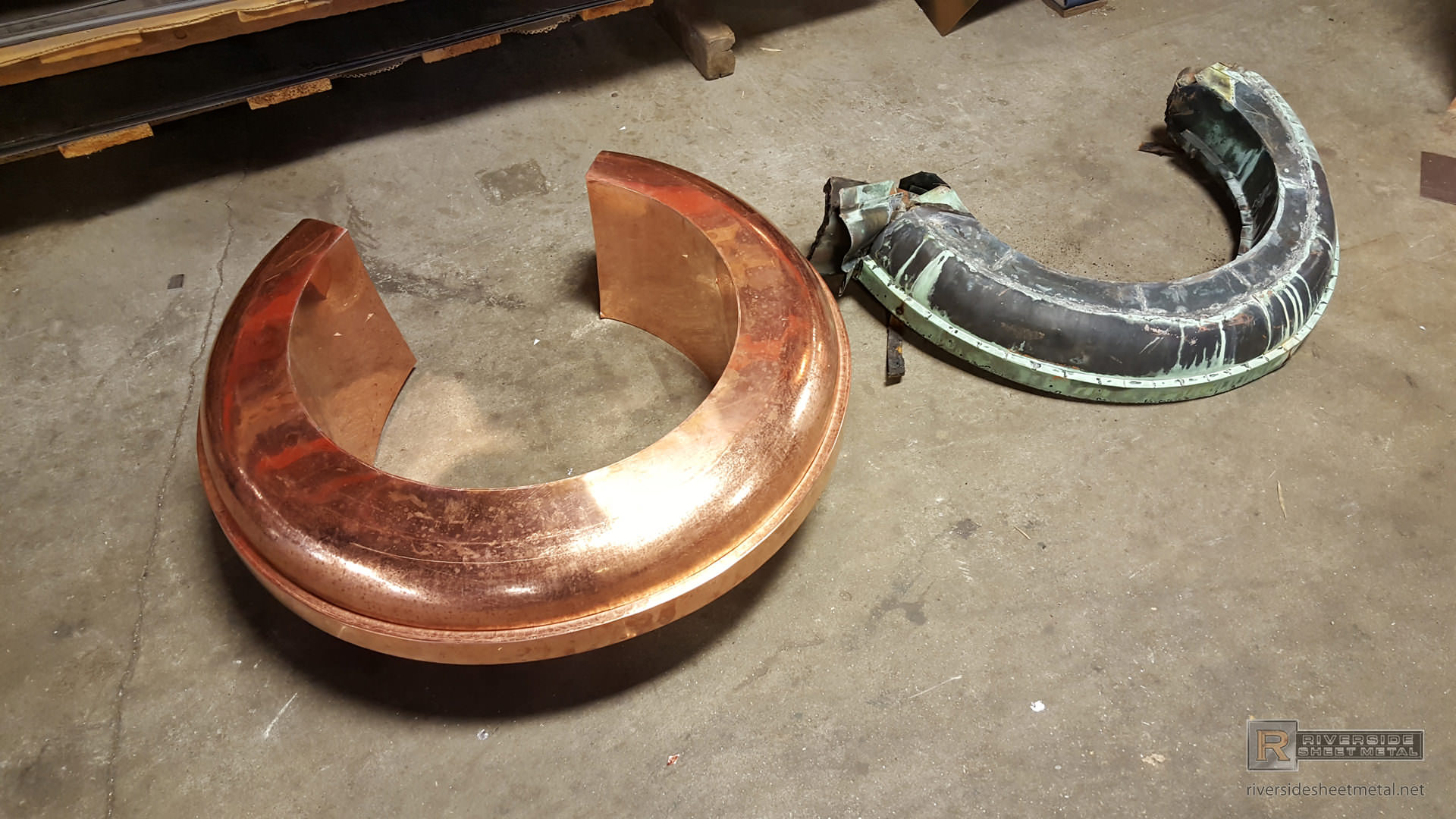

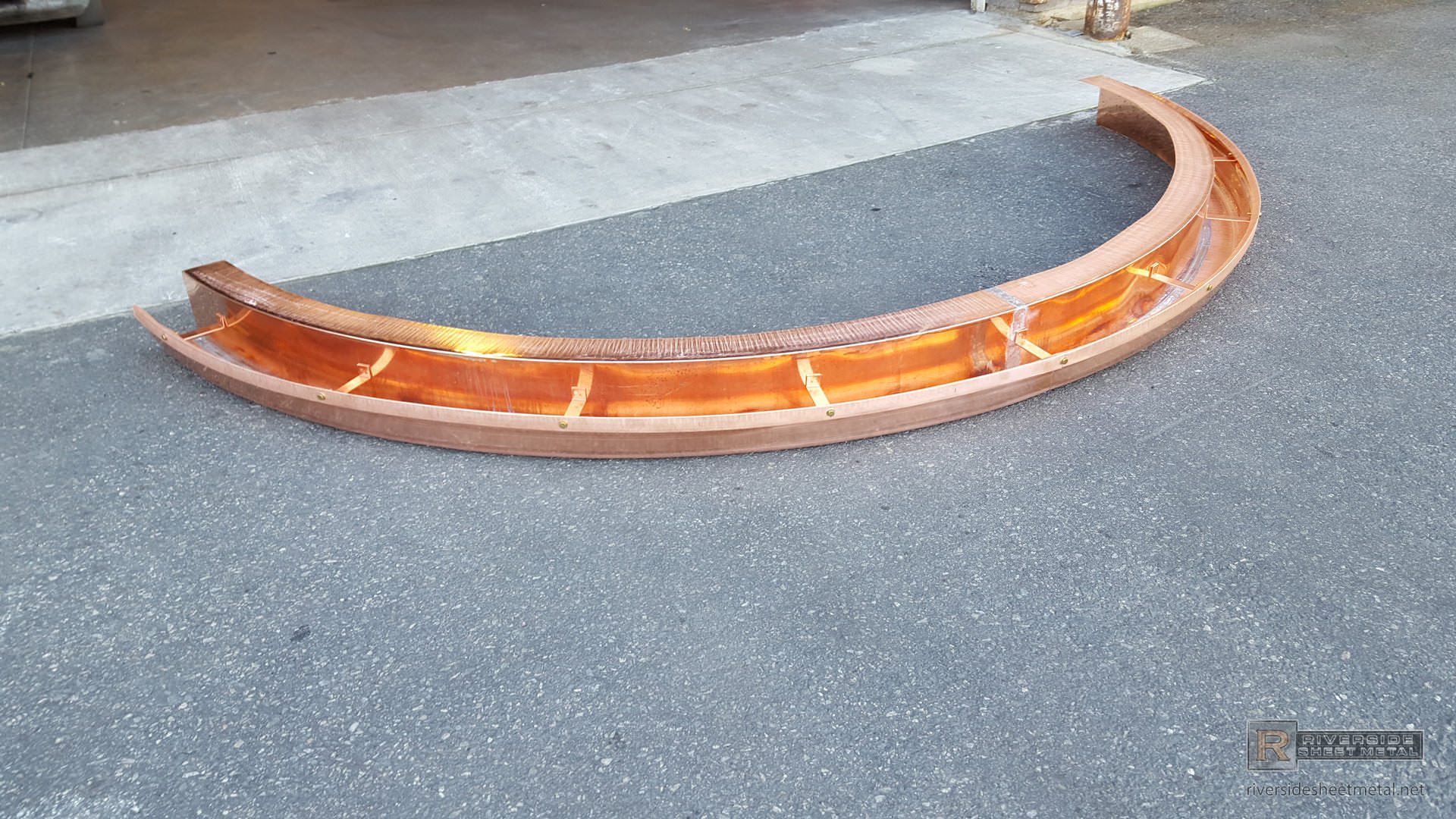

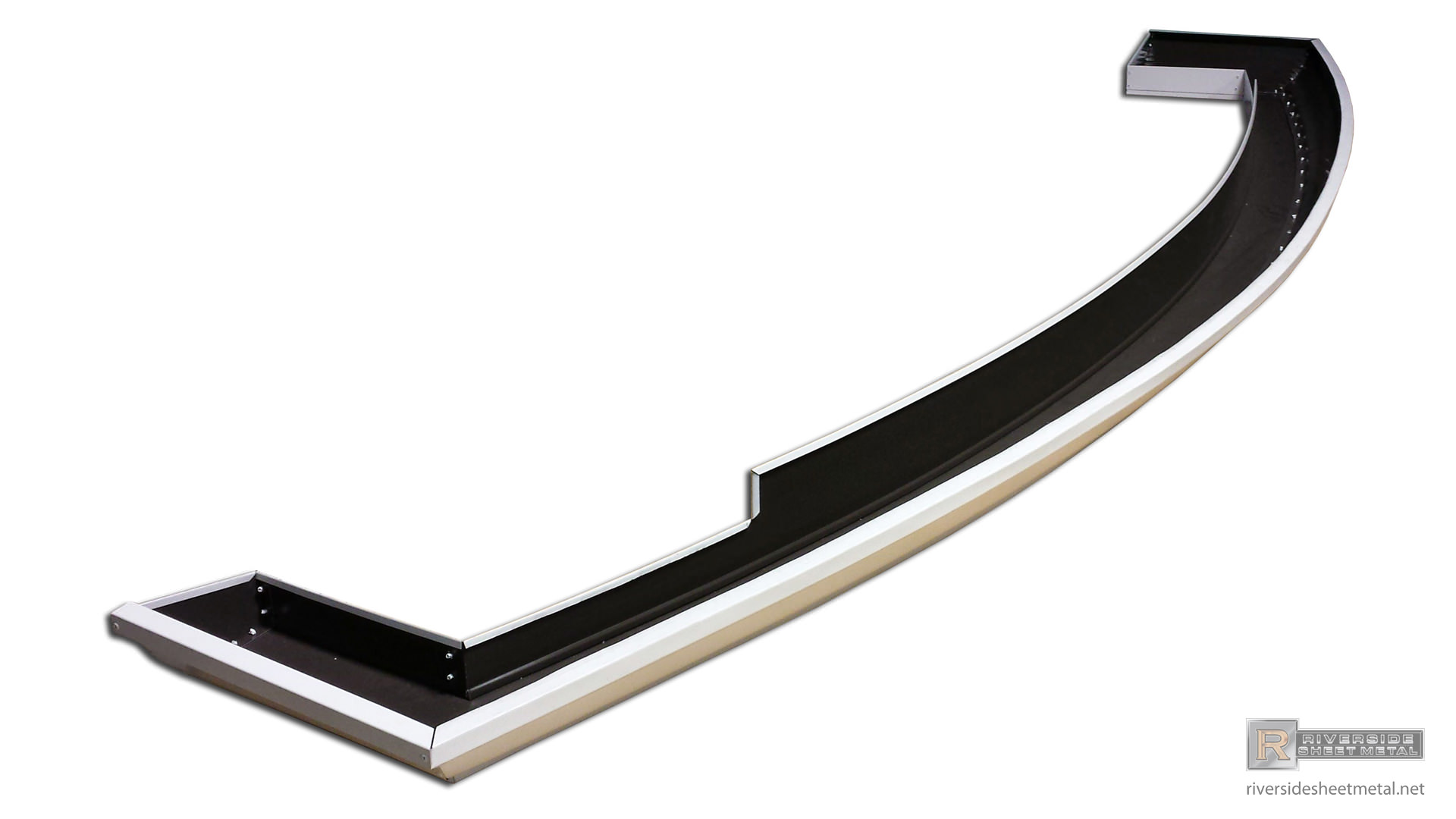

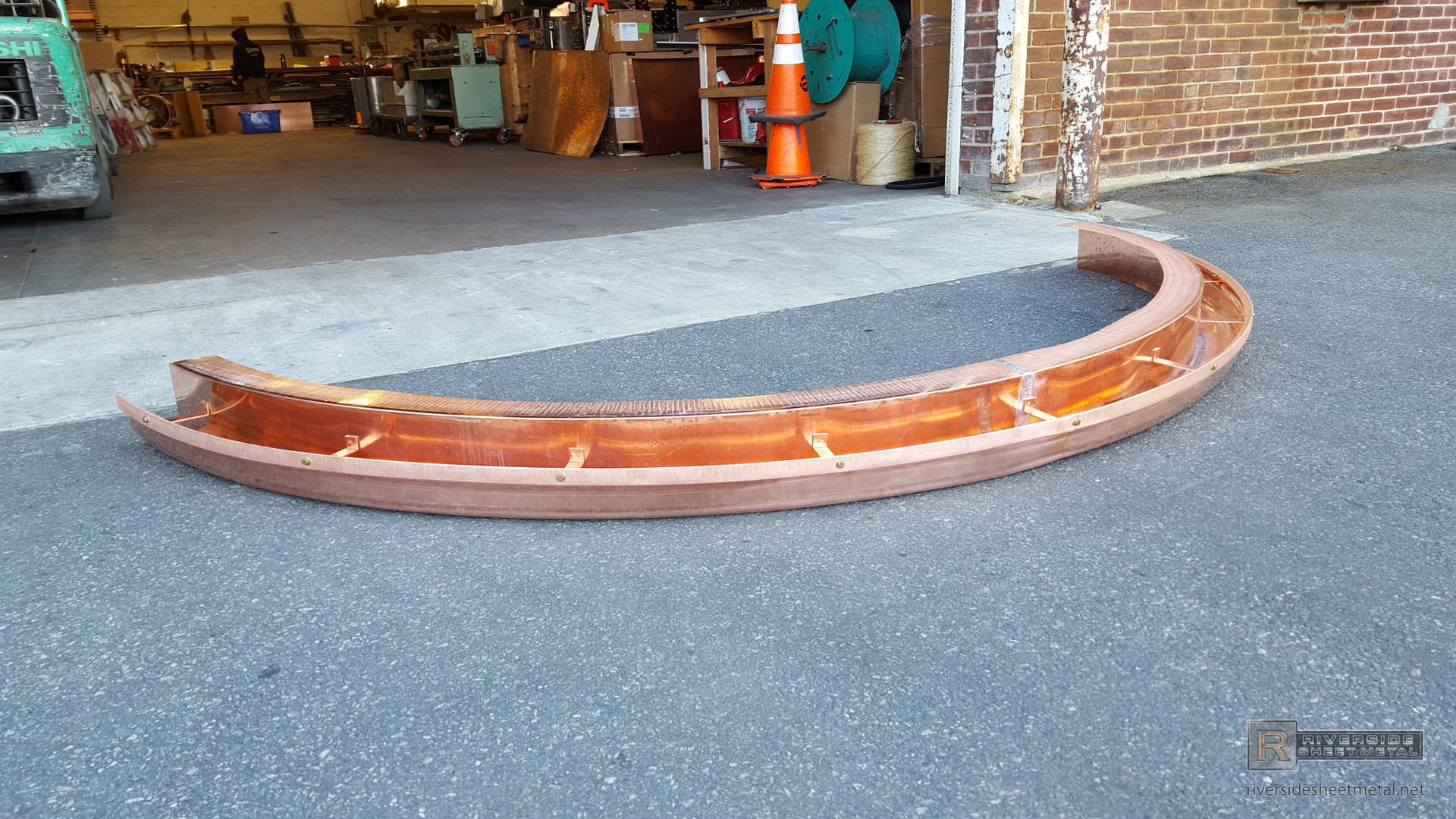

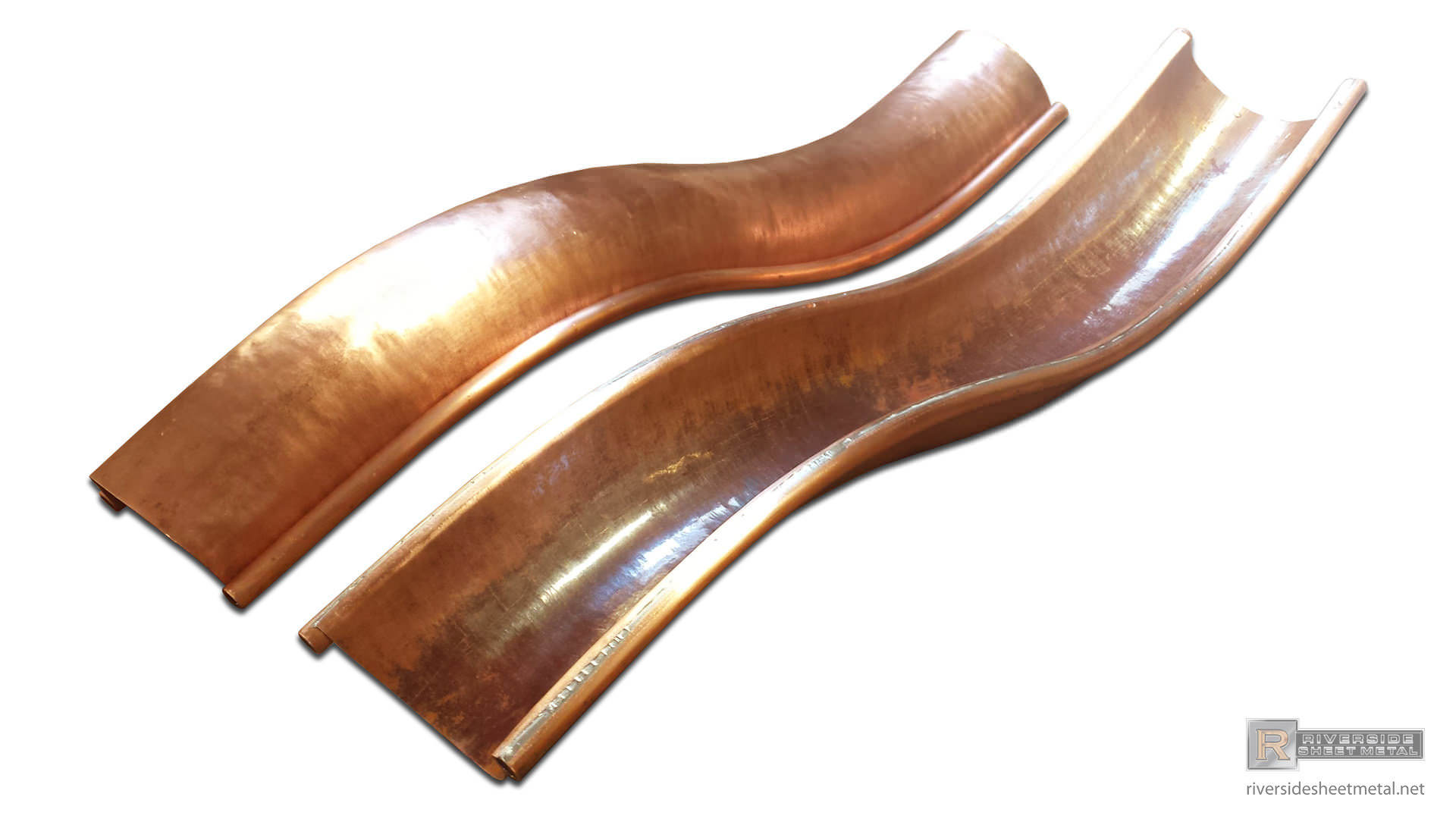

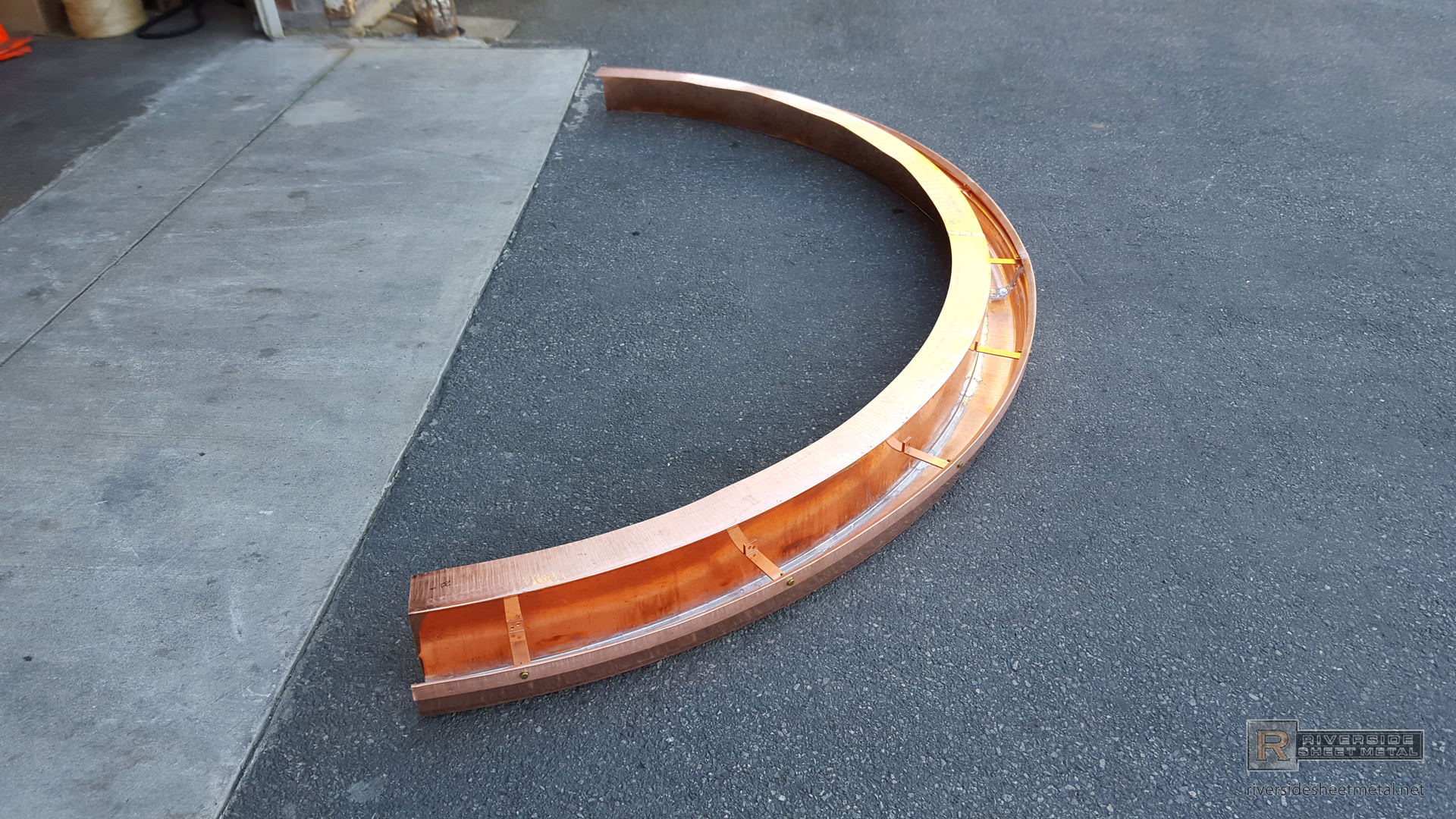

Radius copper gutter with custom profile and pre installed hangers - view 1 Radius copper gutter with custom profile and pre installed hangers - view 2 Radius copper gutter with custom profile and pre installed hangers - view 3 Radius copper gutter with custom profile and pre installed hangers - view 4 Radius copper gutter with custom profile and pre installed hangers - view 5 Custom radius white aluminum gutter with straight section - view 1 Custom radius white aluminum gutter with straight section - view 2 Custom profile on radius gutter made to replace old gutter - view 2 Custom profile on radius gutter made to replace old gutter - view 3 Custom profile on radius gutter made to replace old gutter - view 4 Custom profile on radius gutter made to replace old gutter - view 5 Custom profile on radius gutter made to replace old gutter - view 6 Custom profile on radius gutter made to replace old gutter Custom double bead half round radius copper gutter - view 1 Custom double bead half round radius copper gutter - view 2

Radius Gutter Liners

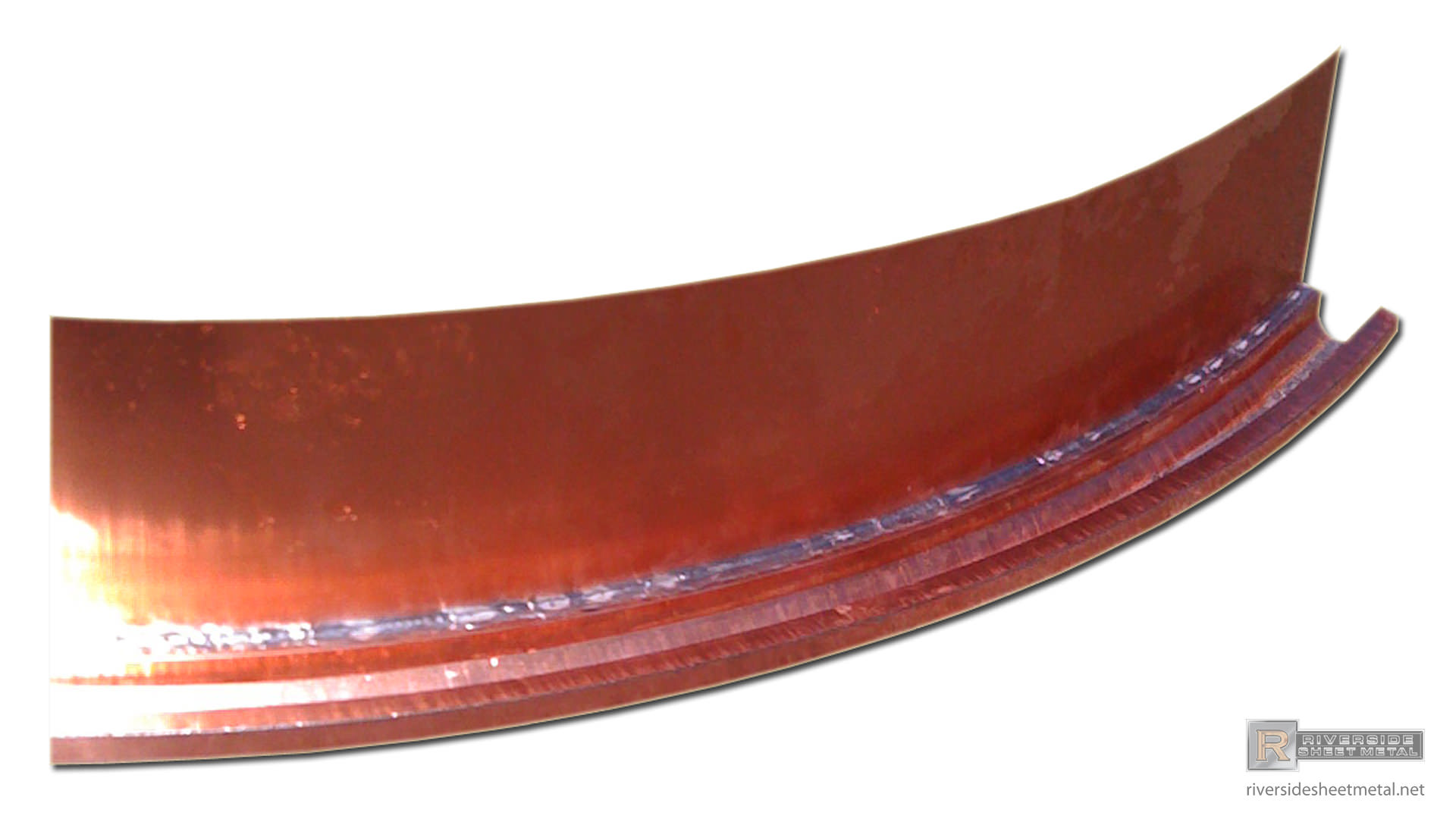

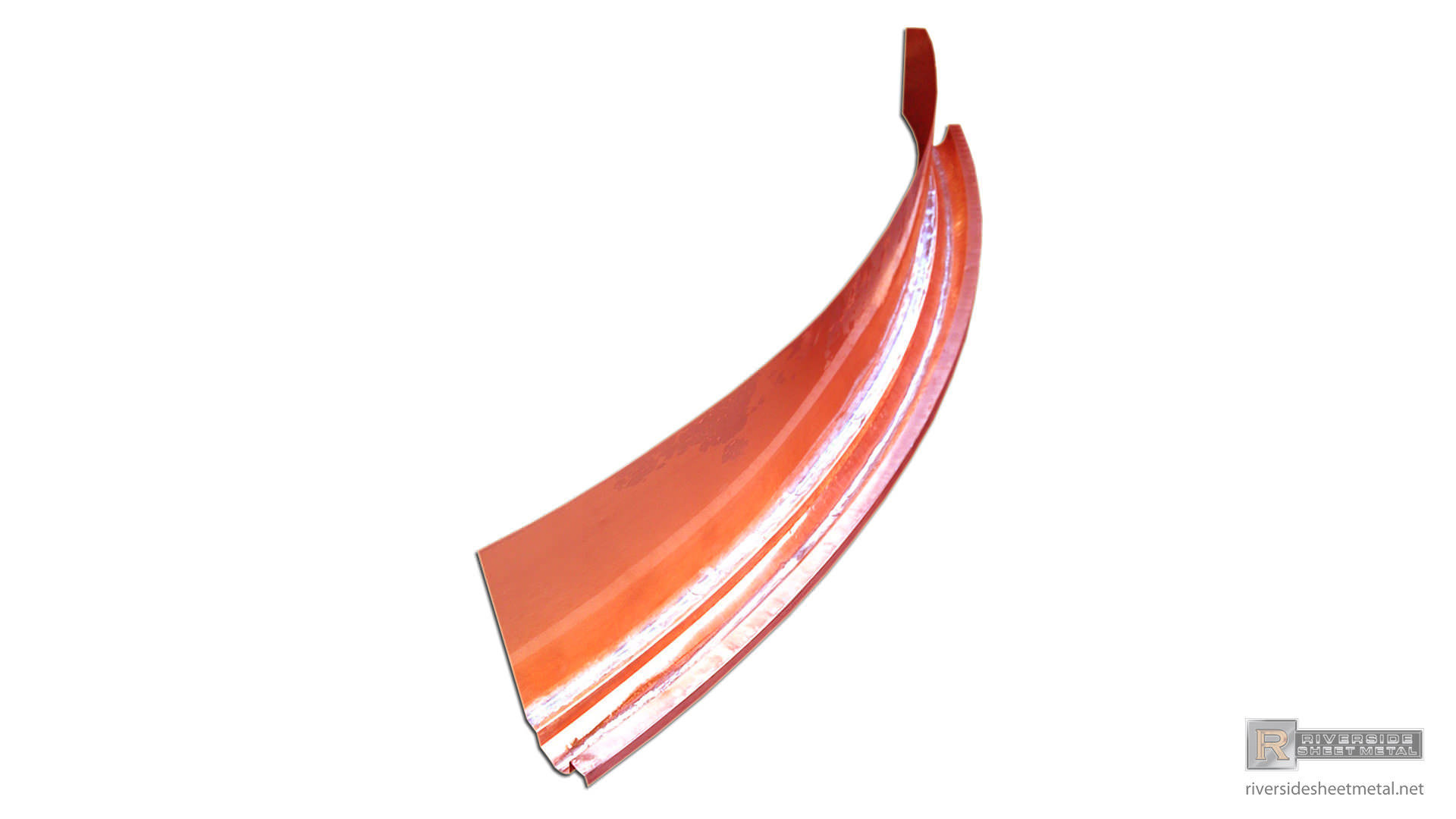

Radius copper gutter liner Custom radius gutter liner

Radius gutters are commonly fabricated with these materials:

Click here for a full list of colors and materials

Product Details

Gutter Profile Size Length Materials in Stock Radius Drawing
K-Style Seamless Gutter K-Style Gutters 5" & 6" Seamless Copper, Bronze and White Aluminum 1 Available PDF

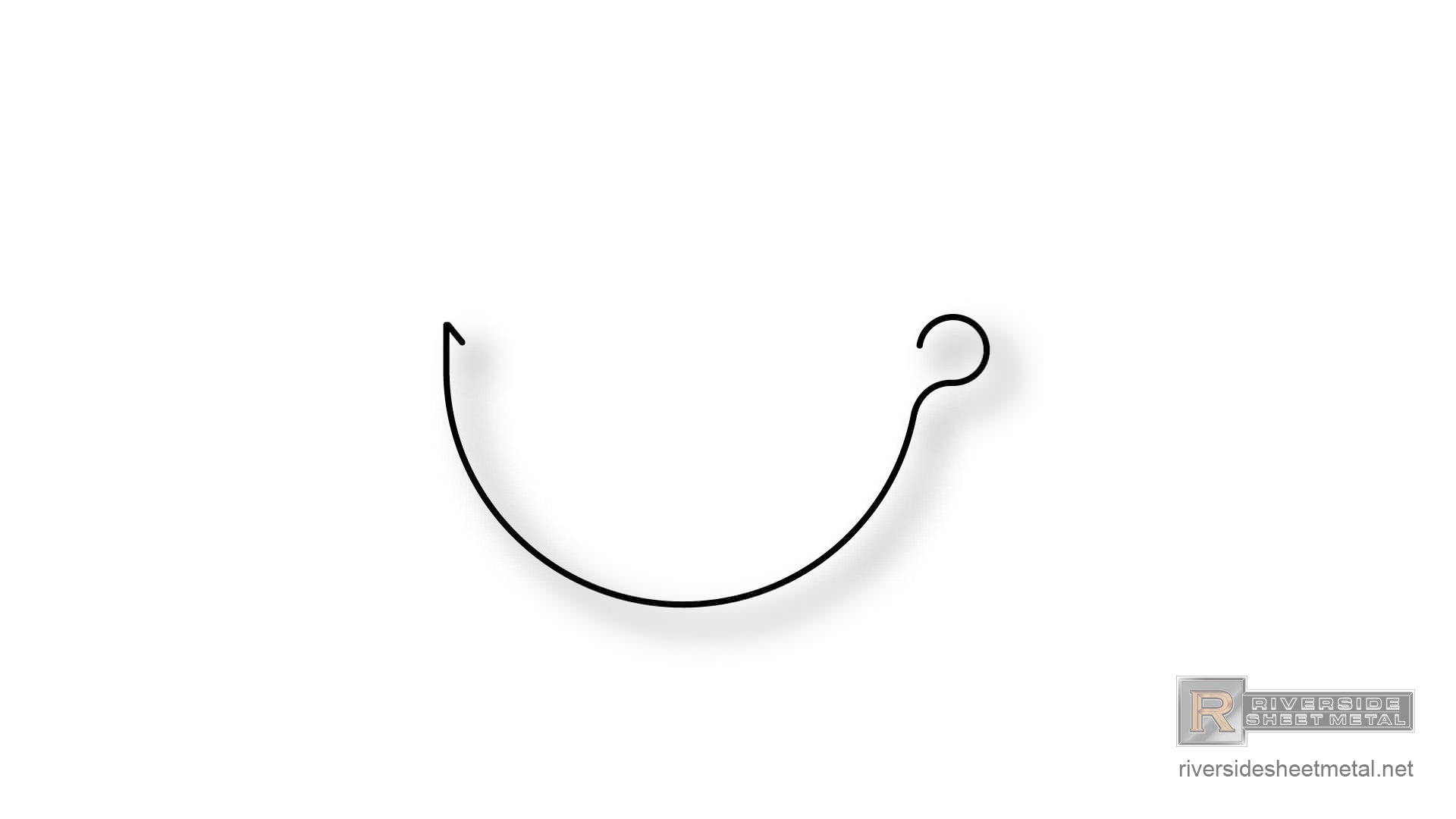

Single Reverse Bead Gutter Half-Round Gutters - Single Reverse Bead 5" & 6" Seamless Copper, Bronze and White Aluminum 1 Available PDF
Traditional Single Bead Gutter Half-Round Gutters - Single Traditional Bead 5", 6" and Custom 10' Lengths Any Feasible Material Available 2 Custom
Traditional Double Bead Gutter Half-Round Gutters - Double Traditional Bead 5", 6" and Custom 10' Lengths Any Feasible Material Available 2 Custom
Box Gutter Example Box Gutters 5", 6" and Custom 10'-12' Lengths Any Feasible Material Available 3 Custom
Brownstone Gutter Example Brownstone Gutters 5", 6" and Custom 10'-12' Lengths Any Feasible Material Available Custom
Custom Gutter Example Custom Gutters Custom 10'-12' Lengths Any Feasible Material Available 3 Custom
Gutter Liner Example Gutters Liners Custom 10'-12' Lengths Any Feasible Material Available 4 Custom

1 Other colors and materials available upon request. Read more.
2 Available as reverse bead only.
3 There are limitations on profiles. Some can be manufactured in one piece front to back while others need to be done in multiple pieces.
4 Depending on sizing and profile, gutter liners may need to be manufactured in small straight sections.


Accessories:

Riverside has all the accessories necessary for installation of standard gutters in stock, and can fabricate any custom items for any type of custom gutters, such as: custom hangers, end caps, downspouts, outlets and more.
Riverside will also pre-install hangers, pre-cut and / or solder miters, outlets, end caps and lead lines for any gutter application.


Installation Services:

We offer installation services up to 2 hours away from our location, depending on the job scope. While we do some simple k-style aluminum gutter installations (mostly when part of a bigger job), our specialty is custom work, more precisely copper, less common materials and gutter profiles.
