Hip roof angled 2 stage base protection copper chimney cap

Product Details

• Product Name: Hip roof angled 2 stage base protection chimney cap
• Item model number: CH034
• Available in these materials (others upon request):
• Size Availability: Item custom made to order by Riverside Sheet Metal in Medford, MA, USA. Available in any size.
• Shipping: Shipping available to all US states and internationally.

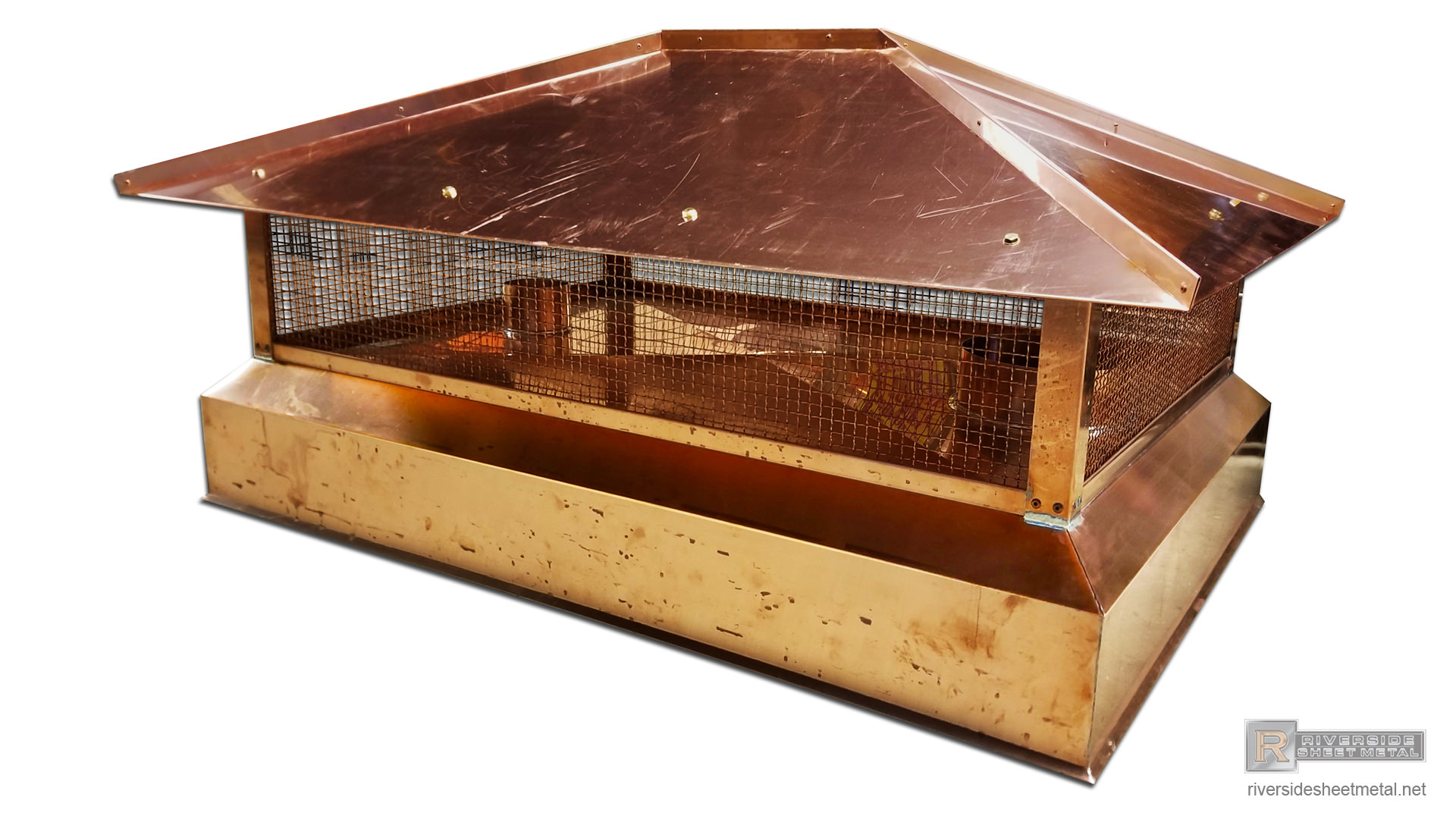

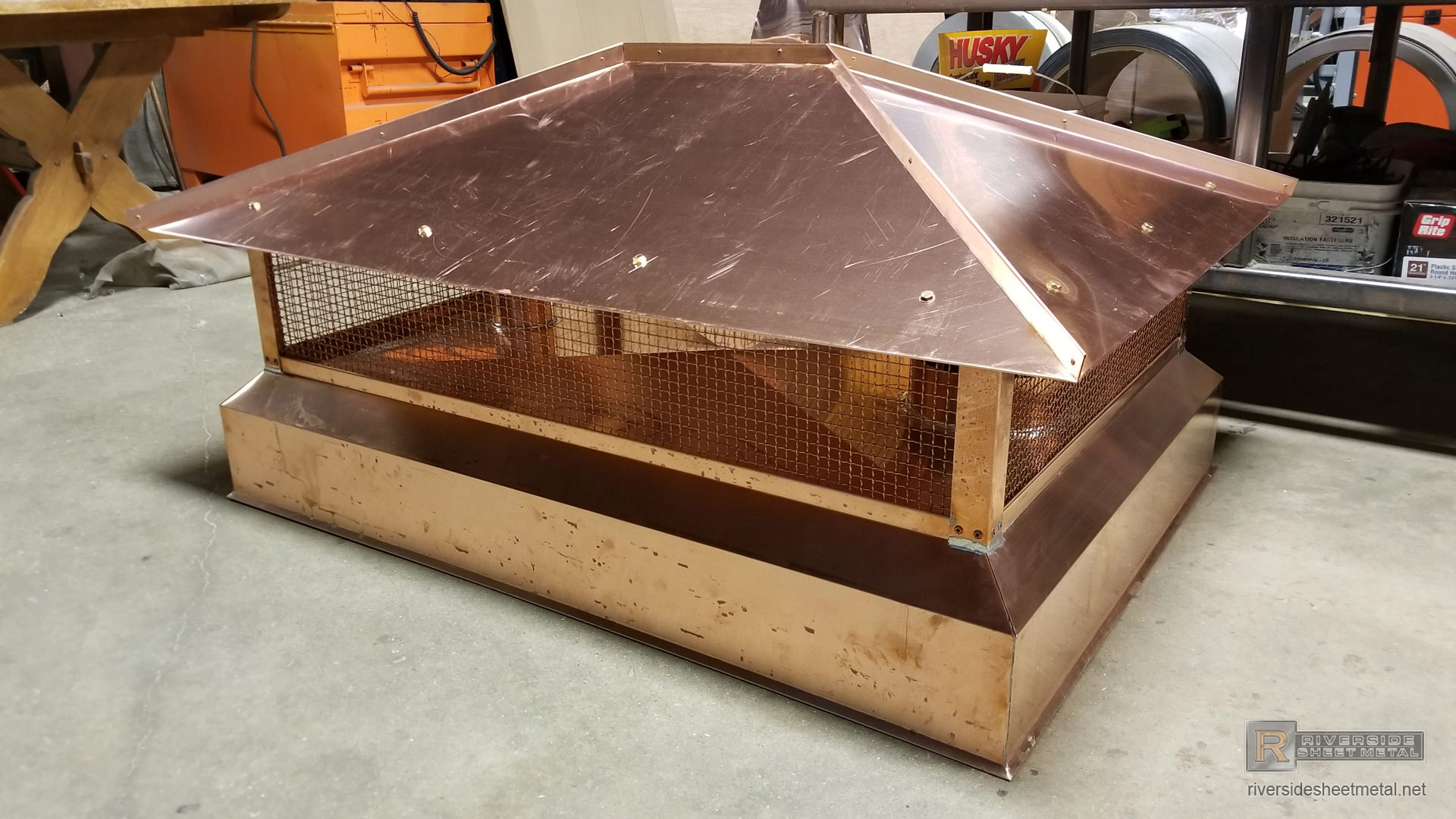

• Description: Much like the ever popular CH006 chimney cap, this model follows its design with a couple of changes: for side mounted choices, this can offer a angled base, as pictured, while the base itself is completely closed off with a chase pan built into it (CH005). The only opening(s) are the necessary ones for the flues, giving maximum protection to the chimney top against rain. It has the standard 2" wide x 3" tall flange for the base (normally for side mounting), but it can be made as a top mounted cap. Brass or stainless steel bolts and nuts are used to secure the removable roof portion. All seams are soldered and / or riveted or spot welded. Material type and thickness is subject to change as per customer's specifications.
  Normally fabricated with copper, pre-patina copper, lead coated copper, zinc, freedom gray and stainless steel.
